Moroso Products Alphabetical Index
| Scroll down to see what you need then cick on the page link to the right of the table if there is one. |
| . | Page(s) |
| RACE SUPPORT & CONTINGENCY | 1 |
| PRODUCT INDEX for this page only | 2-7 |
| NEW PRODUCTS FOR 2017 | 8-29 |
| OIL PANS & ACCESSORIES Small Block Chevrolet | 30-45 |
| OIL PANS & ACCESSORIES LS series |
|
| OIL PANS & ACCESSORIES LT series |
|
| OIL PANS & ACCESSORIES Big Block Chevy | 55-66 |
| OIL PANS & ACCESSORIES Chryler, Ford | 67-92 |
| OIL PANS & ACCESSORIES Oldsmoble | 93-101 |
| Oil Pan Accessories | 104-111 |
| OIL PUMPS | 112-133 |
| OILING SYSTEM | |
| VACUUM PUMPS & ACCESSORIES | |
| MOUNTING BRACKETS | |
| OIL PUMP & VACUUM PUMP DRIVE KIT & PULLEYS | |
| AIR/OIL SEPARATORS | |
| TANKS & COVERSALS | |
| TRANSMISSION PANS & ACCESSORIES | |
| CHEMICALS | |
| FASTENERS | |
| BRAKE & WHEEL EQUIPMENT | |
| TRICK SPRINGS | |
| TOOLS | |
| MOTOR & TRANSMISSION MOUNTS | |
| COOLING SYSTEM | |
| FUEL SYSTEM EQUIPMENT | |
| AIR CLEANERS & ACCESSORIES | |
| EXHAUST SYSTEM | |
| VALVETRAIN EQUIPMENT | |
| VALVE COVERS & Accessories | |
| IGNITION WIRE |
310-332 |
| IGNITION SYSTEM |
333-347 |
| ELECTRICAL SYSTEM |
348-359 |
| REAR AXLE EQUIPMENT |
360-361 |
| SHEETMETAL & BODY |
362-363 |
| STEERING |
364 |
| TIRES |
365-366 |
| APPAREL |
367-368 |
|
|
|
C (con’t) Cooling System Equipment.. 18-19, 245-257 D Drive Kit,Water Pump........................... 249 Driveshaft Loops................................... 243 |
|
I In-line Fuel Filters.................... 22, 269 J Jet Extensions, Holley®............... 264 M Manifold Filler Neck Kit......... 254-256 Momentary Switch 356 |
|
|
|
M (con’t) Motor & Transmission Mounts.................. 241-244 Mounting Bracket Remote Thermostat Housing 257 |
|
|
|
T (con’t) Transmission Mounts, Solid.................. 242-244 |
|
SOLID STEEL MOTOR MOUNTS CHEVROLET MOTOR MOUNTS • Replace stock, OEM-style rubber mounts to eliminate torque loss and binding linkages, a common result of excessive engine movement • Eliminates the need for bulky torque straps and chains • Protective zinc plated finished steel, two per pack • Refer to Motor Mount chart and dimensional diagram for your specific application |
| PART # | Description | Dimensions See Diagram Above | Replaces |
| 62500 $51.17 | Chevrolet Motor Mounts | A: 1-11/16" B: 2-1/2", .250" zinc plated steel | Replaces OEM #3990914 |
| 62510 $45.81 | Chevrolet Motor Mounts | A: 2-1/8" B: 2-3/8", .188" zinc plated steel | Replaces OEM #3962748 |
| 62515 $45.75 | Chevrolet Motor Mounts | A: 2-9/32" B: 2-3/8", .188" zinc plated steel | Replaces OEM #332648* |
| 62530 $47.12 | Chevrolet Motor Mounts | A: 1-3/4" B: 2-5/8", .188" zinc plated steel | Replaces OEM #6258154 |
| Model | Year | Engine | Part # |
| Full Size | 1958-’60 | 283, 348 | 62500 $51.17 |
| 1961 | 283, 348 | 62500 $51.17 | |
| 409 | 62530 $47.12 | ||
| 1962-’65 | 283, 327 | 62500 $51.17 | |
| 396, 409, 427 | 62530 $47.12 | ||
| 1966-’67 | 283, 327 | 62500 $51.17 * | |
| 396, 427 | 62530 $47.12 | ||
| 1968-’69 | 307 (Exc. Police) | 62500 $51.17 | |
| 307 (Police) | 62530 $47.12 | ||
| 327 | 62500 $51.17 * | ||
| 396, 427 | 62510 $45.81 | ||
| 1970-’72 | 350 (w/ 2 bbl. carb.) | 62500 $51.17 | |
| 454 | 62510 $45.81 | ||
| 1976-’90 | 307, 350 | 62515 $45.75 | |
| Camaro | 1967-’68 | 302 | 62530 $47.12 |
| 327 | 62500 $51.17 | ||
| 350, 396 | 62530 $47.12 | ||
| 1969 | 302 | 62510 $45.81 | |
| 307 | 62500 $51.17 | ||
| 350 | 62510 $45.81 | ||
| 1970-’73 | 350 (Exc. Spec. Hi. Perf.) | 62500 $51.17 | |
| 350 (Spec. Hi. Perf.) | 62510 $45.81 | ||
| 396, 402 | 62530 $47.12 | ||
| 1974-’81 | 307, 350 | 62515 $45.75 | |
| 1982-’92 | 305, 350 | 62510 $45.81 | |
| . | |||
| Model | Year | Engine | Part # |
| Chevelle | 1964-’67 | 283, 327 | 62500 $51.17 |
| 396, 427 | 62530 $47.12 | ||
| 1968-’69 | 307, 327, 350 | 62510 $45.81 | |
| 396 | 62530 $47.12 | ||
| 1970-’72 |
307, 350, 402, 454 |
62510 $45.81 | |
| 1973-’88 |
307, 350, 402, 454 |
62515 $45.75 | |
| Chevy II | 1964-’67 | 283, 327 | 62500 $51.17 |
| NOVA | 1968-’69 | 327 | 62500 $51.17 |
| 350 | 62510 $45.81 | ||
| 396 | 62530 $47.12 | ||
| 1970-’72 | 350 (Exc. Spec. Hi. Perf.) | 62500 $51.17 | |
| 350 (Spec. Hi. Perf.) | 62510 $45.81 | ||
| 396, 402 | 62530 $47.12 | ||
| 1973-’79 | 307, 305 | 62515 $45.75 | |
| Corvette | 1963-’64 | 327 | 62530 $47.12 |
| 1965 | 327, 396 | 62530 $47.12 | |
| 1966-’68 | 327, 427 | 62530 $47.12 | |
| 1969 | 327, 350, 427 | 62530 $47.12 | |
| 1970-’74 | 350, 454 | 62530 $47.12 | |
| 1975-’82 | 305, 350 | 62530 $47.12 | |
| Monte Carlo | 1970-’72 | 350, 402, 454 | 62510 $45.81 |
| 1973-’87 | 307, 350 | 62515 $45.75 | |
| Some models use No. 62510, check dimensions of original mounts. #Use with Moroso Frame Mounts No. 62610. |
| *NOTE: To prevent premature engine mount failure, we recommend using Moroso’s Steel Motor Mounts, sold above, with Competition Engineering’s Engine Limiter, Part No. C4034, sold on page 415. |
|
• 1/16", 1/8" and 3/16" thick, 2 ea. • Standard Chevrolet bolt pattern • Works great with Chevy Motor Mounts 62500, 62510, 62515, 62530, & 62550. • Used to make slight adjustments to engine height to compensate for minor oil pan, linkage and header interference • Great addition to engine swap kits |
| PART # | DESCRIPTION |
| 62535 $61.95 | Motor Mount Shim Kit |
|
CHEVY SOLID MOTOR MOUNT PAD KITS • Solid Mount Pads replace soft rubber-cushioned frame mounts supplied as OEM equipment on 1974-'97 Camaro and Firebirds and other GM vehicles • Control excessive engine movement, prevent linkage binding and eliminate the need for torque straps • Two per pack |
| PART # | DESCRIPTION |
| 62610 $55.26 * | Solid Motor Mount Pad Kit. Zinc Finish Use with Moroso Motor Mounts No. 62510 $45.81 Fits: 1982-'92 Camaro and Firebird, SBC, BBC and 90° Chevy V6. |
| 62630 $83.54 * | Solid Motor Mount Pad Kit, Zinc Finish Use with Moroso Motor Mounts No. 62515 $45.75 Fits: 1974-'81 Camaro, Firebird; 1973-'88 Chevelle, Malibu, Monte Carlo, El Camino; 1973-'79 Nova; 1976-'90 Impala, Caprice; Small Block. |
| 62635 $118.60 * | Solid Motor Mount Pad Kit. Zinc Finish Fits: 1993-'97 Camaro and Firebird V8 |
| *NOTE: Solid Transmission Mounts must be used in conjunction with Solid Motor Mounts to prevent breakage of engine block and transmission case due to torsional stress. |
|
Fabricated Chassis • Designed primarily for oval track or any fabricated chassis application (they do not fit any particular OEM chassis) • Allows for quick, easy engine removal and reinstallation • Manufactured from .250" thick steel with zinc plating to resist corrosion |
| PART # | DESCRIPTION |
| 62550 $36.32 | Chevrolet Motor Mounts, .250" Zinc Finish, Two per pack Fits: SBC, BBC and 90° Chevy V6 in fabricated chassis |
|
• Replaces stock, OEM-style soft rubber mount to eliminate
linkage binding, driveline misalignment and unwanted transmission
movement in racing and street performance applications • Sturdy mount is constructed from 3/16" steel and features slotted holes on top for transmission mounting and threaded nuts welded to bottom for crossmember mounting • Black zinc finish |
| PART # | DESCRIPTION |
| 62600 $41.66 * | Solid Transmission Mount Fits: 1958-'88 Chevy with Powerglide, TH-350, TH-400 and all Borg-Warner, Muncie, Saginaw, Chrysler 4-speed and Doug Nash 5-speed transmissions, except 1982-92 Camaro and Firebird |
| *NOTE: Solid Transmission Mounts must be used in conjunction with Solid Motor Mounts to prevent breakage of engine block and transmission case due to torsional stress. |
|
MOTOR MOUNT ADAPTER PLATES FOR LS SERIES • Simple and efficient way to adapt motor mounts to fit LS Series Engines • Manufactured from 6061 T-6 Aluminum • Black anodized finish resists corrosion • Works with G.M. Factory 3-Bolt Mounts and Moroso Solid Motor Mounts Nos. 62500, 62510, 62515, 62530, & most aftermarket polyurethane mounts |
| PART # | DESCRIPTION |
| 62555 $129.42 * | Motor Mount Adapter Plates for LS Series, Two per pack, with hardware |
|
Camaro LS, LT, SS, ZL1, 2010-2015 • Bolt-on design allows easy installation with no modifications required • Removable loop for easy driveshaft removal • Meets the requirements of all racing sanctioning bodies • Will help contain the driveshaft in the event of a front U-joint failure, keeping it from digging into the ground and possibly overturning the vehicle • Manufactured from heavy-gauge fabricated steel • Durable gloss black powder finish • All hardware included |
| PART # | DESCRIPTION |
| 62640 $206.39 | Driveshaft Loop, Camaro LS, LT, SS, ZL1, 2010-2015, Standard Transmission |
| 62641 $206.39 | Driveshaft Loop, Camaro LS, LT, SS, ZL1, 2010-2015, Automatic Transmission |
| PART # | DESCRIPTION |
| 62520 $45.75 | Chrysler Motor Mounts, .187" Zinc Plated Steel. Two per pack. Replaces OEM #2536121 |
| 62540 $66.00 | Chrysler Motor Mounts, .187" Zinc Plated Steel. Two per pack. Replaces OEM #2806779 |
| DODGE, PLYMOUTH MOTOR MOUNT APPLICATION CHART |
| Model | Year | Engine | Part # |
| DART, VALIANT, DEMON, DUSTER | 1967-’72 | 273, 318, 340, 360 | 62540 $66.00 |
| BARRACUDA, CHALLENGER | 1967-’69 | 273, 318, 340. 360 | 62540 $66.00 |
| 1970-’74 | All 8 cyl. (exc. Hemi) | 62520 $45.75 | |
| CORONET, SUPER BEE, BELVEDERE, FURY, ROAD RUNNER, SATELLITE, GTX, POLARA | 1966-’72 | All 8 cyl. (exc. Hemi) | 62520 $45.75 |
|
FORD MOTOR MOUNTS • Extra-thick 3/16" steel Motor Mounts are gusseted for extra strength • Pre-welded Grade 8 studs withstand the high-torque, high-horsepower loading encountered during hard acceleration • Reaction and 60-foot times are improved since engine movement in the chassis is eliminated, instantaneously transferring power to the rear wheels • Clutch linkage binding is eliminated, ensuring improved shifts • Manufactured on computer-controlled equipment for unsurpassed quality and precise fit • Finished with protective zinc plating • Solid Motor Mounts must be used in conjunction with Solid Transmission Mounts to prevent breakage of engine block and transmission case due to torsional stress • Two per pack |
| PART # | DESCRIPTION |
| 62544 $122.77 * | Ford Motor Mounts, .187" Steel Fits: 1979-'83 & 1993 Mustang 5.0L Engines |
| 62545 $122.77 * | Ford Motor Mounts, .187" Steel Fits: 1984-'92 Mustang Hardtops and 1990-'92 Convertibles with 5.0L Engines |
|
• Replaces stock, soft rubber mount to eliminate linkage
binding, driveline misalignment and unwanted transmission movement
in racing and street performance applications • Constructed from rugged 3/16" steel with pre-welded studs and yellow protective zinc finish • Computer-controlled manufacturing insures precise fit and alignment for easy installation |
| PART # | DESCRIPTION |
| 62602 $43.05 * | Solid Transmission Mount Fits: 1987-'93 Mustang, T-Bird and other Ford Models equipped with A.O.D. 4-Speed Automatic or 5-Speed Manual Transmissions |
| *NOTE: Solid Transmission Mounts must be used in conjunction with Solid Motor Mounts to prevent breakage of engine block and transmission case due to torsional stress. |
|
Our durable and popular line of Water Pumps have been redesigned
with an ultra-light housing • Each Pump plate has been re-profiled and pocketed to remove unnecessary weight • Average overall pump heights have been shortened by 3/4" and up to 2 lbs. weight reduction on average per pump • Electric motor with heavy-duty windings, precision balancing, long-life brushes, stainless steel shaft and sealed ball bearings is superior in quality and pumps more water through the system during actual operating conditions than competing pumps • Mounts directly to stock water pump location, includes stainless steel mounting hardware & gasket for simple installation • Eliminates drive belt and fan to save weight and horsepower, while providing maximum circulation to improve cooling efficiency during all driving conditions, especially while idling • Compatible with 12 and 16 volt systems • High-temperature VitonR seal eliminates leaks • Machined with -16AN port (except B.B. Mopar) for easier installation of our hose adapters, eliminating the need for teflon tape or pipe sealants • Pumps can easily accommodate lower radiator hose from either driver or passenger side installations • Clear anodized 6061-T6 billet aluminum pump housing, impeller, pump plate and motor cap along with powder-coated outer case will provide years of dependable operation • Draws 8-10 amps in a typical 12V system, so it can be used on drag racing car without an alternator |
| BILLET ELECTRIC WATER PUMPS APPLICATION CHART |
| PART # | Engine | Notes |
Height (Inches) |
Weight (w/ Spacers, Hardware, Backing Plate, ETC.) |
| 63547 $515.46 | Big Block Chevy | . | 6.375 w/spacers | 7.15 lbs |
| 63557 $557.42 | Small Block Chevy | . | 6.218 w/ spacers | 7.03 lbs |
| 63565 $566.93 | Chrysler 273-360 | . | 4.600 | 6.29 lbs |
| 63575 $548.05 | Chrysler 383-440 | . | 3.100 | 4.54 lbs |
| 63585 $573.59 | Ford 289, 302, 351W Pre-'94 & 351W | Standard Rotation only | 4.625 | 6.23 lbs |
| 63595 $612.79 | Ford 429-460 | . | 4.75 | 7.00 lbs |
| PART # | REPLACEMENT FOR 63575. |
| 97275 $30.93 | Seal kit Fits: GM LS Series Patent Pending |
|
• Mounts directly to the stock water pump location • Weighs 8.66 lbs. • Eliminates bulky LS water pump with a more compact, cost-effective pump • Drive belt is eliminated to save horsepower, while providing maximum circulation for cooling efficiency during all driving conditions, especially while idling • Can be used with Moroso No. 63836, Alternator/Vacuum Pump Mount • Compatible with 12 and 16 volt systems • Draws 8-10 amps in a typical 12V system, so it can be used on drag racing car without an alternator • Requires the use of a Remote Thermostat Housing such as Part No. 63425, or 63426. |
| PART # | DESCRIPTION |
| 63566 $743.72 | Electric Water Pump, GM LS Series |
| BILLET ELECTRIC WATER PUMPS AND ADAPTERS |
|
WATER PUMP, BILLET ELECTRIC Remote Mount • Use as a supplemental pump in remote cooling situations when space limits prohibit use of an engine mounted pump • Weighs 5.94 lbs. with fittings • Superior electric motor with heavy-duty windings, precision balancing, long life brushes, stainless shaft and sealed ball bearings pumps more water through the system than competitors’ pumps! • Clear anodized 6061-T6 billet aluminum pump housing, impeller and motor cap with a powder-coated outer case will provide years of dependable operation • Draws 8-10 amps in a typical 12V system, so it can be used on drag racing car without an alternator • Drive belt is eliminated to save horsepower, while providing efficient circulation for cooling, especially while idling • Can be mounted vertically or horizontally • Features a -16 AN O-ring inlet port, four -12 AN outlet ports, two -12 AN port plugs for different plumbing options • High-temperature Viton® seal eliminates leaks |
| PART # | DESCRIPTION |
| 63570 $661.43 | Water Pump, Billet Electric, Remote Mount |
| PART # | AVAILABLE OPTION |
| 63571 $44.44 | Stainless Steel Mounting Plate, can be rotated 360° in 45° increments |
| ELECTRIC WATER PUMP/ RADIATOR HOSE ADAPTERS |
| . |
|
|
|
|
HOSE ADAPTERS for Electric Water Pump Motor - BLACK Finish/Anodized Billet ALUMINUM End Cap |
HOSE ADAPTERS for Electric Water Pump Motor BLACK Finish | HOSE ADAPTERS for Electric Water Pump Motor - BLUE Finish | |
| /Desc. | Part # | Part # | Part # |
| 1" NPT to -16AN Male | N/A | 63541 $34.90 | 63541 $34.90 |
| 1" NPT to 1-1/2" hose | N/A | 63542 $30.94 | 63542 $30.94 |
| 1" NPT to 1-3/4" hose | N/A | 63543 $36.33 | 63543 $36.33 |
| 1" NPT to 1-1/4" hose | N/A | 63544 $33.60 | 63544 $33.60 |
| -16AN to -20AN Male | 63525 $39.06 | N/A | N/A |
| -16AN to -16AN Male | 22622 $33.63 (see pg. 150) | N/A | N/A |
| -16AN to 1-3/4" hose | 63523 $36.26 | N/A | N/A |
| -16AN to 1-1/2" hose | 63522 $30.97 | N/A | N/A |
| -16 AN to 1-1/4" hose | 63521 $30.89 | N/A | N/A |
|
REMOTE WATER PUMP KIT, SMALL BLOCK FORD WITH JESEL DRIVE Fits: Ford 289-302 & 351W with JESEL Part No. 34170 & 34175 Front Belt Drives • Billet Aluminum 1 Inch adapter plate bolts on to where the water pump wouldnormally reside on an engine, allowing the use of a remote water pump • The adapter plate has two –12 AN female ports • Includes o-rings and stainless steel socket head cap screws • Hardware is long enough to accommodate a front motor plate |
| PART # | DESCRIPTION |
| 63519 $117.36 | Remote Water Pump Kit, Small Block Ford with Jesel Front Belt Drive |
| PART # | AVAILABLE OPTION |
| 63570 $661.43 | Remote Mount Electric Water Pump |
| 22620 $20.17 | AN Fitting, -12AN to –12AN, 1 per package |
|
WATER PUMP ADAPTER KIT Fits: GM LS Series Patent D645,478 • Adapts a BBC style electric or conventional water pump to LS series engines • Eliminates the bulky LS water pump with a more compact, cost effective pump • Since BBC water pumps have been around for years, many different drive and pulleys are available and now can be used on a GM LS Series engine • Kit includes: 2 billet aluminum adapter blocks (right and left), 2¼ pump adapter plates, fasteners, Viton O-rings, and 4 high flow -12AN fittings • Requires use of a Remote Thermostat Housing, such a Moroso Part No. 63425, or 63426. |
| PART # | DESCRIPTION |
| 63615 $302.20 |
Remote Water Pump Adapter Kit, GM LS Series Engines |
|
BILLET ELECTRIC WATER PUMPS Like any racer trying to win a championship, Moroso does not just sit still, we continuously strive to improve our products.We have revised our line of Electric Water Pumps, and made them even better. • Overall pump height shortened by 3/4” • 2 lbs average weight reduction |
|
REMOTE WATER PUMP ADAPTER KITS, SBC & BBC • In each kit two clear anodized adapters bolt onto where the water pump would normally reside on an engine. Allows the use of a remote water pump • Spacers are .700" thick • The Adapters have a -12AN female port • Includes 4 gaskets and 8 stainless steel cap screws. The 4 extra screws are to accommodate a front motor plate |
| PART # | DESCRIPTION |
| 63512 $102.41 | Remote Water Pump Adapter Kit, SBC |
| 63513 $102.41 | Remote Water Pump Adapter Kit, BBC |
| PART # | AVAILABLE OPTION |
| 22620 $20.17 | AN Fitting, -12AN to -12AN, 1 per package |
|
REMOTE WATER PUMP ADAPTER KIT, GM LS Patent 8,424,497 • Remote adapters mount in place of the bulky GM LS series water pump • Frees up space where normally a water pump would reside in race cars and in LS engine conversions • Allows the use of a more compact, cost-effective remote electric water pump • Kit includes: 2 billet aluminum adapter blocks (right and left), fasteners, Viton O-rings, and 4 high flow –12 AN fittings • Requires use of Moroso Remote Mount Electric Water Pump Part No. 63570, and Remote Thermostat Housing, such as Moroso Part No. 63425 $111.98 or 63426 $111.98 and mounting bracket No. 63427. |
| PART # | DESCRIPTION |
| 63616 $268.50 | Remote Water Pump Adapter Kit, GM LS Series Engines |
|
• Billet Aluminum adapter plate bolts on to where the water
pump would normally reside on an engine. Allows the use of a
remote water pump • The adapter plate has two -12AN female ports • Includes a backing plate, gasket and stainless steel socket head cap screws • Hardware is long enough to accommodate a front motor plate |
| PART # | DESCRIPTION |
| 63514 $214.45 | Remote Water Pump Adapter Kit, Chrysler 273-360 |
| 63515 $214.45 | Remote Water Pump Adapter Kit, Ford 289-302 Pre '94 Timing Covers |
| 63516 $264.48 | Remote Water Pump Adapter Kit, Ford 429-460 |
| PART # | AVAILABLE OPTION |
| 22620 $20.17 | AN Fitting, -12AN to -12AN, 1 per package |
|
CHEVROLET ELECTRIC WATER PUMPS Polished Cover - Cast Aluminum HIGH FLOW RATE! • Unique impeller design and polished housing operate as an integral unit to pump approximately 19 gallons per minute ADDS UP TO 20 HP! • Powerful 12 volt electric motor eliminates V-belt drive • Draws only 7 amps, allowing the battery to remain more fully charged during racing without an alternator LIGHTWEIGHT, EASY TO INSTALL! • Weighs less than conventional mechanical pump with separate electric drive motor • Mounts to stock location; alternator and power steering drive kits available separately • Overall pump height similar to stock pump height • Use with optional Electric Water Pump Hose Adapters • Water inlet size 1" NPT |
| PART # | Description | Engine | Height |
| 63539 | Electric Water Pump | Small Block Chevy | 5" |
| 63546 | Electric Water Pump | Big Block Chevy | 5" |
| 63555 | Electric Water Pump | Small Block Chevy | 5-1/4" |
| PART # | AVAILABLE OPTIONS |
| 63840 $83.54 | Alternator Mount Kit for Electric Water Pump No. 63546 |
| 63841 $290.21 | Alternator Drive Kit for Electric Water Pump No. 63546 |
| 63842 $83.55 | Alternator Mount Kit for Electric Water Pump No. 63555 |
| 63843 $287.50 | Alternator Drive Kit for Electric Water Pump No. 63555 |
| PART # | REPLACEMENT PARTS |
| 97255 $36.32 | Seal Kit, Water Pump Electric |
| 97257 $230.74 | Motor, Water Pump Electric |
| PART # | AVAILABLE OPTIONS |
| 63541 $34.90 | 1" NPT to –16 AN Male Adapter |
| 63542 $30.94 | 1" NPT to 1 ½" hose Adapter |
| 63543 $36.33 | 1" NPT to 1 ¾" hose Adapter |
| 63544 $33.60 | 1" NPT to 1 ¼" hose Adapter |
|
ELECTRIC WATER PUMP DRIVE KIT • Engine dynamometer tests prove that many water pumps produce severe drag on the engines at high RPM, absorbing as much as 15-20 HP • Universal application fits virtually every American V8 or V6 engine, including Chevy V8 and 90° V6 either "short" or "long" design, Ford 351C, 351W, Ford Big Block and Chrysler Small and Big Blocks • Comes complete with 12 volt electric motor, all drive pulleys, belt, fasteners, and toggle switch • Intended for Drag Race applications only • Use with Moroso Thermostatic Switch No. 63760 $87.66 and Alternator Mount Drive Kits |
| PART # | DESCRIPTION |
| 63750 $174.03 | Electric Water Pump Drive Kit |
| PART # | REPLACEMENT PARTS |
| 97210 $107.93 | 12-Volt Electric Motor |
| 97220 $33.62 | Water Pump Pulley |
| 97230 $28.24 | 21" Belt for Electric Water Pump |
| 97250 $32.33 | Electric Motor Pulley |
| PART # | AVAILABLE OPTIONS |
| 97252 $33.75 | 14-Tooth Pulley (to increase pump speed by 28%) |
| 63760 $87.66 | Thermostatic Water Pump Switch |
|
MECHANICAL WATER PUMPS AND SPACER KITS Moroso first pioneered the aluminum water pump for racing over 35 years ago. Over the years, continual improvements have resulted in providing the best cooling system components available for competition use. Computer designed housing cast from 356-T6 aluminum and lightweight impellers are engineered to maintain consistent coolant temperature throughout the water jacket, preventing localized boiling, detonation, head warping and cracking, etc. |
|
SMALL BLOCK CHEVROLET 1955-68 "Short" Design, 5/8" Shaft • Reinforced housing for extra strength • Lightweight, low drag impeller adds 14HP @ 7,500 RPM • Includes integral cam stop boss • Overall length of 5.603" from rear mounting face to hub face |
| PART # | DESCRIPTION |
| 63500 $223.92 | Aluminum Water Pump, Small Block and 90° V6 Chevy 5/8" shaft, 1955-68 "short" design |
| PART # | AVAILABLE OPTION |
| 64035 $10.25 | Water Pump Pulley Shims |
| PART # | REPLACEMENT PART |
| 97450 $39.10 | Gasket and Seal Kit |
|
1971-82 Corvette Design, 3/4" Shaft • Large diameter shaft and extra housing reinforcements for Oval Track • Includes integral cam stop boss • Overall length of 5.795" from rear mounting face to hub face • Two 1/2" NPT auxilliary ports for external lines • Multiple pattern Drive Hub |
| PART # | DESCRIPTION |
| 63505 | Aluminum Water Pump, Small Block and 90° V6 Chevy 3/4" shaft, 1971-f82 Corvette design |
| PART # | AVAILABLE OPTION |
| 64035 $10.25 | Water Pump Pulley Shims |
| PART # | REPLACEMENT PART |
| 97450 $39.10 | Gasket and Seal Kit |
|
• Converts "short" 1968-earlier design Chevrolet
water pumps to longer, 1969-later design • Includes special heat-treated studs and gaskets |
| PART # | DESCRIPTION |
| 63510 $64.65 | Water Pump Spacer Kit, 1-7/32" Long, SBC and 90° V6 Chevy, Cast Aluminum Converts Nos. 63500, or 63505, short water pump to the longer late-model design |
| 63610 $68.73 | Water Pump Spacer Kit, 1-9/16" Long, BBC, Cast Aluminum |
| 63511 | Water Pump Spacer Kit, 1-7/32" Long, SBC and 90° V6 Chevy, Billet Aluminum Converts Nos. 63500, or 63505, short water pump to the longer late-model design |
| 63611 $126.82 | Water Pump Spacer Kit, 1-9/16" Long, BBC, Billet Aluminum |
|
AIR BLEED VALVE • Bleeds air from any cooling system • Resistant to fuels, oil and anti-freeze • Brass construction with push button to release pressure • Fits 1/8" NPT thread |
| PART # | DESCRIPTION |
| 63765 $24.21 | Air Bleed Valve |
|
• Provides automatic control of Electric Water Pumps Nos.
63539, 63546, 63547, 63555, 63557, 63565, 63570, 63575, 63585,
and 63595, and Electric Water Pump Drive Kit No. 63750, • Eliminates unnecessary battery drain by turning on the electric pump motor when coolant temperature exceeds 160° F (±5°) and turning it off when coolant temperature reaches 140° F (±5°) • Toggle Switch has three settings: Automatic, Manual and Off. In the "Manual" position, the motor is constantly on. • Contact rating of switch is 15 amps at 32 volts; use with 10 amp fuse (not included) |
| PART # | DESCRIPTION |
| 63760 $87.66 | Thermostatic Switch, Electric Water |
|
Fits: Standard-size radiator filler necks, including Moroso Nos.
63420, 63465, 63466, 63467, 63485, 63486, 63650, 63651, 63655,
63656, 63730, 63740, and 63745. • Available with low and high pressure ratings to accommodate the needs of all cooling systems • Steel spring maintains accurate pressure setting over time • Six-sided Cap for easy tightening |
| PART # | DESCRIPTION |
| 63307 $18.82 | Racing Radiator Cap, 6-8 lbs. |
| 63309 $18.82 | Racing Radiator Cap, 8-10 lbs. |
| 63313 $18.82 | Racing Radiator Cap, 12-16 lbs. |
| 63316 $18.82 | Racing Radiator Cap, 14-18 lbs. |
| 63320 $18.82 | Racing Radiator Cap, 19-21 lbs. |
| 63324 $18.82 | Racing Radiator Cap, 23-25 lbs. |
| 63328 $18.82 | Racing Radiator Cap, 27-29 lbs. |
| 63332 $18.82 | Racing Radiator Cap, 31-33 lbs |
|
• Cast aluminum drain adapts the 1-1/4" outlet from
the popular VW Scirocco radiator to the 1-9/16" inside diameter
of the standard lower radiator hose found in most Chevys • Includes petcock for draining engine coolant • 100% leak tested |
| PART # | DESCRIPTION |
| 63700 $32.21 | Radiator Hose Drain |
|
• 356-T6 cast aluminum Radiator Hose Fillers are spliced
into the upper radiator hose to provide more complete cooling
system filling • Standard size radiator cap receptacle is welded to the cast flange (radiator cap not included) • 100% leak tested |
| PART # | DESCRIPTION |
| 63730 $47.16 | Radiator Hose Filler, 1-1/2" hose to 1-1/2" hose |
| 63740 $47.16 | Radiator Hose Filler, 1-1/2" hose to 1-1/4" hose |
| 63745 $47.16 | Radiator Hose Filler, 1-1/4" hose to 1-1/4" hose |
|
STAINLESS STEEL FLEX FAN • 17" diameter, high strength stainless steel • Fan blades flatten as engine RPM increases to reduce parasitic drag and increase horsepower • Stainless Steel blades "spring" back to original shape at lower RPM; after repeated cycles, inferior aluminum fans do not • Uses standard fan spacers and fits most applications • Not recommended for air conditioned cars |
| PART # | DESCRIPTION |
| 64000 | Stainless Steel Flex Fan, Universal Application |
|
• Corrosion resistant brass; fits standard 1/2" NPT
tapped holes in cylinderheads and manifolds • 5/8" -18 threaded hole in fitting accepts popular sending units |
| PART # | DESCRIPTION |
| 63645 $14.70 | Temperature Gauge Fitting |
|
• Restricting coolant flow leaving the engine lets you control
the amount of heat absorbed by the coolant • Red, gold and blue anodized aluminum restrictor plates are mounted under the water outlet on the intake manifold • Kit consists of three restrictor plates with 5/8", 3/4" and 1" I.D. holes for optimum coolant flow, 2-1/8" O.D. |
| PART # | DESCRIPTION |
| 63440 $11.99 | Water Outlet Restrictor Kit. GM V8, GM V6, Ford 260-302, 351W |
|
BOLT-ON WITH -16AN FITTING Fits: Small Block Ford • Anodized aluminum • -16AN fitting for use with steel braid reinforced upper radiator hose • Includes gasket |
| PART # | DESCRIPTION |
| 63455 $53.80 | Water Outlet Filler Neck, Ford, -16 AN Fitting |
|
Fits: Ford 4.6/5.4L, 2 Valve only engines • Allows Mod Motor Racers to upgrade existing upper radiator hose • Billet Aluminum Water Neck Outlet with –16AN Fitting • Anodized Black • Includes 0-ring |
| PART # | DESCRIPTION |
| 63456 | Filler Neck |
|
WATER OUTLET, BILLET ALUMINUM, O-RING SEAL Fits: Small Block, Big Block and 90 Deg. V6 Chevy Intake Manifolds • One piece design machined from a billet bar • No Gasket needed, designed with an O-Ring Groove & O-Ring included • Clear Anodized finish • Includes stainless steel mounting hardware |
| PART # | DESCRIPTION |
| 63473 $47.14 | Water Outlet, Billet Aluminum, Chevy, –16AN Male Fitting |
| 63474 $49.87 | Water Outlet, Billet Aluminum, Chevy, –20AN Male Fitting |
| 63477 $53.92 | Water Outlet, Billet Aluminum, Chevy, 1/5" Hose Fitting |
|
WATER OUTLET, BILLET ALUMINUM, AN & 3/8” PORTS Fits: Small Block, Big Block and 90° V6 Chevy Intake Manifolds • Features two 3/8" NPT female ports to plumb water to cylinder head for cooling • Includes stainless steel mounting hardware |
| PART # | DESCRIPTION |
| 63461 $107.82 | Water Outlet, Billet Aluminum, Chevy, -16AN fitting and two 3/8" NPT female ports, Black, Gasket |
| 63475 $59.25 | Water Outlet, Billet Aluminum, Chevy, –16AN Male Fitting, 3/8” NPT Ports, Clear Anodized finish, O-Ring |
| 63476 $67.35 | Water Outlet, Billet Aluminum, Chevy, –20AN Male Fitting, 3/8” NPT Ports, Clear Anodized finish, O-Ring |
|
• Black anodized aluminum • Accepts Moroso or standard-size radiator cap (not included) • Replacement Filler Neck Kit No. 63420 $99.81 • Includes gasket |
| PART # | DESCRIPTION |
| 63465 $43.19 | Stamped Aluminum Filler Neck, Chevy, Bolt-On |
|
• Made from 6061-T6 billet aluminum • Easily mounts to any Big Block or Small Block Chevy intake manifold, and can be used in all racing and street-performance applications where a heavy-duty filler neck is required • Includes screw-in 1/8" NPT hose fitting for expansion tanks, and accepts Moroso or standard-size radiator cap (not included) • Can also be used as a heavy-duty replacement in our Filler Neck Kit No. 63420. • Includes gasket |
| PART # | DESCRIPTION |
| 63466 $74.12 | Billet Aluminum Filler Neck, Chevy, Bolt-On |
| 63468 $80.85 | Billet Aluminum Filler Neck, Chevy, Bolt-On, Black Anodized Finish |
|
• Ideal for custom applications • Accepts Moroso or standard-size radiator cap (not included) • Multiple applications including race and street performance |
| PART # | DESCRIPTION |
| 63485 $30.97 | Stamped Aluminum Filler Neck, Weld-On |
|
• Made from 6061-T6 billet aluminum • This weld-on version can be used wherever a heavyduty, custom-application filler neck is required • Includes screw-in 1/8" NPT hose fitting for expansion tanks, and accepts Moroso or standard-size radiator cap (not included) |
| PART # | DESCRIPTION |
| 63486 $51.17 | Billet Aluminum Filler Neck, Weld-On |
|
EXTENDED WATER FILLER NECK • Extended filler neck raises water fill point 5-3/4" above manifold; ideal for bleeding off cooling system air • 60° incline of filler tube clears air scoops to provide quick and accessible filling for between-rounds cool down • Mounting base, extension tube and neck are all manufactured from rugged 6061-T6 billet aluminum to withstand harsh racing environments and continual cap removal/replacement • Accepts Moroso or standard-size radiator cap (not included) • Includes gasket and 1/8" NPT to 3/8" I.D. barbed fitting to plumb expansion tanks • Includes gasket • Use with Moroso Manifold Filler Neck Kit No. 63420. |
| PART # | DESCRIPTION |
| 63467 $102.42 | Extended Filler Neck, SBC, BBC and 90° V6 Chevy intake manifolds; drag racing and street performance use |
|
• Locates filler neck at highest point on cars with low-mount
radiators to bleed off air • Unit can be flipped 180° for either right or left outlet location • Includes 1/2" NPT fitting for installing water temperature sending unit and two 1/4" NPT fittings for return lines on popular aftermarket cylinder heads • Made of 356-T6 cast aluminum; 3-1/4" high • Includes gaskets, bolts and washers, and standard size radiator cap filler neck |
Moroso
Radiator Caps on pg. 251
| PART # | DESCRIPTION |
| 63420 $99.81 | Filler Neck Manifold Housing, Chevrolet V8 & 90° V6 |
| PART # | REPLACEMENT PARTS |
| 63465 $43.19 | Filler Neck only (for standard size radiator cap) |
| 63466 $74.12 | Heavy-Duty Filler Neck only (for standard size radiator cap) |
|
• Manifold-mounted filler neck base is identical to the
one included in Moroso Kit No. 63420, without the filler neck
or mounting hardware • Allows you to install a variety of bolt-on style filler necks (radiator cap or -AN style) or block-off plates, offering cooling system flexibility for both race and street applications • 356-T6 cast-aluminum base stands 2-5/16" tall, which locates filler neck at highest point to bleed off air on cars with low-mount radiators • Includes a 1/2" NPT machined port for installing a water temperature sending unit, and two 1/4" NPT machined ports to plumb return lines on popular aftermarket cylinder heads • The unit can be flipped 180‹ for either right or left water hose outlet location • Use with one of Morosofs Bolt-On Filler Necks Nos. 63460, 63461, 63465, 63466, or Block-Off Plate No. 63471. |
| PART # | DESCRIPTION |
| 63423 $55.27 | Filler Neck Manifold Housing, Chevrolet V8 & 90‹ V6 Intake Manifolds |
| PART # | AVAILABLE OPTION |
| 63469 $43.02 | Filler Neck, O-Ring Gasket/Spacer |
| Billet Aluminum Housing with -16AN Port, Billet Aluminum Filler Neck &Hardware, Chevy Pattern, Adaptable Outlet |
|
• -16AN female port is designed to be used with Nos. 22622, 63521, 63522, 63523, 63525. • Black anodized billet aluminum housing with the included bolt-on billet aluminum radiator neck stands 3-1/4" tall, which locates filler neck at highest point to bleed off air on cars with low-mount radiators • The unit can be flipped 180 Deg. for either right or left water hose outlet location • No need to worry about gaskets because on the top and bottom of the housing are machined O-ring grooves with included O-rings • Includes a ½" NPT port for installing a water temperature sending unit and two ¼" NPT ports to plumb return lines on popular aftermarket cylinder heads • Includes bolts and washers |
| PART # | DESCRIPTION |
| 63424 $159.14 | Filler Neck Manifold Housing, Billet Aluminum, -16AN Female Port |
|
Billet Aluminum Housing with –16AN Port, Chevy Pattern,
Adaptable Outlet • -16AN female port is designed to be used with Nos. 22622, 63521, 63522, 63523, 63525. • Black anodized billet aluminum housing stands 2-5/16" tall, which locates filler neck at highest point to bleed off air on cars with low-mount radiators • No need to worry about gaskets because on the top and bottom of the housing are machined O-ring grooves with included O-rings • Includes a ½" NPT port for installing a water temperature sending unit and two ¼" NPT ports to plumb return lines on popular aftermarket cylinder heads • The unit can be flipped 180 Deg. for either right or left water hose outlet location • Use with one of Moroso’s Bolt-On Filler Necks Nos. 63460, 63461, 63465, 63466 $74.12 or Block-Off Plate No. 63471. |
| PART # | DESCRIPTION |
| 63422 $98.44 | Filler Neck Manifold Housing, Billet Aluminum, -16AN Female Port |
|
Billet Aluminum Housing with 1" NPT Port, Chevy Pattern,
Adaptable Outlet • 1" NPT port is designed to be used with Nos. 63541, 63542, 63543, and 63544. • Black anodized billet aluminum housing stands 2-5/16" tall, which locates filler neck at highest point to bleed off air on cars with low-mount radiators • Has to be mounted with conventional gaskets or Moroso No. 63469, Filler Neck O-Ring Gasket • Includes a ½" NPT port for installing a water temperature sending unit and two ¼" NPT ports to plumb return lines on popular aftermarket cylinder heads • The unit can be flipped 180‹ for either right or left water hose outlet location • Use with one of Morosofs Bolt-On Filler Necks Nos. 63460, 63461, 63465, 63466l, or Block-Off Plate No. 63471. |
| PART # | DESCRIPTION |
| 63421 $91.71 | Filler Neck Manifold Housing, Billet Aluminum, 1" NPT |
|
• A quick and easy way to remove air from the cooling system • Design allows the body to be flipped so that the 1-1/2" hose outlet can face right or left • Features a 1/2" NPT rear port for temperature senders and two 1/4" NPT ports for plumbing return lines to cylinder heads • Includes filler neck housing with 1-1/2" hose outlet, bleeder, bleeder plate, hardware and gaskets • Can be used with Moroso Expansion Tank Part Nos. 63650, 63651, 63655, and 63656. |
| PART # | DESCRIPTION |
| 63430 $86.25 | Water Neck Bleeder Kit, Cast Aluminum |
|
Billet Aluminum Fits: Chevrolet • A quick and easy way to remove air from cooling system • Allows the use of steel reinforced hose or lightweight hose to be used in cooling system • Includes anodized billet water neck with 1" NPT outlet, bleeder, bleeder plate, hardware and gaskets • 1" NPT machined port is designed to use with popular hose adapters (including -AN) sizes, Moroso Nos. 63541, 63542, 63543, and 63544. • Can be used with Moroso Expansion Tank Nos. 63650, 63651, 63655, or 63656. |
|
Fits: Chevrolet • Allows quick and easy removal of air from the cooling system at it’s highest point • Includes water neck bleeder plate, petcock with hose adapter and one water neck gasket • Can be used as a replacement part for Moroso Nos. 63430, and 63431. |
| PART # | DESCRIPTION |
| 63432 $40.45 | Water Neck Bleeder Plate |
|
• 1/4" aluminum plate provides an ideal base to weld-your-own
radiator hose fitting to the intake manifold • Untreated aluminum makes it easy to drill opening and weld any size fitting of your choice • Perfect for racing and custom applications • Gasket included |
| PART # | DESCRIPTION |
| 63471 $16.09 |
Water Neck Block-Off Plate, Chevrolet V8 & 90° V6 |
|
FILLER NECK O-Ring Gasket/Spacer • Mounts between filler necks and filler neck manifolds to create a reusable O-ring seal, no need to use gaskets or sealants • Can also be used as a ¼" thick spacer when clearance is needed • Manufactured from billet aluminum with machined O-ring grooves in the top and bottom, anodized finish • Includes O-rings |
| PART # | DESCRIPTION |
| 63469 $43.02 | Filler Neck, O-Ring Gasket/Spacer |
| Allow the street, race or marine enthusiast to have a thermostat in their cooling system away from the engine itself. This could be if the engine has a blower manifold that does not allow the thermostat to be on the engine itself or if Moroso Part Nos. 63615, 63616, or 63566, water pump adapters for the GM LS series of engines are being used. |
|
• Made from 6061T-6 Billet Aluminum • The housing has two -12AN female O-ring inlet ports • Thermostat or restrictor is placed between this housing and a conventional manifold housing such as part No. 63423, where a radiator hose connects it to the radiator • Can be used with Moroso cooling system accessories, Part Nos. 63420, 63421, 63423, 63430, 63431, 63432, 63460, 63461, 63465, 6346, and 63471. |
| PART # | DESCRIPTION |
| 63425 $111.98 | Remote Thermostat Housing, Inlet ports on bottom |
| 63426 $111.98 | Remote Thermostat Housing, Inlet ports on each side |
| PART # | AVAILABLE OPTION |
| 63427 $61.99 | Mounting Brac |
|
• Mounts Moroso No. 63425, and 63426, Remote Thermostat
Housings to the front passenger side GM LS Series cylinder heads • Manufactured from 1/4" 6061 T-6 Aluminum |
| PART # | DESCRIPTION |
| 63427 $61.99 | Mounting Bracket for Remote Thermostat Housings |
|
Throttle Cable Mounting Kit Fits: 4500 Series Holley® Dominator 4500 Series and BG King Demon® carburetors • This unique kit facilitates mounting of throttle cables to a fixed point while providing adjustability to compensate for variances in cable length and cable ends • Comes complete with Morse-style throttle cable bracket, universal return spring assembly and all necessary installation hardware • Four-hole under-carb design provides security of a linkage safety plate • Unlike competitor’s products, these accessory brackets bolt to plate separately instead of stacking up on the carb studs • Separate bolting design allows access for easy carb servicing and the option of additional accessories while providing clearance to linkage • Designed to be used with Moroso’s line of bolt-on brackets and accessories |
| PART # | DESCRIPTION |
| 65047 $227.96 | Throttle Cable Mounting Kit |
| PART # | REPLACEMENT PART |
| 64917 $9.10 | Throttle Return Springs |
|
PART NO. 65047, AVAILABLE OPTIONS Fuel Regulator Mounting Brackets • Lightweight, laser-cut, steel brackets securely mount popular regulators including Holley®, Aeromotive™, MagnaFuel® and Barry Grant® • Can be used to mount extra regulator for nitrous systems • Easily formed for custom installation |
| PART # | DESCRIPTION |
| 65052 $30.97 | Fuel Regulator Mounting Bracket for Holley® |
| 65062 $32.21 | Fuel Regulator Mounting Bracket for MagnaFuel® & Barry Grant® |
| PART # | DESCRIPTION |
| 65064 | Spark Plug Rack |
|
Throttle Cable Mounting Kit Holley® 4150/4160 series Carbs - Morse® Cables • Lets the racer easily mount Morse® cable to Holley® 4150/4160 carburetors • Includes a 1/8" anodized aluminum mounting plate, a special 1/4" bore rod end with 10-32 thread, a quick-release cable mount, and all required hardware • Throttle Return Spring Kit nos. 64925, 64926 $40.32 or 64927 $38.96 recommended |
| PART # | DESCRIPTION |
| 65045 $80.92 * | Throttle Cable Mounting Kit, for Holley® Carbs with MorseR accelerator cables |
|
Holley® 4150/4160 series Carbs - Late Model GM • Includes all necessary hardware to mount a Holley® carburetor on a late model GM vehicle • Comes with a 1/8" anodized aluminum mounting plate and required clips, pivot, nuts and bolts to complete the job • Throttle Return Spring Kit nos. 64925, 64926, or 64927, recommended |
| PART # | DESCRIPTION |
| 65050 $56.85 * | Throttle Cable Mounting Kit, for Holley® on late model GM cars and trucks |
|
• Designed to less likely bind and hold the throttle open • Solid rod linkage designs have and will keep the throttle open In certain crash parameters • Built to take the punishment of Circle Track or Road Racing yet lightweight enough to satisfy the weight conscious Drag Racer • Manufactured out of thick 12 ga. laser cut steel with a durable E-coat finish • Provides throttle cable mount and return spring in one under-carburetor plate • Complete with quick release cable bracket, light and heavy return springs andmounting hardware • Comes with ¼" rod end with 10-32 threads for Morse style cables |
| PART # | DESCRIPTION |
| 65070 | Throttle Cable Mount Kit with Return Spring, R4412 Style 2BBL Carburetors |
| 65075 $133.56 | Throttle Cable Mount Kit with Return Spring, 4150 Style 4BBL Carburetors |
|
Throttle Cable Manifold Mounted Chevy V6/ V8 • Provides positive throttle return required by several sanctioning bodies • Each kit fits Holley® 2 or 4 bbl. single carb applications • Includes one set of return springs |
| PART # | DESCRIPTION |
| 64922 $32.29 | Throttle Return Spring Kit, 18° SBC Cylinder Heads, Manifold Mount, 5-7/16" Tall |
| 64925 $33.70 | Throttle Return Spring Kit, SBC and 90° V6 Chevy, Manifold Mount, 1-13/16" Tall |
| 64926 $40.32 | Throttle Return Spring Kit, BBC, Manifold Mount, 1-13/16" Tall |
| 64928 $52.56 | Throttle Return Spring Kit, Tall Version to facilitate throttle return on spacer equipped SBC and 90° V6 Chevy engines, Manifold Mount, 4-3/4" Tall |
| PART # | AVAILABLE OPTION |
| 64929 $9.48 | Throttle Return Springs |
|
Throttle return spacing Kit, 4500 Holley® series • Clears most air cleaner combinations and can be used with dual carbs • Made from sturdy 14-gauge steel and finished in handpolished chrome • Kit includes heavy and light sets of stainless steel return springs, all mounting hardware, and complete installation instructions |
| PART # | DESCRIPTION |
| 64923 $45.70 |
Throttle Return Spring Kit, Holley® 4500, Carb Mount |
| PART # | REPLACEMENT PART |
| 64917 $9.10 | Throttle Return Springs |
|
• The answer to your throttle return spring linkage problems
if you’re running a 2300/2305 series two-barrel or 4150/4160
series 4-barrel Holley® or Road, Speed, Race Demon™
carburetor • Designed and built rugged enough for competition, yet its polished chrome finish is suitable for the finest show car • Includes one set of heavy and one set of light springs |
| PART # | DESCRIPTION |
| 64927 $38.96 | Throttle Return Spring Kit, 2300/4100 Holley® Series, Road, Speed, Race Demon™ Series Carb Mounts |
| PART # | REPLACEMENT PART |
| 64917 $9.10 | Throttle Return Springs |
|
Throttle return spacing Kit, 4500 Dominator
& King Demon • Fits a 4500 series and King Demon carburetors • Made from sturdy 12-gauge steel and finished in (electrostatic paint) E-coat satin black • Kit includes heavy and light sets of stainless steel return springs, all mounting hardware and complete installation instructions |
| PART # | DESCRIPTION |
| 64918 $56.61 | Throttle Return Spring Kit, 4500 Dominator and King Demon Carb Mounts |
| PART # | REPLACEMENT PART |
| 64917 $9.10 | Throttle Return Springs |
|
Throttle return spacing Kit, 4150 Holley®
series Including HP Series • Made to clear low-profile racing air cleaners, Moroso nos. 65860, 65870, 65900, 65901, 65902, 65903, 65908, & 65910. • Manufactured from sturdy 12-gauge steel and finished in (electrostatic paint) E-coat satin black • Kit includes heavy and light sets of stainless steel return springs, all mounting hardware and complete installation instructions |
| PART # | DESCRIPTION |
| 64919 $56.61 | Throttle Return Spring Kit, 4150 Holley® Series Carb including HP Series |
| PART # | REPLACEMENT PART |
| 64917 $9.10 | Throttle Return Springs |
|
THROTTLE RETUN SPRINGS • Pack of two stainless steel springs can be used as spares or replacements for Moroso Throttle Return Spring Kit nos. 64925, 64926. and 64928/ |
| PART # | DESCRIPTION |
| 64929 $9.48 | Throttle Return Springs |
|
• Replacements for Moroso Throttle Return Spring Kit nos.
64918, 64919, 64923, 64927, 65047, 65070, and 65075. • Kit includes Two 2.5" long and Two 2.75" long springs |
| PART # | DESCRIPTION |
| 64917 $9.10 | Throttle Return Springs, Replacement |
|
• Fits Holley® Dominator 4500-series Carbs • Prevents linkage that may become loose from carburetor from falling into intake • Steel, plated clear zinc |
| PART # | DESCRIPTION |
| 64935 $22.75 | Carburetor Safety Plate, Dominator |
|
• Steel linkage bushing set allows the fitting of a 1/4"
fastener to the 1/2" dia. hole found in the throttle linkage
plate of Holley® 4 barrel carbs • Split bushing design permits simple installation and eliminates the sloppiness present when rubber bushings are used • Clear zinc finish |
| PART # | DESCRIPTION |
| 64920 $8.53 | Carburetor Linkage Bushing Kit, Holley® 4 bbl carbs |
|
For 4150-Series Carburetors • Throttle Stop for Holley® 4150-style, 4-bbl. racing carburetors provides a very strong and positive stop • Also prevents excessive side loading on the throttle shaft, which can easily cause the throttle shaft bores to wear out • Throttle stop is adjustable, and simply mounts to the carb hold-down stud • Made from rugged 1/8" steel with a clear zinc finish • Fits both 1:1 and progressive throttle linkages • Ideal for all types of racing |
| PART # | DESCRIPTION |
| 65042 $43.11 * | Throttle Stop, fits 4150-style Holley® Carbs |
|
CARBURETOR SPACERS Billet Aluminum • Extends length of intake mixture column to improve air/fuel distribution • CNC machined from 6061-T6 billet aluminum to extremely accurate specifications • Billet aluminum eliminates porosity and improves engine appearance • Available with 4150/4160 and 4500 Series Holley® bolt patterns to fit a variety of carburetors • 4150/4160 Series Spacers available in 1/2", 1" and 2" thicknesses with open plenum and 4-hole designs to suit tuning requirements; 4500 Series (Dominator) Spacer is 1" thick with open plenum • As a general rule, open designs increase plenum volume for improved high rpm power, while 4-hole designs increase mixture velocity for improved low-speed and mid-range torque • Gaskets are not included |
| PART # | Carburetor | Thick- ness | Plenum |
| 64951 $91.68 * | 4500 | 1" | Open Plenum Design |
| 64981 $95.82 * | 4150/4160 | 1" | Open Plenum Design |
| 64985 $68.77 * | 4150/4160 | 1/2" | Open Plenum Design |
| 64991 $99.74 * | 4150/4160 | 1" | 4-Hole Plenum Design w/ 1.696" dia. bores |
| 64996 $97.07 * | 4150/4160 | 1" | 4-Hole Plenum Design w/ 1.750" dia. bores |
|
Cast Aluminum • Can easily be mounted with one of the Moroso Carburetor Stud Kits nos. 37950, 37960, or 37961. • Open plenum aluminum carb spacers increase plenum volume for high RPM power • Gaskets are not included |
| PART # | Description | Thick- ness | Plenum |
| 64950 $65.95 * | 4500 | 1" | Open Plenum Design |
| 64970 $91.71 * | 4150/4160 | 2" | Open Plenum Design |
| 64980 $75.52 * | 4150/4160 | 1" | Open Plenum Design |
| PART # | DESCRIPTION |
| 64960 $95.74 * | Carburetor Adapter, 2" Cast Aluminum, adapts Quadrajet carburetor to Holley® 4150/4160 intake manifold bolt pattern |
| 64964 $122.78 * | Carburetor Adapter, 1" Billet Aluminum, adapts Holley® No. 4412 style to a 4150 4 bbl. square flange manifold |
| 64965 $109.23 * | Carburetor Adapter, 3/4" Billet Aluminum, adapts Holley® 2300/2305 2 bbl. carburetors to intake manifolds with Holley® 4150/4160 4 bbl. bolt pattern, 2-hole plenum design with 1.50" dia. bores |
| 64966 $109.19 * | Carburetor Adapter, 3/4" Billet Aluminum, adapts Holley® 2300/2305 2 bbl. carburetors to intake manifolds with Holley® 4150/4160 4 bbl. bolt pattern, 2-hole plenum design with 1.693" dia. bores |
| 65000 $118.60 * | Carburetor Adapter, 2" Cast Aluminum, adapts Holley® 4500 Dominator carburetor to Holley® 4150/4160 intake manifold bolt pattern |
|

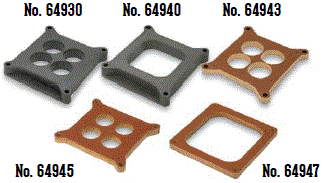

CARBURETOR SPACERS Insulating Plastic & Phenolic • Advanced plastic and phenolic compounds are speciallyformulated to reduce heat conductivity 10 times greater than aluminum • Reducing fuel temperature inside the carburetor results in a denser, more powerful fuel charge to the manifold • Insulating phenolic spacers come pre-drilled for alignment pins. Moroso nos. 64930, and 64940, include all mounting hardware • Gaskets are not included |
| PART # | Description | Thick- ness | Plenum |
| 64930 $56.58 * | 4150/4160 | 1" | 4-Hole Plenum Design with 1.75" dia. bores, Plastic |
| 64940 $56.52 * | 4150/4160 | 1" | Open Plenum Design, Plastic |
| 64943 $57.89 * | 4150/4160 | 1/2" | 4-Hole Plenum Design with 1.75" dia. bores, Phenolic |
| 64945 $57.89 * | 4150/4160 | 1/2" | 4-Hole Plenum Design with 1.467" dia. bores, Phenolic |
| 64947 $48.45 * | 4500 | 1/2" | Open Plenum Design, Phenolic |
| 64941 $48.41 * | Quadrajet | 1/2" | 4-Hole, Phenolic |
|
Wood Design • Unique 1./2" spacers are precision machined on state-of-the-art millworking centers, and can be used individually or stacked without the use of gaskets • Thin layers of choice laminated hardwood, bonded together with resin form a natural thermal barrier • Top-quality hardwood has a sheet of phenolic resin-impregnated paper bonded to both sides • Can be easily modified to your particular manifold for optimum performance • Gaskets are not included |
| PART # | Description | Thick- ness | Plenum |
| 65015 $48.49 * | 4150/4160 | 1/2" | Open |
| 65016 $48.49 * | 4500 | 1/2" | Open |
| 65017 $51.22 * | 4500 | 1/2" | 4-Hole |
| 65018 $53.92 * | Quadrajet | 1/2" | Open |
| PART # | DESCRIPTION |
| 64952 $102.41 * | Carburetor Adapter, 1" Insulating Phenolic. Adapts Holley® No. 4412, 500 cfm, 2 bbl. Carbs to standard Holley 4661 bolt pattern intake manifold |
|
CARBURETOR ACCESSORIES & PARTS CARBURETOR WEDGE PLATE • .830" thick at its thickest point • To keep carburetor float-bowls "level" during acceleration, someamount of mounted carburetor angle is necessary • Moroso’s wedge plate tilts the carburetor forward 5° to provide theoptimum angle during quick acceleration and front-end lift • Dual bolt pattern • Gaskets are not included |
| PART # | DESCRIPTION |
| 65030 $55.30 * | Carburetor Wedge Plate, fits standard Holley® Bolt Pattern, Carb AFB/Edelbrock |
|
The Original! For Holley® Carbs • Clear Sight Plugs are like having a "window" to your float bowl • Allows you to check float bowl level without removing the plug and spilling fuel • Includes O-rings • After setting float bowl level, replace clear sight screws with original bung plugs |
| PART # | DESCRIPTION |
| 65226 $6.78 |
Clear-View Sight Plugs for Holley® Carbs, Two per pack |
|
For Holley® Carbs • Developed by carburetor wizard Gary Williams • Eliminates fuel starvation during hard acceleration or cornering by extending the fuel pickup point of the jet farther into the float bowl • Each kit contains three sets of two extensions: 1/2" long for stock float bowls; 3/4" long for use with Moroso Fuel Level Control Kit no. 65221; 1" long which can be cut to any custom application |
| PART # | DESCRIPTION |
| 65227 $16.13 | Carburetor Jet Extension Kit, fits Holley® 2bbl. & 4bbl. carbs |
|
• Brass Jet Extensions screw into the metering block to
reposition jets farther back into the fuel bowl to eliminate
fuel starvation . and they wonft fall out! • CNC machined for precise fit and maximum fuel flow • Must be used in conjunction with Moroso Drag Race Float Kit no. 65228, to clear extensions • Two per pack |
| PART # | DESCRIPTION |
| 65440 $21.53 * | Jet Extensions, 1/4"-32, STD Holley® Jets |
| 65441 $22.91 * | Jet Extensions, 5/16"-32, HP Holley® Jets |
|
• The ultimate cure for the problem of soft, wet, deteriorating
fiber, Holley® float bowl washers • Our nearly indestructible nylon replacement washers are unaffected by fuel, and won't leak or break down under normal usage • Ten per package |
| PART # | DESCRIPTION |
| 65225 $10.29 | Float Bowl Washer Kit, For Holley® Carbs |
|
HEX HEAD FUEL BOWL SCREWS For Holley® Carbs • Designed for Holley® 4150-4160 and 4500 model carburetors • Hex head (rather than screwdriver head) allows for easier removal of the fuel bowl • Four per package • Screws are 2-1/2" long |
| PART # | DESCRIPTION |
| 65414 $10.40 | Hex Head Fuel Bowl Screws for Holley® Carbs., four per package |
|
• Allen head design is streamlined for less turbulence and
increased airflow • Enlarged and repositioned slot provides a clear path to the shooter nozzle, eliminating restrictions and improving throttle response |
| PART # | DESCRIPTION |
| 65442 $22.82 * | Holley® High Flow Squirter Screw, Cadmium-Plated Steel, Gasoline |
| 65443 $22.77 * | Holley® High Flow Squirter Screw, Stainless Steel, Alcohol |
|
• Handy kit contains an assortment of color-coded plastic
cams to match accelerator pump requirements to individual engine
performance needs • Color coding makes it easy to identify specific cam applications when installed • Kit includes a helpful tuning chart to assist you in selecting the appropriate accelerator pump cam • Contains 8 cams and 2 screws |
| PART # | DESCRIPTION |
| 65531 $39.04 | Holley® Accelerator Pump Cam Kit |
|
• Provides springs of various rates to allow the racer to
custom tailor the vacuum secondary opening and closing rate to
best suit their combination • Contains seven springs; color coded from light to heavy • Instructions included |
| PART # | DESCRIPTION |
| 65425 $21.42 * | Holley® Vacuum Secondary Spring Kit |
|
•Replaces the "progressive" stock link to provide
simultaneous, 1:1 primary and secondary opening rates • Requires drilling of existing primary throttle arm hole • One per package |
| PART # | DESCRIPTION |
| 65444 $18.70 * | Slip Link, 1:1, Holley® 4150 |
|
HOLLEY® VACUUM SECONDARY DIAPHRAGM • Replacement diaphragm fits the most popular Holley® vacuum secondary carburetors including: 0-1849, all 1850, all 3310, 0-4453-1, 0-458,0-6619, 0-6619-1, 0-6909, 0-6919, 0-6979, 0-6979-2, 0-6989, 0-7002, 0-7002-1, 0-7004, 0-7004-1, 0-7004-2, 0-7005, 0-7005-1, 0-7005-2, 0-7006, 0-7006-1, 0-7006-2, 0-7009. • Replaces Holley® diaphragm 135-4 |
| PART # | DESCRIPTION |
| 65426 * | Holley® Vacuum Secondary Diaphragm |
|
• Wedge shape compensates for the action of centrifugal
force on the fuel and ensures proper needle and seat operation
under the most severe left-cornering conditions • Includes one front and one rear float • Fits all Holley® center hung float/cathedral bowl carburetors • Manufactured of Nitrophyl, which doesn’t absorb fuel • Intended primarily for oval track racing, kit can also be used in drag race applications where two Holley® Carbs are mounted sideways on manifold • Alcohol compatible |
| PART # | DESCRIPTION |
| 65432 $44.46 * | Oval Track Float Kit, fits Holley® Carbs |
|
For Holley® Carbs • Alcohol compatible • Float is notched to clear 3/4" long jet extensions • Fits all Holley® carburetors with center hung floats • Manufactured of Nitrophyl, which doesn't absorb fuel • Saves the racer many hours of notching and epoxy coating • One per package |
| PART # | DESCRIPTION |
| 65228 $35.03 | Drag Race Float Kit, fits Holley® Carbs |
| PART # | DESCRIPTION |
| 65532 $5.00 | Holley® Standard 30cc Accelerator Pump Diaphragm |
| 65534 $21.47 | Holley® 50cc Accelerator Pump Diaphragm |
|
While the engine is running at idle, remove the float-level sight
plug. A small amount of fuel should run out from the front half
of the carburetor. The level should be slightly higher at the
rear. When turned clockwise, the needle-and-seat nut will adjust
the float down. When turned counterclockwise, the float is adjusted
up. To adjust the needle-and-seat, back off the center screw.
Make sure that all components that have been adjusted are checked
for tightness. NOTE: Use caution whenever working with fuel system components to minimize spillage and avoid fuel contact with extremely high temperature components. |
|
HOLLEY® NEEDLE & SEAT HARDWARE KIT • Includes all the necessary replacement hardware for Holley® needles and seats • Kit contains: one needle and seat adjusting screw, one screw gasket, one needle and seat adjusting nut, one nut gasket, one needle and seat o-ring |
| PART # | DESCRIPTION |
| 65413 $7.99 * | Holley® Needle and Seat Hardware Kit |
|
• The Viton® needle design is highly recommended for
gasoline-fueled engines because it is resistant to dirt and conforms
to the seat for superior sealing • If you use exotic fuels or additives such as alcohol, benzine, acetone, etc., you must use the steel-needle version • Two per package |
| PART # | DESCRIPTION |
| 65411 $28.24 * | Holley® Needle and Seat, Viton®, .110 orifice, carbs upto 735 cfm. Gasoline only |
| 65412 $34.97 * | Holley® Needle and Seat, Steel, .130 orifice,750 cfm and up. Gasoline, exotic fuels or additives |
|
• Used with Holley® carburetors where fuel enrichment
via the power valve is not desired. Full-throttle fuel enrichment
is achieved by jetting up the carburetor by approximately 10
jet sizes • Kit includes 1/2"-28 threaded plug with gasket |
| PART # | DESCRIPTION |
| 65408 $10.04 * | Holley® Power Valve Plug and Gasket |
| PART # | DESCRIPTION |
| 65401 | Holley® Power Valve, opens at 3.5" of vacuum |
|
• Moroso replacement gaskets for Holley® 4150-4160 series
carbs are made from high grade Buna-N compound with an anti-wicking
nylon backing and for use with alcohol or racing gasoline • Reuse them over and over • Also fits other Holley® carburetors (see the Holley® application guide for a complete listing) |
| PART # | DESCRIPTION |
| 65222 $10.40 | Reusable Buna-N Holley® Metering Plate Gasket, Replaces Holley® Part No. 108-89-2, Pack of 2 |
| 65223 $10.40 | Reusable Buna-N Holley® Metering Plate Gasket, Replaces Holley® Part No. 108-90-2, Pack of 2 |
| 65224 $10.40 | Reusable Buna-N Holley® Float Bowl Gaskets, Replaces Holley® Part Nos. 108-92-2 and 108-83-2, Pack of 2 |
|
ALUMINUM FUEL LINE • Lightweight aluminum tubing replaces small diameter fuel lines used in most production automobiles • Large diameter, .035" thick wall seamless tubing flows more fuel and eliminates fuel starvation • Legal in all classes; tested to 35 PSI |
| PART # | DESCRIPTION |
| 65330 $44.42 | Aluminum Fuel Line, 25' Coil, 3/8" O.D. |
| 65340 $55.28 | Aluminum Fuel Line, 25' Coil, 1/2" O.D. |
| 65345 $67.45 | Aluminum Fuel Line, 25' Coil, 5/8" O.D. |
|
• 90° streamline fuel line fittings are manufactured
of brass and provide a quick, easy fuel hose connection • Streamline fittings offer the racer improved fuel flow to the carburetor over the right angle fittings more commonly available • One per package |
| PART # | DESCRIPTION |
| 65130 $25.58 | Streamline Fuel Line Fitting, 90°, 3/8" NPT to 1/2" hose |
| 65131 $25.58 | Streamline Fuel Line Fitting, 3/8" To 1/2" Hose, 90°, black |
| 65140 $20.13 | Streamline Fuel Line Fitting, 90° 3/8" NPT to 3/8" hose |
| • Handy brass fittings can be used on electric fuel pumps and regulators |
| PART # | DESCRIPTION |
| 65375 $4.39 | Fuel Line Fittings, 1/4" NPT to 3/8" Hose, one per package |
| 65380 $9.22 | Fuel Line Fittings, 3/8" NPT to 3/8" Hose, two per package |
| 65381 $8.78 | Fuel Line Fitting, 3/8" To 3/8" Hose, Straight, black |
| 65382 $10.25 | Fuel Line Fitting, 3/8" To 3/8" Hose, 90 Deg., black |
| 65388 $9.33 | Fuel Line Fitting, 3/8" To 1/2" Hose 90 Deg., black |
| 65389 $10.22 | Fuel Line Fitting, 3/8" To 1/2" Hose, Straight, black |
| 65390 $11.99 | Fuel Line Fittings, 3/8" NPT to 1/2" Hose, two per package |
|
For Holley® Carbs • These Fuel Inlet Fittings adapt -6AN or -8AN fuel lines to all Holley® single and dual-feed carburetors with 7/8" -20 UNF inlets • For no. 65144, extended wrench flat location allows for easier installation • Each aluminum fitting has a black anodized finish for protection • Two per package, includes washers |
| PART # | DESCRIPTION |
| 65141 $31.00 | Fuel Inlet Fittings, Holley® Fuel Bowl to -6AN |
| 65144 $57.87 | Fuel Inlet Fittings, Holley® Fuel Bowl to -8AN |
|
ALUMINUM FUEL BLOCK KITS • Universal, high flow Fuel Block Kits easily solve dual gas line problems assuring equal flow and pressure for twin carb setups or dual pickup gas tanks • Each has a 1/8" NPT provision for a fuel pressure gauge and a socket head pipe plug if a gauge is not used |
| PART # | DESCRIPTION |
| 65160 $45.83 | Aluminum Fuel Block Kit, 1/2" hose inlet with two 3/8" hose outlets |
| 65170 $45.83 | Aluminum Fuel Block Kit, 1/2" hose inlet with two 1/2" hose outlets |
|
• Allows easy plumbing up to 1/8" NPT fuel pressure
gauge lines • Saves wear and tear on carb inlet fittings by allowing quick and easy disconnecting of fuel line • Anodized aluminum |
| PART # | DESCRIPTION |
| 65300 $25.47 | Fuel Gauge Fitting, -6AN Male to -6AN Male |
| 65310 $18.77 | Fuel Gauge Fitting, 3/8" NPT Female to 3/8" NPT Male |
| 65315 $18.82 | Fuel Gauge Fitting, 3/8" NPT Male to -6AN Male |
| 65360 $18.75 | Fuel Gauge Fitting, 3/8" line with hose fitting |
|
• Meets the higher fuel delivery demands in today’s
race engines • Increases the orifice to nearly twice that of two regulators combined, creating a totally free flowing fuel system that allows the pumps to deliver full capacity at all times • Standard fuel systems regulate pressure before the fuel reaches the carburetors, while this system regulates pressure after the carburetors have been supplied and requires a return line to the fuel tank • Shims are included to allow easy pressure adjustment from 6-10 psi, as are complete instructions and tuning tips |
| PART # | DESCRIPTION |
| 65145 $161.95 | Pressure Regulating Fuel Log |
|
• Removes dirt and debris from fuel systems with minimum
restriction • The aluminum housing is black anodized with O-ringed removable end caps • Filter Element itself is constructed out of a Stainless Steel fine screen that filters down to 40 Microns and is washable for re-use |
| PART # | DESCRIPTION |
| 65230 $117.37 * | In-Line Fuel Filter, -8AN Fittings, 6-1/2" overall length |
| 65231 $117.37 * | In-Line Fuel Filter, accepts 3/8" NPT Fittings, 5-1/8" overall length |
| 65234 $117.37 | In-Line Fuel Filter, -10AN Male Fittings |
| PART # | REPLACEMENT PART |
| 97062 $17.46 | 40 Micron Filter Element |
|
EFI FUEL RETUN LINE KIT • Allows EFI conversion without welding a return line fitting to the fuel tank • Simply cut a 2-3/4" section out of any 2" O.D. fuel tank filler tube and insert the 6061-T6, aluminum adapter; installs on most vehicles without removing the fuel tank • Includes two Buna-N sleeves and four stainless steel hose clamps to seal theconnection on each end of the adapter • 3/8" aluminum fuel fitting is factory welded to the adapter for a leak free seal • Fuel fitting has a 90° smooth-contour bend inside the adapter to direct return fuel downward into the tank • Use with Moroso Aluminum Fuel Line no. 65330, for a return line from the EFI regulator to the fitting located on the filler tube |
| PART # | DESCRIPTION |
| 65385 $70.04 * | EFI Fuel Return Line Kit |
|
With Flutter Guard • Vibration controlled dial, not dampened by liquid • Heavy-duty American made gauge with stainless steel case and bezel will not rust, chip, peel or oxidize like other designs • Suited for use with alcohol • Accurate to within 1%; marked in 1.4-pound increments • Compact 1.5" dia. gauge can be mounted to fuel regulator or fuel block for convenient fuel pressure tuning • Includes 1/8" NPT Male Fitting |
| PART # | DESCRIPTION |
| 65370 $59.29 | Fuel Pressure Gauge, 0-15 psi |
| 65372 $49.76 | Fuel Pressure Gauge, 0-60 psi |
| 65374 $59.29 | Fuel Pressure Gauge, 0-100 psi |
| PART # | DESCRIPTION |
| 89610 $43.04 | Vacuum Gauge, 1.5" Diameter, 0-30" Hg |
|
1.5" Diameter, 0-120 PSI • Necessary for racing applications where high oil pressures, above the range of typical oil pressure gauges are used • Will fit any 1/8" NPT male fitting • Excellent vibration and shock resistance |
| PART # | DESCRIPTION |
| 89611 $43.04 | Oil Pressure Gauge, 1.5" Diameter, 0-120 PSI |
|
FUEL PUMP BLOCK-OFF PLATES • Designed to block off the fuel pump mounting boss when a mechanical fuel pump is not used • Available in two popular styles • Made of anodized aluminum or high luster triple chrome plated steel • includes gasket |
| PART # | DESCRIPTION |
| 65391 $11.95 | Fuel Pump Block-Off Plate, Anodized Aluminum, SBC |
| 65392 $11.95 | Fuel Pump Block-Off Plate, Anodized Aluminum, BBC, 273-440 Chrysler and all Fords except 351C, 351M and 400 |
| 65393 $13.32 | Fuel Pump Block-Off Plate, Chrome Plated Steel, SBC |
| 65394 $11.95 | Fuel Pump Block-Off Plate, Chrome Plated Steel, BBC, 273-440 Chrysler, and all Fords except 351C, 351M and 400 |
| PART # | DESCRIPTION |
| 65395 $25.57 | Fuel Pump Block-Off Plate, SBC |
| 65396 $25.56 | Fuel Pump Block-Off Plate, BBC, 273-440 Chrysler, and all Fords except 351C, 351M and 400 |
| PART # | DESCRIPTION |
| 65397 $61.95 | Fuel Pump Block-Off Plate, SBC |
| 65398 $61.95 | Fuel Pump Block-Off Plate, BBC, 273-440 Chrysler, and all Fords except 351C, 351M and 400 |
|
NOTE: Installation of this product requires pulling vacuum from a valve cover as well |
|
• Lightweight design with hardened ends reduces reciprocating
mass to prevent pump arm "float" and subsequent fuel
starvation • For use in Drag, Oval Track and Street-Performance applications |
| PART # | DESCRIPTION |
| 65750 $32.29 | Lightweight Fuel Pump Push Rod, SBC and BBC |
| 65752 $37.67 | Lightweight Fuel Pump Push Rod, 0.200" longer to fit World Products Merlin and Oldsmobile Rocket Block |
| • This heavy-duty fuel pump spring boosts Holley® electric fuel pump pressure from 12 to 19 psi and increases overall fuel volume |
| PART # | DESCRIPTION |
| 65770 $7.03 | Fuel Pump Spring, Holley® Electric Fuel Pumps |
|
INTAKE MANIFOLD SPACER PLATES • Allows you to bolt on conventional, short deck intake manifolds on GM’s Chevy tall deck truck blocks, or any Big Block Chevy-style aftermarket block which is .400" taller than stock • Precision machined aluminum; mounts between the intake manifold and cylinder head |
| PART # | DESCRIPTION |
| 65090 $234.71 * | Intake Manifold Spacers, Fits Tall Deck (+.400") Big Block Chevy |
|
• Convenient kit provides a quick, sure way to seal vacuum
line connections at carburetors, manifolds, etc. when vacuum
lines have been removed • Kit consists of color-coded soft plastic caps in quantities and inside dimensionsas follows: two 1/8", six 3/16", six 1/4", two 5/16", four 3/8" |
| PART # | DESCRIPTION |
| 41090 $7.18 | Vacuum Line Cap Kit |
|
• Convenient kit provides a quick, sure way to seal vacuum
line connections at carburetors, manifolds, etc. when vacuum
lines have been removed • Kit consists of black soft plastic caps in quantities and inside dimensions as follows: two 1/8", six 3/16", six 1/4", two 5/16", four 3/8" |
| PART # | DESCRIPTION |
| 41091 $9.84 | Vacuum Line Cap Kit, Black |
| 62293 $20.20 | No. 62070 $34.99 | No. 65805 $14.72 |
| No. 62295 $63.27 | No. 65802 $13.30 | No. 65803 $20.17 | No. 65800 $168.60 |
