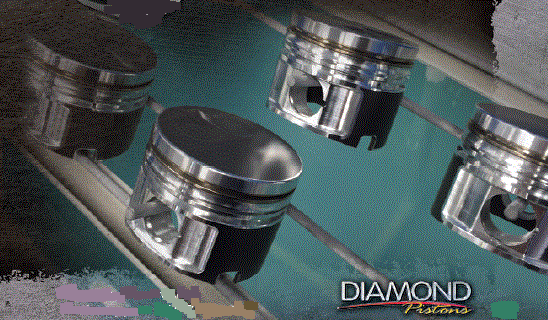

Diamind Forged Pistons Street & Race for Mopar, Ford, NHRA, Sport Compact from RPM

Small Block Mopar 340 STREET/STRIP
FLAT TOP SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with oem and most aftermarket cylinder head
• Top ring down dimension: .310"
• Ratios figured for .040 head gasket @ 9.600 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.292" intake and .224" exhaust
• Will work with up to a intake valve size of 2.070" and exhaust valve size of 1.625"
• Made from 4032 alloy

340 Block: 4.040 Std Bore 3.310 Std Stroke Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 63cc 65cc 70cc Ring Set Part # ea.

4.070 3.310 6.123 1.802 578 .984 x 2.750 -5.6cc 9.5 9.3 8.8 09024070 $183.74 51001 $158.76

4.040 4.000 6.123 1.457 508 .984 x 2.750 -5.6cc 11.1 10.9 10.3 09024040 $183.74 51005 $158.76

4.070 4.000 6.123 1.457 517 .984 x 2.750 -5.6cc 11.3 11.0 10.5 09024070 $183.74 51007 $158.76

4.080 4.000 6.123 1.457 521 .984 x 2.750 -5.6cc 11.4 11.1 10.5 09024080 $183.74 51010 $158.76

4.100 4.000 6.123 1.457 527 .984 x 2.750 -5.6cc 11.4 11.2 10.6 09024100 $183.74 51013 $158.76

4.070 4.000 6.125 1.457 519 .927 x 2.750 -5.6cc 11.3 11.1 10.5 09024070 $183.74 51008 $158.76

4.080 4.000 6.125 1.457 523 .927 x 2.750 -5.6cc 11.4 11.1 10.6 09024080 $183.74 51009 $158.76

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 125
Small Block Mopar 360 STREET/STRIP
FLAT TOP SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with oem and most aftermarket cylinder heads
• Top ring down dimension: .310"
• Ratios figured for .040 head gasket @ 9.600 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.292" intake and .224" exhaust
• Will work with up to a intake valve size of 2.070" and exhaust valve size of 1.625"
• Made from 4032 alloy

360 Block: 4.000 Std Bore 3.580 Std Stroke Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 63cc 65cc 70cc Ring Set Part # ea.

4.030 3.580 6.123 1.667 541 .984 x 2.750 -5.6cc 10.0 9.8 9.3 09024030 $183.74 51021 $158.76

4.040 3.580 6.123 1.667 545 .984 x 2.750 -5.6cc 10.1 9.9 9.4 09024040 $183.74 51022 $158.76

4.060 3.580 6.123 1.667 551 .984 x 2.750 -5.6cc 10.2 9.9 9.4 09024060 $183.74 51023 $158.76

4.020 4.000 6.123 1.457 501 .984 x 2.750 -5.6cc 11.0 10.8 10.3 09024020 $183.74 51025 $158.76

4.030 4.000 6.123 1.457 504 .984 x 2.750 -5.6cc 11.1 10.8 10.3 09024030 $183.74 51026 $158.76

4.060 4.000 6.123 1.457 514 .984 x 2.750 -5.6cc 11.2 11.0 10.4 09024060 $183.74 51028 $158.76

4.030 4.000 6.125 1.457 506 .927 x 2.750 -5.6cc 11.1 10.9 10.3 09024030 $183.74 51027 $158.76

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 126
Small Block Mopar 318 STREET/STRIP DISH SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with oem and most aftermarket cylinder heads
• Top ring down dimension: .310"
• Ratios figured for .040 head gasket @ 9.600 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.292" intake and .224" exhaust
• Will work with up to a intake valve size of 2.070" and exhaust valve size of 1.625"
• Made from 4032 alloy

318 Block: 3.910 Std Bore 3.310 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 63cc 65cc 70cc Ring Set Part # ea.

3.940 4.000 6.123 1.457 486 .984 x 2.750 -16.9cc 9.5 9.4 9.0 09023940 $183.74 50010 $158.76

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Small Block Mopar 340 STREET/STRIP DISH SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with oem and most aftermarket cylinder heads
• Top ring down dimension: .310"
• Ratios figured for .040 head gasket @ 9.600 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.292" intake and .224" exhaust
• Will work with up to a intake valve size of 2.070" and exhaust valve size of 1.625"
• Made from 4032 alloy

340 Block: 4.040 Std Bore 3.310 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 63cc 65cc 70cc Ring Set Part # ea.

4.070 4.000 6.123 1.457 517 .984 x 2.750 -9.3cc 10.8 10.6 10.1 09024070 $183.74 51411 $158.76

4.070 4.000 6.123 1.457 521 .984 x 2.750 -21.5cc 9.6 9.5 9.1 09024070 $183.74 51409 $158.76

4.080 4.000 6.123 1.457 524 .984 x 2.750 -21.5cc 9.7 9.5 9.1 09024080 $183.74 51412 $158.76

4.100 4.000 6.123 1.457 530 .984 x 2.750 -21.5cc 9.7 9.6 9.2 09024100 $183.74 51416 $158.76

4.070 4.000 6.125 1.457 523 .927 x 2.750 -21.5cc 9.7 9.5 9.1 09024070 $183.74 51410 $158.76

4.080 4.000 6.125 1.457 526 .927 x 2.750 -21.5cc 9.7 9.5 9.1 09024080 $183.74 51413 $158.76

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 127
Small Block Mopar 360 STREET/STRIP DISH SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with oem and most aftermarket cylinder heads
• Top ring down dimension: .310"
• Ratios figured for .040 head gasket @ 9.600 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.292" intake and .224" exhaust
• Will work with up to a intake valve size of 2.070" and exhaust valve size of 1.625"
• Made from 4032 alloy

360 Block: 4.000 Std Bore 3.580 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 63cc 65cc 70cc Ring Set Part # ea.

4.005 3.580 6.123 1.667 531 .984 x 2.750 -9.0cc 9.6 9.4 9.0 09024000 $183.74 51400 $158.76

4.020 3.580 6.123 1.667 538 .984 x 2.750 -9.0cc 9.6 9.4 9.0 09024020 $183.74 51420 $158.76

4.005 4.000 6.123 1.457 500 .984 x 2.750 -19.0cc 9.6 9.4 9.0 09024000 $183.74 51401 $158.76

4.020 4.000 6.123 1.457 504 .984 x 2.750 -20.0cc 9.6 9.4 9.0 09024020 $183.74 51403 $158.76

4.030 4.000 6.123 1.457 507 .984 x 2.750 -20.0cc 9.6 9.4 9.0 09024030 $183.74 51405 $158.76

4.040 4.000 6.123 1.457 510 .984 x 2.750 -20.0cc 9.6 9.5 9.1 09024040 $183.74 51407 $158.76

4.060 4.000 6.123 1.457 518 .984 x 2.750 -21.5cc 9.6 9.4 9.0 09024060 $183.74 51408 $158.76

4.005 4.000 6.125 1.457 502 .927 x 2.750 -19.0cc 9.6 9.4 9.0 09024000 $183.74 51402 $158.76

4.020 4.000 6.125 1.457 506 .927 x 2.750 -20.0cc 9.6 9.4 9.0 09024020 $183.74 51404 $158.76

4.030 4.000 6.125 1.457 509 .927 x 2.750 -20.0cc 9.6 9.5 9.0 09024030 $183.74 51406 $158.76

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 128
Big Block Mopar 383 STREET/STRIP
FLAT TOP SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with oem and most aftermarket cylinder heads
• Top ring down dimension: .240"
• Ratios figured for .040 head gasket @ 9.980 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .185W wrist pins included
• Valve pocket depth: 0.197" intake and .163" exhaust
• Will work with up to a intake valve size of 2.140" and exhaust valve size of 1.850"
• Made from 4032 alloy

383 Block: 4.250 Std Bore 3.375 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 75cc 78cc 84cc Ring Set Part # ea.

4.280 3.375 6.360 1.916 630 1.094 x 2.930 -3.0cc 9.6 9.3 8.8 09024280 $218.74 51900 $153.75

4.310 3.375 6.360 1.916 632 1.094 x 2.930 -3.0cc 9.7 9.4 8.9 09024310 $218.74 51903 $153.75

4.280 3.750 6.360 1.720 597 1.094 x 2.930 -3.0cc 10.3 10.0 9.5 09024280 $218.74 51910 $153.75

4.310 3.750 6.360 1.720 600 1.094 x 2.930 -3.0cc 10.5 10.2 9.6 09024310 $218.74 51912 $153.75

4.280 3.375 6.768 1.516 548 .990 x 2.930 -3.0cc 9.7 9.5 9.0 09024280 $218.74 51907 $153.75

4.310 3.375 6.768 1.516 543 .990 x 2.930 -3.0cc 9.9 9.6 9.1 09024310 $218.74 51908 $153.75

4.280 3.750 6.768 1.320 488 .990 x 2.930 -3.0cc 10.5 10.2 9.7 09024280 $218.74 51950 $153.75

4.310 3.750 6.768 1.320 500 .990 x 2.930 -3.0cc 10.6 10.3 9.5 09024310 $218.74 51952 $153.75

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Big Block Mopar 400 STREET/STRIP
FLAT TOP SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with oem and most aftermarket cylinder heads
• Top ring down dimension: .190"
• Ratios figured for .040 head gasket @ 9.980 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .185W wrist pins included
• Valve pocket depth: 0.212" intake and .163" exhaust
• Will work with up to a intake valve size of 2.320" and exhaust valve size of 1.880"
• Made from 4032 alloy

400 Block: 4.340 Std Bore 3.375 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 75cc 78cc 84cc Ring Set Part # ea.

4.375 3.750 6.768 1.320 515 1.094 x 2.930 -3.4cc 10.9 10.6 10.0 09024375 $218.74 52006 $153.75

4.375 3.750 6.768 1.320 523 .990 x 2.930 -3.4cc 10.9 10.6 10.0 09024375 $218.74 52007 $153.75

4.375 4.150 6.768 1.120 487 .990 x 2.930 -3.4cc 12.0 11.6 11.0 09024375 $218.74 52008 $153.75

4.375 4.250 6.535 1.305 513 .990 x 2.930 -3.4cc 12.3 11.9 11.3 09024375 $218.74 52015 $153.75

All items in red are non-stocking parts, made-to-order as necessary.

Page 129
Big Block Mopar 440 STREET/STRIP
FLAT TOP SERIES

• 3D milling on piston crowns for ready to install finish
• Designed to work with most oem open and closed chamber cylinder heads
• Top ring down dimension: .240"
• Ratios figured for .040 head gasket @ 10.720 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.212" intake and .163" exhaust
• Will work with up to a intake valve size of 2.320" and exhaust valve size of 1.880"
• Made from 4032 alloy

440 Block: 4.320 Std Bore 3.750 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 75cc 78cc 84cc Ring Set Part # ea.

4.350 3.750 6.768 2.065 646 1.094 x 2.930 -3.4cc 10.9 10.6 10.0 09024350 $218.74 52001 $153.75

4.350 3.750 6.768 2.065 653 .990 x 2.930 -3.4cc 10.9 10.6 10.0 09024350 $218.74 52002 $153.75

4.360 3.750 6.768 2.065 660 .990 x 2.930 -3.4cc 10.9 10.6 10.0 09024360 $218.74 52003 $153.75

4.350 4.150 6.768 1.865 614 1.094 x 2.930 -3.4cc 11.9 11.6 11.0 09024350 $218.74 52004 $153.75

4.360 4.150 6.768 1.865 618 1.094 x 2.930 -3.4cc 12.0 11.6 11.0 09024360 $218.74 52009 $153.75

4.375 4.150 6.768 1.865 621 1.094 x 2.930 -3.4cc 12.1 11.7 11.1 09024375 $218.74 52011 $153.75

4.350 4.150 6.768 1.865 614 .990 x 2.930 -3.4cc 11.9 11.6 11.0 09024350 $218.74 52005 $153.75

4.360 4.150 6.768 1.865 624 .990 x 2.930 -3.4cc 12.0 11.6 11.0 09024360 $218.74 52010 $153.75

4.375 4.150 6.768 1.865 633 .990 x 2.930 -3.4cc 12.1 11.7 11.1 09024375 $218.74 52012 $153.75

4.380 4.150 6.768 1.865 635 .990 x 2.930 -3.4cc 12.1 11.7 11.1 09024375 $218.74 52013 $153.75

4.350 4.250 6.768 1.815 610 .990 x 2.930 -3.4cc 12.2 11.8 11.2 09024350 $218.74 52017 $153.75

4.360 4.250 6.768 1.815 613 .990 x 2.930 -3.4cc 12.2 11.9 11.2 09024360 $218.74 52020 $153.75

4.375 4.250 6.768 1.815 624 .990 x 2.930 -3.4cc 12.3 12.0 11.3 09024375 $218.74 52023 $153.75

4.380 4.250 6.768 1.815 617 .990 x 2.930 -3.4cc 12.3 12.0 11.3 09024380 $218.74 52024 $153.75

4.350 4.250 6.800 1.780 603 .990 x 2.930 -3.4cc 12.1 11.8 11.1 09024350 $218.74 52027 $153.75

4.360 4.250 6.800 1.780 612 .990 x 2.930 -3.4cc 12.2 11.8 11.2 09024360 $218.74 52028 $153.75

4.380 4.250 6.800 1.780 618 .990 x 2.930 -3.4cc 12.3 11.9 11.3 09024380 $218.74 52029 $153.75

4.350 4.250 7.100 1.480 553 .990 x 2.930 -3.4cc 12.1 11.8 11.1 09024350 $218.74 52030 $153.75

4.360 4.250 7.100 1.480 548 .990 x 2.930 -3.4cc 12.2 11.8 11.2 09024360 $218.74 52031 $153.75

4.380 4.250 7.100 1.480 556 .990 x 2.930 -3.4cc 12.3 11.9 11.3 09024380 $218.74 52032 $153.75

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 130
Big Block Mopar 572 STREET/STRIP
FLAT TOP SERIES

3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with Edelbrock Victor, Performer RPM, Indy
440SR, Indy 440-1 and Indy 440 EZ cylinder heads
• Top ring down dimension: .280"
• Ratios figured for .040 head gasket @ 10.720 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .185W wrist pins included
• Valve pocket depth: 0.280" intake and .230" exhaust
• Will work with up to a intake valve size of 2.250" and exhaust valve size of 1.810"
• Made from 2618 alloy

440 Block: 4.320 Std Bore 3.750 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 72cc 75cc 80cc Ring Set Part # ea.

4.500 4.500 7.100 1.360 call .990 x 2.930 -6.9cc 13.5 13.1 12.5 09024500 $218.74 52040 $153.75

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Big Block Mopar 400 STREET/STRIP DISH SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with oem and most aftermarket cylinder heads
• Top ring down dimension: .190"
• Ratios figured for .040 head gasket @ 9.980 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .185W wrist pins included
• Valve pocket depth: 0.212" intake and sym exhaust
• Will work with up to a intake valve size of 2.320"
• Made from 4032 alloy

400 Block: 4.340 Std Bore 3.375 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 75cc 78cc 84cc Ring Set Part # ea.

4.375 3.750 6.768 1.320 515 1.094 x 2.930 -12.5cc 10.0 9.8 9.3 09024375 $218.74 52406 $153.75

4.375 3.750 6.768 1.320 528 .990 x 2.930 -12.5cc 10.0 9.8 9.3 09024375 $218.74 52407 $153.75

4.375 4.150 6.768 1.120 473 .990 x 2.930 -20.0cc 10.3 10.0 9.6 09024375 $218.74 52408 $153.75

4.375 4.250 6.535 1.305 529 .990 x 2.930 -24.0cc 10.2 10.0 9.5 09024375 $218.74 52409 $153.75

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 131
Big Block Mopar 440 STREET/STRIP DISH SERIES

• 3D milling on piston crowns for ready to install finish
• Designed to work with most oem open and closed chamber cylinder heads
• Top ring down dimension: .240"
• Ratios figured for .040 head gasket @ 10.720 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.212" intake and sym exhaust
• Will work with up to a intake valve size of 2.320"
• Made from 4032 alloy

440 Block: 4.320 Std Bore 3.750 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 75cc 78cc 84cc Ring Set Part # ea.

4.350 3.750 6.768 2.065 667 1.094 x 2.930 -13.0cc 9.9 9.7 9.2 09024350 $218.74 52401 $153.75

4.350 3.750 6.768 2.065 668 .990 x 2.930 -13.0cc 9.9 9.7 9.2 09024350 $218.74 52402 $153.75

4.350 3.900 7.100 1.658 598 .990 x 2.930 -16.5cc 10.0 9.7 9.3 09024350 $218.74 52411 $153.75

4.350 4.150 6.768 1.865 635 1.094 x 2.930 -13.0cc 10.9 10.6 10.1 09024350 $218.74 52416 $153.75

4.350 4.150 6.768 1.865 642 1.094 x 2.930 -24.0cc 9.9 9.7 9.3 09024350 $218.74 52421 $153.75

4.350 4.150 6.768 1.865 635 .990 x 2.930 -13.0cc 10.9 10.6 10.1 09024350 $218.74 52415 $153.75

4.360 4.150 6.768 1.865 646 .990 x 2.930 -13.0cc 10.9 10.7 10.1 09024360 $218.74 52417 $153.75

4.350 4.250 6.768 1.815 650 1.094 x 2.930 -24.0cc 10.2 9.9 9.5 09024350 $218.74 52425 $153.75

4.375 4.250 6.768 1.815 662 1.094 x 2.930 -24.0cc 10.3 10.0 9.6 09024375 $218.74 52429 $153.75

4.350 4.250 6.768 1.815 658 .990 x 2.930 -24.0cc 10.2 9.9 9.5 09024350 $218.74 52424 $153.75

4.360 4.250 6.768 1.815 659 .990 x 2.930 -24.0cc 10.2 10.0 9.5 09024360 $218.74 52426 $153.75

4.380 4.250 6.768 1.815 664 .990 x 2.930 -24.0cc 10.3 10.0 9.6 09024380 $218.74 52430 $153.75

4.350 4.250 6.800 1.780 620 .990 x 2.930 -24.0cc 10.1 9.9 9.4 09024350 $218.74 52437 $153.75

4.360 4.250 6.800 1.780 635 .990 x 2.930 -24.0cc 10.1 9.9 9.5 09024360 $218.74 52438 $153.75

4.380 4.250 6.800 1.780 638 .990 x 2.930 -24.0cc 10.2 10.0 9.5 09024380 $218.74 52439 $153.75

4.350 4.250 7.100 1.480 568 .990 x 2.930 -24.0cc 10.1 9.9 9.4 09024350 $218.74 52460 $153.75

4.360 4.250 7.100 1.480 570 .990 x 2.930 -24.0cc 10.1 9.9 9.5 09024360 $218.74 52461 $153.75

4.380 4.250 7.100 1.480 587 .990 x 2.930 -24.0cc 10.2 10.0 9.5 09024380 $218.74 52462 $153.75

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 132
Big Block Mopar 572 STREET/STRIP DISH SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with Edelbrock Victor, Performer RPM, Indy
440SR, Indy 440-1 and Indy 440 EZ cylinder heads
• Top ring down dimension: .280"
• Ratios figured for .040 head gasket @ 10.720 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .185W wrist pins included
• Valve pocket depth: 0.280" intake and .230" exhaust
• Will work with up to a intake valve size of 2.250" and exhaust valve size of 1.810"
• Made from 2618 alloy

440 Block: 4.320 Std Bore 3.750 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 72cc 75cc 80cc Ring Set Part # ea.

4.500 4.500 7.100 1.360 call .990 x 2.930 -34.0cc 10.7 10.5 10.1 09024500 $218.74 52470 $153.75

4.500 4.500 7.100 1.360 call .990 x 2.930 -31.0cc 10.9 10.7 10.3 09024500 $218.74 52471 $153.75

4.500 4.500 7.100 1.360 call .990 x 2.930 -26.0cc 11.4 11.1 10.7 09024500 $218.74 52472 $153.75

4.500 4.500 7.100 1.360 call .990 x 2.930 -22.0cc 11.8 11.5 11.0 09024500 $218.74 52473 $153.75

4.500 4.500 7.100 1.360 call .990 x 2.930 -18.0cc 12.2 11.9 11.4 09024500 $218.74 52474 $153.75

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Big Block Mopar 440 HIGH COMPRESSION
DOME SERIES

• 3D milling on piston crowns for ready to install finish
• Designed to work with most oem open and closed chamber cylinder heads
• Top ring down dimension: .240"
• Ratios figured for .040 head gasket @ 10.720 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.225" intake and .191" exhaust
• Will work with up to a intake valve size of 2.190" and exhaust valve size of 1.880"
• Made from 4032 alloy

440 Block: 4.320 Std Bore 3.750 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 75cc 78cc 84cc Ring Set Part # ea.

4.350 3.750 6.768 2.029 660 1.094 x 2.930 8.6cc 11.3 10.9 10.3 09024350 $218.74 52440 $175.00

4.360 3.750 6.768 2.029 668 1.094 x 2.930 8.6cc 11.3 11.0 10.4 09024360 $218.74 52441 $175.00

4.380 3.750 6.768 2.029 673 1.094 x 2.930 8.6cc 11.4 11.0 10.4 09024380 $218.74 52442 $175.00

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 133
Big Block Mopar 440 EDELBROCK DOME SERIES

• 3D milling on piston crowns for ready to install finish
• Designed to work with Edelbrock 60929 and 60189 Performer RPM cylinder heads
• Top ring down dimension: .240"
• Ratios figured for .040 head gasket @ 10.720 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .185W wrist pins included
• Valve pocket depth: 0.203" intake and .163" exhaust
• Will work with up to a intake valve size of 2.190" and exhaust valve size of 1.880"
• Made from 2618 alloy

440 Block: 4.320 Std Bore 3.750 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 80cc 84cc 88cc Ring Set Part # ea.

4.350 3.750 6.768 2.065 680 1.094 x 2.930 19.0cc 13.2 12.6 12.0 09024350 $218.74 52445 $175.00

4.375 3.750 6.768 2.065 700 1.094 x 2.930 19.0cc 13.3 12.7 12.2 09024375 $218.74 52448 $175.00

4.350 3.750 6.768 2.065 680 .990 x 2.930 19.0cc 13.2 12.6 12.0 09024350 $218.74 52446 $175.00

4.375 3.750 6.768 2.065 695 .990 x 2.930 19.0cc 13.3 12.7 12.2 09024375 $218.74 52449 $175.00

4.350 4.150 6.768 1.865 665 1.094 x 2.930 13.3cc 13.6 13.0 12.4 09024350 $218.74 52451 $175.00

4.375 4.150 6.768 1.865 678 1.094 x 2.930 13.3cc 13.7 13.1 12.5 09024370 52454 $175.00

4.350 4.150 6.768 1.865 667 .990 x 2.930 13.3cc 13.6 13.0 12.4 09024350 $218.74 52452 $175.00

4.375 4.150 6.768 1.865 680 .990 x 2.930 13.3cc 13.7 13.1 12.5 09024375 $218.74 52455 $175.00

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 134
Mopar Hemi 426 HEMI STREET DOME SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with most oem and aftermarket cylinder heads
• Top ring down dimension: .460"
• Ratios figured for .041 head gasket @ 10.720 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .185W wrist pins included
• Valve pocket depth: 0.263" intake and -.256" exhaust
• Will work with up to a intake valve size of 2.320" and exhaust valve size of 1.940"
• Made from 4032 alloy

426 Block: 4.250 Std Bore 3.750 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 168cc 173cc 178cc Ring Set Part # ea.

4.250 3.750 6.860 1.965 829 1.031 x 2.930 85.0cc 9.8 9.3 9.0 09024250 $218.74 52500 $187.50

4.280 3.750 6.860 1.965 841 1.031 x 2.930 85.0cc 9.9 9.5 9.1 09024280 $218.74 52502 $187.50

4.310 3.750 6.860 1.965 858 1.031 x 2.930 85.0cc 10.0 9.6 9.2 09024310 $218.74 52505 $187.50

4.250 4.150 6.860 1.765 778 1.031 x 2.930 75.0cc 9.8 9.4 9.1 09024250 $218.74 52520 $187.50

4.280 4.150 6.860 1.765 795 1.031 x 2.930 75.0cc 9.9 9.5 9.2 09024280 $218.74 52522 $187.50

4.310 4.150 6.860 1.765 793 1.031 x 2.930 75.0cc 10.0 9.7 9.3 09024310 $218.74 52525 $187.50

4.250 4.150 6.860 1.765 793 1.031 x 2.930 96.0cc 11.9 11.3 10.8 09024250 $218.74 52530 $187.50

4.280 4.150 6.860 1.765 call 1.031 x 2.930 96.0cc 12.0 11.5 10.9 09024280 $218.74 52531 $187.50

4.310 4.150 6.860 1.765 call 1.031 x 2.930 96.0cc 12.2 11.6 11.1 09024310 $218.74 52532 $187.50

4.500 3.750 6.860 1.965 call 1.031 x 2.930 86.0cc 10.9 10.4 10.0 09024500 $218.74 52560 $187.50

4.500 4.150 6.860 1.765 785 1.031 x 2.930 74.0cc 10.7 10.3 9.9 09024500 $218.74 52565 $187.50

4.500 4.150 6.860 1.765 call 1.031 x 2.930 86.0cc 11.9 11.4 10.9 09024500 $218.74 52566 $187.50

4.500 4.250 6.860 1.725 call 1.031 x 2.930 72.0cc 11.0 10.6 10.2 09024500 $218.74 52567 $187.50

4.500 4.250 7.100 1.485 call .990 x 2.930 72.0cc 11.0 10.6 10.2 09024500 $218.74 52568 $187.50

4.500 4.500 6.860 1.600 call 1.031 x 2.930 65.0cc 11.0 10.6 10.2 09024500 $218.74 52569 $187.50

4.500 4.500 7.100 1.360 call .990 x 2.930 65.0cc 11.0 10.6 10.2 09024500 $218.74 52570 $187.50

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 135
Mopar Hemi 426 HEMI RACE DOME SERIES

• 3D milling on piston crowns for ready to install finish
• Valve pockets designed to work with most oem and aftermarket cylinder heads
• Top ring down dimension: .400"
• Ratios figured for .041 head gasket @ 10.720 Deck
• Standard 1/16 x 1/16 x 3/16 ring package
• Premium 8620 .155W wrist pins included
• Valve pocket depth: 0.242" intake and -.250" exhaust
• Will work with up to a intake valve size of 2.320" and exhaust valve size of 1.940"
• Made from 2618 alloy

426 Block: 4.250 Std Bore 3.750 Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 168cc 173cc 178cc Ring Set Part # ea.

4.280 3.750 6.860 1.965 797 1.031 x 2.930 112.0cc 13.2 12.4 11.7 09024280 $218.74 52550 $187.50

4.310 3.750 6.860 1.965 807 1.031 x 2.930 112.0cc 13.4 12.6 11.9 09024310 $218.74 52552 $187.50

4.280 4.150 6.860 1.765 775 1.031 x 2.930 103.0cc 13.0 12.3 11.7 09024280 $218.74 52540 $187.50

4.310 4.150 6.860 1.765 800 1.031 x 2.930 103.0cc 13.2 12.5 11.9 09024310 $218.74 52542 $187.50

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 136
GM ECOTEC STREET/STRIP SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Ratios figured for 86.25mm x .040 head gasket
• Top ring down dimension: .230"
• Standard 1.2mm x 1.5mm x 2.8mm ring package
• Premium 8620 .155W wrist pins included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.077" intake and .091" exhaust
• 2618 material for High HP/Boost applications

-
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's Factory CC Ring Set Part # ea.

86.00mm 3.724 5.768 1.053 335 .787 x 2.250 -2.2cc 9.5 09143385 $199.99 10000 $170.00

85.98mm 3.386 5.725 1.257 358 .906 x 2.500 1.0cc 9.5 09143385 $199.99 10101 $170.00

85.98mm 3.386 5.725 1.257 358 .906 x 2.500 4.3cc 10.0 09143385 $199.99 10103 $170.00

85.98mm 3.386 5.725 1.257 364 .906 x 2.500 7.0cc 10.5 09143385 $199.99 10105 $170.00

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 137
Ford/Barra XR-6 4.0L TURBO SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Side gas ports for better ring seal
• Ratios figured for 94mm x .040 head gasket @ 9.228 Deck Height
• Top ring down dimension: .280"
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.122" intake and 0.000" exhaust
• 2618 material for High HP/Boost applications

Stock Bore 92.26mm Stock Stroke 99.31mm
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 70cc Ring Set Part # ea.

3.632 3.910 6.058 1.215 call .866 x 2.500 -15.0cc 8.5 09533632 $246.24 30200 $166.25

3.642 3.910 6.058 1.215 call .866 x 2.500 -15.0cc 8.5 09533642 $246.24 30201 $166.25

3.652 3.910 6.058 1.215 call .866 x 2.500 -15.0cc 8.6 09533652 $246.24 30202 $166.25

3.632 3.910 6.058 1.215 call .866 x 2.500 -9.0cc 9.0 09533632 $246.24 30203 $166.25

3.642 3.910 6.058 1.215 call .866 x 2.500 -9.0cc 9.1 09533642 $246.24 30204 $166.25

3.652 3.910 6.058 1.215 call .866 x 2.500 -9.0cc 9.1 09533652 $246.24 30205 $166.25

3.632 3.910 6.058 1.215 call .866 x 2.500 -4.0cc 9.5 09533632 $246.24 30206 $166.25

3.642 3.910 6.058 1.215 call .866 x 2.500 -4.0cc 9.6 09533642 $246.24 30207 $166.25

3.652 3.910 6.058 1.215 call .866 x 2.500 -4.0cc 9.6 09533652 $246.24 30208 $166.25

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 138
Ford 1.6L FORD ECOBOOST SERIES

• Piston crowns designed to work with OEM direct injection
• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 3.150 x .040 head gasket
• Top ring down dimension: .250"
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.115" intake and .145" exhaust
• 2618 material for High HP/Boost applications

79.0mm (3.110) Std Bore - 83.0mm (3.205) Stock Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's Factory CC Ring Set Part # ea.

79.0mm 81.4mm 5.2758 1.130 271 .827 x 2.250 -5.9cc Factory Replace- ment 09513110 $124.99 33100 $147.50

Ford 2.0L FORD ECOBOOST SERIES

Piston crowns designed to work with OEM direct injection
• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 3.641 x .040 head gasket
• Top ring down dimension: .250"
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.150" intake and .145" exhaust
• 2618 material for High HP/Boost applications

87.5mm (3.3449) Std Bore - 83.0mm (3.2677) Stock Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's Factory CC Ring Set Part # ea.

87.5mm 83.0mm 6.136 1.290 348 .886 x 2.250 -6.9cc Factory Replace- ment 09513445 $124.99 33000 $147.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 139
Ford 2.3L FORD ECOBOOST SERIES

• Piston crowns designed to work with OEM direct injection
• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 3.641 x .040 head gasket
• Top ring down dimension: .280"
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.075" intake and .150" exhaust
• 2618 material for High HP/Boost applications

87.5mm (3.3449) Std Bore - 93.98mm (3.700) Stock Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's Factory CC Ring Set Part # ea.

87.5mm 3.700 5.875 1.290 call .886 x 2.500 -6.41cc 9.5 09513445 $124.99 23100 $147.50

88.0mm 3.700 5.875 1.290 call .886 x 2.500 -6.41cc 9.5 09513465 $124.99 23101 $147.50

88.5mm 3.700 5.875 1.290 call .886 x 2.500 -6.41cc 9.5 09513485 $299.99 23102 $147.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Ford 3.5L FORD ECOBOOST SERIES

• Piston crowns designed to work with OEM direct injection
• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operat
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 3.671 x .040 head gasket
• Top ring down dimension: .300"
• Premium 1.5mm x 1.5mm x 3.0mm ring package included
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.090" intake and .000" exhaust
• 2618 material for High HP/Boost applications

92.50mm (3.6417) Std Bore - 86.70mm (3.4133) Stock Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's Factory CC Ring Set Part # ea.

92.50mm 3.4133 6.0137 1.240 call .905 x 2.500 -.67cc 10.0 09053641 $307.49 35000 $147.50

92.75mm 3.4133 6.0137 1.240 call .905 x 2.500 -.67cc 10.0 09053651 $307.49 35001 $147.50

93.00mm 3.4133 6.0137 1.240 call .905 x 2.500 -.67cc 10.0 09053661 $307.49 35002 $147.50

92.50mm 3.4133 6.0137 1.240 call .905 x 2.500 -4.5cc 9.5 09053641 $307.49 35003 $147.50

92.75mm 3.4133 6.0137 1.240 call .905 x 2.500 -4.5cc 9.5 09053651 $307.49 35004 $147.50

93.0mm 3.4133 6.0137 1.240 call .905 x 2.500 -4.5cc 9.5 09053661 $307.49 35005 $147.50

92.50mm 3.4133 6.0137 1.240 call .905 x 2.500 -8.8cc 9.0 09053641 $307.49 35006 $147.50

92.75mm 3.4133 6.0137 1.240 call .905 x 2.500 -8.8cc 9.0 09053651 $307.49 35007 $147.50

93.00mm 3.4133 6.0137 1.240 call .905 x 2.500 -8.8cc 9.0 09053661 $307.49 35008 $147.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 140
Honda B18 REBEL SERIES

• 3D milling on piston crowns for ready to install finish
• Side gas ports for better ring seal
• Ratios figured for 85mm x .030 head gasket @ 8.345" Deck Height
• Top ring down dimension: .300"
• Designed for pin buttons $19.05 for maximum strength
• Premium H-13 .200W wrist pins included
• Premium 1.2mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets • for larger than stock valve sizes
• Valve pocket depth: 0.200" intake and 0.150" exhaust
• 2618 material for High HP/Boost applications - rated for 1400hp

B18A/B Block: 81.0mm Std Bore 89.0mm
Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 45CC Ring Set Part # ea.

84.0mm 89.0mm 5.394 1.181 call .8267 x 2.250 -2.5cc 9.9 09583307 $199.99 71000 $190.00

84.5mm 89.0mm 5.394 1.181 call .8267 x 2.250 -2.5cc 10.0 09583327 $199.99 71001 $190.00

85.0mm 89.0mm 5.394 1.181 call .8267 x 2.250 -2.5cc 10.1 09583347 $199.99 71002 $190.00

84.0mm 89.0mm 5.394 1.181 call .866 x 2.250 -2.5cc 9.9 09583307 $199.99 71003 $190.00

84.5mm 89.0mm 5.394 1.181 call .866 x 2.250 -2.5cc 10.0 09583327 $199.99 71004 $190.00

85.0mm 89.0mm 5.394 1.181 call .866 x 2.250 -2.5cc 10.1 09583347 $199.99 71005 $190.00

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Honda K20 REBEL SERIES

• 3D milling on piston crowns for ready to install finish
• Side gas ports for better ring seal
• Ratios figured for 90mm x .030 head gasket @ 8.345" Deck Height
• Top ring down dimension: .300"
• Designed for pin buttons $19.05 for maximum strength
• Premium H-13 .200W wrist pins included
• Premium 1.2mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets • for larger than stock valve sizes
• Valve pocket depth: 0.200" intake and 0.150" exhaust
• 2618 material for High HP/Boost applications - rated for 1400hp

K20/K24 Block: 86.0mm Std Bore 86.0mm Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 50CC Ring Set Part # ea.

86.0mm 86.0mm 5.472 1.181 call .866 x 2.250 2.0cc 10.2 09583385 $199.99 71100 $190.00

86.5mm 86.0mm 5.472 1.181 call .866 x 2.250 2.0cc 10.3 09583405 $199.99 71101 $190.00

87.0mm 86.0mm 5.472 1.181 call .866 x 2.250 2.0cc 10.4 09583425 $199.99 71102 $190.00

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 141
Honda K24 REBEL SERIES

3D milling on piston crowns for ready to install finish
• Side gas ports for better ring seal
• Ratios figured for 90mm x .030 head gasket @ 9.120" Deck Height
• Top ring down dimension: .300"
• Designed for pin buttons $19.05 for maximum strength
• Premium H-13 .200W wrist pins included
• Premium 1.2mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets • for larger than stock valve sizes
• Valve pocket depth: 0.200" intake and 0.150" exhaust
• 2618 material for High HP/Boost applications - rated for 1400hp

K20/K24 Block: 86.0mm Std Bore 86.0mm Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 50CC Ring Set Part # ea.

87.0mm 99.0mm 5.984 1.181 call .866 x 2.250 -6.0cc 10.1 09583425 $199.99 71200 $190.00

87.5mm 99.0mm 5.984 1.181 call .866 x 2.250 -6.0cc 10.2 09583445 $199.99 71201 $190.00

88.0mm 99.0mm 5.984 1.181 call .866 x 2.250 -6.0cc 10.3 09583465 $199.99 71202 $190.00

89.0mm 99.0mm 5.984 1.181 call .866 x 2.250 -6.0cc 10.4 09583505 $199.99 71203 $190.00

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 142
Subaru 2002-05 EJ205 WRX/STI SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 94mm x .0236 head gasket
• Top ring down dimension: .300"
• Premium 1.2mm x 1.2mm x 2.0mm ring package included
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Oversized valve pockets - for larger than stock valve size
• Valve pocket depth: 0.220" intake and .220" exhaust

Stock Bore 92.0mm (3.622)
Stock Stroke 75mm (2.953)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 48cc Ring Set Part # ea.

92.0mm 75.0mm 5.137 1.287 call .905 x 2.500 -12.0cc 8.3 09513622 $199.99 36001 $166.25

92.5mm 75.0mm 5.137 1.287 call .905 x 2.500 -12.0cc 8.4 09513642 $199.99 36002 $166.25

93.0mm 75.0mm 5.137 1.287 call .905 x 2.500 -12.0cc 8.5 09513662 $199.99 36003 $166.25

Stock Bore 92.0mm (3.622)
Stock Stroke 75mm (2.953)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 48cc Ring Set Part # ea.

92.0mm 79.0mm 5.137 1.208 call .905 x 2.500 -15.5cc 8.3 09513622 $199.99 36004 $166.25

92.5mm 79.0mm 5.137 1.208 call .905 x 2.500 -15.5cc 8.4 09513642 $199.99 36005 $166.25

93.0mm 79.0mm 5.137 1.208 call .905 x 2.500 -15.5cc 8.5 09513662 $199.99 36006 $166.25

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Subaru 2006-08 EJ255 WRX SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 101mm x .0236 head gasket
• Top ring down dimension: .300"
• Premium 1.2mm x 1.2mm x 2.0mm ring package included
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.220" intake and .220" exhaust
• 2618 material for High HP/Boost applications

Stock Bore 99.5mm (3.9173)
Stock Stroke 79mm (3.110)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 50cc Ring Set Part # ea.

99.5mm 79.0mm 5.137 1.208 call .905 x 2.500 -24.0cc 8.5 09513917 $199.99 36007 $166.25

99.75mm 79.0mm 5.137 1.208 call .905 x 2.500 -24.0cc 8.5 09513927 $199.99 36008 $166.25

100.0mm 79.0mm 5.137 1.208 call .905 x 2.500 -24.0cc 8.5 09513937 $199.99 36009 $166.25

100.5mm 79.0mm 5.137 1.208 call .905 x 2.500 -24.0cc 8.5 09513957 $199.99 36010 $166.25

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 143
Subaru 2004-UP EJ257 WRX/STI SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 101mm x .0236 head gasket
• Top ring down dimension: .250"(1.208cd) - .240" (1.129cd)
• Premium 1.2mm x 1.2mm x 2.0mm ring package included
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.220" intake and .220" exhaust
• 2618 material for High HP/Boost applications

Stock Bore 99.5mm (3.9173)
Stock Stroke 79mm (3.110)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 56cc Ring Set Part # ea.

99.5mm 79.0mm 5.137 1.208 call .905 x 2.500 -22.0cc 8.1 09513917 $199.99 36011 $166.25

99.75mm 79.0mm 5.137 1.208 call .905 x 2.500 -22.0cc 8.1 09513927 $199.99 36012 $166.25

100.0mm 79.0mm 5.137 1.208 call .905 x 2.500 -22.0cc 8.2 09513937 $199.99 36013 $166.25

100.5mm 79.0mm 5.137 1.208 call .905 x 2.500 -22.0cc 8.3 09513957 $199.99 36014 $166.25

99.5mm 79.0mm 5.137 1.208 call .905 x 2.500 -12.0cc 9.0 09513917 $199.99 36015 $166.25

99.75mm 79.0mm 5.137 1.208 call .905 x 2.500 -12.0cc 9.1 09513927 $199.99 36016 $166.25

100.0mm 79.0mm 5.137 1.208 call .905 x 2.500 -12.0cc 9.1 09513937 $199.99 36017 $166.25

100.5mm 79.0mm 5.137 1.208 call .905 x 2.500 -12.0cc 9.2 09513957 $199.99 36018 $166.25

99.5mm 79.0mm 5.137 1.208 call .905 x 2.500 -4.5cc 9.9 09513917 $199.99 36019 $166.25

99.75mm 79.0mm 5.137 1.208 call .905 x 2.500 -4.5cc 10.0 09513927 $199.99 36020 $166.25

100.0mm 79.0mm 5.137 1.208 call .905 x 2.500 -4.5cc 10.0 09513937 $199.99 36021 $166.25

100.5mm 79.0mm 5.137 1.208 call .905 x 2.500

-4.5cc

10.1 09513957 $199.99 36022 $166.25

Stock Bore 99.5mm (3.9173) Stock Stroke 79mm (3.110)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 56cc Ring Set Part # ea.

99.5mm 83.0mm 5.137 1.129 call .905 x 2.500 -26.0cc 8.1 09513917 $199.99 36023 $166.25

99.75mm 83.0mm 5.137 1.129 call .905 x 2.500 -26.0cc 8.2 09513927 $199.99 36024 $166.25

100.0mm 83.0mm 5.137 1.129 call .905 x 2.500 -26.0cc 8.2 09513937 $199.99 36025 $166.25

100.5mm 83.0mm 5.137 1.129 call .905 x 2.500 -26.0cc 8.3 09513957 $199.99 36026 $166.25

99.5mm 83.0mm 5.137 1.129 call .905 x 2.500 -16.0cc 9.0 09513917 $199.99 36027 $166.25

99.75mm 83.0mm 5.137 1.129 call .905 x 2.500 -16.0cc 9.1 09513927 $199.99 36028 $166.25

100.0mm 83.0mm 5.137 1.129 call .905 x 2.500 -16.0cc 9.1 09513937 $199.99 36029 $166.25

100.5mm 83.0mm 5.137 1.129 call .905 x 2.500 -16.0cc 9.2 09513957 $199.99 36030 $166.25

99.5mm 83.0mm 5.137 1.129 call .905 x 2.500 -8.0cc 9.9 09513917 $199.99 36031 $166.25

99.75mm 83.0mm 5.137 1.129 call .905 x 2.500 -8.0cc 10.0 09513927 $199.99 36032 $166.25

100.0mm 83.0mm 5.137 1.129 call .905 x 2.500 -8.0cc 10.0 09513937 $199.99 36033 $166.25

100.5mm 83.0mm 5.137 1.129 call .905 x 2.500 -8.0cc 10.1 09513957 $199.99 36034 $166.25

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 144
Subaru/Toyota FA20 BRZ/4U-GSE SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 89.5mm x .022" head gasket @ 8.070" Deck Height
• Top ring down dimension: .250"
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.2mm x 1.2mm x 2.0mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.100" intake and 0.090" exhaust
• 2618 material for High HP/Boost applications

FA20 Block: 86.0mm Std Bore 86.0mm Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 40.3cc Ring Set Part # ea.

86.0mm 86.0mm 5.090 1.285 call .866 x 2.250 -11.0cc 10.0 09573385 $124.99 36040 $166.25

86.25mm 86.0mm 5.090 1.285 call .866 x 2.250 -11.0cc 10.0 09573395 $124.99 36041 $166.25

86.5mm 86.0mm 5.090 1.285 call .866 x 2.250 -11.0cc 10.0 09573405 $124.99 36042 $166.25

86.0mm 86.0mm 5.090 1.285 call .866 x 2.250 -14.5cc 9.5 09573385 $124.99 36043 $166.25

86.25mm 86.0mm 5.090 1.285 call .866 x 2.250 -14.5cc 9.5 09573395 $124.99 36044 $166.25

86.5mm 86.0mm 5.090 1.285 call .866 x 2.250 -14.5cc 9.5 09573405 $124.99 36045 $166.25

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 145
Subaru FA20DIT WRX SERIES

3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 89.5mm x .022" head gasket @ 8.070" Deck Height
• Top ring down dimension: .280"
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.2mm x 1.2mm x 2.0mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.190" intake and 0.170" exhaust
• 2618 material for High HP/Boost applications

FA20DIT Block: 86.0mm Std Bore 86.0mm Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 39cc Ring Set Part # ea.

86.0mm 86.0mm 5.090 1.285 call .866 x 2.250 -9.0cc 10.5 09573385 $124.99 36046 $166.25

86.25mm 86.0mm 5.090 1.285 call .866 x 2.250 -9.0cc 10.5 09573395 $124.99 36047 $166.25

86.5mm 86.0mm 5.090 1.285 call .866 x 2.250 -9.0cc 10.6 09573405 $124.99 36048 $166.25

86.0mm 86.0mm 5.090 1.285 call .866 x 2.250 -12.0cc 10.0 09573385 $124.99 36049 $166.25

86.25mm 86.0mm 5.090 1.285 call .866 x 2.250 -12.0cc 10.0 09573395 $124.99 36050 $166.25

86.5mm 86.0mm 5.090 1.285 call .866 x 2.250 -12.0cc 10.1 09573405 $124.99 36051 $166.25

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 146
Mitsubishi 1999-2007 EVO VI-IX - 4G63 SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Side gas ports for better ring seal
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for .040 head gasket @ 9.015 Deck
• Top ring down dimension: .325"-.265" 1.020cd
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.200" intake and .190" exhaust
• 2618 material for High HP/Boost applications

Stock Bore 85.0mm (3.3464)
Stock Stroke 88mm (3.4645)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 47cc Ring Set Part # ea.

85.0mm 88.0mm 5.905 1.375 call .866 x 2.250 -12.3cc 8.5 09513346 $124.99 82000 $177.50

85.5mm 88.0mm 5.905 1.375 call .866 x 2.250 -12.3cc 8.6 09513366 $124.99 82001 $177.50

86.0mm 88.0mm 5.905 1.375 call .866 x 2.250 -12.3cc 8.7 09513386 $124.99 82002 $177.50

85.0mm 88.0mm 5.905 1.375 call .866 x 2.250 -8.0cc 9.0 09513346 $124.99 82003 $177.50

85.5mm 88.0mm 5.905 1.375 call .866 x 2.250 -8.0cc 9.1 09513366 $124.99 82004 $177.50

86.0mm 88.0mm 5.905 1.375 call .866 x 2.250 -8.0cc 9.2 09513386 $124.99 82005 $177.50

85.0mm 88.0mm 5.905 1.375 call .866 x 2.250 -1.0cc 10.0 09513346 $124.99 82006 $177.50

85.5mm 88.0mm 5.905 1.375 call .866 x 2.250 -1.0cc 10.1 09513366 $124.99 82007 $177.50

86.0mm 88.0mm 5.905 1.375 call .866 x 2.250 -1.0cc 10.2 09513386 $124.99 82008 $177.50

Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 47cc Ring Set Part # ea.

85.0mm 94.0mm 5.905 1.255 call .866 x 2.250 -16.5cc 8.5 09513346 $124.99 82009 $177.50

85.5mm 94.0mm 5.905 1.255 call .866 x 2.250 -16.5cc 8.6 09513366 $124.99 82010 $177.50

86.0mm 94.0mm 5.905 1.255 call .866 x 2.250 -16.5cc 8.7 09513386 $124.99 82011 $177.50

85.0mm 94.0mm 5.905 1.255 call .866 x 2.250 -12.3cc 9.0 09513346 $124.99 82012 $177.50

85.5mm 94.0mm 5.905 1.255 call .866 x 2.250 -12.3cc 9.0 09513366 $124.99 82013 $177.50

86.0mm 94.0mm 5.905 1.255 call .866 x 2.250 -12.3cc 9.1 09513386 $124.99 82014 $177.50

85.0mm 94.0mm 5.905 1.255 call .866 x 2.250 -4.5cc 10.0 09513346 $124.99 82015 $177.50

85.5mm 94.0mm 5.905 1.255 call .866 x 2.250 -4.5cc 10.1 09513366 $124.99 82016 $177.50

86.0mm 94.0mm 5.905 1.255 call .866 x 2.250 -4.5cc 10.2 09513386 $124.99 82017 $177.50

Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 47cc Ring Set Part # ea.

85.0mm 100.0mm 5.905 1.135 call .866 x 2.250 -21.0cc 8.5 09513346 $124.99 82018 $177.50

85.5mm 100.0mm 5.905 1.135 call .866 x 2.250 -21.0cc 8.6 09513366 $124.99 82019 $177.50

86.0mm 100.0mm 5.905 1.135 call .866 x 2.250 -21.0cc 8.7 09513386 $124.99 82020 $177.50

85.0mm 100.0mm 5.905 1.135 call .866 x 2.250 -16.5cc 9.0 09513346 $124.99 82021 $177.50

85.5mm 100.0mm 5.905 1.135 call .866 x 2.250 -16.5cc 9.0 09513366 $124.99 82022 $177.50

86.0mm 100.0mm 5.905 1.135 call .866 x 2.250 -16.5cc 9.1 09513386 $124.99 82023 $177.50

85.0mm 100.0mm 5.905 1.135 call .866 x 2.250 -8.0cc 10.0 09513346 $124.99 82024 $177.50

85.5mm 100.0mm 5.905 1.135 call .866 x 2.250 -8.0cc 10.1 09513366 $124.99 82025 $177.50

86.0mm 100.0mm 5.905 1.135 call .866 x 2.250 -8.0cc 10.1 09513386 $124.99 82026 $177.50

Page 147
Mitsubishi 99-07 EVO VI-IX - 4G63 SERIES

Stock Bore 85.0mm (3.3464)
Stock Stroke 88mm (3.4645)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 47cc Ring Set Part # ea.

85.0mm 88.0mm 6.1417 1.135 call .866 x 2.250 -11.8cc 8.5 09513346 $124.99 82027 $177.50

85.5mm 88.0mm 6.1417 1.135 call .866 x 2.250 -11.8cc 8.6 09513366 $124.99 82028 $177.50

86.0mm 88.0mm 6.1417 1.135 call .866 x 2.250 -11.8cc 8.7 09513386 $124.99 82029 $177.50

85.0mm 88.0mm 6.1417 1.135 call .866 x 2.250 -8.0cc 8.9 09513346 $124.99 82030 $177.50

85.5mm 88.0mm 6.1417 1.135 call .866 x 2.250 -8.0cc 9.0 09513366 $124.99 82031 $177.50

86.0mm 88.0mm 6.1417 1.135 call .866 x 2.250 -8.0cc 9.1 09513386 $124.99 82032 $177.50

85.0mm 88.0mm 6.1417 1.135 call .866 x 2.250 -1.0cc 9.9 09513346 $124.99 82033 $177.50

85.5mm 88.0mm 6.1417 1.135 call .866 x 2.250 -1.0cc 10.0 09513366 $124.99 82034 $177.50

86.0mm 88.0mm 6.1417 1.135 call .866 x 2.250 -1.0cc 10.0 09513386 $124.99 82035 $177.50

Stock Bore 85.0mm (3.3464)
Stock Stroke 88mm (3.4645)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 47cc Ring Set Part # ea.

85.0mm 94.0mm 6.1417 1.020 call .866 x 2.250 -16.5cc 8.5 09513346 $124.99 82036 $177.50

85.5mm 94.0mm 6.1417 1.020 call .866 x 2.250 -16.5cc 8.6 09513366 $124.99 82037 $177.50

86.0mm 94.0mm 6.1417 1.020 call .866 x 2.250 -16.5cc 8.7 09513386 $124.99 82038 $177.50

85.0mm 94.0mm 6.1417 1.020 call .866 x 2.250 -11.8cc 9.0 09513346 $124.99 82039 $177.50

85.5mm 94.0mm 6.1417 1.020 call .866 x 2.250 -11.8cc 9.1 09513366 $124.99 82040 $177.50

86.0mm 94.0mm 6.1417 1.020 call .866 x 2.250 -11.8cc 9.2 09513386 $124.99 82041 $177.50

85.0mm 94.0mm 6.1417 1.020 call .866 x 2.250 -4.5cc 10.0 09513346 $124.99 82042 $177.50

85.5mm 94.0mm 6.1417 1.020 call .866 x 2.250 -4.5cc 10.1 09513366 $124.99 82043 $177.50

86.0mm 94.0mm 6.1417 1.020 call .866 x 2.250 -4.5cc 10.2 09513386 $124.99 82044 $177.50

All items in red are non-stocking parts, made-to-order as necessary
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 148
Mitsubishi 2008-UP EVO X - 4B11 SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Side gas ports for better ring seal
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 87mm x .040 head gasket @ 8.660 deck
• Top ring down dimension: .300"-.265" 1.070cd
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.150" intake and .070" exhaust
• 2618 material for High HP/Boost applications

Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 49cc Ring Set Part # ea.

86.0mm 86.0mm 5.659 1.305 call .905 x 2.250 -6.0cc 9.0 09513386 $124.99 82050 $177.50

86.5mm 86.0mm 5.659 1.305 call .905 x 2.250 -6.0cc 9.1 09513406 $124.99 82051 $177.50

90.0mm 86.0mm 5.659 1.305 call .905 x 2.250 -6.0cc 9.7 09513543 $124.99 82062 $177.50

86.0mm 86.0mm 5.659 1.305 call .905 x 2.250 1.0cc 10.0 09513386 $124.99 82052 $177.50

86.5mm 86.0mm 5.659 1.305 call .905 x 2.250 1.0cc 10.1 09513406 $124.99 82053 $177.50

90.0mm 86.0mm 5.659 1.305 call .905 x 2.250 1.0cc 10.5 09513543 $124.99 82063 $177.50

Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 49cc Ring Set Part # ea.

86.0mm 94.0mm 5.659 1.150 call .905 x 2.250 -12.0cc 9.0 09513386 $124.99 82054 $177.50

86.5mm 94.0mm 5.659 1.150 call .905 x 2.250 -12.0cc 9.1 09513406 $124.99 82055 $177.50

90.0mm 94.0mm 5.659 1.150 call .905 x 2.250 -12.0cc 9.8 09513543 $124.99 82064 $177.50

86.0mm 94.0mm 5.659 1.150 call .905 x 2.250 -4.5cc 10.0 09513386 $124.99 82056 $177.50

86.5mm 94.0mm 5.659 1.150 call .905 x 2.250 -4.5cc 10.1 09513406 $124.99 82057 $177.50

90.0mm 94.0mm 5.659 1.150 call .905 x 2.250 -4.5cc 10.8 09513543 $124.99 82065 $177.50

Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 49cc Ring Set Part # ea.

86.0mm 98.0mm 5.659 1.070 call .905 x 2.250 -15.0cc 9.0 09513386 $124.99 82058 $177.50

86.5mm 98.0mm 5.659 1.070 call .905 x 2.250 -15.0cc 9.1 09513406 $124.99 82059 $177.50

90.0mm 98.0mm 5.659 1.070 call .905 x 2.250 -15.0cc 9.7 09513543 $124.99 82066 $177.50

86.0mm 98.0mm 5.659 1.070 call .905 x 2.250 -7.0cc 10.0 09513386 $124.99 82060 $177.50

86.5mm 98.0mm 5.659 1.070 call .905 x 2.250 -7.0cc 10.1 09513406 $124.99 82061 $177.50

90.0mm 98.0mm 5.659 1.070 call .905 x 2.250 -7.0cc 10.8 09513543 $124.99 82067 $177.50

All items in red are non-stocking parts, made-to-order as necessary
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 149
Toyota 2JZGTE SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Side gas ports for better ring seal
• Ratios figured for 87mm x .040 head gasket @ 8.621 deck
• Top ring down dimension: .300" 1.338cd - .280" 1.180cd
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.245" intake and .230" exhaust
• 2618 material for High HP/Boost applications

Stock Bore 86mm (3.385) Stock Stroke 86mm (3.385)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 45cc Ring Set Part # ea.

86.0mm 86.0mm 5.590 1.338 call .866 x 2.250 -14.5cc 8.5 09513385 $246.24 37000 $147.50

86.5mm 86.0mm 5.590 1.338 call .866 x 2.250 -14.5cc 8.6 09513405 $246.24 37001 $147.50

87.0mm 86.0mm 5.590 1.338 call .866 x 2.250 -14.5cc 8.7 09513425 $246.24 37002 $147.50

86.0mm 86.0mm 5.590 1.338 call .866 x 2.250 -10.4cc 9.0 09513385 $246.24 37003 $147.50

86.5mm 86.0mm 5.590 1.338 call .866 x 2.250 -10.4cc 9.1 09513405 $246.24 37004 $147.50

87.0mm 86.0mm 5.590 1.338 call .866 x 2.250 -10.4cc 9.2 09513425 $246.24 37005 $147.50

86.0mm 86.0mm 5.590 1.338 call .866 x 2.250 -6.1cc 9.6 09513385 $246.24 37006 $147.50

86.5mm 86.0mm 5.590 1.338 call .866 x 2.250 -6.1cc 9.7 09513405 $246.24 37007 $147.50

87.0mm 86.0mm 5.590 1.338 call .866 x 2.250 -6.1cc 9.8 09513425 $246.24 37008 $147.50

86.0mm 86.0mm 5.590 1.338 call .866 x 2.250 -3.5cc 10.0 09513385 $246.24 37018 $147.50

86.5mm 86.0mm 5.590 1.338 call .866 x 2.250 -3.5cc 10.1 09513405 $246.24 37019 $147.50

87.0mm 86.0mm 5.590 1.338 call .866 x 2.250 -3.5cc 10.2 09513425 $246.24 37020 $147.50

Stock Bore 86mm (3.385) Stroker 94mm (3.700)
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 45cc Ring Set Part # ea.

86.0mm 94.0mm 5.590 1.180 call .866 x 2.250 -20.7cc 8.5 09513385 $246.24 37009 $147.50

86.5mm 94.0mm 5.590 1.180 call .866 x 2.250 -20.7cc 8.6 09513405 $246.24 37010 $147.50

87.0mm 94.0mm 5.590 1.180 call .866 x 2.250 -20.7cc 8.7 09513425 $246.24 37011 $147.50

86.0mm 94.0mm 5.590 1.180 call .866 x 2.250 -16.2cc 9.0 09513385 $246.24 37012 $147.50

86.5mm 94.0mm 5.590 1.180 call .866 x 2.250 -16.2cc 9.1 09513405 $246.24 37013 $147.50

87.0mm 94.0mm 5.590 1.180 call .866 x 2.250 -16.2cc 9.2 09513425 $246.24 37014 $147.50

86.0mm 94.0mm 5.590 1.180 call .866 x 2.250 -8.6cc 10.0 09513385 $246.24 37015 $147.50

86.5mm 94.0mm 5.590 1.180 call .866 x 2.250 -8.6cc 10.1 09513405 $246.24 37016 $147.50

87.0mm 94.0mm 5.590 1.180 call .866 x 2.250 -8.6cc 10.2 09513425 $246.24 37017 $147.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 150
Nissan SR20DE & SR20DET SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Side gas ports for better ring seal
• Ratios figured for 88.5mm x .040 head gasket @ 8.315" Deck Height
• Top ring down dimension: .280"
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.0mm x 1.2mm x 2.8mm( ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.105" intake and 0.105" exhaust
• 2618 material for High HP/Boost applications

SR20DE Block: 86.0mm Std Bore 86.0mm Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 45cc Ring Set Part # ea.

86.0mm 86.0mm 5.365 1.255 call .866 x 2.250 -14.0cc 8.5 09513386 $124.99 83060 $162.50

86.5mm 86.0mm 5.365 1.255 call .866 x 2.250 -14.0cc 8.6 09513406 $124.99 83061 $162.50

87.0mm 86.0mm 5.365 1.255 call .866 x 2.250 -14.0cc 8.7 09513426 $124.99 83062 $162.50

86.0mm 86.0mm 5.365 1.255 call .866 x 2.250 -6.5cc 9.5 09513386 $124.99 83063 $162.50

86.5mm 86.0mm 5.365 1.255 call .866 x 2.250 -6.5cc 9.6 09513406 $124.99 83064 $162.50

87.0mm 86.0mm 5.365 1.255 call .866 x 2.250 -6.5cc 9.7 09513426 $124.99 83065 $162.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Nissan VQ35DE SERIES

- 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 96mm x .030 head gasket @ 8.460 Deck Height
• Top ring down dimension: .250"
• Premium 8620 .185W wrist pins chamfered for roundwire locks included
• Premium 1.2mm x 1.5mm x 3.0mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.115" intake and sym exhaust
• 2618 material for High HP/Boost applications

-
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 57cc Ring Set Part # ea.

95.5mm 81.4mm 5.676 1.167 call .866 x 2.500 1.0cc 10.0 09503760 $307.49 83050 $162.50

95.5mm 81.4mm 5.676 1.167 call .866 x 2.500 -2.5cc 9.5 09503760 $307.49 83051 $162.50

95.5mm 81.4mm 5.676 1.167 call .866 x 2.500 -6.5cc 9.0 09503760 $307.49 83052 $162.50

96.0mm 81.4mm 5.676 1.167 call .866 x 2.500 1.0cc 10.0 09503780 $307.49 83053 $162.50

96.0mm 81.4mm 5.676 1.167 call .866 x 2.500 -2.5cc 9.6 09503780 $307.49 83054 $162.50

96.0mm 81.4mm 5.676 1.167 call .866 x 2.500 -6.5cc 9.5 09503780 $307.49 83055 $162.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 151
Nissan VQ37VHR SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for 97mm x .030 head gasket
• Top ring down dimension: .280"
• Premium 8620 .185W wrist pins chamfered for roundwire locks included
• Premium 1.2mm x 1.5mm x 3.0mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.225" intake and .000" exhaust
• 2618 material for High HP/Boost applications

-
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 50.5cc Ring Set Part # ea.

95.5mm 86.0mm 5.881 1.197 call .866 x 2.500 3.5cc 11.5 09503760 $307.49 83000 $162.50

95.5mm 86.0mm 5.881 1.197 call .866 x 2.500 -3.0cc 10.5 09503760 $307.49 83001 $162.50

95.5mm 86.0mm 5.881 1.197 call .866 x 2.500 -10.0cc 9.5 09503760 $307.49 83002 $162.50

96.0mm 86.0mm 5.881 1.197 call .866 x 2.500 3.5cc 11.6 09503780 $307.49 83003 $162.50

96.0mm 86.0mm 5.881 1.197 call .866 x 2.500 -3.0cc 10.5 09503780 $307.49 83004 $162.50

96.0mm 86.0mm 5.881 1.197 call .866 x 2.500 -10.0cc 9.6 09503780 $307.49 83005 $162.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 152
Nissan GT-R 3.8L VR38DETT SERIES

Designed to work with OEM grade block ratings
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Moly skirt coating for friction loss and skirt wear protection
Ratios figured for 96mm-100mm x .038 head gasket
Top ring down dimension: .260"
Premium 1.2mm x 1.5mm x 3.0mm ring package included
Premium H-13 .185W wrist pins chamfered for roundwire locks included
Oversized valve pockets - for larger than stock valve sizes
Valve pocket depth: 0.071" intake and .071" exhaust
2618 material for High HP/Boost applications

Stock Bore - 95.5mm Stock Stroke 88.4mm
Comp. Ratio -

Block Type Bore Stroke Rod C.D. Wht. Pin CC's 67cc Ring Set Part # ea.

Grade 1 95.5mm 88.4mm 6.500 1.350 call .905 x 2.500 -0.86cc 9.0 09503760 $307.49 81000 $162.50

Grade 2 95.5mm 88.4mm 6.500 1.350 call .905 x 2.500 -0.86cc 9.0 09503760 $307.49 81001 $162.50

Grade 3 95.5mm 88.4mm 6.500 1.350 call .905 x 2.500 -0.86cc 9.0 09503760 $307.49 81002 $162.50

N/A 98.5mm 88.4mm 6.500 1.350 call .905 x 2.500 -0.86cc 9.5 09503878 $307.49 81003 $162.50

N/A 99.0mm 88.4mm 6.500 1.350 call .905 x 2.500 -0.86cc 9.6 09503898 $307.49 81004 $162.50

N/A 99.5mm 88.4mm 6.500 1.350 call .905 x 2.500 -0.86cc 9.6 09503917 $307.49 81005 $162.50

N/A 100.0mm 88.4mm 6.500 1.350 call .905 x 2.500 -0.86cc 9.7 09503937 $307.49 81006 $162.50

Stock Bore - 95.5mm Stock Stroke 88.4mm
Comp. Ratio -

Block Type Bore Stroke Rod C.D. Wht. Pin CC's 67cc Ring Set Part # ea.

Grade 1 95.5mm 94.4mm 6.500 1.230 call .905 x 2.500 -0.86cc 9.5 09503760 $307.49 81007 $162.50

Grade 2 95.5mm 94.4mm 6.500 1.230 call .905 x 2.500 -0.86cc 9.5 09503760 $307.49 81008 $162.50

Grade 3 95.5mm 94.4mm 6.500 1.230 call .905 x 2.500 -0.86cc 9.5 09503760 $307.49 81009 $162.50

N/A 98.5mm 94.4mm 6.500 1.230 call .905 x 2.500 -6.5cc 9.4 09503878 $307.49 81010 $162.50

N/A 99.0mm 94.4mm 6.500 1.230 call .905 x 2.500 -6.5cc 9.5 09503898 $307.49 81011 $162.50

N/A 99.5mm 94.4mm 6.500 1.230 call .905 x 2.500 -6.5cc 9.6 09503917 $307.49 81012 $162.50

N/A

100.0mm 94.4mm 6.500 1.230 call .905 x 2.500 -6.5cc 9.7 09503937 $307.49 81013 $162.50

Stock Bore - 95.5mm Stock Stroke 88.4mm
Comp. Ratio -

Block Type Bore Stroke Rod C.D. Wht. Pin CC's 67cc Ring Set Part # ea.

Grade 1 95.5mm 98.4mm 6.500 1.155 call .905 x 2.500 -4.5cc 9.6 09503760 $307.49 81014 $162.50

Grade 2 95.5mm 98.4mm 6.500 1.155 call .905 x 2.500 -4.5cc 9.6 09503760 $307.49 81015 $162.50

Grade 3 95.5mm 98.4mm 6.500 1.155 call .905 x 2.500 -4.5cc 9.6 09503760 $307.49 81016 $162.50

N/A 98.5mm 98.4mm 6.500 1.155 call .905 x 2.500 -9.5cc 9.5 09503878 $307.49 81017 $162.50

N/A 99.0mm 98.4mm 6.500 1.155 call .905 x 2.500 -9.5cc 9.6 09503898 $307.49 81018 $162.50

N/A 99.5mm 98.4mm 6.500 1.155 call .905 x 2.500 -9.5cc 9.7 09503917 $307.49 81019 $162.50

N/A 100.0mm 98.4mm 6.500 1.155 call .905 x 2.500 -9.5cc 9.8 09503937 $307.49 81020 $162.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 153
Nissan/Infiniti Q50/Q60 3.0L VR30DDTT SERIES

• Designed to work with OEM grade block ratings
• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Ratios figured for factory head gasket
• Top ring down dimension: .260"
• Premium H-13 .200W wrist pins chamfered for roundwire locks included
• Premium 1.2mm x 1.5mm x 3.0mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.170" intake and .080" exhaust

Stock Bore - 86.0mm Stock Stroke 86.0mm
Comp. Ratio -

Block Type Bore Stroke Rod C.D. Wht. Pin CC's Factory CC Ring Set Part # ea.

Grade 1 86.0mm 86.0mm 5.974 1.155 call .905 x 2.250 -3.0cc 10.3 09503385 81050 $162.50

Grade 2 86.0mm 86.0mm 5.974 1.155 call .905 x 2.250 -3.0cc 10.3 09503385 81051 $162.50

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 154
Audi/Volkswagen 1.8T 20V SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Side gas ports for better ring seal
• Ratios figured for 82.0mm x .045 head gasket @ 8.661 Deck Height
• Top ring down dimension: .325"
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.100"/0.060" intake and 0.080" exhaust
• 2618 material for High HP/Boost applications

1.8T Block: 81.0mm Std Bore 86.4mm Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 43cc Ring Set Part # ea.

81.0mm 86.4mm 5.669 1.285 call .787 x 2.250 -5.0cc 9.0 09513188 $124.99 38000 $171.25

81.5mm 86.4mm 5.669 1.285 call .787 x 2.250 -5.0cc 9.1 09513208 $124.99 38001 $171.25

82.0mm 86.4mm 5.669 1.285 call .787 x 2.250 -5.0cc 9.2 09513228 $124.99 38002 $171.25

82.5mm 86.4mm 5.669 1.285 call .787 x 2.250 -5.0cc 9.3 09513248 $124.99 38003 $171.25

83.0mm 86.4mm 5.669 1.285 call .787 x 2.250 -5.0cc 9.4 09513268 $124.99 38004 $171.25

81.0mm 86.4mm 5.669 1.285 call .787 x 2.250 -9.0cc 8.5 09513188 $124.99 38005 $171.25

81.5mm 86.4mm 5.669 1.285 call .787 x 2.250 -9.0cc 8.6 09513208 $124.99 38006 $171.25

82.0mm 86.4mm 5.669 1.285 call .787 x 2.250 -9.0cc 8.7 09513228 $124.99 38007 $171.25

82.5mm 86.4mm 5.669 1.285 call .787 x 2.250 -9.0cc 8.8 09513248 $124.99 38008 $171.25

83.0mm 86.4mm 5.669 1.285 call .787 x 2.250 -9.0cc 8.9 09513268 $124.99 38009 $171.25

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 155
Audi/Volkswagen 2.0T FSI & TSI SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Side gas ports for better ring seal
• Ratios figured for 83.5mm x .035 head gasket @ 8.661 Deck Height
• Top ring down dimension: .250"
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.125" intake and 0.095" exhaust
• 2618 material for High HP/Boost applications

2.0T Block: 82.5mm Std Bore 92.8mm Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 45cc 46cc Ring Set Part # ea.

82.5mm 92.8mm 5.669 1.165 call .787 x 2.250 -15.5cc 8.5 8.4 09513248 $124.99 38100 $171.25

83.0mm 92.8mm 5.669 1.165 call .787 x 2.250 -15.5cc 8.6 8.5 09513268 $124.99 38101 $171.25

82.5mm 92.8mm 5.669 1.165 call .787 x 2.250 -11.5cc 9.0 8.9 09513248 $124.99 38102 $171.25

83.0mm 92.8mm 5.669 1.165 call .787 x 2.250 -11.5cc 9.1 8.9 09513268 $124.99 38103 $171.25

82.5mm 92.8mm 5.669 1.165 call .787 x 2.250 -4.5cc 10.0 9.8 09513248 $124.99 38104 $171.25

83.0mm 92.8mm 5.669 1.165 call .787 x 2.250 -4.5cc 10.1 9.9 09513268 $124.99 38105 $171.25

82.5mm 92.8mm 5.669 1.165 call .8267 x 2.250 -15.5cc 8.5 8.4 09513248 $124.99 38106 $171.25

83.0mm 92.8mm 5.669 1.165 call .8267 x 2.250 -15.5cc 8.6 8.5 09513268 $124.99 38107 $171.25

82.5mm 92.8mm 5.669 1.165 call .8267 x 2.250 -11.5cc 9.0 8.9 09513248 $124.99 38108 $171.25

83.0mm 92.8mm 5.669 1.165 call .8267 x 2.250 -11.5cc 9.1 8.9 09513268 $124.99 38109 $171.25

82.5mm 92.8mm 5.669 1.165 call .8267 x 2.250 -4.5cc 10.0 9.8 09513248 $124.99 38110 $171.25

83.0mm 92.8mm 5.669 1.165 call .8267 x 2.250 -4.5cc 10.1 9.9 09513268 $124.99 38111 $171.25

82.5mm 92.8mm 5.669 1.165 call .866 x 2.250 -15.5cc 8.5 8.4 09513248 $124.99 38112 $171.25

83.0mm 92.8mm 5.669 1.165 call .866 x 2.250 -15.5cc 8.6 8.5 09513268 $124.99 38113 $171.25

82.5mm 92.8mm 5.669 1.165 call .866 x 2.250 -11.5cc 9.0 8.9 09513248 $124.99 38114 $171.25

83.0mm 92.8mm 5.669 1.165 call .866 x 2.250 -11.5cc 9.1 8.9 09513268 $124.99 38115 $171.25

82.5mm 92.8mm 5.669 1.165 call .866 x 2.250 -4.5cc 10.0 9.8 09513248 $124.99 38116 $171.25

83.0mm 92.8mm 5.669 1.165 call .866 x 2.250 -4.5cc 10.1 9.9 09513268 $124.99 38117 $171.25

82.5mm 92.8mm 5.669 1.165 call .9055 x 2.250 -7.5cc 9.5 9.4 09513248 $124.99 38118 $171.25

83.0mm 92.8mm 5.669 1.165 call .9055 x 2.250 -7.5cc 9.6 9.5 09513268 $124.99 38119 $171.25

All items in red are non-stocking parts, made-to-order as necessary.
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 156
Volkswagen VR6 3.2L R32 SERIES

• 3D milling on piston crowns for ready to install finish
• Offset pins for quiet operation
• Moly skirt coating for friction loss and skirt wear protection
• Side gas ports for better ring seal
• Ratios figured for 85.0mm x .025 head gasket @ 9.709 Deck (.000 Deck)
• Premium 8620 .180W wrist pins chamfered for roundwire locks included
• Premium 1.0mm x 1.2mm x 2.8mm ring package included
• Oversized valve pockets - for larger than stock valve sizes
• Valve pocket depth: 0.200" intake and 0.125" exhaust
• 2618 material for High HP/Boost applications

VR6 Block: 84.0mm Std Bore 95.9mm Std Stroke
Comp. Ratio -

Bore Stroke Rod C.D. Wht. Pin CC's 40cc Ring Set Part # ea.

84.0mm 95.9mm 6.457 1.364 call .787 x 2.250 -21.5cc 9.0 09513307 $246.24 38200 $190.00

84.5mm 95.9mm 6.457 1.364 call .787 x 2.250 -21.5cc 9.1 09513327 $246.24 38201 $190.00

85.0mm 95.9mm 6.457 1.364 call .787 x 2.250 -21.5cc 9.2 09513347 $246.24 38202 $190.00

84.0mm 95.9mm 6.457 1.364 call .787 x 2.250 -7.0cc 11.2 09513307 $246.24 38203 $190.00

84.5mm 95.9mm 6.457 1.364 call .787 x 2.250 -7.0cc 11.4 09513327 $246.24 38204 $190.00

85.0mm 95.9mm 6.457 1.364 call .787 x 2.250 -7.0cc 11.5 09513347 $246.24 38205 $190.00

Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

Page 158

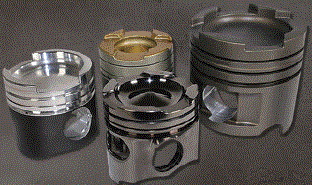

Custom Diesel Piston Capabilities

Diamond Pistons is an acknowledged leader in racing piston design, but many may be unaware that Diamond also applies its considerable engineering expertise to the commercial
and consumer diesel market. Diamond offers a fully customizable piston package for almost any Diesel engine. Diamond’s custom piston options incorporated the desirable performance and durability features that are long recognized as a hallmark of Diamond Pistons. Diamond can manufacture custom diesel pistons ranging from bore diameters of 2.600" to 6.000".
With over 15 years of experience in billet piston technology, Diamond can reproduce any customer engineered fuel bowl design or prototype one-off piston design imaginable.
Diamond’s broad library of OEM specs range from European, Antique, GM, Ford, Dodge, John Deere, International and many other engine platforms.
Diamond is your #1 source for all Diesel piston applications.

Page 159

Page 160
NHRA APPROVED
STOCK ELIMINATOR PISTON LISTING

CHEVROLET

Engine Type Bore C.D. Wht. CC's Pin Part # ea.

346 98-02 LS1 3.905 1.340 416 0.0cc .945 x 2.500 80001

346 98-02 LS1 3.905 1.315 416 -0.0cc .927 x 2.500 80002

283 57-67 3.935 1.787 545 -3.0cc .927 x 2.750 80003

327 62-69 210-300HP 4.040 1.665 547 -3.0cc .927 x 2.950 80004

305 78-86 3.800 1.560 452 -12.6cc .927 x 2.500 80005

350 67-70 250-300HP 4.030 1.550 535 -5.7cc .927 x 2.950 80006

350 LT1 90-98 4.040 1.535 518 -5.7cc .927 x 2.500 80007

396 65-69 375HP 4.095 1.760 641 40.7cc .990 x 2.930 80008

427 66-69 425HP 4.250 1.760 662 37.0cc .990 x 2.930 80009

409 61-65 340-425HP 4.320 1.820 810 90.7cc .990 x 2.930 80030

454 1971 425HP 4.280 1.615 642 14.7cc .990 x 2.930 80037

265 56-57 All HP 3.750 1.810 525 -3.0cc .927 x 2.500 80046

427 2012 Copo 4.125 1.190 469 11.5cc .927 x 2.250 80052

396 2013 Copo 4.065 1.105 420 -4.0cc .927 x 2.200 80056

350 2014 Copo 350HP 4.125 1.250 475 11.9cc .927 x 2.250 80058

427-1 2014 Copo 4.125 1.140 415 -3.0cc .927 x 2.200 80059

396 66-69 325-360HP 4.095 1.735 672 23.2cc .990 x 2.750 80061

302 37-69 290HP 4.000 1.775 565 14.3cc .927 x 2.500 80063

350 2014 Copo 530HP 4.065 1.200 467 12.1cc .927 x 2.250 80067

350 2016 Copo Supercharged 580HP 4.065 1.200 474 12.0cc .927 x 2.250 80074

409 2016 Copo 450HP 4.125 1.125 453 11.3cc .927 x 2.250 80075

427 2016 Copo 470HP 4.125 1.140 454 11.3cc .927 x 2.250 80076

FORD

Engine Type Bore C.D. Wht. CC's Pin Part # ea.

390 FE 66-70 4.080 1.745 618 -7.6cc .975 x 2.930 80024

428 67 Shelby 4.160 1.645 615 -3.6cc .975 x 2.930 80025

351C 70-72 All Flat Top 4.030 1.645 532 -1.6cc .912 x 2.750 80026

429 69-71 370-375HP 4.422 1.848 778 -1.3cc 1.040 x 2.930 80028

5.4L 2012 450HP CJ 3.552 1.260 389 -12.5cc .866 x 2.500 80040

5.4L 2008 425HP CJ 3.552 1.260 389 -12.5cc .866 x 2.500 80042

5.4L 2010 435HP CJ 3.552 1.260 389 -12.5cc .866 x 2.500 80043

5.4L 2010 500HP CJ 3.552 1.220 389 0.0cc .866 x 2.500 80044

5.4L 2012 510HP CJ 3.552 1.260 389 -12.5cc .866 x 2.500 80045

428 2010 375HP CJ 4.080 1.245 450 -5.1cc .927 x 2.500 80048

363 2013 CJ 4.125 1.090 397 -6.6cc .927 x 2.500 80060

302 2013 500HP 3.630 1.155 338 -5.5cc .866 x 2.500 80068

427 2013 425HP CJ 4.125 1.230 423 -14.0cc .927 x 2.250 80070

351C 1971 Boss 330 4.060 1.650 562 11.6cc .912 x 2.750 80071

Page 161
NHRA APPROVED
STOCK ELIMINATOR PISTON LISTING

MOPAR

Engine Type Bore C.D. Wht. CC's Pin Part # ea.

426 2009-2010 Dragpack 4.185 1.221 476 18.3cc .927 x 2.250 80010

426 66-71 426 Street Hemi 4.280 1.970 836 90.5cc 1.031 x 2.930 80017

440 70-71 6-Pak 4.360 2.062 856 -2.7cc 1.094 x 2.750 80018

340 68-71 275-290HP 4.070 1.842 712 -5.5cc .984 x 2.750 80019

340 72-73 240HP 4.070 1.742 712 -0.9cc .984 x 2.750 80020

360 73-92 All HP 4.030 1.592 580 -6.8cc .984 x 2.750 80021

360 80-92 Truck 4.040 1.620 469 -9.8cc .984 x 2.750 80022

360 93-99 All HP 4.030 1.626 469 -6.8cc .984 x 2.750 80023

345 09-10 Drag Pak 3.917 1.263 489 14.9cc .927 x 2.750 80038

370 2009 385 Drag Pak 4.050 1.263 515 10.7cc .927 x 2.750 80039

392 2010 375HP Drag Pak 4.060 1.155 447 -4.8cc .927 x 2.750 80049

512 2011 Dodge V10 4.060 1.250 492 8.1cc .927 x 2.500 80051

413 1962 410HP 4.180 2.015 741 7.8cc 1.094 x 2.930 80064

426 1963 415HP 4.250 2.015 741 8.2cc 1.094 x 2.930 80065

426 1964 415HP 4.250 2.015 741 10.5cc 1.094 x 2.930 80066

354 2015 530HP Drag Pak 4.060 1.270 470 13.4cc .927 x 2.250 80073

BUICK

Engine Type Bore C.D. Wht. CC's Pin Part # ea.

455 1970 350-360HP 4.320 1.900 634 -9.7cc 1.000 x 2.930 80053

455 71-76 All HP 4.320 1.900 634 -25.0cc 1.000 x 2.930 80054

PONTIAC

Engine Type Bore C.D. Wht. CC's Pin Part # ea.

350 74-77 155-170-200HP 3.935 1.690 557 0.0cc .980 x 2.750 80062

OLDSMOBILE

Engine Type Bore C.D. Wht. CC's Pin Part # ea.

455 68-70 All 4-Brl 4.125 1.735 575 -8.2cc .980 x 2.930 80015

455 71-76 All 4-Brl 4.125 1.735 650 -22.1cc .980 x 2.930 80016

307 80-89 138-180HP 3.840 1.590 538 -12.5cc .980 x 2.930 80057

Page 162
Ceramic Crown Coating 01-4751

• Provides a thermal barrier and prevents heat soaking into the crown
of the piston.
• Allows piston be ran at high cylinder pressures and temperatures
• Recommended for Small/Medium Boost & Nitrous applications

Moly Skirt Coating 01-4752

• Reduces friction
• Reduces the chance of scuffing on dry start ups
• Prevents premature skirt wear
• Recommended for any performance application – NA or Power Adder

Hard Anodized Coating 01-4761

• Provides a thermal barrier and increases both corrosion-resistance
and wear-resistance
• Deters piston rings from micro-welding themselves to the ring grooves
• Resists high cylinder temperatures and pressures and allows for a
larger tuning window
• Prevents head soaking through entire piston
• Recommended for Large Boost & Nitrous applications

Page 163
Double Diamond Coating 01-4777

• This coating is a combination of Hard Anodized Coating and Moly Skirt Coating
• Give you the best protection from high cylinder pressures, high cylinder
temperatures and pre-mature skirt wear
• Reduces friction
• Recommended for Large Boost & Nitrous applications

PTFE Coating HARD ANODIZED AND TEFLON SEAL COATING

• Provides a thermal barrier and increases both corrosion-resistance
and wear-resistance
• Deters piston rings from micro-welding themselves to the ring grooves
• Resists high cylinder temperatures and pressures and allows for a
larger tuning window.
• Prevents head soaking through entire piston
• Sealed with a Teflon coating that frees-up to 30% of friction on the piston
skirt and ring groove surfaces
• Recommended for Large Boost & Nitrous applications that will see street use

Top of Page

HOME

Table of Contents	Page
Introduction & History
History of Diamond Pistons	5
Introduction	5
Competition Series
Chevy LM7 53L Street/Strip Flat Top Series	6
Chevy LS1 Street/Strip Flat Top Series	7
Chevy LS3/L92 Street/Strip Flat Top Series	8
Chevy LS7 Street/Strip Flat Top Series	8
Chevy LS1 Street/Strip Dish Series	9
Chevy LS3/L92 Street/Strip Dish Series	10
Chevy LS7 Street/Strip Dish Series	11
Chevy LS9/LSA Street/Strip Dish Series	11
LT Chevy
Chevy L83 EcoTec3 53L Street/Strip Series	12
Chevy Gen V LT1/LT4 Street/Strip Series	13
Modern Hemi
Mopar 5.7L Hemi Series	14
Mopar 5.7L 2009 & Up Hemi Series	15
Mopar 6.1L Hemi Series	16
Mopar 6.2L Hellcat Hemi Series	17
Mopar 6.4L Apache Hemi Series	18
Big Block Chevy
BB Chevy 24°/26° Competition Series	20
BB Chevy 20° Competition Series	21
BB Chevy 18° Competition Series	22

Oldsmobile
Oldsmobile 350 Street/Strip Flat Top Series	24
Oldsmobile 455 Street/Strip Flat Top Series	24
Oldsmobile 455 Street/Strip Dish Series	25
Pontiac
Pontiac 400 Street/Strip Flat Top Series	26
Pontiac 455 Street/Strip Flat Top Series	26
Pontiac 455 Street/Strip Dish Series	27
Race Series
LS Chevy
LS2K 15° Flat Top Series	28
LS2K 15° Dish Series	29
LS2K 12° Flat Top Series	30
LS2K 12° Dish Series	31
Ford Modular
MOD2K 46L Trick Flow 2V Series	32
MOD2K 46L DOHC 4V Series	33
MOD2K 50L Coyote Series	34
Marine Series
Big Block Chevy
BB Chevy 24°/26° Marine Flat Top Series	36
BB Chevy 24°/26° Marine Dish Series	37
Mercury Marine Racing
Mercury 74L 454 Magnum/MPI Series	38
Mercury 81L 496 Magnum Series	40
Mercury 82L 502 Magnum/MPI, 500EFI & 525EFI Series	42
Mercury 565 EFI Series	44
Mercury 575SCI Series	46
Mercury 600SCI, 662SCI & 700SCI Series	48
Mercury 850SCI, 1025SCI, 1075SCI & 1200SCI Series	50
Mercury 1100 & 1350 QC4V Series	52

Buick	Page
Buick 231 Forced Induction Dish Series	54
Buick 3800 Forced Induction Dish Series	54
Small Block Chevy
Small Block Chevy Ultralite Flat Top Series	56
Small Block Chevy Racelite Flat Top Series	57
Small Block Chevy 17°/18° Flat Top Series	58
Small Block Chevy 23° Street/Strip Dish Series	59
Small Block Chevy 23° Race Dish Series	60
Small Block Chevy 23° Street/Strip Dome Series	62
Small Block Chevy 23° Race Dome Series	64
Small Block Chevy 23° ASCS/USMTS Dome Series	65
Small Block Chevy 23° Late Model Dome Series	66
Small Block Chevy 23° Nitrous Dome Series	67
Small Block Chevy 17°/18° Dome Series	68
Small Block Chevy 15° Brodix -12 Dome Series	69
Big Block Chevy
Big Block Chevy 24°/26° Street/Strip Flat Top Series	70
Big Block Chevy 24°/26° Street/Strip Dish Series	72
Big Block Chevy 24°/26° Street Dome Series	74
Big Block Chevy 24°/26° Pro Dome Series	76
Big Block Chevy 24°/26° Nitrous Dome Series	78
Big Block Chevy 24°/26° Blown Alcohol Dome Series	79
Big Block Chevy Brodix Head Hunter MC Series	80
Big Block Chevy 18° Big Chief/Big Duke Nitrous Dome Series	81

Ford Modular
Ford Modular 46L 2V Street/Strip Flat Top Series	82
Ford Modular 46L 4V Street/Strip Flat Top Series	82
Ford Modular 46L 3V Street/Strip Flat Top Series	83
Ford Modular 46L Street/Strip Dish Series	84
Ford Modular 46L 2V Street/Strip Dish Series	85
Ford Modular 46L 4V Street/Strip Dish Series	86
Ford Modular 46L 3V Street/Strip Dish Series	87
Ford Modular 54L Street/Strip Dish Series	87
Ford Modular 50L Gen 1-2 Coyote Street/Strip Series	88
Ford Modular 50L Gen 3 Coyote Street/Strip Series	89
Ford Modular 52L Voodoo Series	89
Ford Modular 58L GT-500 Street/Strip Series	90
Ford Modular 62L Raptor Street/Strip Series	91
Small Block Ford
Small Block Ford 302/351 Inline Street/Strip Flat Top Series	92
Small Block Ford 302/351 T/W Street/Strip Flat Top Series	94
Small Block Ford 302/351 Cleveland Street/Strip Flat Top Series	96
Small Block Ford 302/351 Inline Street/Strip Dish Series	98
Small Block Ford 302/351 T/W Street/Strip Dish Series	100
Small Block Ford 302/351 Cleveland Street/Strip Dish Series	102
Small Block Ford 302/351 Highport Street/Strip Dome Series	103
Small Block Ford 302/351 T/W Street/Strip Dome Series	104
Small Block Ford 302 Boss/351 Cleveland Street/Strip Dome Series	106
Ford FE
Ford FE 390 Street/Strip Flat Top Series	108
Ford FE 406/428 Street/Strip Flat Top Series	109
Ford FE 427 Street/Strip Flat Top Series	110
Ford FE 390 Street/Strip Dish Series	111
Ford FE 406/428 Street/Strip Dish Series	112
Ford FE 427 Street/Strip Dish Series	113
Ford FE 427 Replacement Dome Series	114
Ford FE 427 SOHCDome Series	114

Big Block Ford	Page
Big Block Ford 429-460 Street/Strip Flat Top Series	115
Big Block Ford 429-460 M-6049-SCJ & P-51 Kaase Flat Top Series	116
Big Block Ford 429-460 Ford Motorsports A&B Flat Top Series	117
Big Block Ford 429-460 Yates M-6049-C460 Flat Top Series	118
Big Block Ford 429-460 Blue Thunder Thor Flat Top Series	118
Big Block Ford 429 Boss Flat Top Series	119
Big Block Ford 429-460 Street/Strip Dish Series	120
Big Block Ford 429-460 M-6049-SCJ & P-51 Kaase Dish Series	121
Big Block Ford 429-460 Ford Motorsports A&B Dome Series	122
Big Block Ford 429 Boss Dome Series	123

Small Block Mopar
Small Block Mopar 318 Street/Strip Flat Top Series	124
Small Block Mopar 340 Street/Strip Flat Top Series	124
Small Block Mopar 360 Street/Strip Flat Top Series	125
Small Block Mopar 318 Street/Strip Dish Series	126
Small Block Mopar 340 Street/Strip Dish Series	126
Small Block Mopar 360 Street/Strip Dish Series	127
Big Block Mopar
Big Block Mopar 383 STREET/STRIP FLAT TOP SERIES	128
Big Block Mopar 400 Street/Strip Flat Top Series	128
Big Block Mopar 440 Street/Strip Flat Top Series	129
Big Block Mopar 572 Street/Strip Flat Top Series	130
Big Block Mopar 400 Street/Strip Dish Series	130
Big Block Mopar 440 Street/Strip Dish Series	131
Big Block Mopar 572 Street/Strip Dish Series	132
Big Block Mopar 440 High Comp. Dome Series	132
Big Block Mopar 440 Edelbrock Dome Series	133
Mopar Hemi
Mopar 426 Hemi Street Dome Series	134
Mopar 426 Hemi Race Dome Series	135
Sport Compact Series
GM
GM Ecotec Street/Strip Series	136
Ford
Ford/Barra XR-6 40L Turbo Series	137
Ford 16L Ecoboost Series	138
Ford 20L Ecoboost Series	138
Ford 23L Ecoboost Series	139
Ford 35L Ecoboost Series	139
Honda
Honda B18 Rebel Series	140
Honda K20 Rebel Series	140
Honda K24 Rebel Series	141
Subaru
Subaru 2002-05 EJ205 WRX/STI Series	142
Subaru 2006-08 EJ255 WRX Series	142
Subaru 2004-UP EJ257 WRX/STI Series	143
Subaru/Toyota FA20 BRZ/4U-GSE Series	144
Subaru FA20DIT WRX Series	145
Mitsubishi
Mitsubishi 1999-2007 EVO VI-IX - 4G63 Series	146
Mitsubishi 2008-UP EVO X - 4B11 Series	148
Toyota
Toyota 2JZGTE Series	149

Nissan	Page
Nissan SR20DE & SR20DET Series	150
Nissan VQ35DE Series	150
Nissan VQ37VHR Series	151
Nissan GT-R 38L VR38DETT Series	152
Nissan Q50/Q60 30L VR30DDTT Series	153
Audi/Volkswagen
Audi/Volkswagen 18T 20V Series	154
Audi/Volkswagen 20T FSI & TSI Series	155
Volkswagen VR6 32L R32 Series	156
Diesel
Diesel Custom Piston Capabilities	158
NHRA Legal
NHRA Legal Piston Series	160
Coatings
Coating Services	162

Wrist Pins
8620 Series	164
H-13 Series	166
TP-1 Series	170
Wrist Pin Retaining Locks	171
Ringsets
Pro-Select Ringsets	172
Piston Ring Installation Guidelines	185
Support Rails
Oil Ring Support Rails	186
Tools
Piston Checking Fixture	188
Chamber Mold Kit
Precision Ring Filer–110V 1/15HP	188
Assembly Lube 8oz	189
Total Seal Quickseat	189
Piston Ring Expander	189
Tapered Ring Compressors	190
Tech Help
Piston Orientation Diagrams	191
Custom Capabilities	194
Comp. Ratios Explained	196
Automath Formulas	197
Forms
Custom Pistons Options Listings	198

318 Block: 3.910 Std Bore 3.310 Std Stroke							Comp. Ratio			-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	63cc	65cc	70cc	Ring Set	Part # ea.
3.940	4.000	6.123	1.457	480	.984 x 2.750	-5.4cc	10.7	10.5	10.0	09023940 $183.74	50001 $158.76

340 Block: 4.040 Std Bore 3.310 Std Stroke							Comp. Ratio			-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	63cc	65cc	70cc	Ring Set	Part # ea.
4.070	3.310	6.123	1.802	578	.984 x 2.750	-5.6cc	9.5	9.3	8.8	09024070 $183.74	51001 $158.76
4.040	4.000	6.123	1.457	508	.984 x 2.750	-5.6cc	11.1	10.9	10.3	09024040 $183.74	51005 $158.76
4.070	4.000	6.123	1.457	517	.984 x 2.750	-5.6cc	11.3	11.0	10.5	09024070 $183.74	51007 $158.76
4.080	4.000	6.123	1.457	521	.984 x 2.750	-5.6cc	11.4	11.1	10.5	09024080 $183.74	51010 $158.76
4.100	4.000	6.123	1.457	527	.984 x 2.750	-5.6cc	11.4	11.2	10.6	09024100 $183.74	51013 $158.76
4.070	4.000	6.125	1.457	519	.927 x 2.750	-5.6cc	11.3	11.1	10.5	09024070 $183.74	51008 $158.76
4.080	4.000	6.125	1.457	523	.927 x 2.750	-5.6cc	11.4	11.1	10.6	09024080 $183.74	51009 $158.76

360 Block: 4.000 Std Bore 3.580 Std Stroke							Comp. Ratio			-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	63cc	65cc	70cc	Ring Set	Part # ea.
4.030	3.580	6.123	1.667	541	.984 x 2.750	-5.6cc	10.0	9.8	9.3	09024030 $183.74	51021 $158.76
4.040	3.580	6.123	1.667	545	.984 x 2.750	-5.6cc	10.1	9.9	9.4	09024040 $183.74	51022 $158.76
4.060	3.580	6.123	1.667	551	.984 x 2.750	-5.6cc	10.2	9.9	9.4	09024060 $183.74	51023 $158.76
4.020	4.000	6.123	1.457	501	.984 x 2.750	-5.6cc	11.0	10.8	10.3	09024020 $183.74	51025 $158.76
4.030	4.000	6.123	1.457	504	.984 x 2.750	-5.6cc	11.1	10.8	10.3	09024030 $183.74	51026 $158.76
4.060	4.000	6.123	1.457	514	.984 x 2.750	-5.6cc	11.2	11.0	10.4	09024060 $183.74	51028 $158.76
4.030	4.000	6.125	1.457	506	.927 x 2.750	-5.6cc	11.1	10.9	10.3	09024030 $183.74	51027 $158.76

383 Block: 4.250 Std Bore 3.375 Std Stroke							Comp. Ratio			-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	75cc	78cc	84cc	Ring Set	Part # ea.
4.280	3.375	6.360	1.916	630	1.094 x 2.930	-3.0cc	9.6	9.3	8.8	09024280 $218.74	51900 $153.75
4.310	3.375	6.360	1.916	632	1.094 x 2.930	-3.0cc	9.7	9.4	8.9	09024310 $218.74	51903 $153.75
4.280	3.750	6.360	1.720	597	1.094 x 2.930	-3.0cc	10.3	10.0	9.5	09024280 $218.74	51910 $153.75
4.310	3.750	6.360	1.720	600	1.094 x 2.930	-3.0cc	10.5	10.2	9.6	09024310 $218.74	51912 $153.75
4.280	3.375	6.768	1.516	548	.990 x 2.930	-3.0cc	9.7	9.5	9.0	09024280 $218.74	51907 $153.75
4.310	3.375	6.768	1.516	543	.990 x 2.930	-3.0cc	9.9	9.6	9.1	09024310 $218.74	51908 $153.75
4.280	3.750	6.768	1.320	488	.990 x 2.930	-3.0cc	10.5	10.2	9.7	09024280 $218.74	51950 $153.75
4.310	3.750	6.768	1.320	500	.990 x 2.930	-3.0cc	10.6	10.3	9.5	09024310 $218.74	51952 $153.75

400 Block: 4.340 Std Bore 3.375 Std Stroke							Comp. Ratio			-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	75cc	78cc	84cc	Ring Set	Part # ea.
4.375	3.750	6.768	1.320	515	1.094 x 2.930	-3.4cc	10.9	10.6	10.0	09024375 $218.74	52006 $153.75
4.375	3.750	6.768	1.320	523	.990 x 2.930	-3.4cc	10.9	10.6	10.0	09024375 $218.74	52007 $153.75
4.375	4.150	6.768	1.120	487	.990 x 2.930	-3.4cc	12.0	11.6	11.0	09024375 $218.74	52008 $153.75
4.375	4.250	6.535	1.305	513	.990 x 2.930	-3.4cc	12.3	11.9	11.3	09024375 $218.74	52015 $153.75

440 Block: 4.320 Std Bore 3.750 Std Stroke							Comp. Ratio			-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	75cc	78cc	84cc	Ring Set	Part # ea.
4.350	3.750	6.768	2.065	646	1.094 x 2.930	-3.4cc	10.9	10.6	10.0	09024350 $218.74	52001 $153.75
4.350	3.750	6.768	2.065	653	.990 x 2.930	-3.4cc	10.9	10.6	10.0	09024350 $218.74	52002 $153.75
4.360	3.750	6.768	2.065	660	.990 x 2.930	-3.4cc	10.9	10.6	10.0	09024360 $218.74	52003 $153.75
4.350	4.150	6.768	1.865	614	1.094 x 2.930	-3.4cc	11.9	11.6	11.0	09024350 $218.74	52004 $153.75
4.360	4.150	6.768	1.865	618	1.094 x 2.930	-3.4cc	12.0	11.6	11.0	09024360 $218.74	52009 $153.75
4.375	4.150	6.768	1.865	621	1.094 x 2.930	-3.4cc	12.1	11.7	11.1	09024375 $218.74	52011 $153.75
4.350	4.150	6.768	1.865	614	.990 x 2.930	-3.4cc	11.9	11.6	11.0	09024350 $218.74	52005 $153.75
4.360	4.150	6.768	1.865	624	.990 x 2.930	-3.4cc	12.0	11.6	11.0	09024360 $218.74	52010 $153.75
4.375	4.150	6.768	1.865	633	.990 x 2.930	-3.4cc	12.1	11.7	11.1	09024375 $218.74	52012 $153.75
4.380	4.150	6.768	1.865	635	.990 x 2.930	-3.4cc	12.1	11.7	11.1	09024375 $218.74	52013 $153.75
4.350	4.250	6.768	1.815	610	.990 x 2.930	-3.4cc	12.2	11.8	11.2	09024350 $218.74	52017 $153.75
4.360	4.250	6.768	1.815	613	.990 x 2.930	-3.4cc	12.2	11.9	11.2	09024360 $218.74	52020 $153.75
4.375	4.250	6.768	1.815	624	.990 x 2.930	-3.4cc	12.3	12.0	11.3	09024375 $218.74	52023 $153.75
4.380	4.250	6.768	1.815	617	.990 x 2.930	-3.4cc	12.3	12.0	11.3	09024380 $218.74	52024 $153.75
4.350	4.250	6.800	1.780	603	.990 x 2.930	-3.4cc	12.1	11.8	11.1	09024350 $218.74	52027 $153.75
4.360	4.250	6.800	1.780	612	.990 x 2.930	-3.4cc	12.2	11.8	11.2	09024360 $218.74	52028 $153.75
4.380	4.250	6.800	1.780	618	.990 x 2.930	-3.4cc	12.3	11.9	11.3	09024380 $218.74	52029 $153.75
4.350	4.250	7.100	1.480	553	.990 x 2.930	-3.4cc	12.1	11.8	11.1	09024350 $218.74	52030 $153.75
4.360	4.250	7.100	1.480	548	.990 x 2.930	-3.4cc	12.2	11.8	11.2	09024360 $218.74	52031 $153.75
4.380	4.250	7.100	1.480	556	.990 x 2.930	-3.4cc	12.3	11.9	11.3	09024380 $218.74	52032 $153.75

426 Block: 4.250 Std Bore 3.750 Std Stroke							Comp. Ratio			-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	168cc	173cc	178cc	Ring Set	Part # ea.
4.250	3.750	6.860	1.965	829	1.031 x 2.930	85.0cc	9.8	9.3	9.0	09024250 $218.74	52500 $187.50
4.280	3.750	6.860	1.965	841	1.031 x 2.930	85.0cc	9.9	9.5	9.1	09024280 $218.74	52502 $187.50
4.310	3.750	6.860	1.965	858	1.031 x 2.930	85.0cc	10.0	9.6	9.2	09024310 $218.74	52505 $187.50
4.250	4.150	6.860	1.765	778	1.031 x 2.930	75.0cc	9.8	9.4	9.1	09024250 $218.74	52520 $187.50
4.280	4.150	6.860	1.765	795	1.031 x 2.930	75.0cc	9.9	9.5	9.2	09024280 $218.74	52522 $187.50
4.310	4.150	6.860	1.765	793	1.031 x 2.930	75.0cc	10.0	9.7	9.3	09024310 $218.74	52525 $187.50
4.250	4.150	6.860	1.765	793	1.031 x 2.930	96.0cc	11.9	11.3	10.8	09024250 $218.74	52530 $187.50
4.280	4.150	6.860	1.765	call	1.031 x 2.930	96.0cc	12.0	11.5	10.9	09024280 $218.74	52531 $187.50
4.310	4.150	6.860	1.765	call	1.031 x 2.930	96.0cc	12.2	11.6	11.1	09024310 $218.74	52532 $187.50
4.500	3.750	6.860	1.965	call	1.031 x 2.930	86.0cc	10.9	10.4	10.0	09024500 $218.74	52560 $187.50
4.500	4.150	6.860	1.765	785	1.031 x 2.930	74.0cc	10.7	10.3	9.9	09024500 $218.74	52565 $187.50
4.500	4.150	6.860	1.765	call	1.031 x 2.930	86.0cc	11.9	11.4	10.9	09024500 $218.74	52566 $187.50
4.500	4.250	6.860	1.725	call	1.031 x 2.930	72.0cc	11.0	10.6	10.2	09024500 $218.74	52567 $187.50
4.500	4.250	7.100	1.485	call	.990 x 2.930	72.0cc	11.0	10.6	10.2	09024500 $218.74	52568 $187.50
4.500	4.500	6.860	1.600	call	1.031 x 2.930	65.0cc	11.0	10.6	10.2	09024500 $218.74	52569 $187.50
4.500	4.500	7.100	1.360	call	.990 x 2.930	65.0cc	11.0	10.6	10.2	09024500 $218.74	52570 $187.50

Stock Bore 92.26mm Stock Stroke 99.31mm							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	70cc	Ring Set	Part # ea.
3.632	3.910	6.058	1.215	call	.866 x 2.500	-15.0cc	8.5	09533632 $246.24	30200 $166.25
3.642	3.910	6.058	1.215	call	.866 x 2.500	-15.0cc	8.5	09533642 $246.24	30201 $166.25
3.652	3.910	6.058	1.215	call	.866 x 2.500	-15.0cc	8.6	09533652 $246.24	30202 $166.25
3.632	3.910	6.058	1.215	call	.866 x 2.500	-9.0cc	9.0	09533632 $246.24	30203 $166.25
3.642	3.910	6.058	1.215	call	.866 x 2.500	-9.0cc	9.1	09533642 $246.24	30204 $166.25
3.652	3.910	6.058	1.215	call	.866 x 2.500	-9.0cc	9.1	09533652 $246.24	30205 $166.25
3.632	3.910	6.058	1.215	call	.866 x 2.500	-4.0cc	9.5	09533632 $246.24	30206 $166.25
3.642	3.910	6.058	1.215	call	.866 x 2.500	-4.0cc	9.6	09533642 $246.24	30207 $166.25
3.652	3.910	6.058	1.215	call	.866 x 2.500	-4.0cc	9.6	09533652 $246.24	30208 $166.25

79.0mm (3.110) Std Bore - 83.0mm (3.205) Stock Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	Factory CC	Ring Set	Part # ea.
79.0mm	81.4mm	5.2758	1.130	271	.827 x 2.250	-5.9cc	Factory Replace- ment	09513110 $124.99	33100 $147.50

87.5mm (3.3449) Std Bore - 83.0mm (3.2677) Stock Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	Factory CC	Ring Set	Part # ea.
87.5mm	83.0mm	6.136	1.290	348	.886 x 2.250	-6.9cc	Factory Replace- ment	09513445 $124.99	33000 $147.50

87.5mm (3.3449) Std Bore - 93.98mm (3.700) Stock Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	Factory CC	Ring Set	Part # ea.
87.5mm	3.700	5.875	1.290	call	.886 x 2.500	-6.41cc	9.5	09513445 $124.99	23100 $147.50
88.0mm	3.700	5.875	1.290	call	.886 x 2.500	-6.41cc	9.5	09513465 $124.99	23101 $147.50
88.5mm	3.700	5.875	1.290	call	.886 x 2.500	-6.41cc	9.5	09513485 $299.99	23102 $147.50

92.50mm (3.6417) Std Bore - 86.70mm (3.4133) Stock Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	Factory CC	Ring Set	Part # ea.
92.50mm	3.4133	6.0137	1.240	call	.905 x 2.500	-.67cc	10.0	09053641 $307.49	35000 $147.50
92.75mm	3.4133	6.0137	1.240	call	.905 x 2.500	-.67cc	10.0	09053651 $307.49	35001 $147.50
93.00mm	3.4133	6.0137	1.240	call	.905 x 2.500	-.67cc	10.0	09053661 $307.49	35002 $147.50
92.50mm	3.4133	6.0137	1.240	call	.905 x 2.500	-4.5cc	9.5	09053641 $307.49	35003 $147.50
92.75mm	3.4133	6.0137	1.240	call	.905 x 2.500	-4.5cc	9.5	09053651 $307.49	35004 $147.50
93.0mm	3.4133	6.0137	1.240	call	.905 x 2.500	-4.5cc	9.5	09053661 $307.49	35005 $147.50
92.50mm	3.4133	6.0137	1.240	call	.905 x 2.500	-8.8cc	9.0	09053641 $307.49	35006 $147.50
92.75mm	3.4133	6.0137	1.240	call	.905 x 2.500	-8.8cc	9.0	09053651 $307.49	35007 $147.50
93.00mm	3.4133	6.0137	1.240	call	.905 x 2.500	-8.8cc	9.0	09053661 $307.49	35008 $147.50

B18A/B Block: 81.0mm Std Bore 89.0mm Std Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	45CC	Ring Set	Part # ea.
84.0mm	89.0mm	5.394	1.181	call	.8267 x 2.250	-2.5cc	9.9	09583307 $199.99	71000 $190.00
84.5mm	89.0mm	5.394	1.181	call	.8267 x 2.250	-2.5cc	10.0	09583327 $199.99	71001 $190.00
85.0mm	89.0mm	5.394	1.181	call	.8267 x 2.250	-2.5cc	10.1	09583347 $199.99	71002 $190.00
84.0mm	89.0mm	5.394	1.181	call	.866 x 2.250	-2.5cc	9.9	09583307 $199.99	71003 $190.00
84.5mm	89.0mm	5.394	1.181	call	.866 x 2.250	-2.5cc	10.0	09583327 $199.99	71004 $190.00
85.0mm	89.0mm	5.394	1.181	call	.866 x 2.250	-2.5cc	10.1	09583347 $199.99	71005 $190.00

K20/K24 Block: 86.0mm Std Bore 86.0mm Std Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	50CC	Ring Set	Part # ea.
86.0mm	86.0mm	5.472	1.181	call	.866 x 2.250	2.0cc	10.2	09583385 $199.99	71100 $190.00
86.5mm	86.0mm	5.472	1.181	call	.866 x 2.250	2.0cc	10.3	09583405 $199.99	71101 $190.00
87.0mm	86.0mm	5.472	1.181	call	.866 x 2.250	2.0cc	10.4	09583425 $199.99	71102 $190.00

Stock Bore 92.0mm (3.622) Stock Stroke 75mm (2.953)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	48cc	Ring Set	Part # ea.
92.0mm	75.0mm	5.137	1.287	call	.905 x 2.500	-12.0cc	8.3	09513622 $199.99	36001 $166.25
92.5mm	75.0mm	5.137	1.287	call	.905 x 2.500	-12.0cc	8.4	09513642 $199.99	36002 $166.25
93.0mm	75.0mm	5.137	1.287	call	.905 x 2.500	-12.0cc	8.5	09513662 $199.99	36003 $166.25
Stock Bore 92.0mm (3.622) Stock Stroke 75mm (2.953)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	48cc	Ring Set	Part # ea.
92.0mm	79.0mm	5.137	1.208	call	.905 x 2.500	-15.5cc	8.3	09513622 $199.99	36004 $166.25
92.5mm	79.0mm	5.137	1.208	call	.905 x 2.500	-15.5cc	8.4	09513642 $199.99	36005 $166.25
93.0mm	79.0mm	5.137	1.208	call	.905 x 2.500	-15.5cc	8.5	09513662 $199.99	36006 $166.25

Stock Bore 99.5mm (3.9173) Stock Stroke 79mm (3.110)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	50cc	Ring Set	Part # ea.
99.5mm	79.0mm	5.137	1.208	call	.905 x 2.500	-24.0cc	8.5	09513917 $199.99	36007 $166.25
99.75mm	79.0mm	5.137	1.208	call	.905 x 2.500	-24.0cc	8.5	09513927 $199.99	36008 $166.25
100.0mm	79.0mm	5.137	1.208	call	.905 x 2.500	-24.0cc	8.5	09513937 $199.99	36009 $166.25
100.5mm	79.0mm	5.137	1.208	call	.905 x 2.500	-24.0cc	8.5	09513957 $199.99	36010 $166.25

FA20 Block: 86.0mm Std Bore 86.0mm Std Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	40.3cc	Ring Set	Part # ea.
86.0mm	86.0mm	5.090	1.285	call	.866 x 2.250	-11.0cc	10.0	09573385 $124.99	36040 $166.25
86.25mm	86.0mm	5.090	1.285	call	.866 x 2.250	-11.0cc	10.0	09573395 $124.99	36041 $166.25
86.5mm	86.0mm	5.090	1.285	call	.866 x 2.250	-11.0cc	10.0	09573405 $124.99	36042 $166.25
86.0mm	86.0mm	5.090	1.285	call	.866 x 2.250	-14.5cc	9.5	09573385 $124.99	36043 $166.25
86.25mm	86.0mm	5.090	1.285	call	.866 x 2.250	-14.5cc	9.5	09573395 $124.99	36044 $166.25
86.5mm	86.0mm	5.090	1.285	call	.866 x 2.250	-14.5cc	9.5	09573405 $124.99	36045 $166.25

FA20DIT Block: 86.0mm Std Bore 86.0mm Std Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	39cc	Ring Set	Part # ea.
86.0mm	86.0mm	5.090	1.285	call	.866 x 2.250	-9.0cc	10.5	09573385 $124.99	36046 $166.25
86.25mm	86.0mm	5.090	1.285	call	.866 x 2.250	-9.0cc	10.5	09573395 $124.99	36047 $166.25
86.5mm	86.0mm	5.090	1.285	call	.866 x 2.250	-9.0cc	10.6	09573405 $124.99	36048 $166.25
86.0mm	86.0mm	5.090	1.285	call	.866 x 2.250	-12.0cc	10.0	09573385 $124.99	36049 $166.25
86.25mm	86.0mm	5.090	1.285	call	.866 x 2.250	-12.0cc	10.0	09573395 $124.99	36050 $166.25
86.5mm	86.0mm	5.090	1.285	call	.866 x 2.250	-12.0cc	10.1	09573405 $124.99	36051 $166.25

Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	47cc	Ring Set	Part # ea.
85.0mm	88.0mm	5.905	1.375	call	.866 x 2.250	-12.3cc	8.5	09513346 $124.99	82000 $177.50
85.5mm	88.0mm	5.905	1.375	call	.866 x 2.250	-12.3cc	8.6	09513366 $124.99	82001 $177.50
86.0mm	88.0mm	5.905	1.375	call	.866 x 2.250	-12.3cc	8.7	09513386 $124.99	82002 $177.50
85.0mm	88.0mm	5.905	1.375	call	.866 x 2.250	-8.0cc	9.0	09513346 $124.99	82003 $177.50
85.5mm	88.0mm	5.905	1.375	call	.866 x 2.250	-8.0cc	9.1	09513366 $124.99	82004 $177.50
86.0mm	88.0mm	5.905	1.375	call	.866 x 2.250	-8.0cc	9.2	09513386 $124.99	82005 $177.50
85.0mm	88.0mm	5.905	1.375	call	.866 x 2.250	-1.0cc	10.0	09513346 $124.99	82006 $177.50
85.5mm	88.0mm	5.905	1.375	call	.866 x 2.250	-1.0cc	10.1	09513366 $124.99	82007 $177.50
86.0mm	88.0mm	5.905	1.375	call	.866 x 2.250	-1.0cc	10.2	09513386 $124.99	82008 $177.50
Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	47cc	Ring Set	Part # ea.
85.0mm	94.0mm	5.905	1.255	call	.866 x 2.250	-16.5cc	8.5	09513346 $124.99	82009 $177.50
85.5mm	94.0mm	5.905	1.255	call	.866 x 2.250	-16.5cc	8.6	09513366 $124.99	82010 $177.50
86.0mm	94.0mm	5.905	1.255	call	.866 x 2.250	-16.5cc	8.7	09513386 $124.99	82011 $177.50
85.0mm	94.0mm	5.905	1.255	call	.866 x 2.250	-12.3cc	9.0	09513346 $124.99	82012 $177.50
85.5mm	94.0mm	5.905	1.255	call	.866 x 2.250	-12.3cc	9.0	09513366 $124.99	82013 $177.50
86.0mm	94.0mm	5.905	1.255	call	.866 x 2.250	-12.3cc	9.1	09513386 $124.99	82014 $177.50
85.0mm	94.0mm	5.905	1.255	call	.866 x 2.250	-4.5cc	10.0	09513346 $124.99	82015 $177.50
85.5mm	94.0mm	5.905	1.255	call	.866 x 2.250	-4.5cc	10.1	09513366 $124.99	82016 $177.50
86.0mm	94.0mm	5.905	1.255	call	.866 x 2.250	-4.5cc	10.2	09513386 $124.99	82017 $177.50
Stock Bore 85.0mm (3.3464) Stock Stroke 88mm (3.4645)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	47cc	Ring Set	Part # ea.
85.0mm	100.0mm	5.905	1.135	call	.866 x 2.250	-21.0cc	8.5	09513346 $124.99	82018 $177.50
85.5mm	100.0mm	5.905	1.135	call	.866 x 2.250	-21.0cc	8.6	09513366 $124.99	82019 $177.50
86.0mm	100.0mm	5.905	1.135	call	.866 x 2.250	-21.0cc	8.7	09513386 $124.99	82020 $177.50
85.0mm	100.0mm	5.905	1.135	call	.866 x 2.250	-16.5cc	9.0	09513346 $124.99	82021 $177.50
85.5mm	100.0mm	5.905	1.135	call	.866 x 2.250	-16.5cc	9.0	09513366 $124.99	82022 $177.50
86.0mm	100.0mm	5.905	1.135	call	.866 x 2.250	-16.5cc	9.1	09513386 $124.99	82023 $177.50
85.0mm	100.0mm	5.905	1.135	call	.866 x 2.250	-8.0cc	10.0	09513346 $124.99	82024 $177.50
85.5mm	100.0mm	5.905	1.135	call	.866 x 2.250	-8.0cc	10.1	09513366 $124.99	82025 $177.50
86.0mm	100.0mm	5.905	1.135	call	.866 x 2.250	-8.0cc	10.1	09513386 $124.99	82026 $177.50

Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	49cc	Ring Set	Part # ea.
86.0mm	86.0mm	5.659	1.305	call	.905 x 2.250	-6.0cc	9.0	09513386 $124.99	82050 $177.50
86.5mm	86.0mm	5.659	1.305	call	.905 x 2.250	-6.0cc	9.1	09513406 $124.99	82051 $177.50
90.0mm	86.0mm	5.659	1.305	call	.905 x 2.250	-6.0cc	9.7	09513543 $124.99	82062 $177.50
86.0mm	86.0mm	5.659	1.305	call	.905 x 2.250	1.0cc	10.0	09513386 $124.99	82052 $177.50
86.5mm	86.0mm	5.659	1.305	call	.905 x 2.250	1.0cc	10.1	09513406 $124.99	82053 $177.50
90.0mm	86.0mm	5.659	1.305	call	.905 x 2.250	1.0cc	10.5	09513543 $124.99	82063 $177.50
Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	49cc	Ring Set	Part # ea.
86.0mm	94.0mm	5.659	1.150	call	.905 x 2.250	-12.0cc	9.0	09513386 $124.99	82054 $177.50
86.5mm	94.0mm	5.659	1.150	call	.905 x 2.250	-12.0cc	9.1	09513406 $124.99	82055 $177.50
90.0mm	94.0mm	5.659	1.150	call	.905 x 2.250	-12.0cc	9.8	09513543 $124.99	82064 $177.50
86.0mm	94.0mm	5.659	1.150	call	.905 x 2.250	-4.5cc	10.0	09513386 $124.99	82056 $177.50
86.5mm	94.0mm	5.659	1.150	call	.905 x 2.250	-4.5cc	10.1	09513406 $124.99	82057 $177.50
90.0mm	94.0mm	5.659	1.150	call	.905 x 2.250	-4.5cc	10.8	09513543 $124.99	82065 $177.50
Stock Bore 86.0mm (3.3858) Stock Stroke 86mm (3.3858)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	49cc	Ring Set	Part # ea.
86.0mm	98.0mm	5.659	1.070	call	.905 x 2.250	-15.0cc	9.0	09513386 $124.99	82058 $177.50
86.5mm	98.0mm	5.659	1.070	call	.905 x 2.250	-15.0cc	9.1	09513406 $124.99	82059 $177.50
90.0mm	98.0mm	5.659	1.070	call	.905 x 2.250	-15.0cc	9.7	09513543 $124.99	82066 $177.50
86.0mm	98.0mm	5.659	1.070	call	.905 x 2.250	-7.0cc	10.0	09513386 $124.99	82060 $177.50
86.5mm	98.0mm	5.659	1.070	call	.905 x 2.250	-7.0cc	10.1	09513406 $124.99	82061 $177.50
90.0mm	98.0mm	5.659	1.070	call	.905 x 2.250	-7.0cc	10.8	09513543 $124.99	82067 $177.50

Stock Bore 86mm (3.385) Stock Stroke 86mm (3.385)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	45cc	Ring Set	Part # ea.
86.0mm	86.0mm	5.590	1.338	call	.866 x 2.250	-14.5cc	8.5	09513385 $246.24	37000 $147.50
86.5mm	86.0mm	5.590	1.338	call	.866 x 2.250	-14.5cc	8.6	09513405 $246.24	37001 $147.50
87.0mm	86.0mm	5.590	1.338	call	.866 x 2.250	-14.5cc	8.7	09513425 $246.24	37002 $147.50
86.0mm	86.0mm	5.590	1.338	call	.866 x 2.250	-10.4cc	9.0	09513385 $246.24	37003 $147.50
86.5mm	86.0mm	5.590	1.338	call	.866 x 2.250	-10.4cc	9.1	09513405 $246.24	37004 $147.50
87.0mm	86.0mm	5.590	1.338	call	.866 x 2.250	-10.4cc	9.2	09513425 $246.24	37005 $147.50
86.0mm	86.0mm	5.590	1.338	call	.866 x 2.250	-6.1cc	9.6	09513385 $246.24	37006 $147.50
86.5mm	86.0mm	5.590	1.338	call	.866 x 2.250	-6.1cc	9.7	09513405 $246.24	37007 $147.50
87.0mm	86.0mm	5.590	1.338	call	.866 x 2.250	-6.1cc	9.8	09513425 $246.24	37008 $147.50
86.0mm	86.0mm	5.590	1.338	call	.866 x 2.250	-3.5cc	10.0	09513385 $246.24	37018 $147.50
86.5mm	86.0mm	5.590	1.338	call	.866 x 2.250	-3.5cc	10.1	09513405 $246.24	37019 $147.50
87.0mm	86.0mm	5.590	1.338	call	.866 x 2.250	-3.5cc	10.2	09513425 $246.24	37020 $147.50
Stock Bore 86mm (3.385) Stroker 94mm (3.700)							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	45cc	Ring Set	Part # ea.
86.0mm	94.0mm	5.590	1.180	call	.866 x 2.250	-20.7cc	8.5	09513385 $246.24	37009 $147.50
86.5mm	94.0mm	5.590	1.180	call	.866 x 2.250	-20.7cc	8.6	09513405 $246.24	37010 $147.50
87.0mm	94.0mm	5.590	1.180	call	.866 x 2.250	-20.7cc	8.7	09513425 $246.24	37011 $147.50
86.0mm	94.0mm	5.590	1.180	call	.866 x 2.250	-16.2cc	9.0	09513385 $246.24	37012 $147.50
86.5mm	94.0mm	5.590	1.180	call	.866 x 2.250	-16.2cc	9.1	09513405 $246.24	37013 $147.50
87.0mm	94.0mm	5.590	1.180	call	.866 x 2.250	-16.2cc	9.2	09513425 $246.24	37014 $147.50
86.0mm	94.0mm	5.590	1.180	call	.866 x 2.250	-8.6cc	10.0	09513385 $246.24	37015 $147.50
86.5mm	94.0mm	5.590	1.180	call	.866 x 2.250	-8.6cc	10.1	09513405 $246.24	37016 $147.50
87.0mm	94.0mm	5.590	1.180	call	.866 x 2.250	-8.6cc	10.2	09513425 $246.24	37017 $147.50
Optional H-13, M2 and TP-1 wrist pins available as a upgrade to any piston part number.

SR20DE Block: 86.0mm Std Bore 86.0mm Std Stroke							Comp. Ratio	-
Bore	Stroke	Rod	C.D.	Wht.	Pin	CC's	45cc	Ring Set	Part # ea.
86.0mm	86.0mm	5.365	1.255	call	.866 x 2.250	-14.0cc	8.5	09513386 $124.99	83060 $162.50
86.5mm	86.0mm	5.365	1.255	call	.866 x 2.250	-14.0cc	8.6	09513406 $124.99	83061 $162.50
87.0mm	86.0mm	5.365	1.255	call	.866 x 2.250	-14.0cc	8.7	09513426 $124.99	83062 $162.50
86.0mm	86.0mm	5.365	1.255	call	.866 x 2.250	-6.5cc	9.5	09513386 $124.99	83063 $162.50
86.5mm	86.0mm	5.365	1.255	call	.866 x 2.250	-6.5cc	9.6	09513406 $124.99	83064 $162.50
87.0mm	86.0mm	5.365	1.255	call	.866 x 2.250	-6.5cc	9.7	09513426 $124.99	83065 $162.50
