CATALOG 2019 CONTENTS

SUPERSEDES CATALOG 2016

Catalog and Ordering Information 2 ALPHABETICAL LISTING BY MANUFACTURER:

. . AMC / Jeep / Eagle 8

Label / Lot No., Casting Date Code.. 4 Buick. . See General Motors Corp.

Piston Terminology, Diamond Finishing, Coated Pistons. 5 Cadillac. See General Motors Corp.

Aluminum Alloys for Pistons 6 Chevrolet.See General Motors Corp.

New Piston Numbers. 7 Chrysler Corp. 15

Interchange Listings 105 Continental 25

Determining Compression Ratio. 107 Datsun ... See Nissan

Checking Clearance for Silvolite Pistons 108 Dodge......See Chrysler Corp.

Clearance Chart for Silvolite Pistons. 109 Ford Induxtrial
Ford Motor Co. 25-1
26

. General Motor Corporation 48

GEO. . See General Motors Corp.

UNITED ENGINE & MACHINE CO. GMC Truck.See General Motor Corp.

Holden 78

Honda 81

Hyundai 82

IHC / Navistar 82

Infiniti . . . . . . . . . See Nissan

Isuzu 84

Lexus. . . . See Toyota

Lincoln . . . . See Ford Motor Co.

Mazda.. 85

Mercruiser 86

Mercury. .See Ford Motor Co.

Mitsubishi 89

Nissan.. 91

Oldsmobile.See General Motors Corp.

Plymouth.. . . . . See Chrysler Corp.

Pontiac. See General Motors Corp.

Rover 93

Saturn ..See General Motors Corp.

Suzuki.. 94

Subaru.. 94

Toyota.. 95

Triumph 97

Volkswagen 97

Page 2
CATALOG INFORMATION

• Entries in the alphabetical listing are arranged first by engine displacement, then by years.
• Pistons are for gasoline engines unless noted otherwise.
• Suffix “C” “Coating” deNOTES pistons having a dry film lubricant applied to skirts.
• Suffix “D” following a piston number deNOTES a DUALOY piston with an Al-Fin bonded ferrous (iron) top ring groove protector.
• Suffix “H” deNOTES a HYPEREUTECTIC piston.
• Some passenger car and light and medium duty truck pistons are destroked to allow for block and cylinder head resurfacing. This reduces the compression ratio by approximately 1/4 ratio if the block and head have not been resurfaced. Many Hypereutectic pistons have not been destroked. It is suggested that the compression height be checked before ordering.
• The compression ratio is the ratio that will result when the standard (STD.) size Silv-O-Lite piston is substituted for the original equipment piston. These ratios have been calculated from the best published data available to us. While every effort has been made to use authoritative sources we cannot guarantee the accuracy of such data and, hence, cannot assume responsibility for the resulting compression ratios calculated therefrom.
• Boring an engine .030” oversize will increase the compression ratio approximately 1/10 of a ratio, boring to .060” oversize approximately 1/4 of a ratio.
• All pistons are furnished with pins and, if required, lockrings.
• Oversize pistons are offered solely in response to customer demand and, in offering them, United Engine and Machine Company makes no warranty either expressed or implied as to the oversize to which an engine can be safely bored nor as to availability of piston rings.
• Single pistons can now be purchased in all listed oversizes.

Page 4

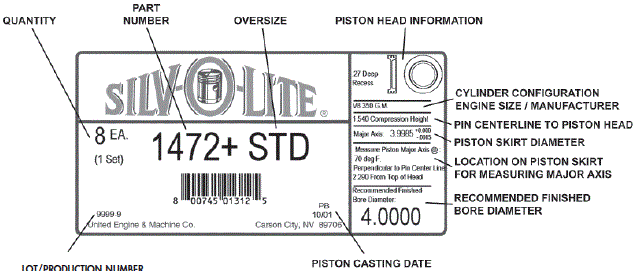

LABEL/LOT NUMBER
For product traceability, the lot/production number and casting date is
printed on the container label. If necessary a piston production history can
be reviewed when this label information is provided to the factory.

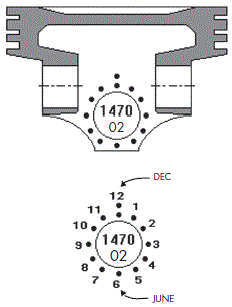

CASTING DATE CODE

Most Silv-O-Lite pistons have a monthly calendar cast on the inside of the skirt. Each dot represents a month. The double dot represents December. Reading clockwise from the double dots,
the next dot is January, then clockwise to February, etc. In the center of the cast circular calendar is the piston part
number. Directly beneath the part number is a two digit number indicating the year, i.e.; “02” represents 2002. The illustration to the right indicates a casting date of “June ‘02”.

Page 5

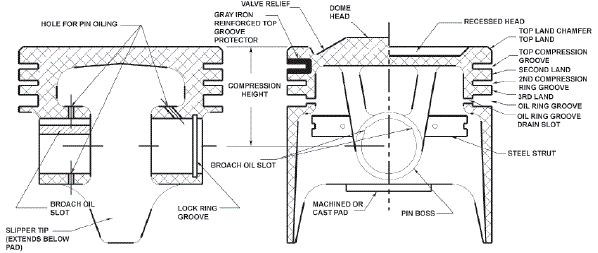

PISTON TERMINOLOGY

DIAMOND FINISHING

Silv-O-Lite has been diamond finishing piston skirts for over 25 years.
Silv-O-Lite’s diamond finishing is not a lathe or grinding operation. This unique process
actually holds the piston stationary while spinning the cutting tool around the perimeter
of the piston. In one simultaneous action ellipse, taper, & barrel are cut. One trade mark of the diamond finishing process is a small half moon cut that may show up on the second land. If this mark is not present, it is because the piston requires less ellipse or has smaller land diameter. Even without this identification you can be
assured that all Silv-O-Lite pistons are finished with this proprietary process.
Silv-O-Lite has combined the accuracy of the diamond with the speed of the computer and over 90 years of engineering experience to give you the most consistent skirt finish in the industry. For more information on this unique process contact 1-800-648-7970.

COATED PISTONS

• A “C” suffix has been added to the part numbers of pistons coated with an anti-friction dry lubricant.
• The label on the piston container indicates “COATED” & lists the “Recommended Finished Bore Diameter”.
• Pistons that have dry film lubricant applied to the skirts are approximately .001 larger in diameter than uncoated pistons.
• Failure to follow the “Recommended Finished Bore Diameter” can result in piston failure.

Page 6
ALLUMINUM ALLOYS FOR PISTONS

United Engine
Uses gravity feed permanent molds to produce aluminum pistons.
Aluminum, alloyed with copper, magnesium, nickel and silicon are common piston alloys in use today. Silicon is the major alloying element
added to the aluminum. It offers a number of benefits in the area of piston production and piston operation.
• Machinability
• Corrosion Resistance
• Weight Reduction
• Improvement in Hardness And Strength
• Improvement in Expansion Characteristics
• Improvement in Wear and Scuff Resistance
Aluminum silicon alloys used in pistons fall into three major categories: eutectic, hypoeutectic
and hypereutectic. Probably the easiest way to describe these categories is to use the analogy
of sugar added to a glass of iced tea. When sugar is added and stirred into the iced tea it dissolves and becomes inseparable from the iced tea. If sugar is continuously added, the tea
actually becomes saturated with sugar and, no matter how much you stir, the excess sugar will not mix in and simply falls to the bottom of the
glass in crystal form. Silicon additions to aluminum are very similar to the sugar addition to the iced tea. Silicon can be added and dissolved into aluminum so it, too, becomes inseparable from the aluminum. If these additions continue, the aluminum will
eventually become saturated with silicon. Silicon added above this saturation point will precipitate
out in the form of hard, primary silicon particles similar to the excess sugar in the iced tea. This point of saturation in aluminum is known as the eutectic and occurs when the silicon level reaches 12%. Aluminum with silicon levels below 12% are known as hypoeutectic, the
silicon is dissolved into the aluminum matrix).
Aluminum with silicon levels above 12% are known as hypereutectic, (aluminum with 16% silicon has 12% dissolved silicon and 4% shows
up as primary silicon crystals).
Silvolite’s hypereutectic pistons use an alloy containing 15 - 16% silicon. In addition to greater strength, scuff and seizure resistance, the hypereutectic will improve groove wear and resist cracking in the crown area where operating temperatures are severe.
It is primary silicon that gives the hypereutectic its thermal and wear characteristics. The primary silicon acts as small insulators keeping
the heat in the combustion chamber and prevents heat transfer, thus allowing the rest of the piston to run cooler. Hypereutectic aluminum has 15% less theremal expansion than conventional piston alloys.
IMPORTANT:
When using Hypereutectic pistons we recommend 40% increase in listed top ring end gap.

Page 7

NEW PISTON NUMBERS

ADDED SINCE CATALOG 2017

Part Number Make/Engine Code Cylinders Cubic Inch Liter Years Page

3260HCA $50.78 Chrysler HEMI V8 345 5.7L 2009-11 23

3339HCA $120.76 FORD DURATEC V6 214 3.5L 2007-10 31

3340HCA $100.03 FORD DURATEC V6 214 3.5L 2010-16 31

3536HC $77.72 GM V8 350 5.7L 1969-90 70

3537HCA $76.16 GM Ecotec L4 146 2.4L 2005-15 52

3539HCA $64.97 GM LFX V6 217 3.6L 2012-18 57

3538HCA $69.77 GM LLT V6 217 3.6L 2007-17 57

Page 8

AMC/JEEP/EAGLE
