CHRYSLER HEMI
Chrysler 5.7L Hemi

Chrysler 6.1L Hemi

Chrysler 6.4L Hemi

FORD
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

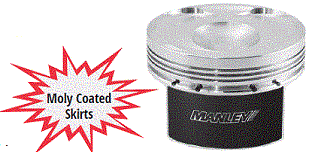

Ford “EcoBoost” 2.3L DOHC 4 Valve
Ford “Cyclone” 3.7L DOHC

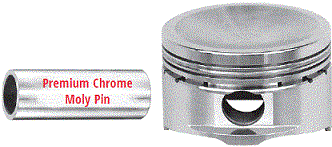

Ford 4.6L & 5.4L SOHC/DOHC 2 & 4 Valve and 5.4L 3 Valve
Ford 4.6L DOHC 3 Valve (2004-up)
Ford 4.6L SOHC/DOHC 2
& 4 Valve (1991-up) stock stroke
Ford 4.6L SOHC/DOHC 2
& 4 Valve (1991-up) 3.750" stroke

Ford 4.6L SOHC/DOHC 2 & 4 Valve (1991-up) Turbo Tuff® Design 3.543” & 3.750” Stroke Pistons
Ford “Coyote” 5.0L DOHC 4 Valve
Ford 5.4L SOHC/DOHC 2, 3 & 4 Valve (1991-up)
Ford 5.8L DOHC 4 Valve Shelby GT500
Ford “Raptor” 6.2L SOHC

Rings


CHRYSLER
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT
PLATINUM SERIES PISTONS

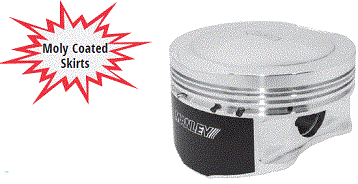

Chrysler 5.7L Hemi
Dome, Flat Top & Dish











¤Forged 2618 high strength material lightweight design
¤Offset wrist pin design
¤Round wire locks
¤1.5, 1.5, 3mm ring package
¤Other features include forced pin oiling and pressure balance groove
¤2.300¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .170¨ wall pin (Extreme Duty Series) included P/N 42542]



Note: These pistons are designed for connecting rods with .927” diameter floating wrist pins

Standard Extreme Duty  -  - -  -  - - Piston Ring Sets
Part No.
Your Cost		 Part No.
Your Cost		 Bore
Size 		  Over
Size		 Rod
Length		  Stroke  Comp
Distance		 Piston
Wt / Gms 		 Ductile Iron Top Rings  Premium Steel Top Rings

 STOCK STROKE 9.3cc DOME
597400C-8 $951.05 597400CE-8 $1,201.96 3.917” STD 6.240” 3.579” 1.220” 427 46120-8 $230.19 46120ST-8 $399.18
597405C-8 $951.05 597405CE-8 $1,201.96 3.922” +.005” 6.240” 3.579” 1.220” 428 46121-8 $230.19 46121ST-8 $399.18
597420C-8 $951.05 597420CE-8 $1,201.96 3.937” +.020” 6.240” 3.579” 1.220” 434 46122-8 $230.19 46122ST-8 $399.18

   STOCK STROKE -1.5cc FLAT TOP
597500C-8 $951.05 597500CE-8 $1,201.96 3.917” STD 6.240” 3.579” 1.220” 400 46120-8 $230.19 46120ST-8 $399.18
597505C-8 $951.05 597505CE-8 $1,201.96 3.922” +.005 6.240” 3.579” 1.220” 402 46121-8 $230.19 46121ST-8 $399.18
597520C-8 $951.05 597520CE-8 $1,201.96 3.937” +.020” 6.240” 3.579” 1.220” 408 46122-8 $230.19 46122ST-8 $399.18

   STOCK STROKE -12cc DISH
597100C-8 $951.05 597100CE-8 $1,201.96 3.917” STD 6.240” 3.579” 1.220” 393 46120-8 $230.19 46120ST-8 $399.18
597105C-8 $951.05 597105CE-8 $1,201.96 3.922” +.005” 6.240” 3.579” 1.220” 395 46121-8 $230.19 46121ST-8 $399.18
597120C-8 $951.05 597120CE-8 $1,201.96 3.937” +.020” 6.240” 3.579” 1.220” 401 46122-8 $230.19 46122ST-8 $399.18

STROKER SERIES -1.5cc FLAT TOP
597200C-8 $951.05 597200CE-8 $1,201.96 3.917” STD 6.125 4.050” 1.085” 346 46120-8 $230.19 46120ST-8 $399.18
597205C-8 $951.05 597205CE-8 $1,201.96 3.922” +.005” 6.125” 4.050” 1.085” 348 46121-8 $230.19 46121ST-8 $399.18
597220C-8 $951.05 597220CE-8 $1,201.96 3.937” +.020” 6.125” 4.050” 1.085” 352 46122-8 $230.19 46122ST-8 $399.18

STROKER SERIES -14cc DISH
597300C-8 $951.05 597300CE-8 $1,201.96 3.917” STD 6.125 4.050” 1.085” 346 46120-8 $230.19 46120ST-8 $399.18
597305C-8 $951.05 597305CE-8 $1,201.96 3.922” +.005” 6.125” 4.050” 1.085” 348 46121-8 $230.19 46121ST-8 $399.18
597320C-8 $951.05 597320CE-8 $1,201.96 3.937” +.020” 6.125” 4.050” 1.085” 352 46122-8 $230.19 46122ST-8 $399.18

STROKER SERIES -23cc DISH
598500C-8 $951.05 598500CE-8 $1,201.96 3.917” STD 6.125 4.050” 1.085” 346 46120-8 $230.19 46120ST-8 $399.18
598505C-8 $951.05 598505CE-8 $1,201.96 3.922” +.005” 6.125” 4.050” 1.085” 348 46121-8 $230.19 46121ST-8 $399.18
598520C-8 $951.05 598520CE-8 $1,201.96 3.937” +.020” 6.125” 4.050” 1.085” 352 46122-8 $230.19 46122ST-8 $399.18

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .155” 2nd: .160” Oil: .145”
Note: Gapless® Top Ring Sets are also available

Common Features

for All Pistons on Page 110 & 111 (THIS PAGE & NEXT PAGE)

  • Crown Thickness: 9.3cc Dome .180” / 5cc Dome .200 / Flat Top .200” / Dish .200”
  • Top Ring: 1.5mm, .250” down
  • Second Ring: 1.5mm
  • Oil Ring: 3mm
  • Valve Notches: .100” Int., .080” Exh. (5.7L), .120” Int., .085” Exh. (6.1L)
  • Pin Included: Standard Series: Premium Chrome Moly P/N 42442 (.150” wall, 110 grams, 2.300” long, .927” dia.)
  • Extreme Duty Series: 9310 Alloy P/N 42542 (.170” wall, 118 grams, 2.300” long, .927” dia.)
  • Round Wire Locks: P/N 42262 - .061” wide
  • Recommended Piston Clearance: .0045” measured 1.100” from bottom of the oil ring\

PAGE 110

PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

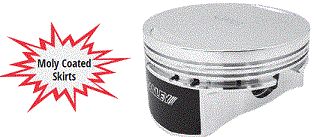

Chrysler 6.1L Hemi & 6.1L Hemi
with 6.4L Cylinder Heads
Dome, Flat Top & Dish









¤Forged 2618 high strength material lightweight design
¤Offset wrist pin design
¤Round wire locks
¤1.5, 1.5, 3mm ring package
¤Other features include forced pin oiling and pressure balance groove
¤2.300¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .170¨ wall pin (Extreme Duty Series) included P/N 42542


Note: These pistons are designed for connecting rods with .927” diameter floating wrist pins

Standard Extreme Duty  -  - -  -  - - Piston Ring Sets
Part No.
Your Cost		 Part No.
Your Cost		 Bore
Size 		  Over
Size		 Rod
Length		  Stroke  Comp
Distance		 Piston
Wt / Gms 		 Ductile Iron Top Rings  Premium Steel Top Rings

 STOCK STROKE 5cc DOME
597660C-8 $951.05 597660CE-8 $1,201.96 4.060” +.005” 6.240” 3.579” 1.220” 453 46116-8 $230.19 46116ST-8 $399.18
597665C-8 $951.05 597665CE-8 $1,201.96 4.065” +.010” 6.240” 3.579” 1.220” 455 46116-8 $230.19 46116ST-8 $399.18
597680C-8 $951.05 597680CE-8 $1,201.96 4.080” +.025” 6.240” 3.579” 1.220” 461 46118-8 $230.19 46118ST-8 $399.18

 STOCK STROKE -11.5cc DISH
597060C-8 $951.05 597060CE-8 $1,201.96 4.060” +.005” 6.240” 3.579” 1.220” 427 46116-8 $230.19 46116ST-8 $399.18
597065C-8 $951.05 597065CE-8 $1,064.06 4.065” +.010” 6.240” 3.579” 1.220” 429 46116-8 $230.19 46116ST-8 $399.18
597080C-8 $951.05 597080CE-8 $1,201.96 4.080” +.025” 6.240” 3.579” 1.220” 435 46118-8 $230.19 46118ST-8 $399.18

STROKER SERIES -1.5cc FLAT TOP
597860C-8 $951.05 597860CE-8 $1,201.96 4.060” +.005” 6.125” 4.050” 1.085” 392 46116-8 $230.19 46116ST-8 $399.18
597865C-8 $951.05 597865CE-8 $1,201.96 4.065” +.010 6.125” 4.050” 1.085” 394 46116-8 $230.19 46116ST-8 $399.18
597880C-8 $951.05 597880CE-8 $1,201.96 4.080” +.025” 6.125” 4.050” 1.085” 398 46118-8 $230.19 46118ST-8 $399.18

   STROKER SERIES -11.5cc DISH
598660C-8 $951.05 598660CE-8 $1,201.96 4.060” +.005” 6.125” 4.050” 1.085” 386 46116-8 $230.19 46116ST-8 $399.18
598665C-8 $951.05 598665CE-8 $1,201.96 4.065” +.010” 6.125” 4.050” 1.085 388 46116-8 $230.19 46116ST-8 $399.18
598680C-8 $951.05 598680CE-8 $1,201.96 4.080” +.025” 6.125” 4.050” 1.085 393 46118-8 $230.19 46118ST-8 $399.18

   STROKER SERIES -24cc DISH
598760C-8 $951.05 598760CE-8 $1,201.96 4.060” +.005” 6.125” 4.050” 1.085” 381 46116-8 $230.19 46116ST-8 $399.18
598765C-8 $951.05 598765CE-8 $1,201.96 4.065” +.010” 6.125” 4.050” 1.085 383 46116-8 $230.19 46116ST-8 $399.18
598780C-8 $951.05 598780CE-8 $1,201.96 4.080” +.025” 6.125” 4.050” 1.085” 388 46118-8 $230.19 46118ST-8 $399.18

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .151” 2nd: .168” Oil: .145”
Note: Gapless ® Top Ring Sets are also available

Compression Ratio Chart 5.7L Hemi
. . 5.7L 5.7L 6.1L
. . Thru 2008  2009-Up Head
Bore Stroke 85cc 65cc  74cc

 9.3cc DOME
3.917” / 99.5mm 3.579”/90.9mm 9.63:1 12.42:1 10.97:1
3.922” /99.63mm 3.579”/90.9mm 9.65:1 12.45:1 10.99:1
3.937” / 100mm 3.579”/90.9mm 9.72:1 12.53:1 11.07:1

-1.5cc FLAT TOP
3.917” / 99.5mm 3.579”/90.9mm 8.62:1 10.72:1 9.65:1
3.922” /99.63mm 3.579”/90.9mm 8.64:1 10.75:1 9.67:1
3.937” / 100mm 3.579”/90.9mm 8.70:1 10.82:1 9.74:1
3.917” / 99.5mm 4.050” 9.63:1 12.00:1 10.79:1
3.922” /99.63mm 4.050” 9.65:1 12.03:1 10.81:1
3.937” / 100mm 4.050” 9.72:1 12.11:1 10.89:1

 -12cc DISH
3.917” / 99.5mm 3.579”/90.9mm 7.85:1 9.49:1 8.67:1
3.922” /99.63mm 3.579”/90.9mm 7.87:1 9.52:1 8.69:1
3.937” / 100mm 3.579”/90.9mm 7.92:1 9.58:1 8.74:1

Compression ratios are calculated at .003” deck clearance, a 3.941”
head gasket ID with a .028” compressed thickness

Compression Ratio Chart 5.7L Hemi
5.7L 5.7L 6.1L
Thru 2008  2009-Up Head
Bore Stroke 85cc 65cc  74cc

 -14cc DISH
3.917” / 99.5mm 4.050” 8.60:1 10.39:1 9.49:1
3.922” / 99.63mm 4.050”

8.62:1

10.41:1

9.51:1
3.937” / 100mm 4.050”

8.68:1

10.48:1

9.58:1

-23cc DISH
3.917” / 99.5mm 4.050”

8.00:1

 9.49:1

8.75:1
3.922” / 99.63mm 4.050”

8.02:1

 9.51:1

8.77:1
3.937” / 100mm 4.050”

8.07:1

9.58:1

8.83:1

Compression ratios are calculated at .003” deck clearance, a 3.941”
head gasket ID with a .028” compressed thickness

Compression Ratio Chart 6.1L Hemi
 Bore  Stroke 5cc
Dome		 Flat Top -11.5cc
Dish		 -24cc
Dish
4.060” 3.579” 10.70:1 - - - - - 9.01:1 - - - - -
4.065” 3.579” 10.72:1 - - - - - 9.03:1 - - - - -
4.080” 3.579” 10.79:1 - - - - - 9.09:1 - - - - -
4.060” 4.050” - - - - - 11.13:1 10.06:1 9.01:1
4.065” 4.050” - - - - - 11.16:1 10.09:1 9.03:1
4.080” 4.050” - - - - - 11.23:1 10.15:1 9.09:1

Compression ratios are calculated at .003” deck clearance, a 4.100”
head gasket ID with a .040” compressed thickness and a 74cc
combustion chamber

PAGE 11
PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Chrysler 6.4L Hemi
Dome & Dish






¤Forged 2618 high strength material lightweight design
¤Offset wrist pin design
¤Round wire locks
¤1.5, 1.5, 3mm ring package
¤Other features include forced pin oiling and pressure balance groove
¤2.300¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .170¨ wall pin (Extreme Duty Series) included P/N 42542

. . . . . . . . Piston Ring Sets
Standard Extreme Duty Bore Over Rod . Comp Piston Premium Steel
Part No. Part No. Size Size Length Stroke Distance Wt / Gms Top Rings

 STOCK STROKE 1.75cc DOME
598800C-8 $951.05 598800CE-8 $1,201.96 4.090” STD 6.200” 3.724” 1.210” 430 46129ST-8 $399.18
598805C-8 $951.05 598805CE-8 $1,201.96 4.095” +.005” 6.200” 3.724” 1.210” 432 46130ST-8 $399.18
598810C-8 $951.05 598810CE-8 $1,201.96 4.100” +.010” 6.200” 3.724” 1.210” 434 46131ST-8 $399.18

   STOCK STROKE -12.5cc DISH
598900C-8 $951.05 598900CE-8 $1,201.96 4.090” STD 6.200” 3.724” 1.210” 411 46129ST-8 $399.18
598905C-8 $951.05 598905CE-8 $1,201.96 4.095” +.005” 6.200” 3.724” 1.210” 413 46130ST-8 $399.18
598910C-8 $951.05 598910CE-8 $1,201.96 4.100” +.010” 6.200” 3.724” 1.210” 415 46131ST-8 $399.18

STROKER SERIES -5.0cc DISH
599800C-8 $951.05 599800CE-8 $1,201.96 4.090” STD 6.125” 4.050” 1.120” 402 46129ST-8 $399.18
599805C-8 $951.05 599805CE-8 $1,201.96 4.095” +.005” 6.125” 4.050” 1.120” 404 46130ST-8 $399.18
599810C-8 $951.05 599810CE-8 $1,201.96 4.100” +.010” 6.125” 4.050” 1.120” 406 46131ST-8 $399.18

   STROKER SERIES -20.5cc DISH
599900C-8 $951.05 599900CE-8 $1,201.96 4.090” STD 6.125” 4.050” 1.120” 394 46129ST-8 $399.18
599905C-8 $951.05 599905CE-8 $1,201.96 4.095” +.005” 6.125” 4.050” 1.120” 396 46130ST-8 $399.18
599910C-8 $951.05 599910CE-8 $1,201.96 4.100” +.010” 6.125” 4.050” 1.120” 398 46131ST-8 $399.18

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thicknessTop: .150” 2nd: .170” Oil: .145”

Common Features
  • Common Features
  • Crown Thickness: .200”
  • Top Ring: 1.5mm, .250” down
    Second Ring: 1.5mm
    Oil Ring: 3.0mm
  • Valve Notches: .120” Int., .085” Exh
  • Pin Included: Standard Series: Premium Chrome Moly P/N 42442
    (.150” wall, 110 grams, 2.300” long, .927” dia.)
  • Extreme Duty Series: 9310 Alloy P/N 42542
    (.170” wall, 118 grams, 2.300” long, .927” dia.)
  • Round Wire Locks: P/N 42262 - .061” wide
  • Recommended Piston Clearance: .0045” measured 1.100” from the bottom of the oil ring


Compression Ratio Chart 6.4L HEMI
1.75cc -5.0cc -12.5cc -20.5cc
Bore Stroke Dome Dish Dish Dish
4.090” 3.724” 11.01:1 ----- 9.50:1 -----
4.095” 3.724” 11.02:1 ----- 9.51:1 -----
4.100” 3.724” 11.03:1 ----- 9.52:1 -----
4.090” 4.050” ----- 11.00:1 ----- 9.50:1
4.095” 4.050” ----- 11.01:1 ----- 9.51:1
4.100” 4.050” ----- 11.02:1 ----- 9.52:1

Compression ratios are calculated at .012” deck clearance, a 4.090” head gasket ID with a .027” compressed thickness and a 72cc combustion chamber


FORD
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

PLATINUM SERIES PISTONS
PISTONS, RINGS, & PINS
Ford “EcoBoost” 2.3L DOHC 4 Valve|
-8.2cc Dish







¤2618 high strength material; Lightweight design with offset wrist pin for quiet start-ups
¤.150¨ x 2.250¨ wall Premium Chrome Moly pin (Standard Series) included P/N 42248
¤9310 alloy .210¨ wall pin (Extreme Duty Series) included P/N 42548
¤Pressure balance groove
¤Will accommodate +1mm valve sizes
¤Premium Steel top ring sets and round wire locks included
¤Recommended piston clearance: .0030¨ measured 1.100¨ from the bottom of the oil ring

Standard Extreme Duty  .
Part No.
Your Cost		 Part No.
Your Cost		 Bore
Size
mm 		 Over
Size 		 Rod
Length		 Stroke
mm 		 Comp
Distance 		 Dome
Volume
cc 		 Comp
Ratio		 Piston
Type		 Piston
Wt.
Grams		 Included
Ring Set

Ford Focus RS 2016-Up, Mustang 2015-Up (.886”/22.5mm x 2.250” Pin)
637000C-4 $725.34 637000CE-4 $853.23 87.5 STD 5.875” 94 1.291” -8.2 9.5 Dish 382 46875-4 $151.28
637001C-4 $725.34 637001CE-4 $853.23 87.6 +.1mm 5.875” 94 1.291” -8.2 9.5 Dish 384 46876-4 $151.28


PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford "EcoBoost¨ 3.5L DOHC 4 Valve
-8.5cc Dish & -0.5cc Dome Pistons









¤2618 high strength material; Lightweight design
¤Offset wrist pin design for quiet start-ups
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤Round wire locks
¤1.2, 1.2, 2.5mm ring package
¤Will accommodate +1mm valve sizes
¤2.500¨ x .180¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .210¨ wall pin (Extreme Duty Series) included P/N 42546


Note: These pistons are designed for connecting rods with .9055¨/23mm diameter floating wrist pins

Standard Extreme Duty  . . . . .

Pisston
Ring Sets
Part No.
Your Cost		 Part No.
Your Cost		 Bore
Size		  Rod
Length		 Stroke Comp
Distance		 Piston
Wt / Gms		 Premium Steel
Top Rings

-8.5cc DISH (9.0:1)
594800C-6 $722.94 594800CE-6 $911.20 3.642” 6.011” 3.413” 1.239” 407 46642ST-6 $299.42
594810C-6 $722.94 594810CE-6 $911.20 3.652” 6.011” 3.413” 1.239” 411 46652ST-6 $299.42
594820C-6 $722.94 594820CE-6 $911.20 3.662” 6.011” 3.413” 1.239” 415 46662ST-6 $299.42

-0.5cc DOME (10.0:1)
594900C-6 $722.94 594900CE-6 $911.20 3.642” 6.011” 3.413” 1.239” 419 46642ST-6 $299.42
594910C-6 $722.94 594910CE-6 $911.20 3.652” 6.011” 3.413” 1.239” 423 46652ST-6 $299.42
594920C-6 $722.94 594920CE-6 $911.20 3.662” 6.011” 3.413” 1.239” 427 46662ST-6 $299.42

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .134¨ 2nd: .143¨ Oil: .115¨
Piston Clearance: .003¨ measured .850¨ from bottom of the oil ring

PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford “Cyclone” 3.7L DOHC 4 Valve
-5cc Dish & +2.0cc Dome Pistons















¤2618 high strength material; Lightweight design
¤Offset wrist pin design for quiet start-ups
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤Round wire locks
¤1.2, 1.5, 2.5mm ring package
¤Will accommodate +1mm valve sizes
¤2.500¨ x .180¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .210¨ wall pin (Extreme Duty Series) included P/N 42546




Note: These pistons are designed for connecting rods with .9055”/23mm diameter floating wrist pins

Standard . Piston
Ring Sets
Part No.
Your Cost		 Extreme Duty
Part No.
Bore Size
Rod
Length
Stroke		 Comp
Distance		 Piston
Wt / Gms		 Premium Steel
Top Rings

-5cc DISH (9.5:1)
599500C-6 $722.94 599500CE-6 $911.20 3.760” 6.011” 3.413” 1.239” 420 46760ST-6 $299.42
599510C-6 $722.94 599510CE-6 $911.20 3.770” 6.011” 3.413” 1.239” 424 46770ST-6 $299.42
599520C-6 $722.94 599520CE-6 $911.20 3.780” 6.011” 3.413” 1.239” 428 46780ST-6 $299.42

   +2.0cc DOME (10.5:1)
599600C-6 $722.94 599600CE-6 $911.20 3.760” 6.011” 3.413” 1.239” 426 46760ST-6 $299.42
599610C-6 $722.94 599610CE-6 $911.20 3.770” 6.011” 3.413” 1.239” 430 46770ST-6 $299.42
599620C-6 $722.94 599620CE-6 $911.20 3.780” 6.011” 3.413” 1.239” 434 46780ST-6 $299.42

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .134” 2nd: .152” Oil: .120”
Piston Clearance: .003” measured .850” from bottom of the oil ring

PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford 4.6L & 5.4L SOHC/DOHC
2 & 4 Valve and 5.4L 3 Valve
“Street Master” Series Forged Aluminum 18cc Spherical Dish Piston










¤Perfect blend of economy and high performance
¤1.2mm offset wrist pin location for quiet start-ups. Mimics OEM design
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤2.500¨ length Premium Chrome Moly pin included with round wire locks
¤Full banded skirt design for increased skirt stability

Part No.
Your Cost		 Bore Size Rod Length Stroke Comp
Distance		 Piston
Wt / Gms		 Piston & Pin
Wt / Gms		 Piston
Ring Set
494200-8 $720.24 3.552” 5.933” / 6.657” 3.543” / 4.165” 1.220” 369 475 46600-8 $219.38
494220-8 $720.24 3.572” 5.933” / 6.657” 3.543” / 4.165” 1.220” 376 482 46620-8 $219.38
494230-8 $720.24 3.582” 5.933” / 6.657” 3.543” / 4.165” 1.220” 379 485 46630-8 $219.38

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .156” 2nd: .152” Oil: .145”
The pistons above will also work for the 6.8L V10 modular

Common Features
Dome Volume: -18cc
Crown Thickness: .200”
Compression Ratio: 8.53:1 w/ 51cc & 3.543”?Stroke
Top Ring: 1.5mm, .220” down
Second Ring: 1.5mm
Oil Ring: 3mm
Pin Included: Premium Chrome Moly P/N 42207 ( .150” wall, 106 grams, 2.500” long )
Round Wire Locks: P/N 42270 - .061” wide
Recommended Piston Clearance: .0035” measured .85 0” from bottom of the oil ring



PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford 4.6L DOHC 3 Valve (2004-up)










¤2618 high strength material lightweight design
¤1.2mm offset wrist pin design for quiet start-ups. Mimics OEM design
¤Round wire locks
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤1.5, 1.5, 3.0mm ring package
¤2.500¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .180¨ wall pin (Extreme Duty Series) included P/N 42507
¤Full banded skirt design for increased skirt stability

Stock 3.543” Stroke Pistons
Standard Extreme Duty . Piston Ring Sets
Part No.
Your Cost		 Part No.
Your Cost		 Bore Size Rod Length Stroke Comp
Distance		 Piston
Wt /
Gm		 Ductile Iron Top Rings Premium Steel Top Rings Gapless®
Top Rings

-6.5cc DISH
594300C-8 $963.93 594300CE-8 $1,214.93 3.552” 5.933” 3.543” 1.220” 352 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594320C-8 $963.93 594320CE-8 $1,214.93 3.572” 5.933” 3.543” 1.220” 362 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594330C-8 $963.93 594330CE-8 $1,214.93 3.582” 5.933” 3.543” 1.220” 367 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07

-14cc DISH
594500C-8 $963.93 594500CE-8 $1,214.93 3.552” 5.933” 3.543” 1.220” 360 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594520C-8 $963.93 594520CE-8 $1,214.93 3.572” 5.933” 3.543” 1.220” 370 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594530C-8 $963.93 594530CE-8 $1,214.93 3.582” 5.933” 3.543” 1.220” 375 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
594570C-8 $963.93 594570CE-8 $1,214.93 3.700” 5.933” 3.543” 1.220” 413 46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07

3.750” Stroke Pistons

 -14cc DISH
595500C-8 $963.93 595500CE-8 $1,214.93 3.552” 5.850” 3.750” 1.220” 375 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
595520C-8 $963.93 595520CE- 3.572” 5.850” 3.750” 1.220” 382 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
595530C-8 $963.93 595530CE-8 $1,214.93 3.582” 5.850” 3.750” 1.220” 385 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07

-18cc DISH
595570C-8 $963.93 595570CE-8 $1,214.93 3.700” 5.850” 3.750” 1.200” 421

46670-8 $219.38

 46670ST-8 $399.18 46670GT-8 $589.07

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .156” 2nd: .152” Oil: .145”

Common Features
Crown Thickness: .185”
Compression Ratio: 8.53:1 w/ 51cc & 3.543”?Stroke
Top Ring: 1.5mm, .220” down
Second Ring: 1.5mm
Oil Ring: 3mm
Round Wire Locks: P/N 42270 - .061” wide
Pin Included: Pin Included: Standard Series: Premium Chrome Moly P/N 42207 (2.500” x .150” wall, 22mm/.866” dia., 106 grams)
Extreme Duty Series: 9310 Alloy P/N 42507
(2.500” x .180” wall, 22mm/.866” dia., 124 grams)
Recommended Piston Clearance: .0035” measured .850” from bottom of the oil ring

Ford 4.6L 3V Compression Ratio Charts
Bore Stroke 51cc

-6.5cc DISH
3.552” 3.543 9.86
3.572” 3.543 9.95
3.582” 3.543 10.00
 -14cc DISH
3.552” 3.543 8.94
3.572” 3.543 9.03
3.582” 3.543 9.07
 3.700” 3.543  9.58

Bore Stroke 51cc
-14cc DISH
3.552” 3.750 9.41
3.572” 3.750 9.51
3.582” 3.750 9.55
   -18cc DISH
3.700” 3.750 9.64

Head Gasket Bore 3.620 (3.552-3.582)
Head Gasket Bore 3.700 (3.700)
Compressed Gasket Thickness .036
Deck Clearance .008



PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford 4.6L SOHC/DOHC 2 & 4 Valve (1991-up)
Stock 3.543” Stroke Pistons








¤2618 high strength material lightweight design
¤1.2mm offset wrist pin design for quiet start-ups. Mimics OEM design
¤Round wire locks
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤1.5, 1.5, 3.0mm ring package
¤2.500¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .180¨ wall pin (Extreme Duty Series) included P/N 42507
¤Full banded skirt design for increased skirt stability



Standard Extreme Duty . Piston Ring Sets
Part No.
Your Cost		 Part No.
Your Cost		 Bore Size Rod Length Stroke Comp
Distance		 Piston
Wt /
Gm		 Ductile Iron Top Rings Premium Steel Top Rings Gapless®
Top Rings

FLAT TOP
594000C-8 $927.13 594000CE-8 $1,177.79 3.552” 5.933” 3.543” 1.220” 335 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594020C-8 $927.13 594020CE-8 $1,177.79 3.572” 5.933” 3.543” 1.220” 345 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594030C-8 $927.13 594030CE-8 $1,177.79 3.582” 5.933” 3.543” 1.220” 350 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
594070C-8 $927.13 594070CE-8 $1,177.79 3.700” 5.933” 3.543” 1.220” 388 46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07

-11cc DISH
594100C-8 $927.13 594100CE-8 $1,177.79 3.552” 5.933” 3.543” 1.220” 350 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594120C-8 $927.13 594120CE-8 $1,177.79 3.572” 5.933” 3.543” 1.220” 355 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594130C-8 $927.13 594130CE-8 $1,177.79 3.582” 5.933” 3.543” 1.220” 362 46630-8 $219.38 46630ST-8 $310.04

46630GT-8 $589.07
594170C-8 $927.13 594170CE-8 $1,177.79 3.700” 5.933” 3.543” 1.220” 401 46670-8 $219.38 46670ST-8 $399.18

46670GT-8 $589.07

-18cc SPHERICAL DISH
594200C-8 $927.13 594200CE-8 $1,177.79 3.552” 5.933” 3.543” 1.220” 384 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594220C-8 $927.13 594220CE-8 $1,177.79 3.572” 5.933” 3.543” 1.220” 390 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594230C-8 $927.13 594230CE-8 $1,177.79 3.582” 5.933” 3.543” 1.220” 393 46630-8 $219.38 46630ST-8 $310.04

46630GT-8 $589.07
594270C-8 $927.13 594270CE-8 $1,177.79 3.700” 5.933” 3.543” 1.220” 431 46670-8 $219.38 46670ST-8 $399.18

46670GT-8 $589.07

-23cc DISH
594400C-8 $927.13 594400CE-8 $1,177.79 3.552” 5.933” 3.543” 1.220” 351 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594420C-8 $927.13 594420CE-8 $1,177.79 3.572” 5.933” 3.543” 1.220” 359 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594430C-8 $927.13 594430CE-8 $1,177.79 3.582” 5.933” 3.543” 1.220” 363 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
594470C-8 $927.13 594470CE-8 $1,177.79 3.700” 5.933” 3.543” 1.220” 401 46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .156” 2nd: .152” Oil: .145”

Common Features
Crown Thickness: .185”
Compression Ratio: 8.53:1 w/ 51cc & 3.543”?Stroke
Top Ring: 1.5mm, .220” down
Second Ring: 1.5mm
Oil Ring: 3mm
Round Wire Locks: P/N 42270 - .061” wide
Pin Included: Pin Included: Standard Series: Premium Chrome Moly P/N 42207 (2.500” x .150” wall, 22mm/.866” dia., 106 grams)
Extreme Duty Series: 9310 Alloy P/N 42507
(2.500” x .180” wall, 22mm/.866” dia., 124 grams)
Recommended Piston Clearance: .0035” measured .850” from bottom of the oil ring

Recommended Piston Clearance: .003” measured .850 ” from bottom of the oil ring

Ford 4.6L 2V & 4V Compression Ratio Charts

Bore

Stroke
 42cc

51cc

52cc
FLAT TOP
3.552 3.543 12.65 10.86 10.69
3.572 3.543 12.78 10.97 10.80
3.582 3.543 12.85 11.02 10.85
3.700 3.543 13.55 11.63 11.45
 -11cc DISH
3.552 3.543 10.53 9.29 9.18
3.572 3.543 10.64 9.39 9.27
3.582 3.543 10.69 9.43 9.31
3.700 3.543 11.33 9.99 9.86

Bore Stroke 42cc 51cc 52cc
 -18 SPHERICAL DISH
3.552 3.543 9.54 8.53 8.44
3.572 3.543 9.63 8.63 8.52
3.582 3.543 9.68 8.66 8.56
3.700 3.543 10.21 9.13 9.03
   -23cc DISH
3.552 3.543 8.95 8.07 7.98
3.572 3.543 9.04 8.15 8.06
3.582  3.543 9.08 8.19 8.10
3.700 3.54 9.58 8.64 8.54


Head Gasket Bore 3.620 (3.552-3.582)
Head Gasket Bore 3.700 (3.700)
Compressed Gasket Thickness .036
Deck Clearance .008
42cc Combustion Chamber is 99-up PI 2V
51cc Combustion Chamber is 91-98 2V
52cc Combustion Chamber is 93-up 4V

PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford 4.6L SOHC/DOHC
2 & 4 Valve (1991-up)
3.750” Stroke Pistons








¤2618 high strength material lightweight design
¤1.2mm offset wrist pin design for quiet start-ups. Mimics OEM design
¤Round wire locks
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤1.5, 1.5, 3.0mm ring package
¤2.500¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .180¨ wall pin (Extreme Duty Series) included P/N 42507
¤Full banded skirt design for increased skirt stability

Standard Extreme Duty . Piston Ring Sets
Part No.
Your Cost		 Part No.
Your Cost		 Bore Size Rod Length Stroke Comp
Distance		 Piston
Wt /
Gm		 Ductile Iron Top Rings Premium Steel Top Rings Gapless®
Top Rings

FLAT TOP
595000C-8 $927.13 595000CE-8 $1,177.79 3.552” 5.850” 3.750” 1.200” 350 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
595020C-8 $927.13 595020CE-8 $1,177.79 3.572” 5.850” 3.750” 1.200” 357 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
595030C-8 $927.13 595030CE-8 $1,177.79 3.582” 5.850” 3.750” 1.200” 360 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
.

-11cc DISH
595100C-8 $927.13 595100CE-8 $1,177.79 3.552” 5.850” 3.750” 1.200” 346 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
595120C-8 $927.13 595120CE-8 $1,177.79 3.572” 5.850” 3.750” 1.200” 353 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
595130C-8 $927.13 595130CE-8 $1,177.79 3.582” 5.850” 3.750” 1.200” 358 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
.

-18cc SPHERICAL DISH
595200C-8 $927.13 595200CE-8 $1,177.79 3.552” 5.850” 3.750” 1.200” 372 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
595220C-8 $927.13 595220CE-8 $1,177.79 3.572” 5.850” 3.750” 1.200” 380 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
595230C-8 $927.13 595230CE-8 $1,177.79 3.582” 5.850” 3.750” 1.200” 383 46630-8 $219.38 46630ST-8 $310.04

46630GT-8 $589.07
595270C-8 $927.13 595270CE-8 $1,177.79

3.700”

 5.850” 3.750” 1.200”

421

 46670-8 $219.38 46670ST-8 $399.18

46670GT-8 $589.07
.

-23cc DISH
595400C-8 $927.13 595400CE-8 $1,177.79 3.552” 5.850” 3.750” 1.200” 336 46600-8 $219.38 46600ST-8 $310.04

46600GT-8 $589.07
595420C-8 $927.13 595420CE-8 $1,177.79 3.572” 5.850” 3.750” 1.200” 342 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
595430C-8 $927.13 595430CE-8 $1,177.79 3.582” 5.850” 3.750” 1.200” 346 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
595470C-8 $927.13 595470CE-8 $1,177.79 3.700” 5.850” 3.750” 1.200” 384 46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07
.

-28cc DISH
595600C-8 $927.13 595600CE-8 $1,177.79 3.552” 5.850” 3.750” 1.200” 341 46600-8 $219.38 46600ST-8 $310.04

46600GT-8 $589.07
595620C-8 $927.13 595620CE-8 $1,177.79 3.572” 5.850” 3.750” 1.200” 347 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
595630C-8 $927.13 595630CE-8 $1,177.79 3.582” 5.850” 3.750” 1.200” 351 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
595670C-8 $927.13 595670CE-8 $1,177.79 3.700” 5.850” 3.750” 1.200” 389 46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .156” 2nd: .152” Oil: .145”

Common Features
Crown Thickness: .185”
Compression Ratio: 8.53:1 w/ 51cc & 3.543”?Stroke
Top Ring: 1.5mm, .220” down
Second Ring: 1.5mm
Oil Ring: 3mm
Round Wire Locks: P/N 42270 - .061” wide
Pin Included: Pin Included: Standard Series: Premium Chrome Moly P/N 42207 (2.500” x .150” wall, 22mm/.866” dia., 106 grams)
Extreme Duty Series: 9310 Alloy P/N 42507
(2.500” x .180” wall, 22mm/.866” dia., 124 grams)
Recommended Piston Clearance: .003” measured .850” from bottom of the oil ring

Ford 4.6L 2V & 4V Compression Ratio Charts
Bore Stroke 42cc 51cc 52cc
FLAT TOP
3.552 3.750 13.33 11.43 11.26
3.572 3.750 13.47 11.55 11.37
3.582 3.750 13.54 11.61 11.43
 -11cc DISH
3.552 3.750 11.09 9.78 9.65
3.572 3.750 11.20 9.88 9.75
3.582 3.750 11.25 9.92 9.80
 -18cc SPHERICAL DISH
3.552 3.750 10.04 8.97 8.87
3.572 3.750 10.14 9.06 8.96
3.582 3.750 10.19 9.11 9.00
3.700 3.750 10.75 9.61 9.50

Bore Stroke 42cc 51cc 52cc
-23cc DISH
3.552 3.750 9.41 8.48 8.39
3.572 3.750 9.51 8.57 8.47
3.582 3.750 9.55 8.61 8.52
3.700 3.750 10.08 9.08 8.98
 -28cc DISH
3.552 3.750 8.87 8.05 7.97
3.572 3.750 8.96 8.13 8.05
3.582 3.750 9.00 8.17 8.09
3.700 3.750 9.50 8.62 8.53


Head Gasket Bore 3.620 (3.552-3.582)
Head Gasket Bore 3.700 (3.700)
Compressed Gasket Thickness .036
Deck Clearance .008
42cc Combustion Chamber is 99-up PI 2V
51cc Combustion Chamber is 91-98 2V
52cc Combustion Chamber is 93-up 4V



PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford 4.6L SOHC/DOHC
2 & 4 Valve (1991-up)
Turbo Tuff® Design 3.543” & 3.750” Stroke Pistons


¤2618 high strength material lightweight design
¤1.2mm offset wrist pin design for quiet start-ups. Mimics OEM design
¤Round wire locks
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤1.5, 1.5, 3.0mm ring package
¤Vertical Gas Ports designed for high HP Race Engines
¤9310 alloy .180¨ wall pin included P/N 42507
¤Full banded skirt design for increased skirt stability

2 & 4 Valve Pistons
Standard
Duty

.
 Piston Ring Sets
Part No.
Your Cost		 Bore Size Rod Length Stroke Comp
Distance		 Piston
Wt /
Gm		 Premium Steel
Top Rings		 Gapless®
Top Rings

-11cc DISH 3.543” STROKE
567000CE-8 $1,222.28 3.552” 5.933” 3.543” 1.220” TBA 46600ST-8 $310.04 46600GT-8 $589.07
567020CE-8 $1,222.28 3.572” 5.933” 3.543” 1.220” TBA 46620ST-8 $310.04 46620GT-8 $589.07
567030CE-8 $1,222.28 3.582” 5.933” 3.543” 1.220” TBA 46630ST-8 $310.04 46630GT-8 $589.07
567070CE-8 $1,222.28 3.700” 5.933” 3.543” 1.220” TBA 46670ST-8 $399.18 46670GT-8 $589.07

-11cc DISH 3.750” STROKE
567100CE-8 $1,222.28 3.552” 5.850” 3.750” 1.220” TBA 46620ST-8 $310.04 46600GT-8 $589.07
567120CE-8 $1,222.28 3.572” 5.850” 3.750” 1.220” TBA 46630ST-8 $310.04 46620GT-8 $589.07
567130CE-8 $1,222.28 3.582” 5.850” 3.750” 1.220” TBA 46670ST-8 $399.18 46630GT-8 $589.07

-18cc DISH 3.750” STROKE
567170CE-8 $1,222.28 3.700” 5.850” 3.750” 1.200” TBA 46600ST-8 $310.04 46600GT-8 $589.07



3 Valve Pistons

Standard
Duty

-
 Piston Ring Sets
Part No.
Your Cost		 Bore Size Rod Length Stroke Comp
Distance		 Piston
Wt /
Gm		 Premium Steel
Top Rings		 Gapless®
Top Rings

-14cc DISH 3.543” STROKE
567200CE-8 $1,222.28 3.552” 5.933” 3.543” 1.220” TBA 46600ST-8 $310.04 46600GT-8 $589.07
567220CE-8 $1,222.28 3.572” 5.933” 3.543” 1.220” TBA 46620ST-8 $310.04 46620GT-8 $589.07
567230CE-8 $1,222.28 3.582” 5.933” 3.543” 1.220” TBA 46630ST-8 $310.04 46630GT-8 $589.07
567270CE-8 $1,222.28 3.700” 5.933” 3.543” 1.220” TBA 46670ST-8 $399.18 46670GT-8 $589.07

-14cc DISH 3.750” STROKE
567300CE-8 $1,222.28 3.552” 5.850” 3.750” 1.220” TBA 46600ST-8 $310.04 46600GT-8 $589.07
567320CE-8 $1,222.28 3.572” 5.850” 3.750” 1.220” TBA 46620ST-8 $310.04 46620GT-8 $589.07
567330CE-8 $1,222.28 3.582” 5.850” 3.750” 1.220” TBA 46630ST-8 $310.04 46630GT-8 $589.07

-18cc DISH 3.750” STROKE
567370CE-8 $1,222.28 3.700” 5.850” 3.750” 1.220” TBA 46700ST-8 $310.04 46700GT-8

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .156” 2nd: .152” Oil: .145”

Common Features
Crown Thickness: .250”
Top Ring: 1.5mm, .270” down
Second Ring: 1.5mm
Oil Ring: 3mm
Round Wire Locks: P/N 42270 - .061” wide
Pin Included: 9310 Alloy P/N 42507
Recommended Piston Clearance: .0035” measured .850” from bottom of the oil ring

Ford 4.6L 2V, 3V & 4V Compression Ratio Charts
Bore Stroke 42.cc 51.cc 52.cc
-11cc DISH
3.552 3.543 10.53 9.29 9.18
3.572 3.543 10.64 9.39 9.27
3.582 3.543 10.69 9.43 9.31
3.700 3.543 11.33 9.99 9.86
 -11cc DISH
3.552 3.750 11.09 9.78 9.65
3.572 3.750 11.20 9.88 9.75
3.582 3.750 11.25 9.92 9.80
 -18cc DISH
3.700 3.750 10.79 9.64 9.53

Bore Stroke 51cc
-14cc DISH
3.552 3.543 8.94
3.572 3.543 9.03
3.582 3.543 9.07
3.700 3.543 9.58
 -14cc DISH
3.552 3.750 9.41
3.572 3.750 9.51
3.582 3.750 9.55
 -18cc DISH
3.700 3.750 9.64

Head Gasket Bore 3.620 (3.552-3.582)
Head Gasket Bore 3.700 (3.700)
Compressed Gasket Thickness .036
Deck Clearance .008
42cc Combustion Chamber is 99-up PI 2V
51cc Combustion Chamber is 91-98 2V & 04-up 3V
52cc Combustion Chamber is 93-up 4V

PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford “Coyote” 5.0L DOHC 4 Valve
Stock 3.650” Stroke Pistons












¤2618 high strength material; Lightweight design
¤Offset wrist pin design for quiet start-ups
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤Round wire locks
¤1.2, 1.2, 3mm ring package
¤Will accommodate +1mm valve sizes
¤.200¨ deck thickness, .225¨ down top ring
¤2.500¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .180¨ wall pin (Extreme Duty Series) included P/N 42507


Note: These pistons are designed for connecting rods with .866” / 22mm diameter floating wrist pins

Standard Duty Extreme Duty Piston
Ring Sets
Part No.
Your Cost		 Part No.
Your Cost		 Bore Size Rod Length Stroke Comp
Distance		 Piston
Wt / Gms		 Premium Steel TopRings
-12cc DISH (9.0:1)
598100C-8 $963.93 598100CE-8 $1,214.93 3.630” 5.933” 3.650” 1.165” 361 46700ST-8 $310.04
598105C-8 $963.93 598105CE-8 $1,214.93 3.635” 5.933” 3.650” 1.165” 365 46710ST-8 $310.04
598110C-8 $963.93 598110CE-8 $1,214.93 3.640” 5.933” 3.650” 1.165” 366 46710ST-8 $310.04
598170C-8 $963.93 598170CE-8 $1,214.93 3.700” 5.933” 3.650” 1.165” TBA 46771ST-8 $310.04
 -2.5cc FLAT TOP (10.0:1)
598400C-8 $963.93 598400CE-8 $1,214.93 3.630” 5.933” 3.650” 1.165” 365 46700ST-8 $310.04
598405C-8 $963.93 598405CE-8 $1,214.93 3.635” 5.933” 3.650” 1.165” 368 46710ST-8 $310.04
598410C-8 $963.93 598410CE-8 $1,214.93 3.640” 5.933” 3.650” 1.165” 370 46710ST-8 $310.04
598470C-8 $963.93 598470CE-8 $1,214.93 3.700” 5.933” 3.650” 1.165” TBA 46771ST-8 $310.04
 +3.75cc DOME (11.0:1)
598000C-8 $963.93 598000CE-8 $1,214.93 3.630” 5.933” 3.650” 1.165” 391 46700ST-8 $310.04
598005C-8 $963.93 598005CE-8 $1,214.93 3.635” 5.933” 3.650” 1.165” 393 46710ST-8 $310.04
598010C-8 $963.93 598010CE-8 $1,214.93 3.640” 5.933” 3.650” 1.165” 395 46710ST-8 $310.04
598070C-8 $963.93 598070CE-8 $1,214.93 3.700” 5.933” 3.650” 1.165” TBA 46771ST-8 $310.04

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .141” 2nd: .143” Oil: .145”
Piston Clearance: .003” measured .850” from bottom of the oil ring


MMR Coyote 600whp N/A
Manley pistons, rods, valves, springs & retainers

PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford 5.4L SOHC/DOHC
2, 3 & 4 Valve (1991-up)
Stock 4.165” Stroke Pistons











¤2618 high strength material lightweight design
¤1.2mm offset wrist pin design for quiet start-ups. Mimics OEM design
¤Round wire locks
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤1.5, 1.5, 3.0mm ring package
¤2.500¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .180¨ wall pin (Extreme Duty Series) included P/N 42507
¤Full banded skirt design for increased skirt stability

Standard Extreme Duty

____Piston Ring Sets __
Part No.
Your Cost		 Part No.
Your Cost		 Bore Size Rod Length Stroke Comp
Distance		 Piston
Wt /
Gm		 Ductile Iron Top Rings Premium Steel Top Rings Gapless®
Top Rings

 FLAT TOP
594000C-8 $927.13 594000CE-8 $1,177.79 3.552” 6.657” 4.165” 1.220” 335 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594020C-8 $927.13 594020CE-8 $1,177.79 3.572” 6.657” 4.165” 1.220” 345 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594030C-8 $927.13 594030CE-8 $1,177.79 3.582” 6.657” 4.165” 1.220” 350 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
594070C-8 $927.13 594070CE-8 $1,177.79 3.700” 6.657” 4.165” 1.220” 388 46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07

 -11cc DISH
594100C-8 $927.13 594100CE-8 $1,177.79 3.552” 6.657” 4.165” 1.220” 350 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594120C-8 $927.13 594120CE-8 $1,177.79 3.572” 6.657” 4.165” 1.220” 355 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594130C-8 $927.13 594130CE-8 $1,177.79 3.582” 6.657” 4.165” 1.220” 362 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
594170C-8 $927.13 594170CE-8 $1,177.79 3.700” 6.657” 4.165” 1.220” 401 46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07

-18cc SPHERICAL DISH
594200C-8 $927.13 594200CE-8 $1,177.79 3.552” 6.657” 4.165” 1.220” 384 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594220C-8 $927.13 594220CE-8 $1,177.79 3.572” 6.657” 4.165” 1.220” 390 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594230C-8 $927.13 594230CE-8 $1,177.79 3.582” 6.657” 4.165” 1.220” 393 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
594270C-8 $927.13 594270CE-8 $1,177.79 3.700” 6.657” 4.165” 1.220” 431  46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07

-23cc DISH
594400C-8 $927.13 594400CE-8 $1,177.79 3.552” 6.657” 4.165” 1.220” 351 46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07
594420C-8 $927.13 594420CE-8 $1,177.79 3.572” 6.657” 4.165” 1.220” 359 46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07
594430C-8 $927.13 594430CE-8 $1,177.79 3.582” 6.657” 4.165” 1.220” 363 46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07
594470C-8 $927.13 594470CE-8 $1,177.79 3.700” 6.657” 4.165” 1.220” 401 46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .156” 2nd: .152” Oil: .145”

Common Features
Crown Thickness: .185”
Top Ring: 1.5mm, .270” down
Second Ring: 1.5mm
Oil Ring: 3mm
Round Wire Locks: P/N 42270 - .061” wide
Pin Included: Standard Series: Premium Chrome Moly
P/N 42207 (2.500” x .150” wall, 22mm/.866” dia., 106 grams)
Extreme Duty Series: 9310 Alloy P/N 42507
(2.500” x .180” wall, 22mm/.866” dia., 124 grams)
Recommended Piston Clearance: .003” measured .850” from bottom of the oil ring

Ford 5.4L 2V, 3V & 4V
Compression Ratio Charts

Bore Stroke 42cc 51cc 52cc

FLAT TOP
3.552 4.165 11.01 9.83 9.72
3.572 4.165 11.09 9.91 9.79
3.582 4.165 11.13 9.95 9.83
3.700 4.165 11.56 10.35 10.23

 -11cc DISH
3.552 4.165 9.61 8.72 8.64
3.572 4.165 9.68 8.79 8.70
3.582 4.165 9.72 8.83 8.74
3.700  4.165   10.15 9.23   9.14
|
Bore Stroke 42cc 51cc 52cc
-18cc SPHERICAL DISH
3.552 4.165 8.91 8.15 8.08
3.572 4.165 8.97 8.22 8.14
3.582 4.165 9.01 8.25 8.17
3.700 4.165 9.39 8.61 8.53
 -23cc DISH
3.552 4.165 8.47 7.79 7.73
3.572 4.165 8.53 7.85 7.79
3.582 4.165 8.57 7.89 7.82
3.700  4.165  8.93  8.23  8.16

Head Gasket Bore 3.620 (3.552-3.582)
Head Gasket Bore 3.700 (3.700)
Compressed Gasket Thickness .036
Deck Clearance .120
42cc Combustion Chamber is 99-up PI 2V
51cc Combustion Chamber is 91-98 2V & 04-up 3V
52cc Combustion Chamber is 93-up 4V

PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford 5.8L DOHC
4 Valve Shelby GT500
(2013-2014)
Stock 4.165” Stroke Pistons










¤2618 high strength material lightweight design
¤1.2mm offset wrist pin design for quiet start-ups. Mimics OEM design
¤Round wire locks
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤1.5, 1.5, 3.0mm ring package
¤2.500¨ x .150¨ wall Premium Chrome Moly pin (Standard Series) included
¤9310 alloy .180¨ wall pin (Extreme Duty Series) included P/N 42507
¤Full banded skirt design for increased skirt stability

-
 Piston
Ring Sets
Standard Extreme Duty - - - Comp Piston

Premium Steel Top Rings
Part No.
Your Cost		 Part No. Bore Size Rod Length Stroke

Distance

 Wt / Gms

-11cc DISH
594600C-8 $963.93 594600CE-8 $1,214.93 3.681” 6.657 4.165” 1.220 TBA 46668ST-8 $399.18

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .150” 2nd: .156” Oil: .150”

Common Features
Crown Thickness: .200”
Top Ring: 1.5mm, .225” down
Second Ring: 1.5mm
Oil Ring: 3mm
Round Wire Locks: P/N 42270 - .061” wide
Pin Included: Standard Series: Premium Chrome Moly
P/N 42207 (2.500” x .150” wall, 22mm/.866” dia., 106 grams)
Extreme Duty Series: 9310 Alloy P/N 42507
(2.500” x .180” wall, 22mm/.866” dia., 124 grams)
Recommended Piston Clearance: .003” measured .850” from bottom of the oil ring

Ford 5.8L 4V Compression Ratio Chart
Bore Stroke 53cc
-11cc DISH
3.681 4.165 9.30

Head Gasket Bore 3.700 (3.700)
Compressed Gasket Thickness .036
Deck Clearance .100

PLATINUM SERIES PISTONS
Prices are listed with each piston set. Does not include rings. Ring prices are with each set of pistons.
Pistons include wrist pins & locks.

THESE PRICES ARE CURRENT

Ford “Raptor” 6.2L SOHC 2 Valve
Stock 3.740” Stroke Pistons









¤2618 high strength material; Lightweight design
¤Offset wrist pin design for quiet start-ups
¤Perfect ring groove to skirt squareness
¤Pressure balance groove
¤1.5, 1.5, 3mm ring package
¤Will accommodate +1mm valve sizes
¤.200¨ deck thickness, .300¨ down top ring
¤2.300¨ length .150¨ Wall Premium Chrome Moly pin P/N 42442
included with round wire locks
¤9310 alloy pin upgrade is also available: P/N 42542 2.300¨ x .170¨ wall


Note: These pistons are designed for connecting rods with .927¨ diameter floating wrist pins

Piston Ring Sets
Part No.
Your Cost		 Bore Size Rod Length Stroke

Comp
Distance
 Piston
Wt / Gms		 Piston & Pin
Wt / Gms

Ductile
Top Rings

Premium Steel
Top Rings

-12cc DISH (9.0:1)
598300C-8 $951.05 4.0169” 6.200” 3.740” 1.315” 443 553 46111-8 $230.19 46111ST-8 $399.18
598305C-8 $951.05 4.0200” 6.200” 3.740” 1.315” 445 555 46112-8 $230.19 46112ST-8 $399.18

 +7.5cc DOME (11.0:1)
598200C-8 $951.05 4.0169” 6.200” 3.740” 1.315” 480 590 46111-8 $230.19 46111ST-8 $399.18
598205C-8 $951.05 4.0200” 6.200” 3.740” 1.315” 482 592 46112-8 $230.19 46112ST-8 $399.18

The root diameter of the ring grooves accommodates Manley rings and others which have the following radial thickness
Top: .155” 2nd: .170” Oil: .145”
Piston Clearance: .0045” measured 1.100” from bottom of the oil ring

PISTON RINGS
Manley / Total Seal® Piston Rings









Manley Performance Products, Inc., proudly and exclusively, offers Total Seal®
High Performance Piston Rings to compliment our line of Platinum Series Pistons.
Total Seal® is the leader in piston ring innovation and technology.
Their quality control is unsurpassed. Total Seal® rings have superior sealing
and produce maximum horsepower.

Manley stocks conventional style piston ring sets in both “Classic Race” and “AP Premium Steel top ring” versions. The Classic Race sets feature high performance ductile iron (with
plasma moly in-lay) top rings, reverse twist cast iron taper face or Napier style second rings (where noted *) and 3 piece oil rings. The AP Premium Steel top ring sets incorporate Total Seal® unique and proprietary Advanced Profiling™ manufacturing capability. These Premium Steel top ring sets are ideal for high horsepower and forced induction/nitrous applications. Manley also offers Total Seal® famed Gapless®
top ring packages for many of our piston applications.

All AP Premium Steel ring sets and Gapless® top ring sets utilize Napier style second rings standard.

5.3L CHEVROLET LS/L83
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit /
Drop In		 Ring Widths Oil Ring Tension
46500-8 $230.19 46500ST-8 $399.18 - - - - - - - 3.780” / 3.785” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs
46510-8 $230.19 46510ST-8 $399.18 - - - - - - - 3.790” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.
46520-8 $230.19 46520ST-8 $399.18 - - - - - - - 3.800” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.

3.905” CHEVROLET LS-1
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension
46107-8 $244.78 46107ST-8 $399.18 46107GT-8 $589.07 3.905” / 3.910” File Fit / Drop In 1.5mm x 1.5mm x 3mm 9-13 lbs.

4” CHEVROLET & 6.2L FORD RAPTOR
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your
Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension
46350-8 $179.50 --- 46350GT-8 $589.07 4.000” File Fit 1/16” x 1/16” x 3/16” 18-22 lbs.
46352-8 $179.50 --- 46352GT-8 $589.07 4.020” File Fit 1/16” x 1/16” x 3/16” 18-22 lbs.
46353-8 $179.50 --- 46353GT-8 $589.07 4.030” File Fit 1/16” x 1/16” x 3/16” 18-22 lbs.
46355-8 $179.50 --- 46355GT-8 $589.07 4.035” File Fit 1/16” x 1/16” x 3/16” 18-22 lbs.
46354-8 $179.50 --- 46354GT-8 $589.07 4.040” / 4.045” File Fit /Drop In 1/16” x 1/16” x 3/16” 18-22 lbs.
46356-8 $179.50 --- 46356GT-8 $589.07 4.060” File Fit 1/16” x 1/16” x 3/16” 18-22 lbs.
- - - - - - -
46110-8 $230.19 46110ST-8 $399.18 46110GT-8 $589.07 4.001” / 4.005” File Fit / Drop In 1.5mm x 1.5mm x 3mm 9-13 lbs.
46111-8 $230.19 46111ST-8 $399.18 46111GT-8 $589.07 4.010” / 4.015” File Fit / File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46112-8 $230.19 46112ST-8 $399.18 46112GT-8 $589.07 4.020” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46113-8 $230.19 46113ST-8 $399.18 46113GT-8 $589.07 4.030” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46115-8 $230.19 46115ST-8 $399.18 46115GT-8 $589.07 4.035” Drop In 1.5mm x 1.5mm x 3mm 9-13 lbs.
46114-8 $230.19 46114ST-8 $399.18 46114GT-8 $589.07 4.040” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46116-8 $230.19 46116ST-8 $399.18 46116GT-8 $589.07 4.060” / 4.065” File Fit / Drop In 1.5mm x 1.5mm x 3mm 9-13 lbs.
46117- 8 46117ST-8 $399.18 46117GT- 8 4.070” / 4.075” File Fit / Drop In 1.5mm x 1.5mm x 3mm 9-13 lbs.
46118-8 $230.19 46118ST-8 $399.18 46118GT-8 $589.07 4.080” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.

Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension
46123-8 $248.06 * 46123ST-8 $399.18 - - - - - - - - - 4.030” File Fit 1.5mm x 1.5mm x 3mm 12-16 lbs.
46125-8 $248.06 * 46125ST-8 $399.18 - - - - - - - - - 4.035” Drop In 1.5mm x 1.5mm x 3mm 12-16 lbs.
46124- 8 * 46124ST-8 $399.18 - - - - - - - - - 4.040” File Fit 1.5mm x 1.5mm x 3mm 12-16 lbs.
46126-8 $248.06 * 46126ST-8 $399.18 - - - - - - - - - 4.060” File Fit 1.5mm x 1.5mm x 3mm 12-16 lbs.
46213-8 $277.43 - - - - - - - - - 46213GT-8 $589.07 4.030” File Fit .043” x .043” x 3mm 9-13 lbs.
46215-8 $277.43 - - - - - - - - - 46215GT-8 $589.07 4.035” Drop In .043” x .043” x 3mm 9-13 lbs.
46214-8 $277.43 - - - - - - - - - 46214GT-8 $589.07 4.040” / 4.045” File Fit / Drop In .043” x .043” x 3mm 9-13 lbs.
46216-8 $277.43 - - - - - - - - - 46216GT-8 $589.07 4.060” / 4.065” File Fit / Drop In .043” x .043” x 3mm 9-13 lbs.
46223-8 $277.43 46223ST-8 $399.18 - - - - - - - - - 4.030” File Fit .043” x .043” x 3mm 12-16 lbs.
46225-8 $277.43 46225ST-8 $399.18 - - - - - - - - - 4.035” Drop In .043” x .043” x 3mm 12-16 lbs.
46224-8 $277.43 46224ST-8 $399.18 - - - - - - - - - 4.040” File Fit .043” x .043” x 3mm 12-16 lbs.
46226-8 $277.43 46226ST-8 $399.18 - - - - - - - - 4.060” / 4.065” File Fit / Drop In .043” x .043” x 3mm 12-16 lbs.


* Napier style second ring
Total Seal® and Gapless® are registered trademarks of Total Seal, Inc.

Manley / Total Seal® Piston Rings

CHEVROLET
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension

4” CHEVROLET LT1
46016-8 46016ST-8 $403.81 - - - - - - - - - 4.065” File Fit  1.2mm x 1.2mm x 3mm 9-13 lbs.
46017-8 46017ST-8 $403.81 - - - - - - - - - 4.070” /4.075” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.
46018-8 46018ST-8 $403.81 - - - - - - - - - 4.080” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.

4 1/8” CHEVROLET
46160-8 $177.28 - - - - - - - 46160GT-8 $589.07 4.125” File Fit 1/16” x 1/16” x 3/16” 18-22 lbs.
46163-8 $177.28 - - - - - - - 46163GT-8 $589.07 4.155” File Fit 1/16” x 1/16” x 3/16” 18-22 lbs.
46360-8 $230.19 46360ST-8 $399.18 46360GT-8 $589.07 4.125” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46361-8 $230.19 46361ST-8 $399.18 46361GT-8 $589.07 4.130” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46362-8 $230.19 46362ST-8 $399.18 46362GT-8 $589.07 4.135” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46363-8 $230.19 46363ST-8 $399.18 46363GT-8 $589.07 4.155” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46364-8 $230.19 46364ST-8 $399.18 46364GT-8 $589.07 4.165” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46366-8 $230.19 46366ST-8 $399.18 46366GT-8 $589.07 4.185” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46260-8 $277.43 - - - - - - - 46260GT-8 $589.07 4.125” File Fit .043” x .043” x 3mm 9-13 lbs.
46263-8 $277.43 - - - - - - - 46263GT-8 $589.07 4.155” File Fit .043” x .043” x 3mm 9-13 lbs.

Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension

4 1/8” CHEVROLET LT1
46060-8 46060ST-8 $403.81 - - - - - - - 4.125” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.
46061-8 46061ST-8 $403.81 - - - - - - - 4.130” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.
46062-8 46062ST-8 $403.81 - - - - - - - 4.135” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.

4.500” CHEVROLET
46450-8 $179.62 - - - - - - - 46450GT-8 $589.07 4.500” File Fit 1/16” x 1/16” x 3/16” 21-25 lbs.
46453-8 $179.62 - - - - - - - 46453GT-8 $589.07 4.530” File Fit 1/16” x 1/16” x 3/16” 21-25 lbs.
46456-8 $179.62 - - - - - - - 46456GT-8 $589.07 4.560” File Fit 1/16” x 1/16” x 3/16” 21-25 lbs.
46458-8 $179.62 - - - - - - - 46458GT-8 $589.07 4.600” File Fit 1/16” x 1/16” x 3/16” 21-25 lbs.
46459-8 $179.62 - - - - - - - 46459GT-8 $589.07 4.625” File Fit 1/16” x 1/16” x 3/16” 21-25 lbs.
46550-8 $399.18 46550ST-8 $465.08 46550GT-8 $589.07 4.500” File Fit .043” x .043” x 3/16” 16-20 lbs.
- - - - - - 46553ST-8 $465.08 46553GT-8 $589.07 4.530” File Fit .043” x .043” x 3/16” 16-20 lbs.
46556-8 $399.18 46556ST-8 $465.08 46556GT-8 $589.07 4.560” File Fit .043” x .043” x 3/16” 16-20 lbs.
46558-8 $399.18 46558ST-8 $465.08 46558GT-8 $589.07 4.600” File Fit .043” x .043” x 3/16” 16-20 lbs.
46559-8 $399.18 46559ST-8 $465.08 46559GT-8 $589.07 4.625” File Fit .043” x .043” x 3/16” 16-20 lbs.
|

CHRYSLER
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension

5.7L CHRYSLER HEMI
46120-8 $230.19 46120ST-8 $399.18 46120GT-8 $589.07 99.5mm / 3.917” File Fit 1.5mm x 1.5mm x 3mm 12-16 lbs.
46121-8 $230.19 46121ST-8 $399.18 46121GT-8 $589.07 99.6mm / 3.922” Drop In 1.5mm x 1.5mm x 3mm 12-16 lbs.
46122-8 $230.19 46122ST-8 $399.18 46122GT-8 $589.07 100.0mm/ 3.937” File Fit 1.5mm x 1.5mm x 3mm 12-16 lbs.

6.1L CHRYSLER HEMI
46116-8 $230.19 46116ST-8 $399.18 46116GT-8 $589.07 4.060” / 4.065” File Fit / Drop In 1.5mm x 1.5mm x 3mm 9-13 lbs.
46118-8 $230.19 46118ST-8 $399.18 46118GT-8 $589.07 4.080” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.

6.4L CHRYSLER HEMI
- - - - - - 46129ST-8 $399.18 - - - - - - - 4.090” File Fit 1.5mm x 1.5mm x 3mm 12-16 lbs.
- - - - - - 46130ST-8 $399.18 - - - - - - - 4.095” File Fit 1.5mm x 1.5mm x 3mm 12-16 lbs.
- - - - - - 46131ST-8 $399.18 - - - - - - - 4.100” File Fit 1.5mm x 1.5mm x 3mm 12-16 lbs.

Manley / Total Seal® Piston Rings

Ford 2.3L 3.5L 3.7L
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension

2.3L FORD ECOBOOST
- - - - - - 46875-4 $151.28 - - - - - - - 87.5mm File Fit 1.2mm x 1.2mm x 2.8mm 7-11 lbs.
- - - - - - 46876-4 $151.28 - - - - - - - 87.6mm File Fit 1.2mm x 1.2mm x 2.8mm 7-11 lbs.

3.5L FORD ECOBOOST
- - - - - - 46642ST-6 $299.42 - - - - - - - 3.642” File Fit 1.2mm x 1.2mm x 2.5mm 9-13 lbs.
- - - - - - 46652ST-6 $299.42 - - - - - - - 3.652” File Fit 1.2mm x 1.2mm x 2.5mm 9-13 lbs.
- - - - - - 46662ST-6 $299.42 - - - - - - - 3.662” File Fit 1.2mm x 1.2mm x 2.5mm 9-13 lbs.

3.7L FORD CYCLONE
- - - - - - 46760ST-6 $299.42 - - - - - - - 3.760” File Fit 1.2mm x 1.5mm x 2.5mm 12-16 lbs.
- - - - - - 46770ST-6 $299.42 - - - - - - - 3.770” File Fit 1.2mm x 1.5mm x 2.5mm 12-16 lbs.
- - - - - - 46780ST-6 $299.42 - - - - - - - 3.780” File Fit 1.2mm x 1.5mm x 2.5mm 12-16 lbs.

4.6L & 5.4L FORD
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension
46600-8 $219.38 46600ST-8 $310.04 46600GT-8 $589.07 3.552” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
- - - - - - 46605ST-8 $310.04 46605GT-8 $589.07 3.557” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46620-8 $219.38 46620ST-8 $310.04 46620GT-8 $589.07 3.572” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46630-8 $219.38 46630ST-8 $310.04 46630GT-8 $589.07 3.582” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.
46670-8 $219.38 46670ST-8 $399.18 46670GT-8 $589.07 3.700” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.

5.0L FORD COYOTE
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension
- - - - - - 46700ST-8 $310.04 - - - - - - - 3.630” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.
- - - - - - 46710ST-8 $310.04 - - - - - - - 3.635” / 3.640” File Fit / File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.
- - - - - - 46771ST-8 $310.04 - - - - - - - 3.700” File Fit 1.2mm x 1.2mm x 3mm 9-13 lbs.

5.8L FORD GT500
Ductile Premium - - - - -
Iron Steel Gapless® - - - -
Part No.
Your Cost		 Part No.
Your Cost		 Part No.
Your Cost		 Bore Size File Fit / Drop In Ring Widths Oil Ring Tension
- - - - - - 46668ST-8 $399.18 - - - - - - - 3.681” File Fit 1.5mm x 1.5mm x 3mm 9-13 lbs.

Top of Page

HOME
