Page 1
TABLE OF CONTENTS
TCI Automotive Catalog
Heavy Duty, Circle Track, Drag Race
|
Transmissions, Torque Converters, Shifters,
Valve Bodies, Coolers & assessories, Flexplates & Shields,
Bellhousings, Rebuild kits, Conversion Kits & Parts AMC, Chrysler, GM, & Ford |
RPM - RON'S PRECISION MACHINE, INC.
69 E. 580 N.
Santaquin, Utah 84655
https://www.rpmrons.com
|
801-754-5338 or Toll free 866-700-5877 Contact us anytime 24-7 Hours 9-5 Monday-Friday |
Don't forget to save to favorites
| Hours: 9:00 AM to 5:00 PM Monday - Friday mountain time (Utah) |
| Engine Rebuild Kit and Parts Online Catalog. |
| STREET • HEAVY DUTY • CIRCLE TRACK • DRAG RACE |
Page 1
TABLE OF CONTENTS
| TECHNICAL RESOURCES | |
| Heat Dissipating Technology | 18 |
| Master Footnote Listing | 4 |
| Quality | 18 |
| Quick Reference Guide | R5-R16 |
| Rebuild & Repair Services | 19 |
| Statement of Remanufacture | 19 |
| TCI® Story | 17 |
| Torque Converter Tech | 22-25 |
| Transmission Tech | 31-34 |
| Warranty Policy | 161 |
| STREET PERFORMANCE | |
| Adapter Kits | 100 |
| Apparel | 102 |
| Balancers | 92-93 |
Rattler® |
92-93 |
Timing Pointers |
92 |
| Banners | 102 |
| Bellhousings | 47,77 |
| Brake Products | 97 |
Burnout Kit |
97 |
RollStop® |
97 |
| Clutch Hub | 53 |
| Clutch Plates | 52-53 |
| Conversion Kits | 101 |
| Coolers & Accessories | 87-89 |
| Engine Oil Cooler Kit | 89 |
| Fans & Accessories | 87 |
| Max-Cool™ Transmission Coolers | 88 |
| Performance Transmission Coolers | 88 |
| Quick Mount Kit | 89 |
| Transmission Gauges | 89 |
| Universal Transmission Cooler | 87 |
| Decals | 102 |
| Dipsticks | 72 |
| Drum Input Assemblies | 56 |
| Dust Cover | 73 |
| Electronics | 79-80 |
| EZ-TCU™ Transmission Controller | 79 |
| Speedometer Control Unit (SCU) | 80 |
| Throttle Position Sensor & Accessories | 80 |
| Fans | 87 |
| Fasteners | 99 |
| Filter Kits | 71 |
| Flex Bands | 54-55 |
| Flexplates | 50-51 |
| Flexplate Shields | 76 |
| Flexplate Shims | 51 |
| SPECIALTY PRODUCTS | 2 |
| SPECIALTY SECTIONS | 103-157 |
 Circle
Track |
104-119 |
 Drag
Race |
120-148 |
 Heavy-Duty/Towing |
149-157 |
| Circle Track | 104-119 |
| Coolers | 118 |
| Dipsticks | 115 |
| Electric Brake Shut-Off | 119 |
| Flexplates | 111 |
| Flexplate Shields | 116 |
| Fluid | 119 |
| Fluid Pans | 115 |
| Frictions | 113 |
| Front Pump Drives & Accessories | 112 |
| Kits | 113 |
| Mounts | 116 |
| Planetaries | 113 |
| Shifters & Accessories | 117 |
| Slip Yokes | 116 |
| Starters | 118 |
| Torque Converters | 104-105 |
| Transmission Packages | 108-110 |
| Transmission Pans | 115 |
| Transmissions | 106-107 |
| Valve Bodies | 114 |
| Vent Filter Kits | 119 |
| Yokes | 116 |
| Drag Race | 120-148 |
| Bellhousings & Cases | 147 |
| Bolts | 148 |
| Clutch Hubs | 139 |
| Dipsticks | 147 |
| Filters | 146 |
| Flexplate Shields | 148 |
| Fluid Pans | 146 |

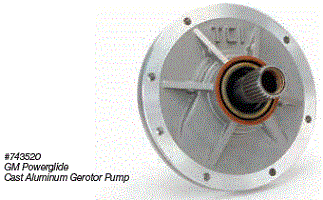

| Gerotor Pumps | 148 |

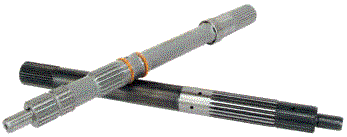

| Input Shafts | 138 |
| Low Drag Transmission Components | 142 |
| Planetaries & Accessories | 140-142 |
| PRO-X Accessories | 136 |
| PRO-X Gerotor Pumps | 135 |
| PRO-X Input Shafts | 135 |
| PRO-X Overflow Canisters | 136 |
| PRO-X Torque Converters | 132-133 |
| PRO-X Transmissions | 134 |
| Servos & Accessories | 145 |
| Sprags | 137 |
| Torque Converters | 120-126 |
| Transmission Drums | 137 |
| Transmission Pans | 146 |
If You're Looking For A Specific Application See The Index Below |
APPLICATION SPECIFIC INDEX
| AMC | |
| Torque Command 727 | |
| Coolers & Accessories | 87-89, 118, 157 |
| Rebuild Kits | 64-65 |
| Torque Converters | 28-29, 122 |
| Torque Command 904 | |
| Coolers & Accessories | 87-89, 118, 157 |
| Torque Converters | 122 |
| Chrysler | |
| Torqueflite 727 | |
| Adapter Plates/Kits | 100 |
| Balancers | 92-93 |
| Bellhousings | 47, 147 |
| Coolers & Accessories | 87-89, 118, 157 |
| Dipsticks | 72 |
| Flex Bands | 54 |
| Flexplates | 51 |
| Fluid Pans | 69 |
| Frictions/Clutches | 52 |
| Rebuild Kits | 64-65, 154 |
| Shields | 76 |
| Shifters & Accessories | 81-86 |
| Sprags | 137 |
| Starters | 95 |
| Torque Converters | 28-29, 121-122, 132, 149 |
| Transmission Packages | 38, 40 |
| Transmissions | 36, 129, 151 |
| Valve Bodies | 57, 143-144 |
| Torqueflite 904 | |
| Adapter Plates/Kits | 100 |
| Balancers | 92-93 |
| Coolers & Accessories | 87-89, 118, 157 |
| Dipsticks | 72 |
| Flexbands | 54 |
| Flexplates | 51 |
| Torqueflite 904 (cont.) | |
| Fluid Pans | 69 |
| Frictions/Clutches | 52 |
| Rebuild Kits | 64-65, 154 |
| Shields | 76 |
| Shifters & Accessories | 81-86 |
| Starters | 95 |
| Torque Converters | 28-29, 122, 124, 149 |
| Transmission Packages | 38, 40 |
| Transmissions | 36, 129 |
| Valve Bodies | 57, 143-144 |
| Ford | |
| C4 | |
| Adapter Plates/Kits | 100 |
| Balancers | 92-93 |
| Bellhousings | 47, 77, 147 |
| Coolers & Accessories | 87-89, 118, 157 |
| Dipsticks | 72, 115 |
| Flex Bands | 54 |
| Flexplates | 51, 111 |
| Fluid Pans & Accessories | 70-71, 115 |
| Front Pump Drives | 56, 112 |
| Input Shafts | 138 |
| Low Drag Transmission Components | 56, 142 |
| Overfow Canisters | 136 |
| Rebuild Kits | 64-65, 154-155 |
| Servos | 58 |
| Shields | 76, 116 |
| Shifters & Accessories | 81-86 |
| Solenoids | 145 |
|
Starters & Accessories |
94-96, 108 |
| Torque Converters | 28-29, 105, 122, 124, 132, 149 |
| Transmission Drums | 137 |
| Transmission Packages | 38, 40, 44 |
| Transmissions | 36, 107, 129 |
| Vacuum Modulators | 73 |
| Valve Bodies & Accessories | 57, 143-145 |
| C6 | |
| Adapter Plates/Kits | 100 |
| Balancers | 92-93 |
| Bellhousings | 47, 147 |
| Coolers & Accessories | 87-89, 118, 157 |
| Dipsticks | 72 |
| Flex Bands | 54 |
| Flexplates | 51, 111 |
| Fluid Pans & Accessories | 70 |
| Frictions/Clutches | 52 |
| Low Drag Transmission | 56, 142 |
| Planetaries | 55 |
| Rebuild Kits | 64-65, 154-155 |
| Servos | 58 |
| Shields | 76, 116 |
| Shifters & Accessories | 81-86 |
| Starters & Accessories | 94-96, 108 |
| Torque Converters | 28-29, 122, 132, 149 |
| Transmission Packages | 38, 41, 44, 153 |
| Transmissions | 36, 129, 151 |
| Vacuum Modulators | 73 |
| Valve Bodies | 57, 143-144 |
| AOD/AODE/4R70W | |
| Adapter Plates/Kits | 100 |
| Balancers | 92-93 |
| Bellhousings | 47, 147 |
| Coolers & Accessories | 87-89, 118, 157 |
| Dipstick | 72 |
| Flex Bands | 54 |
| Flexplates | 51, 111 |
| Fluid, Pans & Accessories | |
| Input Shafts | 138 |
| Kickdown Kit | 78 |
| Rebuild Kits | 64-65 |
| Servos | 58 |
| Shields | 116 |
| Shifters & Accessories | 81-86 |
Page 3
APPLICATION SPECIFIC
INDEX
| 2004R (cont.) | |
| Frictions/Clutch Plates | 53 |
| Front Pump Drives | 56 |
| Rebuild Kits | 64-65, 155 |
| Servos | 59 |
| Shields | 116 |
| Shifters & Accessories | 81-86 |
| Solenoids | 145 |
| Starters & Accessories | 94-96, 108 |
| Torque Converters | 121-122, 124 |
| Transmission Packages | 42 |
| Transmissions | 37 |
| TV Cables & Accessories | 77-78 |
| Valve Bodies & Accessories | 57, 144-145 |
| 700R4/4L60E/4L65E | |
| Balancers | 92-93 |
| Bellhousings | 47, 147 |
| Conversion Kits | 154 |
| Coolers & Accessories | 87-89, 118, 157 |
| Dipsticks | 72 |
| Electronics | 79 |
| Flex Bands | 54 |
| Flexplates | 51, 111 |
| Fluid Pans & Accessories | 70-71 |
| Frictions/Clutch Plates | 53 |
| Input/HD Drum | 56 |
| Input Shafts | 138 |
| Low Drag Transmission Components | 142 |
| Rebuild Kits | 64-65, 154-155 |
| Servos | 59 |
| Shields | 116 |
| Shifters & Accessories | 81-86 |
| Solenoids | 145 |
| Sprags | 137 |
| Spring Kit | 53 |
| Starters & Accessories | 94-96, 108 |
| Torque Converters | 28-30, 121-122, 149 |
| Transmission Packages | 39, 42, 44, 153 |
| Transmissions | 37, 131, 151 |
| TV Cables & Accessories | 77-78 |
| Valve Bodies & Accessories | 57, 143-145 |
| Yokes | 74 |
| 4L80E/4L85E | |
| Balancers | 92-93 |
| Bellhousings | 47, 147 |
| Clutch Hubs | 53, 139 |
| Coolers & Accessories | 87-89, 118, 157 |
| Dipsticks | 72 |
| Electronics | 79 |
| Flex Bands | 54 |
| Flexplates | 51, 111 |
| Fluid Pans | 70 |
| Input Shafts | 138 |
| Planetaries | 55 |
| Rebuild Kits | 64-65, 155 |
| Shields | 116 |
| Shifters & Accessories | 81-86 |
| Starters & Accessories | 94-96, 108 |
| Torque Converters | 28-30, 149 |
| Transmission Packages | 42, 153 |
| Transmissions | 37, 131, 151 |
| Valve Bodies | 143 |
| 6L80E | |
| Flexplates | 50-51 |
| Torque Converters | 29-30, 126 |
Page 4
MASTER FOOTNOTE LISTING
| TORQUE CONVERTERS, TRANSMISSIONS & PACKAGES |
|
1 See chart on page 25 for external balanced part numbers 2 For Buick, Pontiac, Oldsmobile w/ small bolt circle and mounting lugs 3 LS1/LS2 applications, 1998-06 except Corvette 4 300mm Diameter converters 5 Built with 7/16" x 20 mounting lugs (Hemi style) 6 18-Spline with 1.806" pilot 7 4000 Stall 8 5.9L External balanced 9 Flats on hub 10 With heavy-duty front anti-ballooning plate for nitrous applications 11 Build with 1.250" crank pilot 12 10.625" Bolt pattern 13 11.4" Bolt pattern 14 Billet/forged steel front 15 Multi-clutch lock-up 16 With 9 3/8" bolt pattern for Mustang II applications 17 With 11 7/16" bolt pattern but retains case fill overall length 18 Ballooning plate on trans-side 19 Ford AOD applications MUST use TCI® Part #439600 $305.95 input shaft 20 Special high stall unit, great for light vehicles 21 12" Diameter converter 22 10" Diameter converter 23 Low stall configuration 24 10" Converter with 12" lock-up assembly 25 Symmetrical bolt pattern for late model Hemi 26 Special 2.75 low gear set installed 27 Must be used with a TCI® non lock-up AOD converter 28 Factory ECU required to operate transmission 29 Built with Constant Pressure Valve Body™ 30 With Part #327900 $547.34 (stock drum, HD sprag assembly) 31 With special low gear planetary installed (TH350 - 2.75 Low/TH400 - 2.75 Low, 1.57 2nd) 32 Extra heavy-duty version with high performance clutches & treated steels & deep pan 33 Will plug directly in OEM ECU 34 Requires TCI® EZ-TCU™ or factory ECU to operate the transmission and torque converter functions when used with pre-1993 applications 35 Corvette 700R4 comes with a unique tailhousing assembly and is 1.125" shorter than a standard 700R4. For C4 Corvettes only. Must use existing tailhousing. 36 Will also retro-fit in 1982-84 applications with use of a 30-spline torque converter 37 4.3, 5.0, 5.7 Liter engines 38 4.8, 5.3, 6.0 Liter engines 39 F-body Camaro & Firebird 40 B-body designates Caprice, Impala, Fleetwood, Roadmaster 41 Equipped with an electronic speed sensor rotor on output shaft 42 Approximately 4500 RPM stall speed 43 Cannot be used with conventional transmission 44 With anti-ballooning plate 45 Does not include bellhousing, use TCI® Part #513300 $410.60 46 Must be raced in high gear 47 Low gear only 48 Match flexplate to engine balance 49 Special order for early model 19-spline 50 Reverse shift pattern 51 Special lightweight low drag transmission 52 Stock shift pattern 53 High performance clutches 54 Built w/ Part #327900 $547.34 36-element sprag assembly54 Built w/ Part #327900 $547.34 36-element sprag assembly 55 TH350 w/ forward shift pattern 56 Special lightweight low drag transmission with aluminum drums 57 Governor auto 1-2 shift 58 Powerglide splined input shaft 59 Engine braking in all gears 60 Modified front drum and 300M input shaft 61 Billet hub installed 62 Billet main shaft 63 Cast aluminum pan (+2 quarts) 64 VM300 input shaft 65 4-Speed non lock-up application 66 Part #376600 $152.06 lock-up kit installed 67 Aluminum high gear drum 68 Special 2.10 low gear set 69 Die cast pan 70 Converter built with Ford C6 pump hub, turbine spline & stator spline & GM small bolt circle. Requires 1/4" mid-plate 71 "A" weight 72 "B" weight 73 "C" weight 74 Billet aluminum low stall stator 75 "S" weight 76 Higher stall 77 Built with impeller (pump) side anti-ballooning plate 78 Billet aluminum low stall stator 79 13" Diameter converter 80 11" Diameter converter 81 6 Mounting lugs 83 With bolt-on yoke 84 1980 & Later, non lock-up 85 Remote transfer case 86 5" Spacer between transmission & transfer case; spacer NOT included 87 8" Spacer between transmission & transfer case; spacer NOT included 88 Diesel applications only 89 4-Bolt dust cover 90 Four wheel drive heavy-duty RV version 91 6-Bolt dust cover 92 Replaces 700R4 applications 93 With Part #329900 $269.04 adapter installed 94 With Part #229900 $595.91 adapter installed, replaces pre-1980 TH350 4x4 95 With Part #229902 $406.43 adapter installed, replaces TH350, 1980 & later 96 With Part #229901 $413.36 adapter installed, replaces 700R4 4x4 & 1980-83 TH350 4x4 97 Non lock-up, still retains automatic shift features 98 Built to Super StreetFighter® specs 99 With Part #321500 $697.76 transbrake installed 100 With Part #223600 $517.58 HD drum assembly installed 101 With Part #221500 $555.00 transbrake installed 102 Full engine braking & TCC operation in all forward gears 103 Core must be provided by customer. Call for details. 104 Due to spline configurations and dimensions, a TCI® custom built torque converter must be used. Call for details. 105 Bellhousing not included. See p.147 for bellhousing applications. 106 "C" balance weights installed |
| The TCI® Automotive catalog & website have been completed using our best efforts. We assume no liability for errors contained herein. Prices on all products are subject to change without notice. We reserve the right to make changes in products at any time. Except as noted, products in this catalog may not be legal for sale or use in pollution-controlled motor vehicles (pre-1966 domestic vehicles certified to California standards, pre-1968 domestic motor vehicles certified to federal standards.) |
Page 104
CIRCLE TRACK
TORQUE CONVERTERS
|
Circle Track Torque Converters Looks aren’t everything…but with regards to torque converters, they can hide the secret to winning races. For sanctioning bodies that mandate the use of a “stock appearing” converter, TCI® Circle Track Torque Converters satisfy the rulebook requirements while delivering a distinct performance advantage. TCI® Circle Track Torque Converters are specially designed with a lower “positive lock-up” stall speed, eliminating approximately 10% of the power robbing slippage found in OEM and lesser quality converters. On the track, this results in huge off-the-corner acceleration improvements and the ultimate in “green flag” starting speed. • Satisfy requirements of “stock appearing” converter • Designed with positive lock-up stall speed to eliminate approximately 10% of power robbing slippage • Feature heavy-duty stator, furnace-brazed fins and precision-certified stall speed • Can reduce lap times by up to two-tenths of a second • Reduced rotational weight improves engine braking in corners to lower transmission operating temperatures |
Built with a heavy-duty stator, furnace-brazed fins and precision-
certified stall speed to maximize efficiency, these stock appearing
converters usually reduce lap times by one to twotenths of a
second. In addition, these converters feature reduced rotational
weight to improve engine braking in corners and lower transmission
operating temperatures. #741025 $374.13 GM Powerglide 10", Small Bolt Pattern Torque Converter TCI® FastLap Comparison
|
Page 105
CIRCLE TRACK
TORQUE CONVERTERS
Photo Credit: © Debbie Johnson
| Part # | Size | Bolt Pattern | Flash Stall | Converter Weight (lbs.) | Recommended Engine Size/ RPM Range | Notes |
| Ford C4 | ||||||
| 451520 $473.55 |
|
10 1/2" | 2000 |
|
302-351c.i., 2600+ lbs., Excellent for Truck Series Applications | Good for Heavy Cars, Low Stall & Excellent Throttle Response |
| GM Powerglide | ||||||
| 741025 $374.13 | 10" | Small | 1800- 2000 | 24 | 350+ c.i., 2400+ lbs. | Good for Heavier Cars, Low Stall, Good Throttle Response |
| 741026 $384.85 | 10" | Small | 1800- 2000 | 24 |
350+ c.i., 2400+ lbs., 1/4" Midplate Applications |
Good for Heavier Cars, Low Stall, Good Throttle Response |
| 741050 $450.94 43 | 10" | Small | - | 17 | Where Rules Do Not Require a Functioning Converter Use #741051. for 1/4" Midplate Applications | Non-Functional/ Direct Drive, Dummy Converter |
| 741125 $471.61 | 11" | Small | 1800- 2100 | 29 | 350+ c.i., 3000+ lbs. |
Good for Very Heavy Cars, Excellent Throttle Response |
| 741115 $471.61 | 11" | Small | 2000- 2300 | 29 | 327-400c.i./ 2500-6000 RPM Range | Good for Heavier Cars, Low Stall, Good Throttle Response |
| 741150 $432.24 43 | 11" | Small | - | 17 |
Where Rules Do Not Require Functioning Converter |
Non-Functional/ Direct Drive, Dummy Converter |
| 741525 $404.28 | 12" | Small | 1400- 1600 | 34 | Where Rules Require 12" Converter | Good for Heavy Stock Car |
| GM TH350/400 | ||||||
| 242125 $363.29 | 10" | Small | 1800- 2000 | 24 | 350+ c.i., 3000+ lbs. |
Good for Very Heavy Cars, Excellent Throttle Response |
| 242126 $380.24 | 10" | Small | 1800- 2000 | 24 |
350+ c.i., 3000+ lbs. w/ 1/4" Midplate |
Good for Very Heavy Cars, Excellent Throttle Response |
| 242120 $615.56 44 | 10" | Small | 2300- 2600 | 26 | 350+ c.i., 2600+ lbs. | Good for Lighter Cars, Low Stall, Good Throttle Response |
| 241021 $740.05 44 | 10" | Dual | 2300- 2600 | 26 | 350+ c.i., 2600+ lbs. | Good for Lighter Cars, Low Stall, Good Throttle Response |
| 240920 $523.23 | 11" | Dual | 2000- 2300 | 29 | 327-400c.i./ 2500-6000 RPM Range | Good for Heavier Cars, Low Stall, Good Throttle Response |
| 241525 $450.94 | 12" | Small | 1400- 1600 | 34 | Where Rules Require 12" Converter | Good for Heavy Stock Car |
Page 106
CIRCLE TRACK
TRANSMISSIONS
|

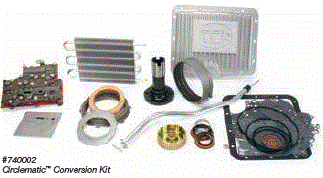

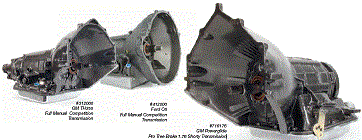

Circlematic™ Transmissions In the past, manual transmissions were the popular choice for circle track racing, but TCI® has found that there are several advantages to running a TCI® Circlematic™ Transmission instead. The first advantage includes a significant weight savings – TCI® automatic transmissions are, on average, 50 to 60 lbs. lighter in weight than manual 4-speed transmissions, depending upon application. This weight savings reduces wear and tear on the drivetrain and valve train. Second is the cost savings. TCI® Circlematic™ Transmissions cost anywhere from $500 to $600 less for a basic automatic setup. Third, and the most important advantage, is the performance level experienced when using a TCI® Circlematic™ Transmission. Racers who have made the switch from their standard 4-speed setup have experienced improved performance. TCI® Circlematic™ Transmissions have been track tested and have been proven to be more responsive off the turns than standard shift transmissions, plus the engine picks up much more quickly. They also have excellent throttle response in the corners and on restarts. In addition, the TCI® Automatic is consistent for every race, so the clutch does not have to be adjusted before each event. TCI® offers a variety of automatic Powerglide, TH350 and C4 transmissions for oval track competition. TCI® Direct Drive Powerglide Circlematic™ Transmissions eliminate the need for all external control of the line pressure when using a straight pump drive. You operate the transmission by simply placing it into gear and easing down on the accelerator. Powerglides can be custom built with a 1.65, 1.76, 1.80, 1.82, 1.92, 1.96 and 2.11 low gear planetary set. TH350 transmissions provide full engine braking, and the transmission/converter combinations give you 100% fluid coupling while the C4 model has a standard shift pattern and provides engine braking in all gears. Both the TH350 and C4 can be built with a 2.75 low gear. All transmissions feature high performance clutches, bands, and a steel clutch hub (where applicable), and the Powerglides feature a modified planetary gear set that will work with the latest rear suspensions. As with all TCI® transmissions, each unit has been Triple Tested, including valve body, static hydraulic pressure, and final dyno testing to ensure you receive the best possible transmission for your circle track needs. • Proven weight and cost savings, improved performance over standard 4-speed circle track transmissions • Race proven performance advantages include improved response off turns, quicker engine pick-up; increased throttle response in corners and on restarts • Clutch does NOT require adjustment before each event • Aftermarket full race clutches and performance bands; steel clutch hub and heavy-duty sprags where applicable for increased durability and strength • Modified output shafts (Powerglides) for the latest rear suspensions and steel hubs • Fully manual valve body for consistent shifts • 500 HP on most models, up to 650 HP on others |
Page 107
CIRCLE TRACK
TRANSMISSIONS
|
|
Length | Low Gear Ratio | Valve Body | Drum & Hub | Oil Pan | Additional Info |
| C4 | ||||||
| 512201 $1,720.06 | 24 15/16" | 2.46:1 |
Manual Shift Std. Pattern 3-Speed |
Steel Drum, Steel Hub |
Std. Steel |
Full Manual Design Can Be Raced In Any Gear; Can Be Used In Asphalt Or Dirt Applications |
GM TRANSMISSIONS
|
|
Length | Low Gear Ratio | Valve Body | Drum / Hub | Oil Pan | Additional Info |
| Powerglide | ||||||
| 742010 $1,756.88 46 | 27 9/16" | 1.82:1 |
Manual Shift REV Pattern Clutchless Style |
Steel Drum, Steel Hub |
528300 $158.78 Aluminum, Std. Capacity |
Most Popular Style, Recommended for All Classes, Easiest Circlematic™ to Operate |
| 742017 $1,827.83 46 | 27 9/16" | 1.82:1 |
Manual Shift REV Pattern Clutchless Style |
Steel Drum, Steel Hub |
528321 $343.50 Kickout Steel Pan, Asphalt Only |
Most Popular Style, Recommended for All Classes, Easiest Circlematic™ to Operate, Asphalt Only Version |
| 742018 $1,819.94 | 27 9/16" | 1.82:1 |
Manual Shift FWD Pattern for Working Converter |
Steel Drum, Steel Hub |
528300 $158.78 Aluminum, Std. Capacity |
Full Manual Design Can Be Raced in Low or High Gear, Use w/ FastLap Converter™ |
| 742019 $2,054.85 | 27 9/16" | 1.82:1 |
Manual Shift FWD Pattern for Working Converter |
Steel Drum, Steel Hub |
528321 $343.50 Kickout Steel Pan, Asphalt Only |
Full Manual Design Can Be Raced in Low or High Gear, Use w/ FastLap Converter™, Asphalt Version Only |
| 742020 $1,757.11 47 | 27 9/16" | 1.82:1 |
Manual Shift REV Pattern Low Gear Only, Clutchless Style |
Steel Drum, Steel Hub |
528300 $158.78 Aluminum, Std. Capacity |
Low Gear Only, Easiest Circlematic™ to Operate |
| TH350 Includes Converter | ||||||
| 312021 $2,305.49 | 27 9/16" | 2.52:1 |
Manual Shift Std. Pattern 2-Speed |
Steel Drum, Steel Hub |
Standard Steel |
100% Fluid Coupling for Maximum Engine Braking and Instant Throttle Response Coming Out of Turns |
| 312020 $2,305.49 | 27 9/16" | 2.52:1 |
Manual Shift Std. Pattern 3-Speed |
Steel Drum, Steel Hub |
Standard Steel |
100% Fluid Coupling for Maximum Engine Braking and Instant Throttle Response Coming Out of Turns |
| TH350 | ||||||
| 312002 $1,952.33 | 27 9/16" | 2.52:1 |
Manual Shift Std. Pattern 3-Speed |
Steel Drum, Steel Hub |
Standard Steel |
Full Manual Design Can Be Raced in Any Gear; Can Be Used in Asphalt or Dirt Applications; Full Engine Braking |
Page 108
CIRCLE TRACK
TRANSMISSIONS
|
GM TH350 Circlematic™ Transmission
& FastLap Torque Converter™ Packages Circle track racers looking for the ultimate transmission/ torque converter package will find the TCI® TH350 2-Speed & 3-Speed Circlematic™ Transmissions and FastLap Torque Converters™ to be the perfect solution. These performancematched combinations are engineered to operate in second gear on the 2-speed version & third gear for the 3-speed version, thus yielding reduced converter slippage, which is often a concern with automatic transmissions of this type. Due to a significant increase in efficiency, the TCI® TH350 2-Speed & 3-Speed Circlematic™ Transmission and FastLap Torque Converter™ Packages reduce engine RPM by 300- 400 for better temperature control and provide an increase in throttle response and acceleration. Best of all, they provide maximum engine braking to help slow the car down when going into the corner. The 2-speed version utilizes a 1.52 gear ratio, making it perfect for stock cars and trucks that are limited on allowable rear end gearing. • Perfect choice for asphalt or dirt racing competition classes that mandate use of GM TH350 transmissions • Reduces engine RPM by 300-400 to provide better temperature control • Increased throttle response and acceleration • Provides maximum engine braking to slow the car when going into the corner
|
|
Circlematic™ Transmission
Packages TCI® Circlematic™ Transmission Packages use the latest developments in drivetrain technology to deliver superior performance in one convenient package. All Circlematic™ Transmission Packages come with everything you need to enhance drivetrain performance and durability, including a triple-tested TCI® Circlematic™ Transmission; a matching, precision-tuned and performance-matched TCI® Circle Track Torque Converter where applicable (some packages contain pump drives or stock appearing, non-functional converters); dipstick and premium, high-viscosity TCI® Max Shift™ Circlematic™ Transmission Fluid. As with every TCI® Circlematic™ Transmission, those used in circle track packages include several advantages over the commonly used manual transmissions, including lighter weight (50-60 lbs. over standard), more economical pricing and performance improvements. Some of these improvements include instant throttle response, superior engine braking capabilities and quicker lap times. The converters used in these packages are specially designed with a lower “positive lock-up” stall speed which can eliminate up to 10% of power robbing slippage found in OEM and lesser quality converters. This can ultimately result in reducing lap times by as much as one to two-tenths of a second. Circle track racers looking for the ultimate transmission/torque converter setup will find the TCI® Circlematic™ Transmission Packages to be the perfect solution. • Specially matched transmission and torque converter packages provide instant throttle response, superior engine braking capabilities and quicker lap times • Includes Circlematic™ Transmission that is lighter weight, more cost effective & performance enhancing • Clutch doesn’t require adjustment before each race • Torque converters reduce slippage by up to 10% for offthe-corner acceleration improvements • Lap times can be reduced by one to two-tenths of a second and the reduced rotation weight improves engine braking in corners for lower operating temps
|
||||||||
Page 110
CIRCLE TRACK
TRANSMISSIONS PACKAGES
|
|
. | ||
| Package | Transmission | Torque Converter | Notes |
| Powerglide | |||
| 742010P1 $2,276.65 |
74201046 Circlematic™ Clutchless Hi-Gear Transmission |
745000 $243.04 2-Piece Coupler |
IMCA Stock Cars, Northern Sport Mods; Clutchless, Full Manual Shifting; Race in High Gear |
| 742010P2 $2,466.18 |
74201046 Circlematic™ Clutchless Hi-GearTransmission |
74105043 10" Non-Functional Converter |
Hobby Stocks; Clutchless, Full Manual Shifting; Race in High Gear; Cast Aluminum Pan |
| 742010P3 $2,466.18 |
74201046 Circlematic™ Clutchless Hi-Gear Transmission |
74115043 11" Non-Functional Converter |
Hobby Stock, Stock Car; Clutchless, Full Manual Shifting; Race in High Gear; Cast Aluminum Pan |
| 742018P1 $2,422.11 |
742018 $1,819.94 Circlematic™ Full Manual Transmission |
741025 $374.13 10" FastLap Converter™ |
IMCA Southern SportMods, Stock Cars; Full Manual Shifting; Race in Low or High Gear; Cast Aluminum Pan |
| 742018P2 $2,436.03 |
742018 $1,819.94 Circlematic™ Full Manual Transmission |
741026 $384.85 10" FastLap Converter™ |
IMCA Southern SportMods, Stock Cars w/ 1/4" Mid-Plate; Full Manual Shifting; Race in Low or High Gear; Cast Aluminum Pan |
| 742018P3 $2,540.00 |
742018 $1,819.94 Circlematic™ Full Manual Transmission |
741125 $471.61 11" FastLap Converter™ |
Hobby Stock, Stock Car; Full Manual Shifting; Race in Low or High Gear; Cast Aluminum Pan |
| 742020P1 $2,249.90 |
74202047 Circlematic™ Clutchless Low Gear Only Transmission |
745000 $243.04 2-Piece Coupler |
Hobby Stock, Stock Car; Clutchless; Limited Rear Gear Applications; Race in Low Gear Using 1.82 Low Gear Ratioto Achieve RPM Range Needed for Performance |
| 742020P2 $2,436.03 |
74202047 Circlematic™ Clutchless Low Gear Only Transmission |
74105043 10" Non-Functional Converter |
Hobby Stock, Stock Car; Clutchless; Limited Rear Gear Applications;
Race in Low Gear Using 1.82 Low Gear Ratio to Achieve RPM Range
Needed for Performance; Cast Aluminum Pan |
| 742020P3 $2,436.03 |
74202047 Circlematic™ Clutchless Low Gear Only Transmission |
74115043 11" Non-Functional Converter |
Hobby Stock, Stock Car; Clutchless; Limited Rear Gear Applications;
Race in Low Gear Using 1.82 Low Gear Ratio to Achieve RPM Range Needed for Performance; Cast Aluminum Pan |
ASPHALT TRACK
|
|
. | ||
| Package | Transmission | Torque Converter | Notes |
| Powerglide | |||
| 742019P3 $2,814.55 |
742019 $2,054.85 Circlematic™ Full Manual Transmission |
741125 $471.61 11" FastLap Converter™ |
Stock Cars, Truck Classes w/ 11" Converter; Full Manual Shifting; Race in Low or High Gear; Includes Kickout Steel Pan |
Page 111
CIRCLE TRACK
FLEXPLATES
|
Flexplates TCI® stamped flexplates for Ford and Chevy applications are .035" thicker than stock, and the starter ring is welded to both sides of the flexplate for additional strength. Constructed from a high tensile strength material, these flexplates resist elongation and cracking. 168-Tooth flexplates have GM dual bolt patterns and are sized for stock 3/8" mounting bolts, but can be easily drilled for 7/16" diameter high performance torque converter applications. Ford applications are balanced specifically for their appropriate engine/transmission combination. • Double welded ring gear stops ring detachment • Extra thickness stops cracks and breakage • Balanced to factory specs  |
| Trans- mission Type | Engine Size | SFI 29.1 Approved | Balance | Notes |
|
| Ford | |||||
| Ford | 289-351C, 351M-400M | Y | 0 oz. | 10.5" Bolt Pattern, 157-Tooth | 529615 $189.35 |
| Ford | 289-351C, 351M-400M | Y | 28 oz. | 10.5" Bolt Pattern, 157-Tooth | 529618 $160.91 |
| Ford | 289-351C, 351M-400M | Y | 50 oz. | 10.5" Bolt Pattern, 157-Tooth | 529610 $131.53 |
| Chevrolet | |||||
| GM | LT 1 | Y | External | Small Bolt Pattern, 153-Tooth | 399173 $148.73 |
| GM | LT 1 | Y | Internal | Small Bolt Pattern, 153-Tooth | 399174 $126.66 |
| GM | All | Y | Internal | Small Bolt Pattern, 153-Tooth | 399573 $144.74 |
| GM | All | Y | Internal | Dual Bolt Pattern, 168-Tooth | 399273 $134.46 |
|
Adjustable Slip Collar for TCI® Two-Piece Direct Drives This split ring collar allows you to adjust for proper end play in the pump drive after the transmission has been installed on the engine. Simply install the drive hub without the current spiral lock in place and the collar can be secured around the hub and locked into place with the two Allen bolts. This takes all guesswork out of the end play adjustment, and the collar stays secure lap after lap for dependable service. Available as an option for any TCI® two-piece drives.
 |
Page 112
CIRCLE TRACK
FRONT PUMP DRIVES
|
Front Pump Drives TCI® Front Pump Drives allow you to run without a torque converter where legal and can reduce rotating mass by anywhere from 15 to 30 lbs. compared to running a converter. This reduced mass improves off-the-corner acceleration and engine braking in the corners, which lowers transmission operating temperatures. Front Pump Drives require a specially designed valve body sold by TCI® and are adjustable for nonmotor plates and 1/8" and 1/4" motor plates. • Allow race transmissions to run without a converter • Reduce rotating mass by 15 to 30 lbs. compared to running a torque converter • Reduced mass improves off-the-corner acceleration & engine braking in corners to reduce transmission temps • Require specially designed valve body • Adjustable for non-motor plates, 1/8" & 1/4" motor plates  |
| Application | Engine |
|
Notes | Con- struction | Motor Plate | Balance |
| Ford | ||||||
| C4 |
289-302 351C, 351W |
515001 $402.86 | 10.5" Bolt Circle | One- Piece | No | Neutral |
| C4, 26-Spline |
289-302 351C, 351W |
515000 $402.86 1 | 1.375" Dia. Pilot, 11.4" Bolt Circle, Case-Fill, All Steel Construction | One- Piece | No | Neutral |
| GM | ||||||
|
Powerglide Chevy 7450073 Aluminum Crank Flange & Steel Drive
Hub Two-Piece Adjustable Neutral Powerglide Chevy 7450141 All Steel Construction One- Piece 1/4" Neutral TH350/400 Chevy 1620003 Steel Crank Flange & Drive Hub Two-Piece Adjustable Neutral TH350/400 Chevy 1650011 All Steel Construction One- Piece No Neutral |
||||||
| Power- glide |
Ford 289-302, 351C, 351W |
745100 $315.81 | Steel Crank Flange & Drive Hub | Three- Piece | Adjus- table | Neutral |
| Power- glide | 1986-96 Chevy | 745004 $252.49 2 | Steel Crank Flange & Drive Hub | Two- Piece | Adjus- table | Neutral |
| Power- glide | Chevy | 745000 $243.04 3 | Steel Crank Flange & Drive Hub | Two- Piece | Adjus- table | Neutral |
| Power- glide | Chevy | 745001 $465.05 1 | All Steel Construction | One- Piece | No | Neutral |
| Power- glide | Chevy | 745002 $283.84 3 | Steel Crank Flange & Drive Hub w/ Full Length Splines for Accessory Pulley | Two- Piece | Adjus- table | Neutral |
| Power- glide | Chevy | 745007 $261.75 3 | Aluminum Crank Flange & Steel Drive Hub | Two- Piece | Adjus- table | Neutral |
| Power- glide | Chevy | 745014 $429.85 1 | All Steel Construction | One- Piece | 1/4" | Neutral |
| TH350/ 400 | Chevy | 162000 $259.19 3 | Steel Crank Flange & Drive Hub | Two- Piece | Adjus- table | Neutral |
| TH350/ 400 | Chevy | 165001 $570.98 1 | All Steel Construction | One- Piece | No | Neutral |
|
Footnotes: 1 All one-piece drives bolt to the flywheel as would a torque converter. All two- and three-piece drives bolt to the crankshaft flange. 2 Works with 1986 & Later, one-piece rear main seal Small Block Chevrolets 3 Two-piece crank mounted drives will not work on late model Chevrolet engines with one-piece rear main seals. Use Part #745004. in those applications. |
 Powerglide Circlematic™ Front Pump Assembly • Replacement front pump for TCI® Circlematic™ Transmissions with an internal control valve • Stator support tube is removed for direct drive clearance
|
Page 113
CIRCLE TRACK
TRANSMISSION INTERNALS
|
Special Powerglide Reverse
Frictions • Thicker than OE versions virtually eliminate reverse clutch breakage but will still let you use reverse • No more “spacers” that fill the transmission with metal when you try to use reverse • Installs like a factory clutch w/ no modifications needed
 |
||||||
|
Circlematic™ Planetaries The TCI® Circlematic™ Standard 1.82 Planetary is an excellent lightweight replacement for a stock planetary, but for applications that utilize a 4-link suspension, or any suspension that requires a lot of movement, you will need the 1.82 4-Link Suspension Planetary for increased driveshaft travel.
 |
||||||
|
Circlematic™ Kits • Kits allow you to build a Circlematic™ Transmission for less cost than purchasing a complete unit • Include: dipstick, cast pan, valve body, front pump drive, steel clutch hub, cooler, filter, gaskets and seals • Requires Powerglide core, tools and general transmission and mechanical knowledge
 |
|
VALVE BODIES TCI® Circle Track Valve Bodies are machined in-house to control the tolerances of the valves. They also undergo strict quality procedures, including a computerized test that ensures proper shifting and correct alignment. |
|
Internal Control Powerglide Circlematic™ Valve Body The previous valve body design simplified operation by eliminating the bulky hand-operated ball valve pressure control that was once so common and replaced it with a clutch-pedal control. Now you can free yourself of all external pressure controls and concentrate on the competition instead. • Reverse pattern, full manual valve body controls line pressure internally and automatically • Reverse pattern also allows upshifts without the worry of hitting reverse or neutral • Allows use of stock appearing converter  |
|
|
|
Gasket |
| Reverse Pattern Internal Control Powerglide Circlematic™ Valve Body | 744500 $331.04 | GSK744500 $14.44 |
| Low-Gear Only Internal Control Powerglide Circlematic™ Valve Body | 744600 $321.04 | GSK744600 $26.23 |
|
Full Manual Valve Bodies • Manual control of valve body allows for quicker shift timing and the ability to run higher line pressures • Higher line pressures stop clutch slippage • Engine braking lets you drive deeper into the corners  |
|
|
|
Gasket |
| Powerglide | ||
| Powerglide (All) Forward Shift Pattern | 744200 $324.01 | GSK744200 $12.21 |
| TH350 | ||
| TH350, All Non Lock-Up, Forward Shift Pattern | 321000 $300.28 1 | GSK321000 $16.53 |
| TH350, All Non Lock-Up, Forward Shift Pattern | 321001 $300.28 2 | - |
| TH350, All Non Lock-Up, Reverse Shift Pattern | 321115 $335.99 2 | GSK321115 $16.53 |
Page 115
CIRCLE TRACK
ACCESSORIES
|
Powerglide “Kick-Out”
Steel Transmission Oil Pan • Prevents oil starvation in asphalt corners • One extra quart capacity over stock • Moves filter pickup to right side of pan to avoid exposure to air • Ships with all necessary mounting hardware
 |
||||||||||||||||||||
|
Transmission Oil Pans • Pans can be used on dirt or asphalt applications • Will increase the strength of the transmission case over OE versions • Aluminum versions allow for better cooling
 |
||||||||||||||||||||
|
Dipsticks TCI® carries a line of quality dipsticks with applications for the most popular circle track transmissions available - see page 58 for complete listing. Each tube features a locking stick which satisfies sanctioning bodies’ racing rules. The rubber boot seal is a vast improvement over the small o-ring typically used on older OEM tube designs. • Locking stick meets sanctioning body rules • New rubber boot seal rather than small o-ring used on older OEM tube designs • Most popular circle track applications available  |
|
|
|
Color/Finish |
|
| Ford | |||
| C4 Case-Fill Style Dipstick | Case-Fill Provisions; Locking-Style Stick | Gold Dichromate | 743811 $75.24 |
| Powerglide | |||
| Powerglide Dipstick | Full Length, Locking Assembly | Clear Zinc | 743800 $63.49 |
| Powerglide Shorty Dipstick | Shorty, Locking Assembly, Race Use | Clear Zinc | 743850 $80.14 |
| TH350 | |||
| TH350 Dipstick | Full Length, Locking Assembly | Gold Dichromate | 743861 $64.31 |
Page 116
CIRCLE TRACK
ACCESSORIES
|
Severe Duty Transmission Crossmember Mounts • Fits between transmission & crossmember for high HP applications that require maximum shock absorption • Feature safety interlock between mounting points • Urethane design is impervious to grease, oil & grime • Ships with mount & high strength installation hardware
 |
|
8" X-Long Yoke For 27-Spline Transmissions Your driveshaft is the critical link between your transmission and the rear end. The TCI® 8" X-Long Yoke for 27-Spline Transmissions avoids yoke “pull out” and “bottom out” which can lead to extreme transmission and rear end damage. This highstrength, forged steel construction yoke is designed to handle the extreme conditions found with high-end circle track racing drivetrains featuring the GM Powerglide, TH350 and any other 27-spline output shaft transmission. |
|
• Stronger than billet-designed components • Perfect for any 27-spline output shaft transmission • Uses 1310-style u-joint • Designed for anyone needing an extra margin of safety to avoid either yoke pull out or transmission housing bottom out conditions
Footnotes: 1 Output shaft modifications may be necessary  |
|
Flexplate
Safety Shields Flexplate Safety Shields are designed to protect both drivers and spectators from the effects of a flexplate or starter ring gear failure. A flexplate shield is mandatory in many classes of racing and fits over the front part of the transmission bellhousing. All TCI® Flexplate Shields are manufactured from high-strength steel and are also SFI 30.1 certified. Note: Trimming on transmission may be necessary. Any modifications made to the shield will void SFI certification. |
 |
||||||||||||||||||||||||
Page 117
CIRCLE TRACK
SHIFTERS
|
Powerglide Circle Track Shifter This Powerglide Circle Track Shifter from TCI® is everything you need for circle track racing. Constructed from billet steel, it is strong yet lightweight and features solid linkage connections with no cable, which provide extra stability. The shifter ships complete with a 29" long adjustable linkage rod and spherical rod ends.
Lightweight Quick Mount Shifter Bracket • For use with standard length Powerglide transmissions and the TCI® Powerglide Circle Track Shifter • Attaches directly to transmission tailhousing and is perfect for tube chassis cars with aluminum interiors • May be adapted for use with other automatic shifters
|
|
Race & Event Support An important service provided by TCI® is race and event support. On any given day, there are TCI® drivetrain specialists working events across the country to answer tech questions, sell parts to a frantic racer and provide on-site assistance. One more way that TCI® chooses to provide support is with contingency payouts. Contingency payouts let TCI® thank its supporters and customers, and we pay contingency on several series, such as NHRA, NMRA, NMCA, PSCA, CRA Street Stocks and several others. Run our parts, run our decals, and you just might pocket product certificates or even some extra money. The next time you’re at an event, look for the TCI® personnel. We’ll be there to answer any questions that you may have. |
Page 118
CIRCLE TRACK
COMPONENTS
|
Performance Transmission Coolers • Heavy-duty construction; designed specifically for racing • Superior tube and fin design • Constructed entirely from black, powder coated aluminum for aggressive race look • Feature #6 AN fittings for connection to either steel braided or high pressure lines • Pressure checked to 300psi
 |
||||||||||||
|
Starters For racing applications where a smaller and lighter weight starter is desired, TCI® offers the highest quality racing starter available. These starters are one-third smaller than most original equipment starters, which means increased room for headers and the oil pan, plus increased ground clearance. All racing starters are new, not rebuilt. • Full ball bearing construction means less internal friction and more torque transferred to the engine • High temperature epoxy-encapsulated armature resists heat and vibration • Low amperage draw of 210-250 amps at full starting load provides increased spark for ignition system
 |
||||||||||||
Page 119
CIRCLE TRACK
MISCELLANEOUS
|
Electric Brake Shut-Off The TCI® Electric Brake Shut-Off allows the driver to electrically shut off the right front brake caliper to enhance corner entry handling in dirt circle track racing applications. The easy-to-install solenoid mounts directly into the brake line, anywhere between the master cylinder and caliper. A flip of the switch activates the 6061-T6 aluminum encased, continuous- duty solenoid. The solenoid then blocks fluid flow to the right front caliper, eliminating the common “push or tight” condition experienced under corner entry braking. • Waterproof, heavy-duty solenoid handles up to 3000psi and can handle frequent high pressure washings • Compact solenoid requires only single amp of current so electrical system won't be drained • Does not overheat during long-term use • Works with all hydraulic brake systems; perfect for Stock Cars, Modifieds and Late Models
|
||||||
|
Powerglide Vent Filter Kit The TCI® Powerglide Vent Filter Kit is a small pleated cotton filter with fittings designed to replace the OEM vent tube assembly and prevent fluid from spitting out of the vent during racing conditions. |
||||||
|
Max Shift™ Circle Track
Transmission Fluid TCI® Max Shift™ Transmission Fluid has proven to be an effective performer in several performance venues. A new formula of this innovative drivetrain fluid has now been released for dirt and asphalt circle track automatic racing transmissions. Max Shift™ Circle Track has been tested and proven to enhance drivetrain performance and durability, and it can operate at far greater temperatures than both petroleum-based transmission fluids and synthetic formulas. • High viscosity levels increase life of clutches & bands • Includes anti-foaming agents to reduce pump cavitation for consistent line pressures • Resistant against high temperature drivetrain wear and fluid breakdown • Torque converter applications see minimized slippage
|
|
|
Performance Specs | Size |
|
| Circle Track Transmission Fluid | Dexron & Mercon | 1 Qt. | 950631 $16.19 |
| Circle Track Transmission Fluid | Dexron & Mercon | (12) 1 Qt. Bottles | 950630 $136.19 |
| SEE PAGE 90 FOR MORE INFORMATION AND APPLICATIONS. |
Page 120
DRAG RACE
TORQUE CONVERTER OVERVIEW
| TCI® builds race converters to suit the needs of a wide variety of applications so there are literally hundreds of drag race converter combinations offered. TCI® Drag Race Torque Converters were designed by experienced drivetrain engineers to provide a significant increase in performance at the strip. With a more efficient stall speed, faster acceleration and better mid-range power, your machine will get the rear wheel power it deserves. |
|
9", 10" & 11" TCI® 9", 10" and 11" Drag Race Torque Converters can be run in applications with up to 750 horsepower and are most commonly used for a bracket race or street/strip application that leans more toward the "strip." Stall speeds vary depending on application but the average is 3800-4500 RPM for 9" and 10" converters and 3000 RPM for the 11" version. |
|
8" The 8" Drag Race Torque Converter is the best selling race converter TCI® offers. Suitable for the greatest percentage of drag cars at up to 7500 RPM, TCI® 8" Drag Race Torque Converters win races in classes from Bracket Racing and Super Gas to Sand Dragging and Stock Eliminator. Most models feature a cast steel stator supported by an oversize caged bearing for added reliability. Current models also feature an improved housing design for less flex or ballooning under the stress of racing, resulting in more consistent elapsed times, faster reaction times and better durability. |
| Specific to 8" Drag Race Torque Converters are the fact that they are built brand new – most companies use existing/ previously used cores, but TCI® uses all new cores and components |
|
• Furnace-brazed fins increase durability • Three sets of Torrington bearings replace thrust washers used in OEM and certain aftermarket converters to triple thrust capacity capabilities • Increased strength & holding capacity of high load sprag assemblies maintain stator stays locked when stalling & guarantees converter will stall correctly run after run • 8" Steel ballooning plates double strength of converter when using transbrake and/or power adders • Cast steel stator (where applicable) replaces industry standard aluminum design and is able to handle a larger load and higher HP applications • Forged steel front increases strength and stops any chance of ballooning |
|
7" The 7" Drag Race Torque Converter was developed for use with a small cubic inch or very high RPM engine (up to 9000 RPM) that requires the ultimate high-stall converter. As the smallest and lightest weight converter that TCI® offers, the 7" converter delivers higher stall and better top-end lock-up than an 8" converter. Because of the wide variety of engine combinations, tire sizes, gear ratios and weights of different vehicles, all 7" drag race converters are custom builds. See page 124 to order yours today. |
|
• Furnace-brazed and reinforced fins increase durability • Ballooning plates double strength of converter when using transbrake and/or power adders • 360° Steel mounting ring strengthens mounting area of converter to flexplate • Three sets of Torrington bearings replace normal thrust washers used in OEM and some aftermarket converters to triple thrust capacity capabilities • Increased strength & holding capacity of high load sprags keep stator locked when converter stalls & guarantee converter will stall correctly run after run |
Page 121
DRAG RACE
9, 10 & 11" TORQUE CONVERTERS
| . |
|
||
| Application | 9" | 10" | 11" |
| Chrysler | |||
| 1967-87 Torqueflite 727, 24-Spline Input (Except Lock-Up) | 143000 $1,650.98 | 143100 $986.68 48 | - |
| 1968-81 Torqueflite 904-998, 24-Spline Input (Except Lock-Up) | - | 143300 $961.60 48 | - |
| Ford | |||
| 1970-81 C4, 10.5 Bolt Circle, 26-Spline w/ 1.375" Pilot, Case-Filled Transmission | - | 461400 $802.00 | - |
| 1970-81 C4, 11.4 Bolt Circle, 26-Spline w/ 1.375" Pilot, Pan-Filled Transmission | - | 462000 $802.00 | - |
| 1971-91 C6 w/ 1.375" Pilot (289-460) | - | 445100 $818.45 | - |
| 1980-93 AOD, 5.0L, 5.8L, 11.4 Bolt Circle | - | 433100 $754.84 | - |
| 2005-09 5R55S | - | 456005 $1,509.36 | - |
| GM | |||
| 1962-73 Aluminum Powerglide | - | 741200 $786.95 | 741300 $546.95 |
| 1965-90 TH350/400 400, 454 & 455 w/ Wide Bolt Pattern (Except Variable Pitch & Lock-Up) | 251200 $1,635.43 | 242300 $869.20 | 241400 $580.55 |
| 1965-81 TH350/400 Small Bolt Pattern (Except Lock-Up) | - | 242200 $869.20 | 241300 $580.55 |
| 1982-89 2004R/200C, 27-Spline w/ 1.703" Pilot | - | 243060 $811.38 | - |
| 1984 1/2-93 700R4, 30-Spline w/ 1.703" Pilot | - | 243100 $786.95 243161 $811.38 | - |
| 1982-84 1/2 700R4, 27-Spline | - | 243060 $811.38 | - |
| 1998-Up 4L60E, LS1/LS2 | - | 242933 $1,128.01 42 | - |
| NON LOCK-UP UNITS LISTED IN BLACK, LOCK-UP UNITS LISTED IN RED |
Page 122
DRAG RACE
8" TORQUE CONVERTER
| Group |
Super Stock, Modified & Comp Eliminator Classes |
(RPM) |
(Lbs.) |
| 1 |
Light & Heavy Vehicles, Low RPM, High Torque, Big Block (Brackets, 10.90, 9.90, 8.90) |
4500-5000 | 2500-3200 |
| 2 | Excellent for Stock & Super Stock Cars; Keeps Engine RPM From Falling Down on Gear Change |
4400-4800 (SB) 4800-5300 (BB) |
2500-3200 |
| 3 | High Stall Converter Group, Good for Dragsters & Full Bodied Bracket Cars Turning Higher RPM | 5600-6400 | 1500-2500 |
| 4 |
Excellent for Big Block Brackets, Super Street & Super Gas; Good Top End HP, MPH & Reaction |
5000-5400 | 2400-3200 |
| 5 |
Easier to Hook Up Than Most Converters of Same Stall; Full Bodied Cars w/ Small Block Using Mid-Range Torque |
5400-5900 | 2100-Up |
| 6 | Average to Heavy Small Block Bracket, 10.90 & 9.90; Higher RPM, Good Reaction & Hard Leaves | 5400-6000 | 2500-Up |
| 7 |
High Stall & Quick Reactions; "Super Class" Converter; Ideal 10.90, 9.90 & 8.90 w/ Engines Producing Good Low & Mid-Range Torque |
5200-5800 (SB) 5500-6200 (BB) |
2100-2800 |
| 8 |
Light & Heavy Vehicles; Low RPM, High Torque, Big Block (Brackets, 10.90, 9.90 & 8.90) |
4900-5400 | 2500-3200 |
| 9 |
Light & Heavy Vehicles; Low RPM, High Torque, Big Block (Brackets, 10.90, 9.90 & 8.90) |
4200-4900 | 2500-3200 |
| 10 | Excellent for Stock & Super Stock Cars; Keeps Engine RPM From Falling Down on Gear Change |
4000-4500 (SB) 4400-4900 (BB) |
2500-3200 |
| 11 | Excellent for Stock & Super Stock Cars; Keeps Engine RPM From Falling Down on Gear Change |
4800-5300 (SB) 5200-5700 (BB) |
2500-3200 |
| 12 | Excellent for Stock & Super Stock Cars; Keeps Engine RPM From Falling Down on Gear Change |
5200-5700 (SB) 5600-6100 (BB) |
2500-3200 |
| 13 | Light & Heavy Vehicles, Small Block | 5400-6000 | 2500-3200 |
| 14 | Light & Heavy Vehicles, Small Block | 5800-6300 | 2500-3200 |
| 15 | Light & Heavy Vehicles, Big Block | 5400-6000 | 2500-3200 |
| 16 | Light & Heavy Vehicles, Big Block | 5800-6300 | 2500-3200 |
| . |
|
|||||
|
|
Group 1 | Group 2 | Group 3 | Group 4 | Group 5 | Group 6 |
| AMC/Chrysler | ||||||
| 1972-80 Torque Command 727 (Except Lock-Up) | 752202 | 752213 | 752226 | 752204 | 752233 | 752224 |
| 1972-80 Torque Command 904 (Except Lock-Up) | - | 752413 | 752426 | 752404 | 752433 | 752424 |
| 1967-87 Torqueflite 727, 24-Spline Input (Except Lock-Up) 49 | 143502 | 143513 | 143526 | 143504 | 143533 | 143524 |
| 1967-87 Torqueflite 904, 24-Spline Input (Except Lock-Up) | - | 143613 | 143626 | 143604 | 143633 | 143624 |
| Ford | ||||||
| 1970-81 C4 10 1/2" Bolt Circle, 26-Spline, 1.375" Pilot, & Case-Filled Transmission | 475402 | 475413 | 475426 | 475404 | 475433 | 475424 |
| 1970-81 C4 11 7/16" Bolt Circle, 26-Spline, 1.375" Pilot, & Pan-Filled Transmission | 475302 | 475313 $1,509.10 | 475326 | 475304 | 475333 | 475324 |
| 1966-89 C6 w/ 1.375" Crank Pilot (289-429-460) | 446102 | 446113 | 446126 | 446104 | 446133 | 446124 |
| 1966-89 C6 w/ 1.850" Crank Pilot (332-429) | 441402 | 441413 | 441426 | 441404 | 441433 | 441424 |
| GM | ||||||
| 1962-73 Aluminum Powerglide | 740902 | 740913 $1,509.10 | 740926 | 740904 | 740933 | 740924 |
| 1965-90 TH350/400, 454 & 455, Wide Bolt Pattern (Except Variable Pitch & Lock-Up) | 254202 | 254213 | 254226 | 254204 | 254233 | 254224 |
| 1965-90 TH350/400 Small Bolt Pattern (Except Variable Pitch & Lock-Up) | 254002 $1,427.83 | 254013 $1,493.58 | 254026 | 254004 $1,427.83 | 254033 | 254024 |
| 1982-89 2004R, 27-Spline | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 |
| 1984 1/2-93 700R4, 30-Spline | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 |
Page 123
DRAG RACE
8" TORQUE CONVERTERS
|
Engine CID |
Rear Gear |
Tire Size |
Fuel CFM |
Engine RPM Range |
| 427-482c.i. (BB) | 4.88-5.57 | 30"-32" | 750-1050 | 6000-7000 |
| 380-430c.i. (BB) | 4.88-5.57 (BB) | 30"-32" | 750-1050 | 6000-7000 |
| 327-400c.i. (SB) | 4.88-6.00 | 29"-32" | 750-1050 | 6000-8500 |
| 400-485c.i. (SB/BB) | 4.30-Up | 28"+ | 750-1050 | 6000-8500 |
| 340-383c.i. (SB) | 5.13-6.50 | 29"-32" | 750-1050 | 6500-8000 |
| 327-400c.i. (SB) | 5.38-6.50 | 28"-32" | 750-1050 | 6500-8000 |
| 400-485c.i. (BB) | 4.30-5.13 | 30"-32" | 750-1050 | 6500-8000 |
| 427-482c.i. (BB) | 4.88-5.57 | 30"-32" | 750-1050 | 6000-7000 |
| 427-482c.i. (BB) | 4.88-5.57 | 30"-32" | 750-1050 | 6000-7000 |
| 380-430c.i. (BB) | 4.88-5.57 (BB) | 30"-32" | 750-1050 | 6000-7000 |
| 380-430c.i. (BB) | 4.88-5.57 (BB) | 30"-32" | 750-1050 | 6000-7000 |
| 380-430c.i. (BB) | 4.88-5.57 (BB) | 30"-32" | 750-1050 | 6000-7000 |
| 277-340c.i. (SB) | 5.13-6.50 | 30"-32" | 750-1050 | 7500-8500 |
| 277-340c.i. (SB) | 5.13-6.50 | 30"-32" | 750-1050 | 7500-8500 |
| 522-580c.i. (BB) | 4.30-5.57 | 30"-34" | 1050-1500 | 7000-8000 |
| 522-580c.i. (BB) | 4.30-5.57 | 30"-34" | 1050-1500 | 7000-8000 |
|
|
||||||||||
| . | Group 7 | Group 8 | Group 9 | Group 10 | Group 11 | Group 12 | Group 13 | Group 14 | Group 15 | Group 16 |
| AMC/Chrysler | ||||||||||
| 1972-80 Torque Command 727 (Except Lock-Up) | 752206 | 752203 | 752201 | 752212 | 752214 | 752216 | 752242 | 752246 | 752260 $1,657.63 | 752262 |
| 1972-80 Torque Command 904 (Except Lock-Up) | 752406 | - | - | 752412 | 752414 | 752416 | 752442 | 752446 | - | - |
| 1967-87 Torqueflite 727, 24-Spline Input (Except Lock-Up) 49 | 143506 | 143503 | 143501 | 143512 | 143514 | 143516 | 143542 | 143546 | 143560 | 143562 |
| 1967-87 Torqueflite 904, 24-Spline Input (Except Lock-Up) | 143606 | - | - | 143612 | 143614 | 143616 | 143642 | 143646 | - | - |
| FORD | ||||||||||
| 1970-81 C4 10 1/2" Bolt Circle, 26-Spline, 1.375" Pilot, & Case-Filled Transmission | 475406 | 475403 | 475401 | 475412 | 475414 | 475416 | 475442 | 475446 | 475460 | 475462 |
| 1970-81 C4 11 7/16" Bolt Circle, 26-Spline, 1.375" Pilot, & Pan-Filled Transmission | 475306 | 475303 | 475301 | 475312 | 475314 | 475316 | 475342 | 475346 | 475360 | 475362 |
| 1966-89 C6 w/ 1.375" Crank Pilot (289-429-460) | 446106 | 446103 | 446101 | 446112 | 446114 | 446116 | 446142 | 446146 | 446160 | 446162 |
| 1966-89 C6 w/ 1.850" Crank Pilot (332-429) | 441406 | 441403 | 441401 | 441412 | 441414 | 441416 | 441442 | 441446 | 441460 | 441462 |
| GM | ||||||||||
| 1962-73 Aluminum Powerglide | 740906 | 740903 | 740901 | 740912 | 740914 | 740916 | 740942 | 740946 | 740960 | 740962 |
| 1965-90 TH350/400, 454 & 455, Wide Bolt Pattern (Except Variable Pitch & Lock-Up) | 254206 | 254203 | 254201 | 254212 | 254214 | 254216 | 254242 | 254246 | 254260 | 254262 |
| 1965-90 TH350/400 Small Bolt Pattern (Except Variable Pitch & Lock-Up) | 254006 $1,493.58 | 254003 $1,427.83 | 254001 $1,427.83 | 254012 | 254014 | 254016 | 254042 | 254046 | 254060 $1,493.58 | 254062 $1,518.93 |
| 1982-89 2004R, 27-Spline | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 | 243860 $1,700.80 |
| 1984 1/2-93 700R4, 30-Spline | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 | 243861 $1,700.80 |
|
7" & 8" CUSTOM TORQUE CONVERTERS How To Order Your 7" & 8" Custom Torque Converters TCI® also offers 7" & 8" Custom Drag Race Torque Converters. Follow the steps below to order your custom converter today. 1. Find your application listing in the one of the charts below. 2. Be prepared to provide the following information to the TCI® technician: |
|
• Base and Upper Stall Range (RPM) • Vehicle Weight (Lbs.) • Engine Size (C.I.) • Power Adders • Rear Gear |
• Tire Size • Fuel CFM • Rear Gear • Engine |
|
TCI® will then take the custom converter for your specific
application and carefully select the appropriate components and
create a converter just for you. 7" Custom Torque Converters
8" Custom Torque Converters
|
||||||||||||||||||||||||||||||||||||||||||||||||
Page 125
DRAG RACE
7" & 8" CUSTOM TORQUE CONVERTE
Page 126
DRAG RACE
BOLT-TOGETHER TORQUE CONVERTERS
|
Race Bolt-Together Torque Converters With a fully furnace-brazed turbine and CNC-machined billet design, the GM 6L80 Bolt-Together Race Bolt-Together Torque Converters from TCI® are engineered specifically for serious racers that require a torque converter with the utmost in strength and quality. They are designed for extreme power, easy stall speed changes and consistent performance. This race version requires a custom tuned TCU/PCM. Benefits include a triple-disc clutch with significantly higher torque capacity and much higher clamping force than a single-disc design, while they also have the ability to fully lockup under wide open throttle so there is little or no high-gear slippage. Even though these converters are designed as a race only” part with special tuning, they can be used in many high horsepower and modified vehicles when a single-disc converter simply won’t withstand the power. Featured along with the high torque capacity, triple-disc, woven carbon fiber friction lock-up clutch is a 50-spline clutch hub, meaning the horsepower capacity of this converter is second to none. The bolt-together CNC billet design permits users to easily set the optimum stall speed for his or her application without sending it back to TCI®. When the stall is properly matched to the torque curve of the engine, the launch and overall performance of the vehicle will be greatly increased. The bolttogether design also enables quick disassembly to allow inspection and service of bearings and lock-up components at home or at the track. And like all TCI® torque converters, each unit undergoes the legendary TCI® Triple Testing process and is HDT™ coated to prevent corrosion and help dissipate heat.
Footnotes: 1 This is a custom order piece – select your preferred stall speed or ask TCI® for a recommendation. Applications: • Camaro (All V8, 6L80E/6L90E) • Pontiac G8 (All V8, 6L80E/6L90E) • Cadillac CTS-V (All V8, 6L80E/6L90E) • Silverado/Sierra (All V8, 6L80E/6L90E Applications)  HDT™ COATING Prevents Corrosion & Dissipates Heat |
Page 127
DRAG RACE
TRANSMISSIONS
| TCI® has been building drag race transmissions for over 40 years, and we go the extra mile to ensure your transmission is superior in both form and function to what you would purchase at a local transmission shop. Beginning with a careful inspection of the transmission case and components, stock parts are replaced with high performance bands and components where applicable. We also increase fluid flow and improve the lubrication system and thrust capacity. Problematic hard parts are replaced with stronger ones, many of which are manufactured at TCI® in-house machining centers. Valve bodies are completely remanufactured and 100 percent tested prior to installation. Finally, each and every TCI® transmission must pass both a static hydraulic pressure test during assembly and a final dyno test prior to shipping. That's Triple Tested so you can be confident you're getting a transmission that's ready to perform. |
|
Full Manual Competition Designed for the extreme high performance street or all out race car, these Full Manual Competition Transmissions will give you consistent shifts as well as complete control over shift points. Available in reverse and standard shift pattern (most applications), they require no vacuum hookups or kickdown linkage. This means there are no external linkages to be purchased, which saves some expense. The increased line pressure provides a harder, quicker shift and eliminates the lag time between shifts produced by automatic shift transmissions. • Extreme performance clutches and nitrided steel plates for enhanced performance • High-performance powerbands provide greater torque capacity and more positive shifts and band apply • Hardened sprag races increases durability & strength • Improved lubrication system increases fluid sent to planetaries and internals • Able to handle up to 750 HP, depending on application |
Transbrake Designed for the serious full-tree bracket racer, TCI® Transbrake Transmissions deliver the quickest and most consistent reaction times in the business. These transmissions are blueprinted and built one unit at a time to ensure that you get quality parts. Designed for horsepower ranges of up to 750 horsepower, they are able to withstand the rigorous use of week-to-week racing and back-to-back passes. Available in both reverse and standard patterns (on select models only); Pro Tree versions are available and have a “neutral” reverse for safety. • Full manual valve bodies with full race clutches & bands allow for quicker shift timing and the ability to run higher line pressures than with an automatic shift transmission • Higher line pressure makes it more difficult for clutches to slip under high loads • Oversized sprags & races (where applicable) increase holding capacity; steel hubs increase durability & strength • Improved lubrication system increases amount of fluid sent to planetaries and internals • Designed to handle up to 750 HP |
|
Bracket Racing Powerglides As Powerglides are the most commonly used drag race transmissions, they are generally offered in a wide variety of configurations. TCI® does offer custom Powerglides for horsepower applications over 700 HP as shown on page 124, but for applications making under that, we recommend a part numbered Bracket Racing Powerglide. TCI® Bracket Racing Powerglides include a new steel stock depth transmission pan with drain plug, a 4140 steel clutch hub, universal shift lever, high-performance clutches and steels and high energy bands. The high-performance clutches and steels provide a high coefficient of friction and high temperature resistance, as well as a grooved surface area to improve clutch apply time. TCI® steel plates are engineered from a specially heat-treated steel for increased durability. The high energy bands also have a higher coefficient of friction for higher torque capacity and the ability to produce quicker, more positive band engagement. So while these transmissions are made for lower HP applications, TCI® has still used the highest quality materials and internal components to make these Bracket Racing Powerglides the #1 choice for drag race applications making under 700 HP. Note: The 1.76 Bracket Race Powerglide will work with an engine making up to 700 HP but requires an aftermarket input shaft. The 1.82 will work up to 600 HP but will also require an aftermarket input shaft.
Footnotes: 1 All 1.82 ratio bracket racing Powerglides include a special reinforced stock planetary. A steel girdle is welded over the housing, which increases torque load capacity. All shorty bracket racing Powerglides include a re-splined and heat-treated output shaft and shorty cover.
|
||||||||||||||||||||||||||||||||||||||||||||||
Page 129
DRAG RACE
TRANSMISSIONS
CHRYSLER TRANSMISSION
| . |
|
||
| Application | Engines | Full Manual | Transbrake |
| Torqueflite 727 | |||
| 1967-79 Torqueflite 727, Small Block, 18 3/8" Tailshaft, Reverse Shift Pattern | 318, 340, 360 | 112100 $1,934.71 | 112700 $2,737.35 |
| 1967-79 Torqueflite 727, Big Block, 18 3/8" Tailshaft, Reverse Shift Pattern | 383, 400, 426, 440 | 112000 $2,123.63 | 112500 $2,858.24 |
| Torqueflite 904 | |||
| 1967 & Later Torqueflite 904, Small Block, Reverse Shift Pattern | 318, 340, 360 | 112400 $1,970.61 | - |
| NOTES Chrysler Torqueflite:Beginning in 1978 for Chrysler and 1979 for AMC, a lock-up torque converter was used in many transmissions. You cannot interchange a lock-up converter for a non lock-up converter. When changing to an aftermarket torque converter it may be necessary to replace the OEM flexplate and mounting bolts. |
FORD TRANSMISSIONS
| . |
|
|||
| Application | Engines | Full Manual | Transbrake | |
| C4 | ||||
| 1970-82 C4, Small Bellhousing, (Dipstick Goes in Transmission Case), 26-Spline Input Shaft; Reverse Shift Pattern | 289-351 |
512200 $1,719.63 50, 512201 $1,720.06 52 |
512502 $1,915.94 50, 512500 $3,105.61 50 |
|
| 1970-82 C4, Large Bellhousing, (Dipstick Goes in Transmission Pan), 26-Spline Input Shaft, Reverse Shift Pattern | 289-351 | 512600 $1,719.63 50 | 512506 $1,928.38 50 | |
| C6 | ||||
| 1966 & Later C6 w/ 13 1/2" Tailshaft, Reverse Shift Pattern | 351M, 400, 429, 460 | 412200 $2,180.09 50 | 413200 $2,591.36 50 | |
| 1966 & Later C6 w/ 13 1/2" Tailshaft, Reverse Shift Pattern | 289, 302, 351C, 351W | - | 413400 $2,591.36 50 | |
| 1966 & Later FE C6 w/ 13 1/2" Tailshaft, Reverse Shift Pattern | 332, 352, 390, 406, 427, 428 | 412000 $1,813.33 50, 103 | - | |
| NOTES Ford C4: 1965-69 applications can use the TCI® competition transmission by using a 1970-82 26-spline torque converter with the transmission. All C4 transmissions are shipped minus the bellhousing due to the availability of a variety of bellhousing applications based on engine type. |
| When ordering, please reference if existing transmission has shift lever that points up or down. All Ford C6 competition transmissions have a cast aluminum deep pan with a special filter as a standard feature to ensure adequate fluid delivery |
| NON LOCK-UP UNITS LISTED IN BLACK, LOCK-UP UNITS LISTED IN RED |
Page 130
DRAG RACE
TRANSMISSIONS
GM TRANSMISSIONS
| . |
|
||
| Application | Engines | Full Manual | Transbrake |
| Powerglide | |||
| Powerglide, Stock GM Aluminum Case, Super Set Planetary, Cast Aluminum Deep Pan, Steel Hub, Aftermarket Turbo Spline Input Shaft, Full Manual Competition Std. Length Valve Body, 1:80 Gear Ratio | GM | 71250211 $3,288.69 | - |
| Powerglide, Stock GM Aluminum Case, Super Set Planetary, Cast Aluminum Deep Pan, Steel Hub, Aftermarket Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 71250231 $3,703.69 |
| Powerglide, Stock GM Aluminum Case, Super Set Planetary, Cast Aluminum Deep Pan, Steel Hub, Aftermarket Turbo Spline Input Shaft, Shorty Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 71250261 $3,747.44 |
| Powerglide, Stock GM Aluminum Case, Super Set Planetary, Cast Aluminum Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 71254431 $4,517.44 |
| Powerglide, Stock GM Aluminum Case, Super Set Planetary, Cast Aluminum Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, PRO-X™ Ringless Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 71254631 $4,754.94 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Turbo Spline Input Shaft, Std. Length Transbrake, 1:80 Gear Ratio | GM | - | 73250221 $5,503.69 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 73250231 $5,498.69 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Turbo Spline Input Shaft, Shorty Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 73250261 $5,262.44 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Transbrake, 1:80 Gear Ratio | GM | - | 73250421 $5,594.94 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 73250431 $5,134.94 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Vasco Turbo Spline Input Shaft, 1:80 Gear Ratio | GM | 73250441 $5,333.69 | - |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Vasco Turbo Spline Input Shaft, Shorty Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 73250461 $5,806.19 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 73254431 $6,304.94 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Shorty Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 73254461 $6,356.19 |
| New Reid Case w/ SFI Spec 4.1 Safety Liner, Super Set Planetary, Cast Alum. Stock Depth Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 73274431 $5,889.94 |
| Stock Powerglide Case w/ Upgraded Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 74254431 $5,084.94 |
| Stock Powerglide Case w/ Upgraded Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Shorty Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 74254461 $5,136.19 |
| Reid Case w/ SFI Spec 4.1 Safety Liner & Upgraded Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Turbo Spline Input Shaft, Shorty Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 76250261 $6,241.19 |
| Reid Case w/ SFI Spec 4.1 Safety Liner & Upgraded Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 76254431 $6,149.94 |
| Reid Case w/ SFI Spec 4.1 Safety Liner & Upgraded Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket PRO-X™ Ringless Turbo Spline Input Shaft, Shorty Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 76254661 $7,257.44 |
| Reid Case w/ SFI Spec 4.1 Safety Liner, Bearing & Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 77250431 $6,866.19 |
Page 131
DRAG RACE
TRANSMISSIONS
| . |
|
||
| Application | Engines | Full Manual | Transbrake |
| Powerglide | |||
| Reid Case w/ SFI Spec 4.1 Safety Liner, Bearing & Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:98 Gear Ratio | GM | - | 77250438 |
| Reid Case w/ SFI Spec 4.1 Safety Liner, Bearing & Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 77254431 $6,856.19 |
| Reid Case w/ SFI Spec 4.1 Safety Liner, Bearing & Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket PRO-X™ Ringless Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | GM | - | 77254631 $7,627.44 |
| Reid Case w/ Gerotor Pump, Super Set Planetary, Steel Stock Depth Pan, Steel Hub, Aftermarket Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:98 Gear Ratio | ** | - | 82200238 $6,126.19 |
| Reid Case w/ Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, Steel Hub, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | ** | - | 82250431 $6,486.19 |
| Reid Case w/ Gerotor Pump, Super Set Planetary, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket Vasco Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | ** | - | 82254431 $6,806.19 |
| Reid Case w/ Gerotor Pump, Super Set Planetary w/ Alum. Valve Body, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket PRO-X™ Ringless Turbo Spline Input Shaft, Std. Length Pro Tree Transbrake, 1:80 Gear Ratio | ** | - | 82854631 $7,246.19 |
| Reid Case w/ Gerotor Pump, Super Set Planetary w/ Alum. Valve Body, Cast Alum. Deep Pan, 10-Clutch High Drum Wide Band & High Static Reverse Clutches, Aftermarket PRO-X™ Ringless Turbo Spline Input Shaft, Std. Length Ultimate Pro Tree Transrake, 1:80 Gear Ratio | ** | - | 82854671 $7,237.44 |
| ** All Chrysler, Ford, GM & BOP; bellhousing sold separately, see page 147 for bellhousing part numbers |
| . |
|
|||
| Application | Engines | Full Manual | Transbrake | |
| TH350 | ||||
| TH350, 6" Tailshaft, Forward Shift Pattern | Chevrolet V8, |
312000 $2,117.70 , 312015 $2,280.56 53,30 312002 $1,952.33 59 |
- | |
| TH350, 6" Tailshaft, Reverse Shift Pattern | Chevrolet V8, |
312001 $1,858.29 312016 $2,310.03 53,30 |
312500 $2,792.23 30, 312515 $2,748.65 30,53,64 |
|
| Buick, Olds, Pontiac, Pontiac, Cadillac, TH350, 6" Tailshaft, Foward Shift Pattern | All BOP V8 | 312100 $1,915.94 | - | |
| TH400 | ||||
| TH400, 4" Tailshaft, Large Yoke, Reverse Shift Pattern | All Chevrolet |
212000 $2,396.35 , 212015 $2,553.61 53,60, 212016 $2,651.04 53,60,63 |
212500 $2,527.35 60, 212505 $2,748.65 53,60, 212506 $2,863.90 53,60,63, 212508 $3,522.68 53,60,61,62, 212515 $3,868.08 26,53,60,63, 212507 $5,097.53 53,60,61,62,68 |
|
| TH400, 4" Tailshaft, Large Yoke, Forward Shift Pattern | All Chevrolet | 212017 $2,652.40 53,60,63 | - | |
| Buick, Olds, Pontiac, Cadillac TH400 w/ 4" Tailshaft, Large Yoke, Reverse Shift Pattern | All BOP V8 | 212300 $2,092.83 | 213000 $2,458.85 60 | |
| 7004R | ||||
| 1984-93 700R4, 30-Spline, 30 3/4" Overall Length, Reverse Shift Pattern | V8 |
371001 $3,194.24 66,
371061 $3,100.99 65 |
371500 $4,988.31 | |
| 1986-92 700R4, Reverse Shift Pattern | All Chevrolet | 371101 $4,144.53 | - | |
| 4L80E | ||||
| 1991-96 Case, Non Computer Controlled | All Chevrolet | - |
272500 $4,360.84 , 272700 $3,097.1422,105 |
|
| 1997-06 Case, Non Computer Controlled | All Chevrolet | - |
272501 $4,726.54 , 272701 $4,335.11 22,105 |
|
Page 132
PRO-X™ DRAG RACE
9" & 10" TORQUE CONVERTERS
|
PRO-X™ 9" &
10" Building huge horsepower is fine as long as your drivetrain is up to the task of delivering the power to the pavement. TCI® offers a complete line of premium torque converters built exclusively for use in Top Sportsman, Top Dragster and 10.5 Tire Outlaw classes. Able to handle 500+ c.i., 2500+ horsepower, 3500 RPM applications (including multi-stage, nitrous-assisted, supercharged and twin turbocharged engines), these high strength torque converters are built for most GM, Ford and Chrysler transmissions and bolt up to either six or four-bolt mounting flanges. In addition, the PRO-X™ 9" and 10" Torque Converters utilize the state-of-the-art, proprietary metallic gray HDT Coating™ which enables TCI® converters to operate at lower temperatures and cool down faster. |
| IMPORTANT Stall speed is an appproximation – will vary per CID; dyno torque; HP ratings; power adders, such as turbo(s) amount of boost, blower size & amount of boost, amount of initial nitrous applied |
|
|
Application | Stall Range (RPM) | Vehicle Weight (lbs.) | Engine CID | Rear Gear | Tire Size | Fuel CFM | Engine Dyno HP |
| 9" Small-Bolt Pattern | ||||||||
| 143009 $1,875.91 | Torqueflite 727 | 4800- 5500 | 2500 | 705 | Up to 4.56 | 34" | 1400 | 1400 |
| 143010 $1,875.91 | Torqueflite 727 | 5200- 5900 | 3200 | 705 | Up to 4.88 | 33" | 1400 | 1300 |
| 143012 $1,875.91 | Torqueflite 727 | 5500- 6200 | 3200 | 705 | Up to 4.88 | 33" | 1400 | 1200 |
| 251801 $1,821.68 | GM TH400 Spline | 4000- 4800 | 2500 | 598 | Up to 4.10 | 33" | 1400 | 1800+ |
| 251804 $1,821.68 | GM TH400 Spline | 4000- 4800 | 3000 | 451 | Up to 3.60 | 33" | 1400 | 1800+ |
| 251802 $1,821.68 | GM TH400 Spline | 5600- 6000 | 2800 | 632 | Up to 4.30 | 32" | 1400 | 1400 |
| 251862 $1,821.68 | GM TH400 Spline | 5600- 6100 | 2200 | 565 | Up to 4.10 | 33" | 1400 | 1200 |
| 251861 $1,821.68 | GM TH400 Spline | 5700- 6200 | 2200 | 572 | Up to 4.10 | 33" | 1400 | 1250 |
| 251803 $1,821.68 | GM TH400 Spline | 5800- 6200 | 2800 | 632 | Up to 4.30 | 32" | 1400 | 1400 |
| 251860 $1,821.68 | GM TH400 Spline | 5800- 6300 | 1800 | 615 | Up to 3.90 | 33" | 1400 | 1400 |
| 251805 $1,821.68 | GM TH400 Spline | 6000- 6400 | 2500 | 585 | Up to 3.90 | 33" | 1400 | 1500 |
| 251814 $1,821.68 | GM TH400 Spline | 6100- 6400 | 2500 | 572 | Up to 4.10 | 33" | 1400 | 1250 |
| 251811 $1,821.68 | GM TH400 Spline | 6200-6 500 | 2500 | 632 | Up to 4.30 | 33" | 1400 | 1500 |
| 251813 $1,821.68 | GM TH400 Spline | 6300- 6600 | 2500 | 585 | Up to 4.10 | 33" | 1400 | 1300 |
| 251812 $1,821.68 | GM TH400 Spline | 6400- 6700 | 2500 | 632 | Up to 4.30 | 33" | 1400 | 1500 |
| 10" Small-Bolt Pattern | ||||||||
| 142500 $1,785.48 | Torqueflite 727 | 3600- 4200 | 3200 | 565 | Up to 4.10 | 32" | 1400 | 1000 |
| 142520 $1,785.48 | Torqueflite 727 | 4000- 4800 | 2800 | 675 | Up to 3.90 | 32" | 1400 | 1400 |
| 142550 $1,785.48 | Torqueflite 727 | 4000 | 2500 | 800 | Up to 3.60 | 33" | 1400 | 1800+ |
| 251000 $2,066.16 | GM TH400 Spline | 3600- 4200 | 3200 | 565 | Up to 4.10 | 32" | 1400 | 1000 |
| 251050 $2,066.16 | GM TH400 Spline | 4000 | 2500 | 800 | Up to 3.60 | 33" | 1400 | 1800+ |
| 251020 $2,066.16 | GM TH400 Spline | 4000- 4800 | 2800 | 675 | Up to 3.90 | 32" | 1400 | 1400 |
| 251030 $2,066.16 | GM TH400 Spline | 4000 | 2500 | 800 | Up to 3.60 | 33" | 1400 | 1800+ |
Page 133
PRO-X™ DRAG RACE
9" & 10" TORQUE CONVERTERS
#251800 $1,799.91
GM TH350/400
6 Mounting Lugs
PRO-X™ Torque
Converter
|
• Bulletproof, hand-built steel stator can be custom engineered
for specific stall ranges • Billet mounting ring provides maximum amount of surface mounting area for increased strength |
• Three sets of heavy-duty internal bearings maximize load capacity and decrease drag in high HP applications • Furnace-brazed and hand-brazed turbine & pump assembly provide superior strength over competitors “Hand-Tacked” only converters |
|
How To Order Your Custom PRO-X™
Torque Converters If you don't see a part numbered PRO-X™ Torque Converter in the chart, TCI® can custom build a converter to your exact speci-fications. When you call, be prepared to provide the following information to the TCI® technician: |
|
• Base and Upper Stall Range (RPM) • Vehicle Weight (Lbs.) • Engine Size (C.I.) • Power Adders • Rear Gear • Tire Size • Fuel CFM • Rear Gear • Engine Dyno HP PRO-X™ Custom Torque Converters
|
| TCI® will choose the appropriate base torque converter part number and components and create a converter just for you |
|
PRO-X™ Drag Race Powerglide Transmissions TCI® PRO-X™ Drag Race Powerglide Transmissions are the highest horsepower application transmissions that TCI® offers They are built completely new (not rebuilt from existing cores). with the best available high-end materials. Available with 1.98, 1.80, 1.65 or 1.58 Straight-Cut 12DPI Super Set Planetaries*, the state-of-the-art PRO-X™ Powerglide Transmissions deliver unrivaled performance and consistency in race cars regularly running 6.70 seconds, 220+ mph in the quarter mile. These technologically advanced transmissions feature a PRO-X™ Input Shaft, 10-Clutch High-Gear Bearing Drum Kit and an industry-exclusive HDT (Heat Dissipating Technology™) Coated Reid Bearing Case. In addition, every unit includes the latest internal component innovations from TCI®, such as the Ringless-Style Gerotor Pump and X-Wide Kevlar Band, HDT Coated Aluminum Deep O-Ringed Pan and High-Flow Filter System. To further ensure every PRO-X™ Powerglide Transmission lives up to the strict TCI® tolerances and performance standards, each unit is Triple Tested including an AxiLine computer dynotest and certification. * Some of these will require a custom transmission |
|
|
|
| PX1 | |
| Reid Case, 1.80 Straight Cut Planetary, 10-Clutch Drum, #749602. PRO-X™ Ring-Style Turbo Spline Input Shaft, Pro Tree Transbrake, #743520. Aluminum Gerotor Pump | 77884571PX1 $7,934.94 |
| Reid Case, 1.80 Straight Cut Planetary, 10-Clutch Drum, #749603. PRO-X™ Ringless-Style Turbo Spline Input Shaft, Pro Tree Transbrake, #743525. Aluminum Gerotor Pump for Ringless Input Shaft | 77884671PX1 $8,033.69 |
| PX2 Patent No. 8,298,109 B2 | |
| 2-Piece Reid Case (Bellhousing NOT Included), 1.80 Straight Cut Planetary, Standard Length 4340 Powerglide Output Shaft, #749604 Ultra Ringless Input Shaft, #7435303 Gerotor Pump w/ Rear-Oiling Technology™ | 82854631PX2 $8,038.69 104 |
| PX3 Patent No. 8,298,109 B2 | |
| 2-Piece Reid Case (Bellhousing NOT Included), 1.80 Straight Cut Planetary, Standard Length 4340 TH400 Output Shaft, #749604 Ultra Ringless Input Shaft, #7435303 Gerotor Pump w/ Rear-Oiling Technology™ | 82854631PX3 $8,694.94 104 |
|
Footnotes: 104 Due to spline configurations and dimensions, a TCI® custom built torque converter must be used. Call for details. |
|
|
|
| PX1 | |
| TH400, 2.10 Gear Set, Billet Aluminum Drums, 36-Element Intermediate Sprag, Billet Aluminum Valve Body, 8-Clutch Drum Kit | 212507PX1 $9,430.24 |
Page 135
PRO-X™ DRAG RACE
INTERNALS
#743525 $861.88
GM Powerglide
Cast Aluminum Gerotor Pump
For PRO-X™ Ringless Input Shaft
|
PRO-X™ Powerglide Gerotor
Pumps In racing, durability and light weight are the key components to winning, and TCI® is known for building the ultimate performing GM Powerglide drag racing automatic transmissions and internal components. TCI® Gerotor Pumps offer several design advantages over the OEM involute-style pumps, plus improved low RPM flow and reduced horsepower consumption. The aluminum construction significantly reduces pump weight by six pounds from the overall transmission weight without sacrificing strength and dissipates heat more efficiently than the factory pump. Both styles have bolt-in heattreated stator support tubes and dry film lubricated gears to reduce friction and wear. The high volume pumps also handle line pressures up to 300psi. • Pumps available for both ring & ringless style input shafts • Friction-reduction coated to decrease drag • Aluminum style dissipates heat quickly for added durability
Footnotes: 1 Part #743510. & 743525. require use of TCI® PRO-X™ Ringless Input Shaft |
||||||||||||||||||||
|
PRO-X™ Powerglide Input
Shafts As part of its PRO-X™ line of hardcore racing components, TCI® offers two PRO-X™ Input Shafts for hardcore GM Powerglide race applications.These input shafts eliminate breakage by incorporating unique proprietary construction material and a special heat-treating process. The PRO-X™ standard configuration input shaft is a direct replacement component able to handle up to 2000 HP applications. The PRO-X™ Ringless Input Shaft replaces the oad-limiting internal rings with a special bushing and enlarges the diameter of the shaft for increased strength. In addition, TCI® reengineered and improved the shaft’s full cooler circuit flow for more efficient torque converter function as well as better lubrication for increased strength and durability over other types of ringless input shafts. Able to handle 2500+ HP applications, use of the TCI® Ringless Input Shaft requires installation of a TCI® Gerotor Pump for proper operation. #749602 $635.24 1.76 GM Powerglide PRO-X™ Input Shaft  #749603 $723.51 1.76 GM Powerglide PRO-X™ Ringless Input Shaft
Footnotes: 1 Installation of the turbo shaft requires minor machining of the stator shaft or turbine spline bushing in converter 2 Made for TCI® Gerotor Pump Part #743510. & #743525. ONLY |
|
NOTES Engines producing over 800 HP require a PRO-X™ Input Shaft. For 1500+ HP engines, use the PRO-X™ Ringless Input Shaft. The Turbo spline shaft allows installation of a 30-spline Turbo 350/400 converter in a Powerglide. If your torque converter does not have a turbine bushing this shaft requires some minor machining of the stator support to accommodate the included turbo support bushing. TCI® also offers input shafts that will allow the use of a 17-spline Powerglide converter with the Turbo 350/400 transmission. |
Page 136
PRO-X™ DRAG RACE
ACCESSORIES
|
PRO-X™ Overflow Canisters Transmission fluid should always stay in the transmission; while it seems like a simple principle, it can be difficult to achieve. At high RPM, it is not uncommon for fluid to escape through the transmission vent - spreading oil on the undercarriage of your racecar. To eliminate the resulting safety concerns and mess, TCI® offers three lightweight PRO-X™ Overflow Canisters; one each for Ford C4 and GM Powerglide and TH400 transmissions. While weighing less than two pounds each, they hold approximately one quart of fluid and attach to the transmission pan in three easy steps to safely contain high RPM fluid blow-by. • Lightweight aluminum construction; black powder coated exterior with etched PRO-X™ logo • Welded bungs, braided steel lines, & all necessary fittings • Largest canister is 12" x 2"; no ground and header clearance issues • 1/8" Petcock valve for quick draining & maintenance |
||||||||||
 |
Page 137
DRAG RACE
TRANSMISSION INTERNALS
 Sprags Sprags are a one-way clutch device used to transfer power through the transmission. TCI® heavy-duty sprags are stronger than stock in both material and design. And in applicatons where multiple sprag designs are available, TCI® always selects the strongest ones for use in our transmissions.
|
||||||||||||||||||||||||||
|
Aluminum Transmission Drums TCI® Aluminum Transmission Drums are CNC-manufactured in-house from 7075-T6 aluminum billet due to the outstanding strength of the material despite its light weight. This reduces weight from the transmission's rotating mass without compromising drum integrity. All drums are designed to hold five to six standard thickness friction clutches and six steel clutches dependant upon piston machining. These drums are hard-coat anodized for improved wear characteristics.  |
|
|
|
OEM Drum Weight (lbs.) | TCI Drum Weight (lbs.) | Weight Savings (lbs.) |
| GM | ||||
| TH350 Direct (Front) | 323900 $816.43 | 7.97 | 3.67 | 4.3 |
| TH400 Forward (Front) | 223800 $582.75 1 | 7.25 | 2.84 | 4.41 |
|
Footnotes: 1 A total of 7 to 8 frictions can be achieved in these drums using special thinner style clutches and a special machined piston. This may be desired in high horsepower applications. |
|
Steel Transmission Drum Kits These drum kits are configured to use high performance frictions and steels, which significantly increase lock-up surface area and allow the drum to hold more torque. The drum is constructed from a high-strength cast steel and has had excess material removed to reduce rotating mass. Oil holes have been added to allow fluid to escape the drum and permit the piston to engage quicker. A standard needle bearing stepped into the front side reduces friction and drag while the high strength, forged-steel clutch hub is built extra tall to accommodate the additional clutch plates.
|
||||||||||||||||||||||
Page 138
DRAG RACE
TRANSMISSION INTERNALS
|
High Performance Input Shafts TCI® Hardened Input Shafts are constructed from hardened, aircraft quality Vaccu Melt 300 billet steel or Vasco 300 high strength steel. They feature increased lubrication flow and strength with a resized diameter that provides optimum stress distribution along the entire length of shaft and along the extended high gear splines to the oil ring. See the chart below to compare the TCI® Input Shaft materials compared to the stock and other aftermarket brands. |
| . | Part # | |
|
|
Vaccu Melt 300 | VASCO 300 Steel |
| Ford | ||
| C4 Input Shaft w/ 24/26-Spline Count | 549700 $275.10 | - |
| AOD Input Shaft Stock Replacement for Lock-Up Applications | - | 439700 $384.55 |
| AOD Input Shaft for Non Lock-Up Applications, for Use w/ TCI® Converter Only | 439600 $305.95 | - |
| E40D Input Shaft | 499700 $560.54 | - |
| 5R55S Input Shaft | 579600 $288.29 | - |
| GM | ||
| 1.76 Powerglide Carrier w/ Turbo Converter Splines, 12 7/8" Length | 749600 $196.05 1 | 749601 $494.34 |
| 1.76 Powerglide Carrier w/ Powerglide Converter Splines, 12 7/8" Length | 749700 $208.70 | - |
| 1.82 Powerglide Carrier w/ Turbo Converter Splines, 12 5/8" Length | 749200 $210.14 1 | 749201 $438.00 |
| 1.82 Powerglide Carrier w/ Powerglide Converter Splines, 12 5/8" Length | 749300 $193.18 | 749301 $486.26 |
| TH400 Heavy-Duty Forward Drum Assembly w/ Larger Dia. Billet Input Shaft Installed (High HP Applications) | 223600 $517.58 | - |
| 1987-93 700R4 Heavy-Duty Drum w/o SmartShell | 373932 $296.71 | - |
| 1982 & Later 700R4/4L60E SmartShell Assembly | 373900 $145.33 | - |
| 1987-97 700R4/4L60E Input Shaft | 379600 $789.71 | - |
| 1987-97 700R4/4L60E Heavy-Duty Drum Assembly | 373930 $414.54 | - |
| 1998 & Later 4L60E LS-Style Input Shaft | 379601 $789.71 | - |
| 1998-05 4L60E Heavy-Duty Drum w/o SmartShell | 373931 $580.91 | - |
| 1998 & Later 4L60E Heavy-Duty Drum w/o SmartShell | 373933 $394.19 | - |
| 4L80E Input Shaft | 279600 $437.15 | - |
|
Footnotes: 1 Installation of the Turbo shaft requires minor machining of the stator shaft or turbine spline bushing in converter |
| . | Part # | |
|
|
Vaccu Melt 300 | VASCO 300 Steel |
| GM | ||
| TH400 Intermediate Shaft | 223700 $949.90 | 223701 $619.76 |
Page 139
DRAG RACE
TRANSMISSION INTERNALS
|
NOTES Engines producing over 800 HP require a PRO-X™ Input Shaft. For 1500+ HP applications, use the PRO-X™ Ringless Input Shaft. Pg. 135 |
 ksi = kilo-pound [-force] per square inch Tensile Strength values are based on proper heat-treat values for the intended application
|
|
TH400 Forged Steel Clutch
Hub Powerglide Clutch Hubs TCI® manufactured clutch hubs for the aluminum case Powerglide transmission. • Stress-proof steel design • "Beefed up" radius for extra strength eliminates breakage between hub center and input shaft spline area • Accept up to six clutch plates but will function with fewer • CNC-machined from 4140 steel forging • Construction is stronger than case OE unit and will resist fracturing, clutch tooth wear and spline failures • Designed for 500+ HP TH400/4L80E applications
|
||||||||||||||
Page 140
DRAG RACE
PLANETARIES & ACCESSORIES
|
Bolt-Together Planetaries This cleverly engineered bolt-together design is available in several gear ratios and shafts, making it the most versatile planetary unit for every racing configuration. The output shafts and gear ratios can be inspected and serviced easily without being sent back to TCI®. The gears are precisely manufactured from heat-treated 9310 steel to provide the strongest, lowest friction and quietest gear set on the market, capable of withstanding any racing environment. Also part of this redesign are steelbacked, bi-metal washers with a wear-resistant PTFE layer that will reduce friction, and therefore reduce heat. Furthermore, the planetaries feature roller thrust bearings instead of washers for the sun gear and input shaft. • Every component is manufactured by TCI® in order to provide the strongest planetary on the market • Bolt-together design allows for easy rebuilds & gear ratio or output shaft change • Strongest & lowest-friction gear set on the market, capable of withstanding any racing environment |
| . |
|
|||
|
|
1.58 | 1.69 | 1.8 | 1.98 |
| For Standard Length Powerglide Transmissions (27 9/16" Overall Length), 27-Spline | ||||
| Bolt-Together Planetary Set | 747630 $3,801.41 | 747610 $1,498.86 | 747600 $1,187.30 | 747620 $1,354.81 |
| For Shorty Length Powerglide Transmissions (19 1/2" Overall Length), 27-Spline | ||||
| Bolt-Together Shorty Planetary Set | 747640 $4,087.35 | 747611 $1,458.54 | 747601 $1,187.30 | 747621 $1,354.81 |
| For Standard Length Powerglide Transmissions (27 9/16" Overall Length), 32-Spline | ||||
| Bolt-Together Planetary Set | - | 747612 $1,648.11 | 747602 $1,624.95 | 747622 $1,711.49 |
| For Shorty Length Powerglide Transmissions (19 1/2" Overall Length), 32-Spline | ||||
| Bolt-Together Shorty Planetary Set | - | 747613 $1,648.11 | 747603 $1,624.95 | 747623 $1,711.49 |
Footnotes: 1 For use with TCI® Bolt-Together Planetary ONLY 1.82 Replacement Planetary 1.82 stock replacement gears for use in small block applications. These include a special reinforced stock planetary. A steel girdle is welded over the housing which greatly increases torque load capacity. The lightweight units provide the maximum benefit due to a reduced rotating weight. The output shaft is gun drilled while the reverse ring gear and carrier are lightened.
|
||||||||||||||||||||||||||||||||||||||||||
Page 141
DRAG RACE
PLANETARIES & ACCESSORIES
|
Powerglide Planetary Low Gear
Ratios The Powerglide planetary is referred to as a compound gear set with a ring gear. Figure 1 demonstrates the various elements of this planetary.  Figure 1 When the transmission is in low gear, the band is holding the high gear drum stationary, which also means that sun gear S1 (flange gear) is stationary. Input is provided through sun gear S2 (center gear). This input is transmitted to pinion gear P2/P3, then to pinion gear P1 (auxiliary gear). Since S1 is being held, P1 is driven around S1 along with the carrier and output shaft. The ratio at which the input shaft turns compared to the output shaft can be determined as follows: Ratio = 1 + [(P2/P3)(S1/S2)] Gear tooth counts for the ratios offered by TCI® are as follows:
Footnotes: 1 Stamped type carrier, uses 12 5/8" input shaft 2 These lines are found on the TCI® long pinion gear teeth |
|
||||||||||||||||||||||||||||||||
Page 142
DRAG RACE
PLANETARIES & ACCESSORIES
| Description | Part # |
| Ford C4 | |
| 1965-82 Low Drag Planetary Set - Complete Set w/ Needle Bearings & Six-Pinion Forward Carrier | 525000 $620.25 |
| Ford C6 | |
| 1967-1976 Low Drag Planetary Set - Complete Set w/ Needle Bearings | 425000 $407.39 |
| 1977-96 Low Drag Planetary Set - Complete Set w/ Needle Bearings | 425001 $420.06 |
| Bearing Set - Replacement Needle Bearings for Complete Set | 424900 $182.38 |
| GM Powerglide | |
| Tailhousing - Reid Casting w/ Roller Bearing Installed | 720008 $334.66 |
| Tailhousing - New Casting w/ Roller Bearing Installed | 720009 $297.48 |
| Low Drag Tailhousing - Stock Casting w/ New Billet Machined Tailstock & Roller Bearing Installed | 720001 $198.34 |
| Shorty Cover - Billet Shorty Cover w/ Roller Bearing Installed | 746401 $185.36 |
| Rear Support - Billet Aluminum Support w/ Roller Bearing Installed | 720005 $117.69 |
| Low Drag SuperCase w/ Liner - Reid Case w/ Roller Bearing Installed & #720005. Rear Support, SFI 30.1 & 4.1 Certified | 720007 $1,944.83 |
| Low Drag Two-Piece SuperCase w/ Liner - Reid Case w/ Roller Bearing Installed & #720005. Rear Support, SFI 30.1 & 4.1 Certified – Bellhousing Optional | 720017 $1,675.11 |
| GM TH350 | |
| Tailhousing - Stock Casting w/ New Billet Tail, Stock & Roller Bearing Installed | 323100 $211.85 |
| GM TH400 | |
| Rear Case Bearing | 224400 $27.09 |
| GM 700R4 | |
| 5-Pinion Rear Planetary | 370000 $479.19 |
| 5-Pinion Front Planetary | 370100 $278.06 |
|
Footnotes: 1 This complete set replaces the troublesome thrust washers w/ needle bearings that reduce friction and extend transmission life. Set includes forward planetary assembly, forward clutch hub, reverse planetary assembly, reverse ring gear, rear sprag inner race and roller bearing rear park gear. Every thrust washer on these assemblies has been replaced with a needle bearing and machine work is done to minimize trouble in setting unit endplay 2 Bearings must be used in both the rear case location and the rear support location to ensure proper lubrication. |
Page 143
DRAG RACE
VALVE BODIES & ACCESSORIES
|
Transbrake Valve Bodies TCI® Transbrake Valve Bodies allow you to achieve maximum torque converter stall and provide for quicker and more consistent reaction times and 60-foot times. This is due to the transbrake action which prevents an engine’s torque load from being transmitted through the drivetrain prior to launch. The transbrake acts in much the same manner as a manual clutch. Once it is engaged, the vehicle can neither roll forward nor backward, and as you press on the accelerator, the engine can turn RPM as high as the torque converter stall. Once the transbrake is released, the power is transmitted immediately to the rear tires in much the same manner as a manual clutch but with the parts saving advantage of the torque converter’s shock absorbing action. |
|
• Transbrake action prevents torque load transmission through drivetrain before launch • Vehicle will not be able to roll forward or backward |
• Power is immediately transferred to rear tires, very similar to a manual clutch |
| Description |
Shift Pattern |
Material | Valve Body Part # |
Gasket Part # |
| Chrysler | ||||
| Torqueflite 727 & 904 Pro Tree Transbrake Kit | P- R- N-1 -2 -3 | Cast Iron | 121900 $1,128.74 1 | - |
| Torqueflite 727 & 904 COMP Transbrake Kit | P- R- 1- 2- 3- N (Safe Neutral) | Cast Iron | 121901 $1,198.85 2,3 | - |
| Ford | ||||
| 1970-82 C4 Transbrake Kit | P- R- N- 1- 2- 3 | Aluminum | 521500 $709.50 1 | - |
| 1969-91 C6 Click-Style Detent Transbrake Kit | P- R- N- 1- 2- 3 | Aluminum | 421500 $904.26 1 | GSK421500 $16.53 |
| 1970-91 C6 Slide Detent Transbrake Kit | P- R- N- 1- 2- 3 | Aluminum | 421501 $904.26 | - |
| GM | ||||
| Powerglide Bracket Transbrake Kit | P- R- N- 2- 1 | Cast Iron | 748200 $561.20 | GSK748200 $24.08 |
| Powerglide Pro Tree Transbrake Kit | P- R- N- 2- 1 (Safe Neutral) | Cast Iron | 628200 $576.21 | GSK628200 $10.95 |
| Powerglide Pro Tree Stage 2 Transbrake Kit | P- R- N- 2- 1 (Safe Neutral) | Cast Iron | 628251 $618.48 | GSK628251 $10.95 |
| TH350 Transbrake Kit, All | P- R- N- 1- 2- 3 | Cast Iron | 321500 $697.76 1 | GSK321500 $27.29 |
| TH350 Transbrake Kit, All, No Solenoid | P- R- N- 1- 2- 3 | Cast Iron | 321501 $569.43 1 | - |
| 1965-91 TH400 Transbrake Kit | P- R- N- 1- 2- 3 | Cast Iron | 221500 $555.00 1 | GSK221500 $24.99 |
| 1965-91 TH400 Transbrake Kit, No Solenoid | P- R- N- 1- 2- 3 | Cast Iron | 221501 $411.00 1 | - |
| 700R4 Transbrake Valve Body Kit | P- R- N- 1- 2- 3 | Aluminum | 376025 $588.98 1 | - |
| 1993 & Later 4L60E Valve Body Kit w/ Engine Braking | P- R- N- 3- 2- 1 | Aluminum | 376035 $643.21 | - |
| 1991-96 4L80E Transbrake Valve Body Kit | P- R- N- 1- 2- 3- OD (Full Manual) | Aluminum | 274500 $799.13 | - |
| 1997-06 4L80E Transbrake Valve Body Kit | P- R- N- 1- 2- 3- OD (Full Manual) | Aluminum | 274501 $881.39 | - |
|
Footnotes: 1 Reverse shift pattern 2 Shift pattern P-R-1-2-3-N; Reverse is Neutral until transbrake button is applied 3 Use TCI® #146901. 4.2 ratio lever |
Page 144
DRAG RACE
VALVE BODIES & ACCESSORIES
|
Full Manual Valve Bodies The competition valve body was designed for maximum performance and quick elapsed times in racing applications. By controlling the valve body only through manual means, quicker shift timing and the ability to run higher line pressures than possible with an automatic shift transmission are achieved. Higher line pressure makes it more difficult for clutches to slip under high loads. TCI® Full Manual Valve Bodies are an excellent choice for bracket cars, monster trucks and virtually any off-road competition vehicle where a transbrake is either not legal or not desired.
Footnotes: 1 Use TCI® #146901. 4.2 ratio lever 2 Retains 2nd gear engine braking 3 Retains 1st and 2nd gear engine braking 4 Retains lock-up capability |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 Transbrake Release Valves Direct replacement for TCI® Transbrake Valve Bodies.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Page 145
DRAG RACE
VALVE BODY ACCESSORIES/SERVOS
|
Transbrake Solenoids The TCI® solenoid motor is only 1.025" long, the most compact, space-saving solenoid available. The conical face design is able to handle higher forces than standard flat-faced solenoids with .180" to .200" strokes. The high-efficiency, precision wound coil maximizes the amount of copper in the allowable space for maximum force, and the two-wire set-up ensures a good quality ground can be established. • Precision-ground steel shaft with bronze bushing, shaft-pinned nut and unique lip seal prevent fluid leakage while minimizing drag • Shaft-pinned nut for secure placement
Transbrake Switches • Switches can be used for transbrake and RollStop® • Spiral cords allow various mounting locations • All microswitches are injection molded to spiral cord to prevent wire separation |
|
|
Powerglide Dual Ring Servo
Kit For greater durability and consistent performance in the Powerglide, TCI® has created the Dual Ring Servo Kit which recieves hydraulic oil in order to tighten the bands around the transmission drum to prevent it from turning. This kit uses two Teflon sealing rings in place of the original single design or dual rubber ring designs offered elsewhere. This doubles sealing effectiveness and prevents excessive leakage which can reduce band apply force. This feature also reduces vehicle rocking when the transbrake is applied and provides additional stability in low gear. Perfect for the Super Class racer seeking positive transbrake engagement when staging.
Powerglide Aluminum Servo Cover • Superior sealing ability and improved appearance over stock cast iron cover • CNC-machined from billet aluminum and anodized red with laser etched logo • All hardware included
 |
Page 146
DRAG RACE
TRANSMISSION PANS & ACCESSORIES
.
|
Die Cast Deep Aluminum Pan for Powerglide Transmissions This deep pan is the first of its kind with revolutionary features that every high performance automotive enthusiast will appreciate. Inside, the pan incorporates patent-pending, heat dissipating “inverted-dimples” that increase the surface area inside the pan. These unique “heat suckers” pull heat toward the exterior of the pan – ultimately lowering the temperature of the fluid. On the outside of the pan, exterior fins are slightly angled to create a funnel effect which increases the air speed across the surface. Finally, the pan's exterior is black powder coated to absorb heat from the interior and further lower operating temperatures |
| The die cast design is 1 ½ lbs lighter than the industry standard sand cast version and does not suffer from the porosity issues that plague those pans. No volume is lost with the lighter design – in fact, the TCI® Die Cast Deep Aluminum Pan for Powerglides holds two extra quarts of fluid over standard designs. |
|
• Angled exterior fin design increases airflow speed to pull heat away from the pan • Patent-pending, heat dissipating dimples increase the surface area and remove heat • Holds two extra quarts of fluid and weighs 1 ½ lbs. lighter than traditional sand cast pans • O-ring style drain plug eliminates leakage issues
 |
|
High Flow Filter System For Powerglide and TH350 • Increases fluid flow in Powerglide and TH350 transmissions under high RPM racing conditions • Adapter kit installs High Flow Filter for each application to ensure proper fluid supply • Must be used in conjunction with TCI® Cast Aluminum Deep Pan (see page 55-56) • Kit includes: filter, filter gasket, oil pan gasket and filter adapter with mounting hardware
 |
Page 147
DRAG RACE
TRANSMISSION ACCESSORIES
|
Dipsticks Sourcing certain components for your race car can be frustrating at times. You've got a new transmission, torque converter, cooler and shifter, but now you discover that your dipstick is damaged, or even worse, missing altogether. TCI® recommends a part from its line of quality dipsticks for GM Powerglide transmissions. Each dipstick features a locking stick which satisfies sanctioning bodies' racing rules. The rubber boot seal is a vast improvement over the small o-ring typically used on older OEM tube designs.  |
|
|
Notes | Color/Finish |
|
| GM | |||
| Powerglide Dipstick | Full Length, Locking-Style Stick; Race or Street Use | Chrome Plate | 743700 $50.56 |
| Powerglide Dipstick | Full Length, Locking-Style Stick; Race or Street Use | Clear Zinc | 743800 $63.49 |
| Powerglide Dipstick for 1/4" Mid-Plate | Full Length, Locking Assembly Bent to Fit w/ 1/4" Motor Plates; Common in Race Vehicles Gold Dichromate | Gold Dichromate | 743804 $78.73 |
| Powerglide Shorty Dipstick | Shorty, Locking Assembly; Race Applications | Clear Zinc | 743850 $80.14 |
| Reid Powerglide Shorty Dipstick | Shorty, Locking Assembly Designed for Reid Case Powerglide Transmissions; Race Applications | Gold Dichromate | 743810 $78.73 |
|
Bellhousings & Cases These bellhousings must be used with the Reid Two-Piece Case with Liner, TCI® Part #720012 $1,638.44 |
|
|
Powerglide Band Adjustment
Screw The TCI® Powerglide Band Adjustment Screw is made from hardened and tempered alloy steel to prevent bending or breakage that can lead to slippage or possibly tranmission breakage. This band adjustment screw is designed for use with OE or aftermarket cases. Stock thread length with zinc-plating to prevent corrosion. |
|
|
|
| Powerglide Band Adjustment Screw | 744310 |
Page 148
DRAG RACE
TRANSMISSION ACCESSORIES
|
Powerglide Gerotor Pumps In racing, durability and light weight are the key ingredients to winning, and TCI® is known for building the ultimate performing GM Powerglide drag racing automatic transmissions and components, including gerotor pumps. TCI® Gerotor Pumps offer several design advantages over the OEM involute-style pumps, including improved low RPM flow and reduced horsepower consumption. The aluminum style significantly reduces pump weight by six pounds from the overall transmission weight without sacrificing strength and dissipates heat more efficiently than the factory pump. Both styles have bolt-in, heat-treated stator support tubes and dry film lubricated gears to reduce friction and wear. The high volume pumps also handle line pressures up to 300 psi. • Friction-reduction coated to decrease drag • Aluminum dissipates heat quickly for added durability • Bolt-in stator support tube eliminates tube flex & twist
|
|
Chevrolet Flexplate Shield/Mid-Mount Plate Combination • 1/8" thick steel, 17.5" x 28.5" mid-mount plate constructed of carbon steel mounts the engine to the chassis • Allows racer to easily remove transmission from vehicle • Perfect for vehicles with little transmission tunnel clearance for a conventional style shield • Can be used strictly as a flexplate shield by mounting between the engine and the transmission • SFI 30.1 certified
Footnote: 1 Works only with small-bolt pattern torque converters  |
||||||||||||||
|
Mounting Bolts The proper size and grade fasteners for our products.
 |
Page 149
HEAVY-DUTY/TOWING
TORQUE CONVERTERS
#142261 $1,053.09
Dodge Cummins Diesel
Maximizer™ Torque Converter
|
Maximizer™ Towing The fuel-efficient TCI® Maximizer™ Towing Converter is designed to reduce the slippage found in all non lock-up torque converters. The Maximizer™ series enables transmissions to run cooler and reduces engine RPM at highway speeds. In addition to the resulting fuel mileage increases, the Maximizer ™ Towing Converter also lowers transmission temperature by as much as 20° F. This is an excellent choice for motor homes, tow vehicles and other heavy load applications. Stall speeds range from 1000 to 1200 RPM. Maximizer™ Street These torque converters have some of the same performance characteristics as our standard Saturday Night Special® series for street applications, but they are built with extra reinforcement, tougher turbine splines and thicker mounting surfaces to withstand the additional load and vibrations put through the drivetrain by a modified off-road 4x4 truck. By providing additional stall, trucks will see better initial takeoff and will not lug the engine when using big tires. Special attention is made to match the converter to the power range of most trucks that do double duty as an off-road and daily driver. Improved rear wheel horsepower and elapsed times are a result. Stall speeds range from 1600 to 2000 RPM. |
| Application | Maximizer Towing | Maximizer Street |
| Chrysler | ||
| 1967-81 Torqueflite 727, 27-Spline | 142240 $541.38 | - |
| 1982-90 Torqueflite 904 & 1991-92 A500, 26-Spline | - | 141350 $685.58 |
| 1993-95 A518LU, 23-Spline | - | 141250 $667.23 |
| 1995-04 Dodge Cummins Diesel A618-48RE, 23-Spline | 142261 $1,053.09 14 | - |
| 2005 & Later Dodge Hemi Truck 545RFE | - | 141600 $713.84 |
| Ford | ||
| 1970-82 C4, 10.5" Bolt Circle, 26-Spline, Dipstick Goes Into Transmission Case | 452630 $450.94 | - |
| 1971-91 C6 1.375" Crank Pilot (289, 302, 351, 400, 429, 460) | 443630 $422.68 | 441500 $477.76 |
| 1988-94 C6 w/ 7.3L Diesel | 443632 $441.03 | - |
| 1966-84 C6 w/ 1.850" Crank Pilot (332, 360, 390, 406, 427, 428) | 443610 $422.68 | 441800 $452.73 |
| 1989-03 E4OD/4R100 RV/Towing, 4-Lug Front | 492200 $956.98 | - |
| 1989-03 E4OD/4R100 RV/Towing, 6-Lug Forged Steel Front w/ Triple-Disc Clutch & Steel Stator | 492202 $1,643.80 | - |
| GM | ||
| 1965-81 TH350, 375B w/ Small Bolt Pattern (Except Lock-Up) | 243510-A $418.40 | - |
| 1965-91 TH400, 425, 375 w/ Wide-Bolt Pattern (Except Variable Pitch) |
241110 $525.06 79 , 243410 $425.48 79 |
241602 $528.68 10 |
| TH400 w/ Cummins Diesel | 240500 $536.28 79 | - |
| 1984-91 700R4, 30-Spline, 1.703" Crank Pilot | 242820 $555.23 | - |
| 1999 & Later 4L60E/4L65E Trucks w/ 4.8L, 5.3L, 6.0L Engines | 242936 $732.09 4 | 242935 $692.33 4 |
| 1992 & Later 4L80E/4L85E | 242910 $855.49 | 242916 $786.95 |
|
Footnotes: See Master Footnote Listing On Page 4. 4 300mm Diameter converter 10 With heavy-duty front anti-ballooning plate for nitrous applications 14 Billet/forged steel front 79 13" Converter |
| NON LOCK-UP UNITS LISTED IN BLACK, LOCK-UP UNITS LISTED IN RED |
Page 150
HEAVY-DUTY/TOWING
TRANSMISSIONS
|
Heavy-Duty RV Transmissions This is the perfect transmission for your two-wheel drive towing and heavy-load trucking needs that range from 450 to 550 HP, depending on the application. These units have valve body modifications that increase cooler flow and improve shift characteristics without the harsh feel of a racing style transmission. When used with a TCI® Heavy-Duty Towing Torque Converter, you can be sure the transmission package is tailored to provide long, dependable service and maximum fuel economy. The optional low gear package offered with each of our RV units is a great addition for trucks pulling heavy loads. Maximizer™ 4x4 Transmissions The Maximizer™ 4x4 Transmissions bring performance to your four-wheel drive. A four-wheel drive application is especially tough on an automatic transmission, and the addition of bigger tires makes the job even harder. The Maximizer™ series is designed to be as tough as your truck, because each transmission is built with the best components available and programmed to provide crisp shifts time and time again for applications ranging from 450 to 550 HP. Full Manual Competition 4x4 Transmissions Whether you drive a sand dragger, hill climber or tractor puller, TCI® has the transmission for you. The competition line of 4x4 transmissions is built following the same specifications used when building thousands of drag race units and are designed for 600+ HP applications. These units are also available with Transbrake Valve Bodies. CUSTOM BUILT TRANSMISSIONS Most popular listings are shown in the chart, but if you have special requirements, please contact us and we can custom build a competition unit to your specifications. |
Page 151
HEAVY-DUTY/TOWING
TRANSMISSION
| .. |
|
||||
| Application | Engine Size/ Type | Heavy-Duty RV | Maximizer 4x4 | Full Manual Competition 4x4 | |
| Chrysler | |||||
| 1967-79 Torqueflite 727, Small Block | 318, 340, 360 | - | 111600 $1,649.91 82 | - | |
| Ford | |||||
| 1966-91 C6 | 289, 302, 351C, | 411401 $1,962.43 |
411800 $1,826.78 85, 411801 $1,871.40 86, 411802 $1,891.38 87 |
- | |
| 1966-91 C6 | 351M, 400, 429, | - |
411700 $1,818.03 85, 411701 $1,871.4086, 411702 $1,826.78 87 |
- | |
| 1966-84, FE | 332, 352, 390, | - | - | 41250 287, 10 3 | |
| 1980-93 AOD | 302. 351 | - | 431400 $2,549.89 | - | |
| GM | |||||
| Pre-1980 TH350, 203/205 NP Transfer Case | Chevrolet V8 | - |
311600 $2,124.39 89, 311200 $2,138.24 91, 311210 26,91 |
312300 $1,761.45 89 | |
| 1980-82 TH350, 208 NP Transfer Case, 6-Bolt Dust Cover | Chevrolet V8, 4.3L V6 | - | 311500 $2,348.50 92,93 | - | |
| 1982 & Later TH350, 208 NP Transfer Case, 4-Bolt Dust Cover, Replaces 700R4 Applications | Chevrolet V8, 4.3L V6 | - |
311700 $2,348.50 93, 311710 26,93 |
- | |
| TH400, 4" Tailshaft | All Chevrolet | 111600 $1,649.91 82 | - | - | |
| TH400, 203 NP Transfer Case | All Chevrolet | - | 211402 $2,389.39 | 212615 $2,652.40 53 | |
| TH400, 205 NP | All Chevrolet | - | 211401 $2,384.00 | - | |
| Pre-1980 TH400 Transfer Case | All Chevrolet | - | 211400 $2,356.23 |
212800, 212600 $3,182.26 26 |
|
| TH400, Replaces TH350 4x4 | All Chevrolet | - | 211100 $2,422.76 94 | - | |
| TH400, Replaces 700R4 4x4 | All Chevrolet | - | 211101 $2,422.76 96 | - | |
| 1984-93 700R4, 30-Spline | V8 | 371002 $3,132.41 |
371400 $3,188.79, 371402 $3,182.90 90, 371405 $4,750.61 98, 371460 $3,346.00 97 |
- | |
| 1984-93 Diesel 700R4, 30-Spline | Diesel | - | 371403 $2,772.24 | - | |
| 1996-97 4L60E Truck | V8 | 371010 $3,365.76 | 371420 $3,903.44 | - | |
| 1998-05 4L60E Vortec | Vortec | 371015 $3,815.88 | - | - | |
| 2000-05 4L60E LS1 Truck | 4.8L, 5.3L, 6.0L | 371016 $3,653.09 | 371416 $3,903.44 | - | |
| 1993-94 4L60E | V8 | 371030 $4,018.60 | - | - | |
| 1993 ½-96 4L80E | V8 | - | 271400 $4,325.80 | - | |
| 1995 4L60E Truck | V8 | - | 371415 $4,080.05 | - | |
| 1997-06 4L80E | V8 | 271100 $4,271.05 | 271500 $4,732.13 | - | |
|
Footnotes: See Master Footnote Listing On Page 4. 26 Special 2.75 low gear set installed 91 6-Bolt dust cover 53 High performance clutches 92 Replaces 700R4 applications 83 With bolt-on yoke 94 With Part #229900. adapter installed, replaces pre-1980 TH350 4x4 85 Remote transfer case 96 With Part #229901. adapter installed, replaces 700R4 4x4 & 1980-83 TH350 4x4 86 5" Spacer between transmission & transfer case - spacer NOT included 97 Non lock-up, still retains automatic shift features 87 8" Spacer between transmission & transfer case - spacer NOT included 98 Built to Super StreetFighter™ specs 89 4-Bolt dust cover 102 Full engine braking & TCC operation in all forward gears 90 Four wheel drive heavy-duty RV version 103 Customer must provide core. Call for details. 93 With Part #329900. adapter installed 91 6-Bolt dust cover 92 Replaces 700R4 applications 93 With Part #329900. adapter installed 94 With Part #229900. adapter installed, replaces pre-1980 TH350 4x4 96 With Part #229901. adapter installed, replaces 700R4 4x4 & 1980-83 TH350 4x4 97 Non lock-up, still retains automatic shift features 98 Built to Super StreetFighter™ specs 102 Full engine braking & TCC operation in all forward gears 103 Customerr must provide core. Call for details. |
| NON LOCK-UP UNITS LISTED IN BLACK, LOCK-UP UNITS LISTED IN RED |
Page 152
HEAVY-DUTY/TOWING
TRANSMISSION PACKAGES
#371002P1 $3,832.59
GM 700R4 Heavy-Duty RV Transmission Package
|
TCI® Maximizer™, RV & Towing Transmission Packages Heavy-duty Maximizer™ Transmission Packages combine specifically matched components to produce a firm, steady shift that is perfect for trucks, RVs, 4x4s and towing applications. Each component-matched TCI® Maximizer™ Transmission Package contains a TCI® transmission and torque converter, universal transmission cooler and three gallons of premium TCI® Max Shift™ Performance Transmission Fluid. Each transmission and torque converter were individually Triple Tested and certified to ensure that you receive the best possible package for your application. Maximizer™ Towing Packages were designed to be used in applications ranging from 450 to 550 HP. Each transmission includes a valve body that has been individually tested to ensure proper shifting and correct alignment, while the transmission itself was hydraulic and dyno tested. The torque converter has also been tested and includes upgraded parts, including furnace- brazed fins for increased durability and heavy-duty caged bearings that are much stronger than individual style bearings. Another important feature of the torque converter is improved cooler flow for better cooling and planetary lubrication. Also included in the package is the popular Max Shift™ Transmission Fluid that reduces internal friction and heat build-up (while promoting clutch lock-up) for increased shift quality and life. The premium fluid was developed with ultrapure base oils that resist viscosity breakdown and extend fluid change intervals while exceeding Mercon® and Dexron® performance specifications. Most important, Max Shift™ contains exclusive friction eliminating, anti-foaming and extreme heat additives. No other additives or treatments are needed. Simply pour in Max Shift™ for an instant upgrade to your new Maximizer™ RV & Towing Package.
|
||||||||
Page 153
HEAVY-DUTY/TOWING
TRANSMISSION PACKAGES
| . | Part # | ||||
| Application | Engine | Package | Trans- mission | Converter | Misc. |
| Ford | |||||
| 1966-91 C6, 13 ½" Tailshaft | 289, 302, 351C, 351W | 411401P1 $2,353.60 | 411401 $1,962.43 | 443630 $422.68 |
743813 $95.38 (Filler Tube) |
| GM | |||||
| Pre-1980 TH350, 203/205 NP Transfer Case | Chevrolet V8 | 311600P1 $2,560.64 | 311600 $2,124.39 | 241500-A |
743860 $34.20 (Dipstick), 376900 $43.28 (Universal TV Cable) |
| TH400 Non Variable Pitch, 4" Tailshaft | All Chevrolet | 211001P1 $2,639.26 | 211001 $2,270.08 83 | 243410 $425.48 79 |
743860 $34.20 (Filler Tube) |
|
1984-93 700R4, 30-Spline, 30 ½" Overall Length 1 |
Chevrolet V8 | 371002P1 $3,832.59 | 371002 $3,132.41 | 242820 $555.23 |
743865 $44.96 (Filler Tube), 376800 $49.84 (Universal TV Cable) |
| 1984-93 700R4, 30-Spline 4x4 for NP 208/241 Transfer Case 1 | Chevrolet V8 | 371402P1 $3,702.20 | 371402 $3,182.90 90 | 242820 $555.23 |
743865 $44.96 (Filler Tube), 376800 $49.84 (Universal TV Cable) |
| 1993-94 4L60E | Truck, B-Body | 371030P1 $4,627.34 | 371030 $4,018.60 | 242820 $555.23 |
743865 $44.96 (Filler Tube) |
| 1996-97 4L60E | Truck, B-Body | 371010P1 $4,277.21 | 371010 $3,365.76 | 242820 $555.23 |
743865 $44.96 (Filler Tube) |
| 2000-03 4L60E | LS-Style Truck 38 | 371016P1 $4,312.09 | 371016 $3,653.09 | 242935 $692.33 4 |
743865 $44.96 (Filler Tube) |
| 2000-03 4L60E | LS-Style Truck 38 | 371016P7 $4,541.34 | 371016 $3,653.09 | 242936 $732.09 4 |
743865 $44.96 (Dipstick) |
| 1997 & Later 4L80E, 30-Spline | Chevrolet V8 | 271100P1 $5,417.68 | 271100 $4,271.05 | 242910 $855.49 |
743805 $87.85 (Filler Tube) |
| NON LOCK-UP UNITS LISTED IN BLACK, LOCK-UP UNITS LISTED IN RED |
Page 154
HEAVY-DUTY/TOWING
REBUILD KITS
|
Maximizer™ Transmission
Kits TCI® Maximizer™ Transmission Kits are transmission overhaul kits that are ideally suited for off-road, towing and other severeduty applications. Kits cover most of the popular automatic transmissions found in light and medium duty applications. Each kit contains gaskets, seals, premium-quality frictions, steels, a high volume filter, and even a drain plug kit. Also included is a Valve Body Performance Improvement Kit that delivers a good, solid shift suitable for towing applications. Valve body recalibration modifications provide "crisper" shifts without the "harsh" feel that you often find in kits designed for racing. Durability is improved as there is less heat generated per shift than is associated with the OEM shift characteristics. The Maximizer™ Kits also increase the torque capacity of transmissions to make towing or off roading a breeze.
|
||||||||||||||||||||||||||||||
|
Maximizer™ Conversion
Kits TCI® offers many different types of conversion kits that enable interchange of various styles of GM transmissions. This is particularly useful for heavy-load vehicles that may benefit from a heavier-duty transmission for dependability. All kits provide the necessary adapter plate, output shaft and hardware required for installation. Kits will require some degree of driveline modification.  |
| Conver- ting From: | Conver- ting To: | Application | Transfer Case | Required Modifcations | Part # |
| TH350 | TH400 | Pre-1980 4WD | 203 or 205 | Shorten Rear Driveshaft 3.7" & Lengthen Front Driveshaft 3.7" | 229900 $595.91 |
| TH350 | TH400 |
1980 & Later 4WD GM w/ 3" Spacer to Transfer Case |
208 or 241 | Shorten Rear Driveshaft 3.7" & Lengthen Front Driveshaft 3.7" | 229901 $413.36 |
| TH350 | TH400 |
1981 & Later 4WD GM w/ 5" Spacer to Transfer Case |
208 or 241 | Shorten Rear Driveshaft 3.7" & Lengthen Front Driveshaft 3.7" | 229902 $406.43 |
| 700R4 (4L60E) | TH350 | All 700R4 4WD V8 | 208 or 241 | None | 329900 $269.04 1 |
| 700R4 (4L60E) | TH400 | All 700R4 4WD V8 | 208 or 241 | Lengthen Front Driveshaft 15/16" | 229901 $413.36 |
| 1 Part #329900. also contains dust cover, dipstick, detent cable and replacement shift indicator |
Page 155
HEAVY-DUTY/TOWING/
OFF-ROAD/4X4
REBUILD KITS
|
Sealing Ring Kits Sealing Ring Kits contain all rings normally required during a transmission rebuild. Often, these rings are difficult to find, so TCI® has conveniently put them all in one kit. These durable metal and/or Teflon-style rings stop leaks from forming inside the transmission, thus preventing shifting problems. |
 |
||||||||||||||||||||
|
Thrust Washer Kits Thrust Washer Kits from TCI® contain assorted thickness Babbit and/or nylon thrust washers to correctly set proper case clearance and controlling end play during transmission assembly. |
 |
||||||||||||||||
Bushing Kits
| TCI® Bushing Kits contain all of the bushings normally required during a transmission rebuild. The durable bronze or Babbitstyle bushings have a long service life to keep your transmission running smoothly for longer |
 |
||||||||||||||||||||||||||||||||||||
Page 156
HEAVY-DUTY/TOWING
COOLING
|
Heavy-Duty Engine Oil Cooler
Kit Perfect for tow trucks, motor homes and other vehicles used in heavy-load applications, the TCI® Heavy-Duty Engine Oil Cooler Kit provides a continuous cooling of engine oil while the engine is running and is the best way to ensure proper engine oil cooling under heavier than normal driving conditions. The kit ensures a drop of 20° to 30° F in engine oil operating temperatures and a thermostatic sandwich adapter enables the use of the original oil filter.
 |
||||||||||
|
Performance Transmission Coolers TCI® high performance coolers are designed specifically for racing but can also be used in street and towing applications. Due to a superior “tube and fin” design, you can expect our coolers to meet your needs. Constructed entirely from aluminum, the coolers are black powder coated for an aggressive race look and have #6 AN fittings for connection to either steel braided or high pressure lines. These coolers are pressure checked to 300 psi. • Lightweight aluminum, black powder coated construction • Dense fin pack for high efficiency • #6 AN female connectors to either steel braided or high pressure lines • Pressure checked to 300psi • All coolers include Part #821500. Quick Mount Kit
|
||||||||||
|
Max-Cool™ Transmission
Coolers A TCI® Max-Cool™ Transmission Cooler is the most effective way to keep your transmission cool and extend its durability and performance. Available in four different sizes, the Max-Cool™ Transmission Coolers utilize a special “plate and fin” design to reduce transmission temperatures by 33%. • Feature pre-drilled mounting plates and 3/8" push-on fittings for easy installation and improved durability • Most compact, efficient coolers on the market • Available in four different sizes ranging from 4" x 11" x 3/4" through 9 7/8" x 11" x 3/4"
|
Page 157
HEAVY-DUTY/TOWING
COOLING/ACCESSORIES
Transmission Cooler Fittings
CHRYSLER
FORD
GM
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 Ford E4OD/4R100 Components
|
| Technical and sales personnel are available 7 a.m. to 6 p.m. CST, Monday through Friday. TCI® is closed on weekends and legal holidays. Prior to contacting us for technical assistance, it is helpful to obtain a copy of the transmission and torque converter recommendation form from this catalog or the website. The information requested in this form will help us to recommend the best possible parts for your application. |
|
Goods Damaged In Shipment All shipments are insured; therefore claims for damage must be made with the freight company. Do not return the merchandise to us unless prior arrangements have been made. |
|
Limited Warranty Warranty coverage requires the use of TCI® Max Shift™
Cooler Flush (or equivalent) to remove debris which could impact
the |
|
There is absolutely no warranty
on the following: A. Any product that has been physically altered, improperly installed or maintained. B. Any product used in an improper application, abused, or not used in connection with the proper parts. C. Any product that is defective due to accident, neglect or unauthorized repair. D. Any product where proper cooling and/or fluid levels have not been maintained. E. Any transmission not used with a TCI® torque converter. |
| There is no implied warranty of merchantability or fitness for a particular purpose. TCI®’s obligation under this warranty is limited to the repair or replacement of its products. There are no warranties that extend beyond the description on the face of this warranty. TCI® Automotive will not be responsible for incidental and consequential damages, property damage or personal injury damages to the extent permitted by law. If there is by law an implied warranty of merchantability and/or fitness, they are limited to the warranty term set forth above and start from the date of the original purchase. This limited warranty gives you specific legal rights and you may have other legal rights, which vary from state to state or country to country. This warranty is subject to the following: rebuilding of transmission will be limited to replacement of all friction materials, gaskets and seals. There will be an additional charge for parts that are damaged as a result of items not covered by this warranty. Please note that all TCI® transmissions or converters must be operated with a transmission cooling system that is in addition to the stock radiator-type cooler. |
|
Merchandise Returns In order to provide better customer service, we require prior approval before a customer returns merchandise for warranty or for other reasons. To obtain a Return Material Authorization (RMA), contact us. All merchandise returned to us should be sent freight prepaid and insured. TCI® is not liable for any taxes or duties associated with international shipments. Items returned for credit must be in perfect condition. Inside the package you must also include your name, address, phone number, email address and/or other contact information, along with an explanation of the problem and work to be done. This contact information is important because it allows us to get in touch with you concerning your parts. |
Page 162
