Page 65

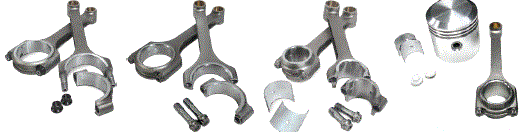

Model A Rod
2-A7500-1500
New Model “T” Connecting Rods allow for easy
Installation of SCAT’s 4340 Chromoly Forged
Counterweighted 4.250” (Model A Stroke) Cranks
• Use STD. Model “T”
Pistons & 0.740 STD. Pins
• No more special pistons required
• Teflon buttons furnished
which require machining for final fit
• 1/2 LB lighter per rod assembly
then Model “A”
• 4340 Chromoly Forgings
• Racing inspired H-Beam Design
• 3/8 ARP Ultra Strength Fasteners
• Insert or Babbitt Bearings
• Match balanced into sets
of 4 professionally in
house at SCAT Crankshafts, Redondo Beach, CA
FORD VINTAGE
Page 66
MODEL A / MODEL T COUNTERWEIGHTED HIGH
TENSILE CHROMOLY FORGED CRANKSHAFTS
FORD MODEL A/B/T
PART NUMBERS WITH “H” COME WITH STRAIGHT
SHOT OILING HOLES

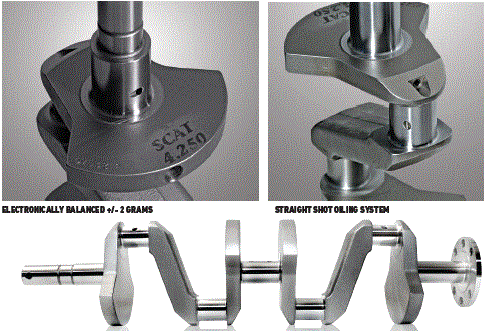

FEATURES & BENEFITS
• Exterior profile fully machined
• All four counterweights machined
to exact symmetrical position and mass
• Electronically balanced to
+/- 2 grams
• Ground to exacting tolerances
• Micro-polished for maximum
bearing life
|
PART NUMBER |
Desc. |
Mains |
Stroke |
SEAL DIA. |
ROD DIA. |
|
7T4000 $3,114.32 |
Model 'T' Replacement 1908-1927 |
1.250" |
4.000" |
N/A |
1.250 |
|
7T4000-H |
Model 'T' Replacement 1908-1927, with oil holes |
1.250" |
4.000" |
N/A |
1.250 |
|
7T4250-1590 |
Model 'T' Stroker, 4.250" Stroke, Model 'A' Rod Journal |
1.590" |
4.250" |
N/A |
1.500 |
|
7T-250-1590H |
Model 'T' Stroker, 4.250" Stroke, Model 'A' Rod Journal,
with oil holes |
1.590" |
4.250" |
N/A |
1.500 |
|
7T4250-1625 |
Model 'T' Stroker, 4.250" Stroke, Model 'A' Rod Journal |
1.625" |
4.250" |
N/A |
1.500 |
|
7T4250-1625H |
Model 'T' Stroker, 4.250" Stroke, Model 'A' Rod Journal,
with oil holes |
1.625" |
4.250" |
N/A |
1.500 |
|
7A4250 $3,114.32 |
Model 'A' Replacement 1928-1931* |
1.625" |
4.250" |
2.110 |
1.500 |
|
7A4250S $3,114.32 |
Model 'A' Replacement 1928-1931, with slinger |
1.625" |
4.250" |
N/A |
1.500 |
|
7A4250H $3,274.97 |
Model 'A' Replacement 1928-1931, with oil holes* |
1.625" |
4.250" |
2.110 |
1.500 |
|
7A4250C $3,114.32 |
Model 'A' Replacement, 1928-1931 |
1.625 |
4.250 |
2.432 (**) |
1.500 |
|
7A4250CH |
Model 'A' Replacement, 1928-1931, with oil holes |
1.625 |
4.250 |
2.432 (**) |
1.500 |
|
7B4250 $3,269.62 |
Model 'B/C' 1932-1934* |
2.000" |
4.250" |
2.432 (**) |
1.500 |
|
7B4250H $3,274.97 |
Model B/C 1932-1934, Uses Model 'A' Rod with oil
holes* |
2.000" |
4.250" |
2.432 (**) |
1.500 |
(*) Weights (lbs) are approximate, actuals may vary
(**) All have Chevy oil seal diameter
Page 67
FORD VINTAGE
MODEL A / MODEL T STROKER & FORD 239
CONNECTING RODS, PISTONS AND BEARINGS
|
H-BEAM CHROMOLY HIGH TENSILE FORGED CONNECTING RODS |
|
PART NO. |
Desc. |
Rod Length |
Crank Pin |
Wrist Pin |
B.E. Width |
Wght. (*) |
|
2T675 |
Model T, Bushed, ARP 8740 3/8" Cap Screws (stroker) |
6.875 |
1.500 |
0.740 |
1.625 |
665 |
|
2T700 $776.16 |
Model T, Bushed ARP 8740 3/8" Studs (replacement) |
7.000 |
1.250 |
0.740 |
1.500 |
NEW |
|
675015 $773.42 773.42 |
Model A, Bushed, ARP 8740 7/16" Cap Screws |
7.500 |
1.500 |
1.000 |
1.625 |
745 |
|
6700 $1,024.47 |
Flathead, Bushed, ARP 8740 3/8" Cap Screws (*) |
7.000 |
2.000 |
0.750 |
0.865 |
530 |
|
670021 $1,024.47 |
Flathead, Bushed, ARP 8740 3/8" Stud & Nut |
7.000 |
2.138 |
0.750 |
0.865 |
530 |
-------670021 ------------6700-----------------675015------------2T675--------
PISTONS (INCL RINGS)  |
|
PART NO. |
SIZE |
Desc. |
Stroke |
Rod Length |
Piston Class |
Ring Grooves |
C.H. |
Wght. (*) |
|
80564 |
3.312 |
Flathead |
4.000 |
7.000 |
Forged |
3/32, 3/32, 5/32 |
1.436 |
514 |
|
80571 |
3.375 |
Flathead |
4.125 |
7.000 |
Forged |
3/32, 3/32, 5/32 |
1.374 |
347 |
|
80572 |
3.312 |
Flathead |
4.125 |
7.000 |
Forged |
3/32, 3/32, 5/32 |
1.374 |
312 |
|
80574 |
3.312 |
Flathead |
4.250 |
7.000 |
Forged |
3/32, 3/32, 5/32 |
1.311 |
320 |
|
80576 |
3.375 |
Flathead |
4.250 |
7.000 |
Forged |
3/32, 3/32, 5/32 |
1.311 |
325 |
(*) Weights (gms) are approximate, actuals may vary.
MAIN BEARINGS  |
|
PART NO. |
SIZE |
Desc. |
|
MS352.000 |
STD |
Flathead (1939-48) 59A Block |
|
MS352.010 |
0.010 |
Flathead (1939-48) 59A Block |
|
MS352.020 |
0.020 |
Flathead (1939-48) 59A Block |
|
MS352.030 |
0.030 |
Flathead (1939-48) 59A Block |
|
MS352A.000 |
STD |
Flathead (1949-53) 8Ba Block |
|
MS352A.010 |
0.010 |
Flathead (1949-53) 8Ba Block |
|
MS352A.020 |
0.020 |
Flathead (1949-53) 8Ba Block |
|
MS352A.030 |
0.030 |
Flathead (1949-53) 8Ba Block |
Other undersizes available
OIL FILTER BRACKET  |
|
PART NO. |
Desc. |
|
50073 |
Oil Filter Bracket, with press relief |
|
ROD BEARINGS |
|
PART NO. |
SIZE |
Desc. |
Connecting Rod use with |
Jour. Size |
NOTES |
|
CR1273AM |
STD |
Model A |
675015 $773.42 773.42 |
1.500 |
Inserts For Scat Rods |
|
CR1273AM-10 |
0.010 |
Model A |
675015 $773.42 773.42 |
1.490 |
Inserts For Scat Rods |
|
CR1273AM-20 |
0.020 |
Model A |
675015 $773.42 773.42 |
1.480 |
Inserts For Scat Rods |
|
CR1273AM-30 |
0.030 |
Model A |
675015 $773.42 773.42 |
1.470 |
Inserts For Scat Rods |
|
CR811AM |
STD |
Flathead |
6700 $1,024.47 1,024.47 |
2.000 |
For Scat Rods Only |
|
CR811AM-1 |
0.001 |
Flathead |
6700 $1,024.47 1,024.47 |
1.999 |
For Scat Rods Only |
|
CR811AM-10 |
0.010 |
Flathead |
6700 $1,024.47 1,024.47 |
1.990 |
For Scat Rods Only |
|
CR8022AM |
STD |
Flathead |
670021 $1,024.47 1,024.47 |
2.138 |
Std Ford Rods, 1946-1953 |
|
CR8022AM-10 |
0.010 |
Flathead |
670021 $1,024.47 1,024.47 |
2.128 |
Std Ford Rods, 1946-1953 |
|
CR8022AM-20 |
0.020 |
Flathead |
670021 $1,024.47 1,024.47 |
2.118 |
Std Ford Rods, 1946-1953 |
|
CR8022AM-30 |
0.030 |
Flathead |
670021 $1,024.47 1,024.47 |
2.108 |
Std Ford Rods, 1946-1953 |
Page 68
FORD VINTAGE
FLATHEAD CRANKSHAFTS & ROTATING ASSEMBLIES
FORD 221 / 239
|
Part NO. |
Desc. |
Stroke |
Rod Length |
ROD PIN |
Main Journal |
|
FORD FLATHEAD SERIES 9000 CAST CRANKSHAFTS - FITS BLOCKS,
21 STUD, 37-40 |
|
922142 $1,440.38 1,440.38 |
Flathead |
4.000" |
7.000" |
2.000" |
2.400" |
|
FORD FLATHEAD SERIES 9000 CAST LIGHTWEIGHT STROKER CRANKSHAFTS
- FITS BLOCKS, 24 STUD |
|
923910 $1,301.27 |
Flathead |
4.000" |
7.000" |
2.000" |
2.500" |
|
923911 |
Flathead |
4.000" |
7.000" |
2.138" |
2.500" |
|
923920 $1,301.27 |
Flathead |
4.125" |
7.000" |
2.000" |
2.500" |
|
923921 $1,301.27 |
Flathead |
4.125" |
7.000" |
2.138" |
2.500" |
|
923930 $1,339.13 |
Flathead |
4.250" |
7.000" |
2.000" |
2.500" |
|
923940 $1,766.97 |
Flathead |
4.375" |
7.000" |
2.000" |
2.500" |
|
CI |
Crank Part NO. |
Rod Part NO. |
Crank Stroke |
Rod Length |
Piston MFG |
Piston Class |
BORE |
TYPE |
Compression |
UNBAL'D, Crank, Rod, Pistons, Rings,
Bearings |
BAL'D Comp. Assembly |
|
CC |
74cc |
|
FORD 239 FLATHEAD, EARLY BLOCKS, 1939-1948
ROTATING ASSEMBLIES |
|
SERIES 9000 CAST PRO COMP CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 3/8" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
274 |
923910 $1,301.27 |
6700 $1,024.47 |
4.000" |
7.000" |
Ross |
Forged |
3.3125 |
Dome |
0.187 |
9.4 TO 1 |
1-94602 $3,365.37 |
1-94602BI $3,755.52 |
|
286 |
923920 $1,301.27 |
6700 $1,024.47 |
4.125" |
7.000" |
Ross |
Forged |
3.3125 |
Dome |
0.187 |
9.7 TO 1 |
1-94603 $2,983.32 |
1-94603BI $3,373.47 |
|
296 |
923920 $1,301.27 |
6700 $1,024.47 |
4.125" |
7.000" |
Ross |
Forged |
3.3750 |
Dome |
0.187 |
9.7 TO 1 |
1-94604 $3,427.58 |
1-94604BI $3,817.73 |
|
293 |
923930 $1,339.13 |
6700 $1,024.47 |
4.250" |
7.000" |
Ross |
Forged |
3.3125 |
Dome |
0.187 |
10.1 TO 1 |
1-94606 $3,441.00 |
1-94606BI $3,829.83 |
|
304 |
923930 $1,339.13 |
6700 $1,024.47 |
4.250" |
7.000" |
Ross |
Forged |
3.3750 |
Dome |
0.187 |
10.2 TO1 |
1-94607 $3,017.17 |
1-94607BI $3,407.32 |
|
FORD 239 FLATHEAD, LATE BLOCKS, 1949-1953
ROTATING ASSEMBLIES |
|
SERIES 9000 CAST PRO COMP CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 3/8" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
274 |
923910 $1,301.27 |
6700 $1,024.47 |
4.000" |
7.000" |
Ross |
Forged |
3.3125 |
Dome |
0.187 |
9.4 TO 1 |
1-94613 $3,361.42 |
1-94613BI $3,751.57 |
|
286 |
923920 $1,301.27 |
6700 $1,024.47 |
4.125" |
7.000" |
Ross |
Forged |
3.3125 |
Dome |
0.187 |
9.7 TO 1 |
1-94614 $2,979.36 |
1-94614BI $3,369.51 |
|
296 |
923920 $1,301.27 |
6700 $1,024.47 |
4.125" |
7.000" |
Ross |
Forged |
3.3750 |
Dome |
0.187 |
9.7 TO 1 |
1-94616 $3,424.82 |
1-94616BI $3,814.97 |
|
293 |
923930 $1,339.13 |
6700 $1,024.47 |
4.250" |
7.000" |
Ross |
Forged |
3.3125 |
Dome |
0.187 |
10.1 TO 1 |
1-94617 $3,437.03 |
1-94617BI $3,825.77 |
|
304 |
923930 $1,339.13 |
6700 $1,024.47 |
4.250" |
7.000" |
Ross |
Forged |
3.3750 |
Dome |
0.187 |
10.2 TO 1 |
1-94618 $3,014.36 |
1-94618BI $3,404.51 |
GREG BURLING
“I can say without a doubt they have built us the best rotating
assembly yet! Their 4.250 stroke crankshaft
has made some Monsters out of our motors! Looking forward to continue
using SCAT quality parts in all our
future Flatheads. Thanks again Scat Enterprises for providing
excellent parts and service.”
Page 69
FORD VINTAGE

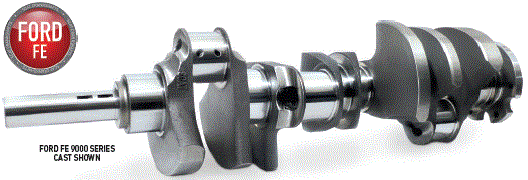

FE CRANKSHAFTS & CONNECTING RODS
FORD FE 390
|
PART NO. |
Desc. |
Crank Stroke |
Rod Length |
ROD PIN |
TECH NOTES |
|
FORD FE FORGED 4340 STANDARD WEIGHT CRANKSHAFTS |
|
4FE100 $1,884.52 |
Stroker |
4.125 |
6.700 |
2.200 |
Internal Balance |
|
4FE200 $1,884.52 |
Stroker |
4.250 |
6.700 |
2.200 |
Internal Balance |
|
FORD FE SERIES 9000 CAST LIGHTWEIGHT STROKER CRANKSHAFTS |
|
942810 $912.53 |
Stock FE, 428 |
3.980 |
6.490" |
2.438" |
Internal Balance |
|
9FE100 $912.53 |
Stroker |
4.125 |
6.700" |
2.200" |
Internal Balance, May Require Mallory |
|
9FE200 $912.53 |
Stroker |
4.250 |
6.700" |
2.200" |
Internal Balance, May Require Mallory |
|
PART NO. |
PART NO. |
Desc. |
Rod Length |
Crank Pin |
ROD PIN |
B.E. Width |
|
FORD FE CONNECTING RODS |
|
FORGED H-BEAM CONNECTING RODS WITH 7/16" CAP SCREWS |
|
66490 $1,024.47 |
66490A $1,114.95 |
428 Ford |
6.490" |
2.438" |
.975" |
.875" |
|
6670022 $963.72 |
6670022A $1,052.88 1,052.88 |
NOTE 1, Bushed |
6.700" |
2.200" |
.990" |
.992" |
|
• ARP 8740 7/16" Cap Screws |
• ARP 2000 7/16" Cap Screws |
. |
|
FORGED PRO STOCK I-BEAM CONNECTING RODS WITH 7/16" CAP
SCREWS |
|
26700716 $699.22 |
26700716A $788.33 788.33 |
Note 1 |
6.700" |
2.200" |
.990" |
.992" |
|
• ARP 8740 7/16" Cap Screws |
• ARP 2000 7/16" Cap Screws |
. |
|
NOTE 1: For STROKERS . . . Use Big Block Chevy Bearing and .990
Stock Big Block Pins. |
Page 70
FORD VINTAGE

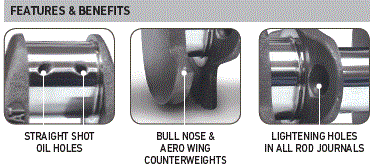

FE 390 & 428 SERIES 9000 CAST CRANKSHAFT
STREET & STRIP ROTATING ASSEMBLIES
|
FE 390 & 428 SERIES 9000 CAST CRANKSHAFT STREET &
STRIP ROTATING ASSEMBLIES |
|
CI |
Crank Part NO. |
Rod Part NO. |
Crank Stroke |
Rod Length |
Piston MFG |
Piston Class |
BORE |
TYPE |
Compression |
UNBAL'D, Crank, Rod, Pistons, Rings,
Bearings |
BAL'D Comp. Assembly |
|
CC |
72CC |
76cc |
|
FORD FE 390 BLOCK ROTATING ASSEMBLIES |
|
SERIES 9000 CAST PRO COMP CRANKS, PRO SERIES I-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
431 |
923910 $1,301.27 |
26700716 $699.22 |
4.125" |
6.700" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
11.0 |
10.6 |
1-94640 $2,463.68 |
1-94640BI $2,853.83 |
|
431 |
923910 $1,301.27 |
26700716 $699.22 |
4.125" |
6.700" |
Mahle |
Forged |
4.080 |
Dish |
-26 |
9.2 |
8.9 |
1-94644 $2,551.39 |
1-94644BI $2,941.54 |
|
444 |
9FE200 $912.53 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
11.4 |
10.9 |
1-94660 $2,463.68 |
1-94660BI $2,853.83 |
|
444 |
9FE200 $912.53 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.080 |
Dish |
-20 |
10.2 |
9.8 |
1-94661 $2,551.39 |
1-94661BI $2,941.54 |
|
SERIES 9000 CAST PRO COMP CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
418 |
942810 $912.53 |
66490 $1,024.47 |
3.980" |
6.490" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
10.7 |
10.3 |
1-94620 $2,806.49 |
1-94620BI $3,196.64 |
|
418 |
942810 $912.53 |
66490 $1,024.47 |
3.980" |
6.490" |
Icon |
Forged |
4.080 |
Dish |
-12.9 |
10.1 |
9.7 |
1-94622 $3,164.28 |
1-94622BI $3,554.43 |
|
431 |
923910 $1,301.27 |
6670022 $963.72 |
4.125" |
6.700" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
11.0 |
10.6 |
1-94642 $2,701.22 |
1-94642BI $3,091.30 |
|
431 |
923910 $1,301.27 |
6670022 $963.72 |
4.125" |
6.700" |
Mahle |
Forged |
4.080 |
Dish |
-26 |
9.2 |
8.9 |
1-94646 $2,788.99 |
1-94646BI $3,179.14 |
|
444 |
9FE200 $912.53 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
11.4 |
10.9 |
1-94670 $2,701.22 |
1-94670BI $3,091.30 |
|
444 |
9FE200 $912.53 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.080 |
Dish |
-18 |
10.2 |
9.8 |
1-94671 $2,788.99 |
1-94671BI $3,179.14 |
|
FORD 427 BLOCK ROTATING ASSEMBLIES |
|
SERIES 9000 CAST PRO COMP CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
482 |
9FE200 $912.53 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.250 |
Flat |
-7 |
12.9 |
11.7 |
1-94662 $2,463.68 |
1-94662BI $2,853.83 |
|
482 |
9FE200 $912.53 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.250 |
Dish |
-20 |
10.7 |
10.3 |
1-94663 $2,551.39 |
1-94663BI $2,941.54 |
|
482 |
9FE200 $912.53 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.250 |
Flat |
-7 |
12.9 |
11.7 |
1-94672 $2,701.22 |
1-94672BI $3,091.30 |
|
482 |
9FE200 $912.53 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.250 |
Dish |
-20 |
10.7 |
10.3 |
1-94673 $2,788.99 |
1-94673BI $3,179.14 |
|
FORD FE 428 BLOCK ROTATING ASSEMBLIES |
|
SERIES 9000 CAST PRO COMP CRANKS, PRO SERIES I-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
462 |
9FE200 $912.53 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.160 |
Flat |
-7 |
11.7 |
11.3 |
1-94648 $2,463.68 |
1-94648BI $2,853.83 |
|
462 |
9FE200 $912.53 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.160 |
Dish |
-20 |
10.3 |
10.0 |
1-94650 $2,551.39 |
1-94650BI $2,941.54 |
|
SERIES 9000 CAST PRO COMP CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
430 |
942810 $912.53 |
66490 $1,024.47 |
3.980" |
6.490" |
Icon |
Forged |
4.160 |
Flat |
-7 |
10.7 |
10.3 |
1-94624 $2,938.90 |
1-94624BI $3,327.75 |
|
430 |
942810 $912.53 |
66490 $1,024.47 |
3.980" |
6.490" |
Icon |
Forged |
4.160 |
Dish |
-16.3 |
10.1 |
9.7 |
1-94626 $2,933.46 |
1-94626BI $3,323.61 |
|
462 |
9FE200 $912.53 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.160 |
Flat |
-7 |
11.7 |
11.3 |
1-94652 $2,701.22 |
1-94652BI $3,091.30 |
|
462 |
9FE200 $912.53 |
6670022 $963.72 963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.160 |
Dish |
-20 |
10.3 |
10.0 |
1-94654 $2,788.99 |
1-94654BI $3,179.14 |
Page 71
FORD VINTAGE
COMPETITION ROTATING ASSEMBLIES FE 390 & 428
4340 FORGED CRANKSHAFT
|
CI |
Crank Part NO. |
Rod Part NO. |
Crank Stroke |
Rod Length |
Piston MFG |
Piston Class |
BORE |
TYPE |
Compression |
UNBAL'D, Crank, Rod, Pistons, Rings,
Bearings |
BAL'D Comp. Assembly |
|
CC |
72CC |
76cc |
|
|
FORD FE 390 BLOCK ROTATING ASSEMBLIES |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SERIES I-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
431 |
4FE100 $1,884.52 |
26700716 $699.22 |
4.125" |
6.700" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
11.0 |
10.6 |
N/A 1-47708 $3,569.29 |
1-47708BI $3,959.44 |
|
431 |
4FE100 $1,884.52 |
26700716 $699.22 |
4.125" |
6.700" |
Mahle |
Forged |
4.080 |
Dish |
-26 |
9.2 |
8.9 |
N/A 1-47710 $3,657.08 |
1-47710BI $4,047.23 |
|
444 |
4FE200 $1,884.52 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
11.4 |
10.9 |
N/A 1-47730 $3,569.29 |
1-47730BI $3,959.44 |
|
444 |
4FE200 $1,884.52 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.080 |
Dish |
-18 |
10.2 |
9.8 |
N/A 1-47731 $3,657.08 |
1-47731BI $4,047.23 |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
431 |
4FE100 $1,884.52 |
6670022 $963.72 |
4.125" |
6.700" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
11.0 |
10.6 |
N/A |
1-47712 $3,806.88 |
1-47712BI $4,197.03 |
|
431 |
4FE100 $1,884.52 |
6670022 $963.72 |
4.125" |
6.700" |
Mahle |
Forged |
4.080 |
Dish |
-26 |
9.2 |
8.9 |
N/A |
1-47715 $3,894.62 |
1-47715BI $4,284.77 |
|
444 |
4FE200 $1,884.52 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.080 |
Flat |
-7 |
11.4 |
10.9 |
N/A |
1-47735 $3,806.88 |
1-47735BI $4,197.03 |
|
444 |
4FE200 $1,884.52 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.080 |
Dish |
-18 |
10.2 |
9.8 |
N/A |
1-47736 $3,894.62 |
1-47736BI $4,284.77 |
|
FORD 427 BLOCK ROTATING ASSEMBLIES |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SERIES I-BEAM(*) OR
PRO SPORT H-BEAM CONNECTING RODS WITH 7/16" CAP SCREWS,
FORGED PISTONS, RINGS, ROD & MAIN BEARINGS, INTERNAL BALANCED. |
|
482 |
4FE200 $1,884.52 |
26700716 $699.22 * |
4.250" |
6.700" |
Mahle |
Forged |
4.250 |
Flat |
-7 |
12.9 |
11.7 |
N/A 1-47732 $3,569.29 |
1-47732BI $3,959.44 |
|
482 |
4FE200 $1,884.52 |
26700716 $699.22 * |
4.250" |
6.700" |
Mahle |
Forged |
4.250 |
Dish |
-20 |
10.7
12.9 |
10.3
11.7 |
N/A 1-47733 $3,657.08 |
1-47733BI $4,047.23 |
|
482 |
4FE200 $1,884.52 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.250 |
Flat |
-7 |
N/A |
1-47737 $3,806.88 |
1-47737BI $4,197.03 |
|
482 |
4FE200 $1,884.52 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.250 |
Dish |
-20 |
10.7 |
10.3 |
N/A |
1-47738 $3,894.62 |
1-47738BI $4,284.77 |
|
FORD FE 428 BLOCK ROTATING ASSEMBLIES |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SERIES I-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
462 |
4FE200 $1,884.52 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.160 |
Flat |
-7 |
11.7 |
11.3 |
N/A |
1-47720 $3,569.29 |
1-47720BI $3,959.44 |
|
462 |
4FE200 $1,884.52 |
26700716 $699.22 |
4.250" |
6.700" |
Mahle |
Forged |
4.160 |
Dish |
-20 |
10.3 |
10.0 |
N/A |
1-47722 $3,657.08 |
1-47722BI $4,047.23 |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
462 |
4FE200 $1,884.52 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.160 |
Flat |
-7 |
11.7 |
11.3 |
N/A |
1-47724 $3,806.88 |
1-47724BI $4,197.03 |
|
462 |
4FE200 $1,884.52 |
6670022 $963.72 |
4.250" |
6.700" |
Mahle |
Forged |
4.160 |
Dish |
-20 |
10.3 |
10.0 |
N/A |
1-47726 $3,894.62 |
1-47726BI $4,284.77 |
Page 72
CHRYSLER JEEP 4.2L
JEEP 4.2L CRANKSHAFTS, CONNECTING RODS
& ROTATING ASSEMBLIES
|
Part NO. |
Desc. |
Stroke |
Rod Length |
ROD PIN |
TECH NOTES |
|
SERIES 9000 CAST PRO COMP CRANKSHAFTS |
|
942010 $948.98 |
2.081" Snout Length |
3.895 |
6.123 |
2.095 |
56 LBS |
|
Part NO. |
Part NO. |
Rod Length |
ROD PIN |
PIN WIDTH |
|
4340 FORGED PRO STOCK I-BEAM CONNECTING RODS |
|
2406125P $530.47 |
2406125PA $688.32 |
6.125 |
2.095 |
1.070 |
|
CI |
Crank Part NO. |
Rod Part NO. |
Crank Stroke |
Rod Length |
Piston MFG |
Piston Class |
BORE |
TYPE |
Compression |
BAL'D Comp. Assembly |
|
CC |
60CC |
|
|
|
CHRYSLER JEEP ROTATING ASSEMBLIES |

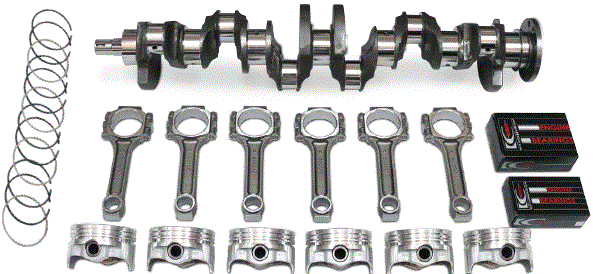

JEEP 1987-1990 4.0L INLINE 6 CYL.
SERIES 9000 CAST PRO COMP CRANKS, PRO STOCK I-BEAM CONNECTING
RODS WITH 3/8" CAP SCREWS, FORGED PIS- TONS, RINGS, ROD
& MAIN BEARINGS, INTERNAL BALANCED. |
|
280 |
942010 $948.98 |
2406125P $530.47 |
3.895" |
6.125" |
Icon |
Forged |
3.905 |
Dish |
-10.8 |
10.7 |
N/A |
N/A |
1-96010BI $2,335.43 |
|
280 |
942010 $948.98 |
2406125P $530.47 |
3.895" |
6.125" |
Icon |
Forged |
3.905 |
Dish |
-21 |
9.6 |
N/A |
N/A |
1-96015BI $2,335.43 |
JEEP 1991-2002 4.0L INLINE 6 CYL.
SERIES 9000 CAST PRO COMP CRANKS, PRO STOCK I-BEAM CONNECTING
RODS WITH 3/8" CAP SCREWS, FORGED PIS- TONS, RINGS, ROD
& MAIN BEARINGS, INTERNAL BALANCED. |
|
275 |
942010 $948.98 |
2406125P $530.47 |
3.895" |
6.125" |
Icon |
Forged |
3.905 |
Dish |
-10.8 |
10.7 |
N/A |
N/A |
1-96000BI $2,321.89 |
|
275 |
942010 $948.98 |
2406125P $530.47 |
3.895" |
6.125" |
Icon |
Forged |
3.905 |
Dish |
-21 |
9.6 |
N/A |
N/A |
1-96005BI $2,321.89 |
Page 73
CRANKSHAFTS, CONNECTING RODS &
ROTATING ASSEMBLIES MODERN HEMI
|
Oversized and standard bore rotating assemblies and custom rotating
assemblies available. Pricing may vary, depending on selecton
and availability of components used. |

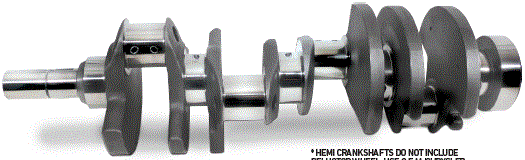

* HEMI CRANKSHAFTS DO NOT INCLUDE
RELUCTOR WHEEL. USE O.E.M. CHRYSLER
PART OR MOPAR PERFORMANCE UNIT.
|
Part NO. |
Desc. |
Stroke |
Rod Length |
ROD PIN |
Wght. (*) |
TECH NOTES |
|
4340 FORGED STANDARD WEIGHT CRANKSHAFTS |
|
4HEMI37910 $1,525.42 |
392CID |
3.795" |
6.125" |
2.100" |
60 |
Pilot I.D. 1.090" |
|
4HEMI39010 |
426CID |
3.900" |
6.125" |
2.000" |
60 |
Pilot I.D. 1.090" |
|
4HEMI40510 |
426CID |
4.050" |
6.125" |
2.000" |
60 |
Pilot I.D. 1.090" |
|
Part NO. |
Desc. |
Part NO. |
Rod Length |
Crank Pin |
Wrist Pin |
B.E. Width |
|
4340 FORGED PRO SERIES I-BEAM CONNECTING RODS |
|
26125716 $689.80 |
Bushed |
26125716A $778.80 778.80 |
6.125" |
2.100" |
.927" |
.940" |
|
2616716 |
Bushed |
2616716A |
6.125" |
2.000" |
.927" |
.940" |
|
262402P $689.80 |
Modern hemi |
2457786A |
6.240 |
2.126 |
0.943 |
0.930 |
|
4340 FORGED PRO SERIES H-BEAM CONNECTING RODS |
|
6612521 $956.95 |
Bushed |
6612521A $1,048.75 1,048.75 |
6.125" |
2.100" |
.927" |
.940" |
|
6612520 $956.95 9 |
Bushed |
6612520A $1,048.75 1,048.75 |
6.125" |
2.000" |
.927" |
.940" |
|
• ARP 8740 7/16" Cap Screws |
• ARP 2000 7/16" Cap Screws |
|
CI |
Crank Part NO. |
Rod Part NO. |
Crank Stroke |
Rod Length |
Piston MFG |
Piston Class |
BORE |
TYPE |
Compression |
UNBAL'D, Crank, Rod, Pistons, Rings,
Bearings |
BAL'D Comp. Assembly |
|
CC |
65CC |
74cc |
85CC |
|
CHRYSLER MODERN HEMI ROTATING ASSEMBLIES - FOR 5.7L BLOCKS |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SERIES I-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
368 |
4HEMI37910 $1,525.42 |
26125716 $689.80 |
3.795" |
6.125" |
Icon |
Forged |
3.927 |
Flat |
2 |
10.4 |
N/A |
N/A |
1-48500 $3,277.71 |
1-48500BI $3,666.53 |
|
368 |
4HEMI37910 $1,525.42 |
26125716 $689.80 |
3.795" |
6.125" |
Icon |
Forged |
3.927 |
Dish |
-13.8 |
8.8 |
N/A |
N/A |
1-48501 $3,277.71 |
1-48501BI $3,666.53 |
|
368 |
4HEMI37910 $1,525.42 |
26125716 $689.80 |
3.795" |
6.125" |
Icon |
Forged |
3.927 |
Dome |
14.6 |
12.2 |
N/A |
N/A |
1-48502 $3,277.71 |
1-48502BI $3,666.53 |
|
378 |
4HEMI39010 |
2616716 |
3.900" |
6.125" |
Icon |
Forged |
3.927 |
Flat |
-3.3 |
10.1 |
N/A |
N/A |
1-48503 $3,285.79 |
1-48503BI $3,674.62 |
|
378 |
4HEMI39010 |
2616716 |
3.900" |
6.125" |
Icon |
Forged |
3.927 |
Dish |
-17 |
8.8 |
N/A |
N/A |
1-48504 $3,285.79 |
1-48504BI $3,674.62 |
|
378 |
4HEMI39010 |
2616716 |
3.900" |
6.125" |
Icon |
Forged |
3.927 |
Dome |
13.5 |
12.3 |
N/A |
N/A |
1-48505 $3,285.79 |
1-48505BI $3,674.62 |
|
392 |
4HEMI40510 |
2616716 |
4.050" |
6.125" |
Icon |
Forged |
3.927 |
Flat |
-7 |
10.0 |
N/A |
N/A |
1-48506 $3,450.53 |
1-48506BI $3,840.68 |
|
392 |
4HEMI40510 |
2616716 |
4.050" |
6.125" |
Icon |
Forged |
3.927 |
Dish |
-21.2 |
8.8 |
N/A |
N/A |
1-48507 $3,320.87 |
1-48507BI $3,711.02 |
|
392 |
4HEMI40510 |
2616716 |
4.050" |
6.125" |
Icon |
Forged |
3.927 |
Dome |
8.7 |
12.0 |
N/A |
N/A |
1-48508 $3,285.79 |
1-48508BI $3,674.62 |
|
NOTE: Rotating assemblies also available for 6.1L blocks |
Page 74
CHRYSLER 340 / 360

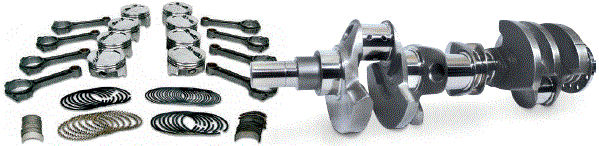

SMALL BLOCK 340 & 360 ROTATING ASSEMBLIES
|
CI |
Crank Part NO. |
Rod Part NO. |
Crank Stroke |
Rod Length |
Piston MFG |
Piston Class |
BORE |
TYPE |
Compression |
UNBAL'D, Crank, Rod, Pistons, Rings,
Bearings |
BAL'D Comp. Assembly |
|
CC |
62CC |
68CC |
70CC |
|
CHRYSLER 318 STREET & STRIP ROTATING ASSEMBLIES |
|
340 MAIN, SERIES 9000 PRO COMP CRANKS, PRO STOCK I-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, HYPEREUTECTIC OR FORGED PISTONS,
RINGS, ROD & MAIN BEARINGS, INTERNAL BALANCED. |
|
390 |
9FE100 $912.53 |
26123 $689.80 |
4.000" |
6.123" |
Icon |
Forged |
3.940 |
Flat |
-4.7 |
11.7 |
10.9 |
10.7 |
1-98005 $2,527.12 |
1-98005BI $2,917.27 |
|
390 |
9FE100 $912.53 |
26123 $689.80 |
4.000" |
6.123" |
Icon |
Forged |
3.940 |
Dish |
-23 |
9.6 |
9.1 |
8.9 |
1-98007 $2,578.31 |
1-98007BI $2,968.46 |
|
CHRYSLER 340 & 360 STREET & STRIP
ROTATING ASSEMBLIES |
|
340 MAIN, SERIES 9000 PRO COMP CRANKS, PRO STOCK I-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, HYPEREUTECTIC OR FORGED PISTONS,
RINGS, ROD & MAIN BEARINGS, INTERNAL BALANCED. |
|
372 |
934010 $637.13 |
26123 $689.80 |
3.580" |
6.123" |
KB |
Hypereu- tectic |
4.070 |
Flat |
-5 |
11.1 |
10.3 |
10.1 |
1-98001 $1,966.82 |
1-98001BI $2,356.90 |
|
372 |
934010 $637.13 |
26123 $689.80 |
3.580" |
6.123" |
Icon |
Forged |
4.070 |
Flat |
-5 |
11.1 |
10.3 |
10.1 |
1-98003 $2,239.50 |
1-98003BI $2,629.65 |
|
416 |
9FE100 $912.53 |
26123 $689.80 |
4.000" |
6.123" |
KB |
Hypereu- tectic |
4.070 |
Dish |
-23.5 |
10.1 |
9.5 |
9.3 |
1-98011 $2,027.63 |
1-98011BI $2,263.77 |
|
416 |
9FE100 $912.53 |
26123 $689.80 |
4.000" |
6.123" |
Icon |
Forged |
4.070 |
Flat |
-5 |
12.3 |
11.5 |
11.2 |
1-98012 $2,219.20 |
1-98012BI $2,608.02 |
|
416 |
9FE100 $912.53 |
26123 $689.80 |
4.000" |
6.123" |
Icon |
Forged |
4.070 |
Dish |
-20.5 |
10.1 |
9.5 |
9.3 |
1-98013 $2,459.59 |
1-98013BI $2,849.74 |
|
360 MAIN, SERIES 9000 PRO COMP CRANKS, PRO STOCK I-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, HYPEREUTECTIC OR FORGED PISTONS,
RINGS, ROD & MAIN BEARINGS, INTERNAL BALANCED. |
|
365 |
934010 $637.13 |
26123 $689.80 |
3.580" |
6.123" |
Icon |
Forged |
4.030 |
Flat |
-5 |
10.9 |
10.2 |
10.0 |
1-98103 $2,432.52 |
1-98103BI $2,822.67 |
|
408 |
936020 $637.13 |
26123 $689.80 |
4.000" |
6.123" |
KB |
Hypereu- tectic |
4.030 |
Dish |
-23.5 |
9.93 |
9.3 |
9.2 |
1-98111 $2,146.39 |
1-98111BI $2,536.54 |
|
408 |
936020 $637.13 |
26123 $689.80 |
4.000" |
6.123" |
Icon |
Forged |
4.030 |
Flat |
-5 |
12.1 |
11.3 |
11.0 |
1-98112 $2,234.18 |
1-98112BI $2,624.33 |
|
408 |
936020 $637.13 |
26123 $689.80 |
4.000" |
6.123" |
Icon |
Forged |
4.030 |
Dish |
-20.5 |
10.2 |
9.6 |
9.4 |
1-98113 $2,475.78 |
1-98113BI $2,865.93 |
|
CHRYSLER 340 & 360 COMPETITION ROTATING
ASSEMBLIES |
|
340 MAIN, 4340 FORGED STANDARD WEIGHT CRANKS, PRO STOCK I-BEAM
CONNECTING RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS,
ROD & MAIN BEARINGS, INTERNAL BALANCED. |
|
372 |
434010 $1,308.15 |
26123 $689.80 |
3.580" |
6.123" |
Icon |
Forged |
4.070 |
Flat |
-5 |
11.0 |
10.2 |
10.0 |
1-48005 $3,011.72 |
1-48005BI $3,401.87 |
|
416 |
434020 $1,308.15 |
26123 $689.80 |
4.000" |
6.123" |
Icon |
Forged |
4.070 |
Flat |
-5 |
12.1 |
11.3 |
11.0 |
1-48013 $2,991.41 |
1-48013BI $3,381.56 |
|
416 |
434020 $1,308.15 |
26123 $689.80 |
4.000" |
6.123" |
Icon |
Forged |
4.070 |
Dish |
-20.5 |
10.2 |
9.6 |
9.4 |
1-48015 $3,231.81 |
1-48015BI $3,621.96 |
|
360 MAIN, 4340 FORGED STANDARD WEIGHT CRANKS, PRO STOCK I-BEAM
CONNECTING RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS,
ROD & MAIN BEARINGS, INTERNAL BALANCED. |
|
365 |
436010 $1,308.15 |
26123 $689.80 |
3.580" |
6.123" |
Icon |
Forged |
4.030 |
Flat |
-5 |
10.9 |
10.2 |
10.0 |
1-48025 $3,218.27 |
1-48025BI $3,608.42 |
|
408 |
436020 $1,308.15 |
26123 $689.80 |
4000" |
6.123" |
Icon |
Forged |
4.030 |
Flat |
-5 |
12.1 |
11.3 |
11.0 |
1-48033 $3,023.93 |
1-48033BI $3,414.08 |
|
408 |
436020 $1,308.15 |
26123 $689.80 |
4000" |
6.123" |
Icon |
Forged |
4.030 |
Dish |
-20.5 |
10.2 |
9.6 |
9.4 |
1-48035 $3,265.49 |
1-48035BI $3,655.64 |
|
H-BEAM UPGRADES AVAILABLE FOR ALL CHRYSLER ROTATING ASSEMBLIES,
WILL REQUIRE HEAVY METAL TO BALANCE |
Page 75
CHRYSLER 383 / 440
RB WEDGE 383 & 440 ROTATING ASEMBLIES
|
Ci |
Crank Part NO. |
Rod Part NO. |
Crank Stroke |
Rod Length |
Piston MFG |
Piston Class |
BORE |
TYPE |
Compression |
UNBAL'D, Crank, Rod, Pistons, Rings,
Bearings |
BAL'D Comp. Assembly |
|
CC |
76cc |
78cc |
88vv |
|
CHRYSLER "B" BLOCK WEDGE 383 ROTATING
ASSEMBLIES 9.980" DECK |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
431 |
438310 $1,715.78 |
6676010 $959.76 |
3.750" |
6.760" |
Ross |
Forged |
4.280" |
Flat |
-4 |
11.3 |
10.4 |
9.5 |
1-48082 $3,855.60 |
1-48082BI $4,245.75 |
|
CHRYSLER "B" BLOCK WEDGE 400 ROTATING
ASSEMBLIES 9.980" DECK |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
451 |
438310 $1,715.78 |
6676099 $959.76 |
3.750" |
6.760" |
Icon |
Forged |
4.375" |
Flat |
-4.5 |
11.6 |
10.7 |
9.8 |
1-48084 $3,738.03 |
1-48084BI $4,128.18 |
|
451 |
438310 $1,715.78 |
6676099 $959.76 |
3.750" |
6.760" |
Icon |
Forged |
4.375" |
Dish |
-12 |
10.8 |
10.0 |
9.2 |
1-48086 $3,738.03 |
1-48086BI $4,128.18 |
|
500 |
438320 $1,715.78 |
6676099 $959.76 |
4.150" |
6.760" |
Icon |
Forged |
4.375" |
Flat |
-4.5 |
12.8 |
11.8 |
10.7 |
1-48093 $3,738.03 |
1-48093BI $4,128.18 |
|
500 |
438320 $1,715.78 |
6676099 $959.76 |
4.150" |
6.760" |
Icon |
Forged |
4.375" |
Dish |
-23.7 |
10.6 |
9.9 |
9.2 |
1-48095 $3,835.27 |
1-48095BI $4,225.42 |
|
CHRYSLER "RB" BLOCK WEDGE AND HEMI
413, 426, 440 ROTATING ASSEMBLIES 10.725" DECK |
|
4340 FORGED STANDARD WEIGHT CRANKS, PRO SPORT H-BEAM CONNECTING
RODS WITH 7/16" CAP SCREWS, FORGED PISTONS, RINGS, ROD &
MAIN BEARINGS, INTERNAL BALANCED. |
|
446 |
444010 $1,633.39 |
6676099 $959.76 |
3.750" |
6.760" |
Icon |
Forged |
4.350 |
Flat |
-4.5 |
11.5 |
10.6 |
9.7 |
1-48041 $3,752.89 |
1-48041BI $4,143.04 |
|
446 |
444010 $1,633.39 |
6676099 $959.76 |
3.750" |
6.760" |
Icon |
Forged |
4.350 |
Dish |
-12 |
10.7 |
9.9 |
9.1 |
1-48043 $3,602.97 |
1-48043BI $3,993.12 |
|
493 |
444014 $1,633.39 |
6676099 $959.76 |
4.150" |
6.760" |
Icon |
Forged |
4.350 |
Flat |
-4.5 |
12.6 |
11.7 |
10.6 |
1-48051 $3,806.88 |
1-48051BI $4,197.03 |
|
493 |
444014 $1,633.39 |
6676099 $959.76 |
4.150" |
6.760" |
Icon |
Forged |
4.350 |
Dish |
-23.7 |
10.5 |
9.9 |
9.1 |
1-48053 $3,786.57 |
1-48053BI $4,175.40 |
|
505 |
4426015 $1,633.39 |
6710022 $963.72 |
4.250" |
7.100" |
Icon |
Forged |
4.350 |
Flat |
-4.5 |
12.9 |
11.9 |
10.9 |
1-48061 $3,760.98 |
1-48061BI $4,151.13 |
|
505 |
4426015 $1,633.39 |
6710022 $963.72 |
4.250" |
7.100" |
Icon |
Forged |
4.350 |
Dish |
-26.7 |
10.5 |
9.8 |
9.1 |
1-48063 $3,742.15 |
1-48063BI $4,132.30 |
|
541 |
4-440-4500-
6800-2200 |
6710022 $963.72 |
4.500" |
7.100" |
Icon |
Forged |
4.375 |
Flat |
-4.5 |
13.8 |
12.7 |
11.6 |
1-48065 $3,712.43 |
1-48065BI $4,102.58 |
|
541 |
4-440-4500-
6800-2200 |
6710022 $963.72 |
4.500" |
7.100" |
Icon |
Forged |
4.375 |
Dish |
-12 |
12.7 |
11.8 |
10.9 |
1-48067 $3,712.43 |
1-48067BI $4,102.58 |
|
* INDICATES 8-BOLT FLANGE, ALL OTHERS ARE 6-BOLT FLANGE |
Page 76
SPORT COMPACT
HONDA CRANKSHAFTS & CONNECTING RODS

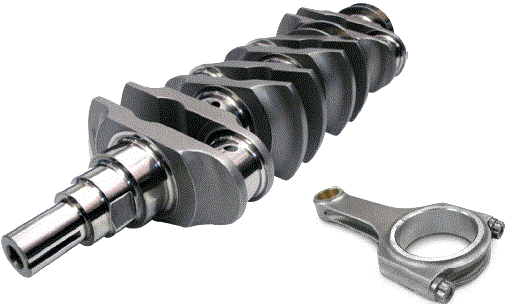

SCAT HONDA FORGED
LIGHTWEIGHT CRANKSHAFT |
SCAT 4340 FORGED
H-BEAM CONNECTING RODS |
|
PART N0. |
ENGINE |
Stroke INCH/MM |
Wght.(**) |
TECH NOTES |
|
HONDA 4340 FORGED STANDARD WEIGHT CRANKSHAFTS |
|
4H891 |
4-Cylinder |
3.504/89mm |
33 lbs |
1.771/45mm Pin Diameter, .935/24mm Rod Width |
|
4H921 |
4-Cylinder |
3.622/92mm |
33 lbs |
1.771/45mm Pin Diameter, .935/24mm Rod Width |
|
HONDA 4340 FORGED LIGHTWEIGHT PRO COMP CRANKSHAFTS |
|
4H891-2 $1,943.87 |
4-Cylinder |
3.504/ 89mm |
29 lbs |
1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width |
|
4H921-2 |
4-Cylinder |
3.622/ 92mm |
29 lbs |
1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width |
|
HONDA 4340 BILLET LIGHTWEIGHT PRO COMP CRANKSHAFTS |
|
88H951-2 |
4-Cylinder |
3.740/ 95mm |
29 lbs |
1.771/45mm Pin Diameter, .935/24mm Rod Width |
Honda CRANKSHAFTS & CONNECTING RODS
|
PART NO. |
ENGINE |
Rod Length Inch/ MM |
Crank Pin INCH/ MM |
B.E. Width INCH/ MM |
Wrist Pin INCH/ MM |
|
HONDA 4340 FORGED H-BEAM CONNECTING RODS |
|
65290198 $645.22 |
B16A DOHC VTEC |
4-Cylinder |
5.290/ 134mm |
1.771/ 45mm |
.935/ 24mm |
.827/ 21mm |
|
65394187 $645.22 |
D16 SOHC VTEC |
4-Cylinder |
5.394/ 137mm |
1.771/ 45mm |
.898/ 23mm |
.748/ 19mm |
|
65394198 $645.22 |
B18A DOHC VTEC |
4-Cylinder |
5.394/ 137mm |
1.771/ 45mm |
.935/ 24mm |
.827/ 21mm |
|
65430187 $645.22 |
GSR, B18C1 |
4-Cylinder |
5.430/ 138mm |
1.771/ 45mm |
.858/ 22mm |
.827/ 21mm |
|
65458187 $645.22 |
DI6, VITARA PISTON |
4-Cylinder |
5.458/ 139mm |
1.771/ 45mm |
.898/ 23mm |
.748/ 19mm
NEW |
|
65472178 $645.22 |
K20A2 VTEC |
4-Cylinder |
5.472/ 139mm |
1.888/ 48mm |
.780/ 20mm |
.866/ 22mm |
|
65984187 $645.22 |
K24 |
4-Cylinder |
5.984/ 152mm |
1.889/ 48mm |
.833/ 21mm |
.866/ 22mm |
|
65485188 $635.65 |
GSR 1.055 |
4-Cylinder |
5.485/ 139mm |
1.771/ 48mm |
.858/ 22mm |
.827/ 21mm |
|
65630198 $645.22 |
H22 VTEC A1 LONG |
4-Cylinder |
5.630/ 143mm |
1.890/ 48mm |
.935/ 24mm |
.866/ 22mm |
|
65893199 $645.22 |
F22C, DOHC |
4-Cylinder |
5.893/ 149mm |
1.888/ 48mm |
.940/ 24mm |
.905/ 23mm
NEW |
SPORT COMPACT
Page 77
SUBARU & MITSUBISHI CRANKSHAFTS
& CONNECTING RODS
|
PART NO. |
ENGINE |
Stroke INCH/MM |
Pin Dia.
inch/ MM |
|
SUBARU BILLET 4340 LIGHTWEIGHT CRANKSHAFTS |
|
88S791 |
EJ20/EJ25 |
3.110/79mm |
2.047/52mm |
|
88S831 $2,398.84 2,398.84 |
EJ20/EJ25 |
3.268/83mm |
2.047/52mm |
|
PART NO. |
ENGINE |
Rod Length Inch/ MM |
CRANK INCH/ MM |
B.E. Inch/ MM |
Wrist Inch- MM |
|
SUBARU FORGED 4340 H-BEAM CONNECTING RODS |
|
65138289 $673.46 |
WRX 2.00, 2.0, 2.5 4-Cylinder |
5.138/ 130mm |
2.047/ 52mm |
.842/ 21mm |
.905/ 23mm |
|
• ARP 2000 3/8" Cap Screws |
|
65180289 |
WRX 2.5, 20000 & LATER 2.5 4-Cylinder |
5.180/ 132mm |
2.047/ 52mm |
.842/ 21mm |
.905/ 23mm |
|
• ARP 2000 5/16" Cap Screws |
|
PART NO. |
ENGINE |
Stroke INCH/MM |
Pin Dia. inch/ MM |
TECH NOTES |
|
MITSUBISHI BILLET 4340 LIGHTWEIGHT CRANKSHAFTS |
|
88M941 |
4G63/ 4G64 |
3.700/ 94mm |
1.771/ 45mm |
7 Bolt Flange |
|
88M101 |
4G63/ 4G64 |
3.937/ 100mm |
1.771/ 45mm |
7 Bolt Flange |
Mitsubishi 4G63 crankshaft
|
PART NO. |
ENGINE |
Rod Length Inch/ MM |
CRANK INCH/ MM |
B.E. Inch/ MM |
Wrist Inch- MM |
|
MITSUBISHI FORGED 4340 H-BEAM CONNECTING RODS |
|
659061182 $639.78 |
4G63B, Early 4-Cylinder |
5.906/1 50mm |
1.771/ 45mm |
1.115/ 28mm |
.827/ 21mm |
|
659061186 $645.22 |
4G63B, Late 4-Cylinder |
5.906/ 150mm |
1.771/ 45mm |
1.038/ 26mm |
.866/ 22mm |
|
• ARP 2000 3/8" Cap Screws |
Page 78
SPORT COMPACT APPLICATIONS
|
PART NO. |
ENGINE |
Rod Length Inch/ MM |
CRANK INCH/ MM |
B.E. Inch/ MM |
Wrist Inch- MM |
|
AUDI/VW FORGED 4340 H-BEAM CONNECTING RODS |
|
66457277 $874.72 |
VR6-3.8L |
6-Cylinder |
6.457/ 164mm |
2.125/ 54mm |
.786/ 20mm |
.787/ 20mm |
|
65670747 $673.46 |
1.8T / 2.0T 06A & 06B* |
4-Cylinder |
5.670/ 164mm |
1.992/ 54mm |
.980/ 20mm |
.747/ 19mm |
|
• ARP 2000 3/8" Cap Screws |
|
COSWORTH FORGED 4340 H-BEAM CONNECTING RODS |
|
64925635 $662.73 |
1600CC FORD. 635 GRAMS |
4-Cylinder |
4.925/ 125mm |
2.082/ 53mm |
1.050/ 27mm |
.812/ 21mm |
|
• ARP 2000 3/8" Cap Screws |
|
FIAT FORGED 4340 H-BEAM CONNECTING RODS |
|
65050118 $673.46 |
PUNTO, GT |
4-Cylinder |
5.050/ 128mm |
1.915/ 49mm |
1.000/ 25mm |
.866/ 22mm |
|
• ARP 2000 3/8" Cap Screws |
|
FORD FORGED 4340 H-BEAM CONNECTING RODS |
|
64925635 $662.73 |
1600, 4340 |
4-Cylinder |
4.925/ 128mm |
2.082/ 49mm |
.812/ 25mm |
.635/ 22mm |
|
• ARP 2000 3/8" Cap Screws |
|
MAZDA FORGED 4340 H-BEAM CONNECTING RODS |
|
65233178 $645.22 |
1.6L & 1.8L B6/BP |
4-Cylinder |
5.233/ 133mm |
1.770/ 45mm |
.860/ 22mm |
.787/ 20mm |
|
• ARP 2000 3/8" Cap Screws |
|
NISSAN FORGED 4340 H-BEAM CONNECTING RODS |
|
65365188 $639.78 |
SR20DE |
4-Cylinder |
5.365/ 136mm |
1.888/ 48mm |
.898/ 23mm |
.866/ 22mm |
|
65677288 $880.13 |
VQ35DE- 350ZX- MAXIMA |
6-Cylinder |
5.677/ 144mm |
2.047/ 52mm |
.817/ 21mm |
.866/ 22mm |
|
66071188 $880.13 |
VG30-300ZX-V7 |
6-Cylinder |
6.071/ 154mm |
1.967/ 50mm |
.817/ 21mm |
.866/ 22mm |
|
64783188 $888.17 |
RB26 |
6-Cylinder |
4.783/ 121mm |
1.889/ 48mm |
.857/ 22mm |
.827/ 21mm |
|
66002826 $645.22 |
Z20 |
4-Cylinder |
6.002/ 152mm |
2.086/ 53mm |
.860/ 22mm |
.827/ 21mm |
|
66002826S $880.13 |
RB30 |
6-Cylinder |
6.002/ 152mm |
2.086/ 53mm |
.860/ 22mm |
.827/ 21mm |
|
66496189 $639.78 |
KA24 |
4-Cylinder |
6.496/ 165mm |
1.967/ 48mm |
.973/ 25mm |
.827/ 21mm |
|
• ARP 2000 3/8" Cap Screws |
|
|
|
PEUGEOT FORGED 4340 H-BEAM CONNECTING RODS |
|
65252197 $641.10 |
106 |
4-Cylinder |
5.252/ 133mm |
1.915/ 49mm |
.940/ 24mm |
.767/ 19mm |
|
• ARP 2000 Cap
Screws |
|
PONTIAC LE MANS/DAEWOO FORGED 4340 H-BEAM
CONNECTING RODS |
|
65110187 $665.55 |
1.6L GM |
4-Cylinder |
5.110/ 130mm |
1.691/ 43mm |
.862/ 22mm |
.708/ 22mm |
|
• ARP 2000 Cap
Screws |
|
SATURN FORGED 4340 H-BEAM CONNECTING RODS |
|
65707197 $665.55 |
SATURN 1.9-116CID |
4-Cylinder |
5.707/ 144mm |
1.691/ 18mm |
.966/ 25mm |
.767/ 19mm |
|
• ARP 2000 Cap
Screws |
|
SUBARU FORGED 4340 H-BEAM CONNECTING RODS |
|
65180905 $665.55 |
EJ20-EJ25 |
4-Cylinder |
5.180/ 144mm |
2.047/ 18mm |
.842/ 25mm |
.905/ 19mm |
|
• ARP 2000 Cap
Screws |
|
TOYOTA FORGED 4340 H-BEAM CONNECTING RODS |
|
64645187 $673.46 |
1.3 TURBO JDM 3/8" |
4-Cylinder |
4.645/ 118mm |
1.693/ 43mm |
.818/ 20mm |
.709/ 18mm |
|
65138709 $673.46 |
5EFTE |
4-Cylinder |
5.138/ 130mm |
1.693/ 43mm |
.818/ 20mm |
.709/ 18mm |
|
65590218 $880.13 |
2JZGTE - V7 5/16" |
6-Cylinder |
5.590/ 142mm |
2.047/ 52mm |
1.020/ 26mm |
.866/ 22mm |
|
65819281 $673.46 |
22R 3/8" |
4-Cylinder |
5.819/ 147mm |
2.086/ 52mm |
1.090/ 28mm |
.866/ 22mm |
|
|
Page 79
SPORT COMPACT APPLICATIONS
|
PART NO. |
ENGINE |
Rod Length Inch/ MM |
CRANK INCH/ MM |
B.E. Inch/ MM |
Wrist Inch- MM |
|
VAUXHALL FORGED 4340 H-BEAM CONNECTING RODS |
|
6VAUX $683.03 |
2.0 |
4-Cylinder |
5.636/ 143mm |
1.927/ 49mm |
1.039/ 26mm |
.827/ 21mm |
|
ARP 2000 CAP SCREWS |
|
VW SCIROCCO FORGED 4340 H-BEAM CONNECTING
RODS |
|
65670187 $673.46 |
1.8L, 1.8T (SCIROCCO) |
4-Cylinder |
5.670/ 144mm |
1.880/ 48mm |
.981/ 25mm |
.787/ 20mm |
|
ARP 2000 CAP SCREWS |
|
JETTA/GOLF FORGED 4340 H-BEAM CONNECTING RODS |
|
65670187S $840.87 |
I5 20V, 10V (JETTA/ GOLF) |
5-Cylinder |
5.670/ 144mm |
1.880/ 48mm |
.981/ 25mm |
.787/ 20mm |
|
66260197 $673.58 |
2.0L ABA (JETTA/ GOLF) |
4-Cylinder |
6.260/ 159mm |
1.880/ 48mm |
.981/ 25mm |
.787/ 20mm |
|
66260198 $673.58 |
2.0L ABA (JETTA/ GOLF) |
4-Cylinder |
6.260/ 159mm |
1.880/ 48mm |
.981/ 25mm |
.827/ 21mm |
|
*Small end tapered for factory pistons |
|
PART NO. |
PART NO. |
Rod Length Inch/ MM |
CRANK INCH/MM |
Wrist Inch- MM |
|
SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - CHEVY JOURNAL |
|
102494-3 |
102494-3-8740 |
5.325/135mm |
2.000/51mm |
.866/22mm |
|
102514-3 |
102514-3-8740 |
5.500/139mm |
2.000/51mm |
.866/22mm |
|
102534-3 |
102534-3-8740 |
5.700/144mm |
2.000/51mm |
.866/22mm |
|
ARP 2000 3/8" CAP SCREWS |
ARP 8740 3/8" CAP SCREWS |
. |
|
SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - VW JOURNAL |
|
102502-3 |
102502-3-8740 |
5.394/137mm |
2.165/55mm |
.866/22mm |
|
102512-3 |
102512-3-8740 |
5.500/139mm |
2.165/55mm |
.866/22mm |
|
102532-3 |
102532-3-8740 |
5.700/144mm |
2.165/55mm |
.866/22mm |
|
ARP 2000 3/8" CAP SCREWS |
ARP 8740 3/8" CAP SCREWS |
. |
|
SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - CHEVY JOURNAL |
|
102494-2 |
102494-2-8740 |
5.325/135mm |
2.000/51mm |
.866/22mm |
|
102534-2 |
102534-2-8740 |
5.700/144mm |
2.000/51mm |
.866/22mm |
|
ARP 2000 5/16" CAP SCREWS |
ARP 8740 5/16" CAP SCREWS |
. |
|
SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - VW JOURNAL |
|
102512-2 |
102512-2-8740 |
5.500/139mm |
2.165/55mm |
.866/22mm |
|
ARP 2000 5/16" CAP SCREWS |
ARP 8740 5/16" CAP SCREWS |
. |
|
SCAT VW AIR COOLED FORGED I-BEAM CONNECTING RODS - CHEVY JOURNAL |
|
ICR5500-34 |
ICR5500-34-8740 |
5.500/139mm |
2.000/51mm |
.866/22mm |
|
ARP 2000 3/8" CAP SCREWS |
ARP 8740 3/8" CAP SCREWS |
. |
|
SCAT VW AIR COOLED FORGED I-BEAM CONNECTING RODS - VW JOURNAL |
|
ICR5394-3 |
ICR5394-3-8740 |
5.394/137mm |
2.165/55mm |
.866/22mm |
|
ICR5500-3 |
ICR5500-3-8740 |
5.500/139mm |
2.165/55mm |
.866/22mm |
|
ARP 2000 3/8" CAP SCREWS |
ARP 8740 3/8" CAP SCREWS |
. |
Top of Page
Home
