RPM Scat 4340 Steel H-Beam Rods

Scat 4340 Steel H-Beam Rods

Chevrolet, Ford, Chrysler, AMC, Buick, Cadillac, Holden, Big Block Pontiac, Vauxhall, VW

RPM - RON'S PRECISION MACHINE, INC.
69 E. 580 N.
Santaquin, Utah 84655

Contact us anytime OR use your e-mail program and type in ron@rpmrons.com to send an e-mail with what you need

Order Form

Engine Rebuild Kit and Parts Online Catalog.

Engine Rebuild & Assembly Balancing &
Blueprinting Cylinder Heads

Engine Rebuild Kits Engine Start-up Other Related Web Sites Page 1

Crankshafts Degree Cam Other Related Web Sites Page 2

Purchase warranty & Return Information About the owner of RPM Frequently Asked Questions

MASTER ENGINE REBUILD KITS & PARTS

Home

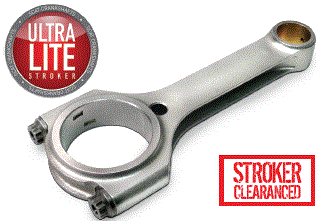

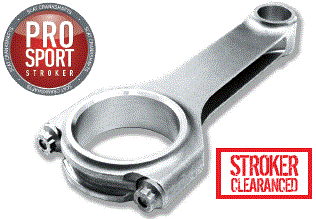

PRO SPORT H-BEAMS CONNECTING RODS

Perfect for high horsepower, supercharged and nitrous Applications H-Beam design is the strongest SCAT rod available Special doweled cap for specific cap-to-rod alignment Available for AMC, Buick, Chevy, Chrysler, Ford, Holden, Pontiac, Vauxhall, VW

SPORT COMPACT

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-239-7000-2000 $791.69 Ford Pro Sport H-Beam ARP 3/8" ARP 8740 7.000 2.000 0.750 0.865

2-239-7000-2000A $868.15 Ford Pro Sport H-Beam ARP 3/8" ARP 2000 7.000 2.000 0.750 0.865

2-239-7000-2138 $791.69 Ford Pro Sport H-Beam ARP 3/8" ARP 8740 7.000 2.138 0.750 0.865

2-250-6000-2000 $677.03 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.000 2.000 0.927 1.050

2-250-6000-2000A $753.51 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.000 2.000 0.927 1.050

2-3.8-5970-2249-940 $655.04 Buick Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.970 2.249 0.940 0.844

2-3.8-5970-2249-940A $731.52 Buick Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.970 2.249 0.940 0.844

2-302-5090-2123-912 $703.08 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.090 2.123 0.912 0.830

2-302-5090-2123-912A $779.55 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.090 2.123 0.912 0.830

2-302-5400-2000-927 $791.69 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.400 2.000 0.927 0.830

2-302-5400-2000-927A $868.17 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.400 2.000 0.927 0.830

2-302-5400-2100-927 $622.44 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.400 2.100 0.927 0.830

2-302-5400-2100-927A $757.59 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.400 2.100 0.927 0.830

2-302-5400-2123-912 $737.11 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.400 2.123 0.912 0.830

2-302-5400-2123-912A $813.58 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.400 2.123 0.912 0.830

2-302-5400-2123-927 $681.12 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.400 2.123 0.927 0.830

2-302-5400-2123-927A $757.59 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.400 2.123 0.927 0.830

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-308-5627-2124 $730.31 Holden Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.627 2.124 0.927 0.880

2-308-5627-2124A $806.78 Holden Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.627 2.124 0.927 0.880

2-308-5700-2124 $730.31 Holden Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.700 2.124 0.927 0.880

2-308-5700-2124A $806.78 Holden Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.700 2.124 0.927 0.880

2-343-5885-2208 $796.60 AMC Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.885 2.095 0.930 0.924

2-343-5885-2208A $873.07 AMC Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.885 2.095 0.930 0.924

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-350-5700-2000 $678.60 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.700 2.000 0.927 0.940

2-350-5700-2000A $813.58 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.700 2.000 0.927 0.940

2-350-5700-2000-QLS call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.700 2.000 0.927 0.940

2-350-5700-2000-QSLA call call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.700 2.000 0.927 0.940

2-350-5700-2100 $665.04 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.700 2.100 0.927 0.940

2-350-5700-2100A $745.62 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.700 2.100 0.927 0.940

2-350-5700-2100QL $793.17 Chevy Pro Sport H-Beam ARP 3/8" ARP 2000 5.700 2.100 0.927 0.940

2-350-5700-2100-QLS call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.700 2.100 0.927 0.940

2-350-5700-2100-QSLA call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.700 2.100 0.927 0.940

2-350-5850-2000 $737.11 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.850 2.000 0.927 0.940

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-350-5850-2000-866 $791.49 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.850 2.000 0.866 0.940

2-350-5850-2000-866A $867.97 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.850 2.000 0.866 0.940

2-350-5850-2000A $813.58 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.850 2.000 0.927 0.940

2-350-5850-2000-QLS call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.850 2.000 0.927 0.940

2-350-5850-2000-QSLA call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.850 2.000 0.927 0.940

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-350-5850-2100 $737.09 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.850 2.100 0.927 0.940

2-350-5850-2100A $813.57 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.850 2.100 0.927 0.940

2-350-5850-2100-QLS call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.850 2.100 0.927 0.940

2-350-5850-2100-QSLA call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.850 2.100 0.927 0.940

2-350-6000-1888-QLS call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.000 1.888 0.927 0.940

2-350-6000-1888-QSLA call call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.000 1.888 0.927 0.940

2-350-6000-2000 $737.11 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.000 2.000 0.927 0.940

2-350-6000-2000A $813.58 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.000 2.000 0.927 0.940

2-350-6000-2000-QLS call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.000 2.000 0.927 0.940

2-350-6000-2000-QSLA call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.000 2.000 0.927 0.940

2-350-6000-2100 $665.04 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.000 2.100 0.927 0.940

2-350-6000-2100A $745.62 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.000 2.100 0.927 0.940

2-350-6000-2100QL $793.17 Chevy Pro Sport H-Beam ARP 3/8" ARP 2000 6.000 2.100 0.927 0.940

2-350-6000-2100-QLS call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.000 2.100 0.927 0.940

2-350-6000-2100-QSLA call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.000 2.100 0.927 0.940

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-350-6000-2100-S Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.000 2.100 0.927 0.940

2-350-6000-2100-SA Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.000 2.100 0.927 0.940

2-350-6125-1888-QLS call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.125 1.888 0.927 0.940

2-350-6125-1888-QSLA call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.125 1.888 0.927 0.940

2-350-6125-2000 $737.11 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.125 2.000 0.927 0.940

2-350-6125-2000A $813.58 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.125 2.000 0.927 0.940

2-350-6125-2000-QLS $711.25 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.125 2.000 0.927 0.940

2-350-6125-2000-QSLA call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.125 2.000 0.927 0.940

2-350-6125-2100 $737.09 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.125 2.100 0.927 0.940

2-350-6125-2100A $813.57 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.125 2.100 0.927 0.940

2-350-6125-2100-QLS $711.25 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.125 2.100 0.927 0.940

2-350-6125-2100-QSLA call call Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.125 2.100 0.927 0.940

2-350-6125-2100-S Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.125 2.100 0.927 0.940

2-350-6125-2100-SA Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.125 2.100 0.927 0.940

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-350-6200-2000 $737.11 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.200 2.000 0.927 0.940

2-350-6200-2000A $813.58 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.200 2.000 0.927 0.940

2-350-6200-2100 $737.09 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.200 2.100 0.927 0.940

2-350-6200-2100A $813.57 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.200 2.100 0.927 0.940

2-350-6250-2100 $737.09 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.250 2.100 0.927 0.940

2-350-6250-2100A $813.57 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.250 2.100 0.927 0.940

2-350-6250-2100-S Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.250 2.100 0.927 0.940

2-350-6250-2100-SA Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.250 2.100 0.927 0.940

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-351-5955-2311-912 $737.11 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 5.955 2.311 0.912 0.830

2-351-5955-2311-912A $813.58 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.955 2.311 0.912 0.830

2-351-6125-2311-912 $737.11 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.125 2.311 0.912 0.830

2-351-6125-2311-912A $813.58 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.125 2.311 0.912 0.830

2-351-6200-2311-927 $737.11 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.200 2.311 0.927 0.830

2-351-6200-2311-927A $813.58 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.200 2.311 0.927 0.830

2-360-6123-2124 $737.11 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.123 2.124 0.984 0.925

2-360-6123-2124A $813.58 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.123 2.124 0.984 0.925

2-426-6800-2200-990 $737.11 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.800 2.200 0.990 1.012

2-426-6800-2200-990A $815.95 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.800 2.200 0.990 1.012

2-426-6860-2374-1030 $737.11 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.860 2.374 1.030 1.012

2-426-6860-2374-1030A Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.860 2.374 1.030 1.012

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-428-6490-2438-975 $791.49 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.490 2.438 0.975 0.875

2-428-6490-2438-975A $867.97 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.490 2.438 0.975 0.875

2-440-6760-2374-1094 $737.11 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.760 2.374 1.094 1.012

2-440-6760-2374-1094A Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.760 2.374 1.094 1.012

2-440-6760-2374-990 $737.11 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.760 2.374 0.990 1.012

2-440-6760-2374-990A $815.95 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.760 2.374 0.990 1.012

2-440-7100-2374-990 $737.11 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 8740 7.100 2.374 0.990 1.012

2-440-7100-2374-990A $815.95 Chrysler Pro Sport H-Beam ARP 7/ 16" ARP 2000 7.100 2.374 0.990 1.012

2-454-6135-2200 $739.48 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.135 2.200 0.990 0.992

2-454-6135-2200A $815.95 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.135 2.200 0.990 0.992

2-454-6385-2200 $739.15 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.385 2.200 0.990 0.992

2-454-6385-2200A $812.01 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.385 2.200 0.990 0.992

2-454-6535-2200 $739.48 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.535 2.200 0.990 0.992

2-454-6535-2200A $815.95 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.535 2.200 0.990 0.992

2-454-6700-2200 $739.48 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.700 2.200 0.990 0.992

2-454-6700-2200A $754.65 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.700 2.200 0.990 0.992

2-454-6800-2200 $739.48 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.800 2.200 0.990 0.992

2-454-6800-2200A $815.95 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.800 2.200 0.990 0.992

2-454-7100-2200 $739.48 7 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 8740 7.100 2.200 0.990 0.992

2-454-7100-2200A $815.95 Chevy Pro Sport H-Beam ARP 7/ 16" ARP 2000 7.100 2.200 0.990 0.992

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-455-6625-2249 $814.19 Pontiac Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.625 2.249 0.980 0.995

2-455-6625-2249A $893.02 Pontiac Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.625 2.249 0.980 0.995

2-455-6625-2249P $791.00 Pontiac Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.625 2.249 0.980 0.995

2-455-6625-2249PA $869.83 Pontiac Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.625 2.249 0.980 0.995

2-455O-6735-2500-980 $799.51 Olds. Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.735 2.500 0.980 0.930

2-455O-6735-2500-980A Olds. Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.735 2.500 0.980 0.930

2-460-6605-2500 $791.49 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.605 2.500 1.040 0.995

2-460-6605-2500A $867.97 Ford Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.605 2.500 1.040 0.995

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-4645-1693-818-709 $533.23 Toyota Pro Sport H-Beam ARP 3/8" ARP 2000 4.645 1.693 0.709 0.818

2-46L-5933 Ford Pro Sport H-Beam ARP 3/8" ARP 8740 5.933 2.086 0.866 0.940

2-46L-5933A Ford Pro Sport H-Beam ARP 3/8" ARP 2000 5.933 2.086 0.866 0.940

2-4783-1889-826-857 $698.56 Nissan Pro Sport H-Beam ARP 3/8" ARP 2000 4.783 1.889 0.857 0.826

2-4925-2082-812-635 $524.23 Ford Pro Sport H-Beam ARP 3/8" ARP 2000 4.925 2.082 1.056 0.812

2-5050-1915-1000-866 $533.23 Fiat Pro Sport H-Beam ARP 3/8" ARP 2000 5.050 1.915 0.866 1.000

2-5110-1691-862-708 $533.23 Le Mans Pro Sport H-Beam ARP 3/8" ARP 2000 5.110 1.691 0.708 0.862

2-5138-1693-818-709 $533.23 Toyota Pro Sport H-Beam ARP 3/8" ARP 2000 5.138 1.693 0.709 0.818

2-5138-2047-842-905 $533.23 Subaru Pro Sport H-Beam ARP 7/ 16" ARP 2000 5.138 2.047 0.905 0.842

2-5180-2047-842-905 $533.23 Subaru Pro Sport H-Beam ARP 3/8" ARP 2000 5.180 2.047 0.905 0.842

2-5233-1770-787-860 $509.83 Mazda Pro Sport H-Beam ARP 3/8" ARP 2000 5.233 1.770 0.860 0.787

2-5252-1915-940-767 $509.83 Peugeot Pro Sport H-Beam ARP 3/8" ARP 2000 5.252 1.915 0.767 0.940

2-5290-1771-935-827 $509.83 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.290 1.771 0.827 0.935

2-5365-1888-898-866 $509.83 Nissan Pro Sport H-Beam ARP 3/8" ARP 2000 5.365 1.888 0.866 0.898

2-5394-1771-898-748 $509.83 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.394 1.771 0.748 0.898

2-5394-1771-935-827 $509.83 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.394 1.771 0.827 0.935

2-5430-1771-858-827 $509.83 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.430 1.771 0.827 0.858

2-5458-1771-898-748 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.458 1.771 0.898 0.748

2-5472-1888-780-866 $509.83 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.472 1.888 0.866 0.780

2-5485-1771-858-827 $509.83 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.485 1.771 0.827 0.858

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-54L-6657 Ford Pro Sport H-Beam ARP 3/8" ARP 8740 6.657 2.086 0.866 0.940

2-54L-6657A Ford Pro Sport H-Beam ARP 3/8" ARP 2000 6.657 2.086 0.866 0.940

2-5590-2047-1020-866 $692.03 Toyota Pro Sport H-Beam ARP 3/8" ARP 2000 5.590 2.047 0.866 1.020

2-5630-1890-935-866 $509.83 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.630 1.890 0.866 0.935

2-5670-1992-980-747 $533.23 Audi/ VW Pro Sport H-Beam ARP 3/8" ARP 2000 5.670 1.992 0.747 0.980

2-5670-1992-981-787 $533.23 VW Pro Sport H-Beam ARP 3/8" ARP 2000 5.670 1.880 0.787 0.981

2-5670-1992-981-787S $666.45 VW Pro Sport H-Beam ARP 3/8" ARP 2000 5.670 1.880 0.787 0.981

2-5677-2047-817-866 $692.03 Nissan Pro Sport H-Beam ARP 3/8" ARP 2000 5.677 2.047 0.866 0.817

2-5707-1850-966-767 $533.23 Saturn Pro Sport H-Beam ARP 3/8" ARP 2000 5.707 1.691 0.767 0.966

2-5819-2086-866-109 $533.23 Toyota Pro Sport H-Beam ARP 3/8" ARP 2000 5.819 2.086 0.866 1.090

2-5893-1888-940-905 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.893 1.888 0.940 0.905

2-5906-1771-1038-866 $509.83 Mits. Pro Sport H-Beam ARP 3/8" ARP 2000 5.906 1.771 0.866 1.035

2-5906-1771-1115-827 $509.83 Mits. Pro Sport H-Beam ARP 3/8" ARP 2000 5.906 1.771 0.827 1.115

2-5984-1889-833-780 $509.83 Honda Pro Sport H-Beam ARP 3/8" ARP 2000 5.984 1.889 0.780 0.833

2-6002-2086-857-826 $509.83 Nissan Pro Sport H-Beam ARP 3/8" ARP 2000 6.002 2.086 0.826 0.857

2-6002-2086-857-826S $691.69 Nissan Pro Sport H-Beam ARP 3/8" ARP 2000 6.002 2.086 0.826 0.857

2-6059-2242-993-867 $711.11 Ford Pro Sport H-Beam ARP 3/8" ARP 2000 6.059 2.242 0.867 0.993

2-6071-1967-817-866 $692.03 Nissan Pro Sport H-Beam ARP 3/8" ARP 2000 6.071 1.967 0.866 0.817

2-6260-1992-981-787 $533.23 VW Pro Sport H-Beam ARP 3/8" ARP 2000 6.260 1.880 0.787 0.981

2-6260-1992-981-827 $533.23 VW Pro Sport H-Beam ARP 3/8" ARP 2000 6.260 1.880 0.827 0.981

2-6457-2125-787-786 $691.69 Audi/ VW Pro Sport H-Beam ARP 3/8" ARP 2000 6.457 2.125 0.786 0.787

2-6494-2086-974-827 $509.83 Nissan Pro Sport H-Beam ARP 3/8" ARP 2000 6.496 1.967 0.827 0.974

Part # Your Cost Make Appl. Style Bolt Brand Bolt Size Bolt Material Rod Length Rod Journal Wrist Pin Big End Width

2-A7500-1500 Ford Pro Sport H-Beam ARP 7/ 16" ARP 8740 7.500 1.500 1.000 1.625

2-LS1-6100-2100-927 LS1 Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.100 2.100 0.927 0.940

2-LS1-6100-2100-927A LS1 Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.100 2.100 0.927 0.940

2-LS1-6100-2100-945 $661.25 LS1 Pro Sport H-Beam ARP 7/ 16" ARP 8740 6.100 2.100 0.945 0.940

2-LS1-6100-2100-945A
$802.50 LS1 Pro Sport H-Beam ARP 7/ 16" ARP 2000 6.100 2.100 0.945 0.940

2-T6875-1500 $616.25 Ford Pro Sport H-Beam ARP 3/8" ARP 8740 6.875 1.500 0.750 1.625

2-T7000-1250 Ford Pro Sport H-Beam ARP 3/8" ARP 8740 7.000 1.250 0.740 1.500

2-VAUXHALL-1 $502.50 Vauxhall Pro Sport H-Beam ARP 3/8" ARP 2000 5.636 1.927 0.827 1.039

SPORT COMPACT

AUDI/VW FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-6457-2125-787-786 $691.69 66457277 $691.69 691.691 VR6-3.8L 6-Cylinder 6.457/ 164mm 2.125/ 54mm .786/ 20mm .787/ 20mm

2-5670-1992-980-747 $533.23 65670747 $533.23 533.234 1.8T / 2.0T 06A & 06B* 4-Cylinder 5.670/ 164mm 1.992/ 54mm .980/ 20mm .747/ 19mm

ARP 2000 3/8” CAP SCREWS

COSWORTH FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-4925-2082-812-635 $524.23 64925635 $524.23 524.225 1600CC FORD. 635 GRAMS 4-Cylinder 4.925/ 125mm 2.082/ 53mm 1.050/ 27mm .812/ 21mm

ARP 2000 3/8” CAP SCREWS

FIAT FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5050-1915-1000-866 $533.23 65050118 $533.23 533.234 PUNTO, GT 4-Cylinder 5.050/ 128mm 1.915/ 49mm 1.000/ 25mm .866/ 22mm

ARP 2000 3/8” CAP SCREWS

FORD FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-4925-2082-812-635 $524.23 64925635 $524.23 524.225 1600, 4340 4-Cylinder 4.925/ 128mm 2.082/ 49mm .812/ 25mm .635/ 22mm

ARP 2000 3/8” CAP SCREWS

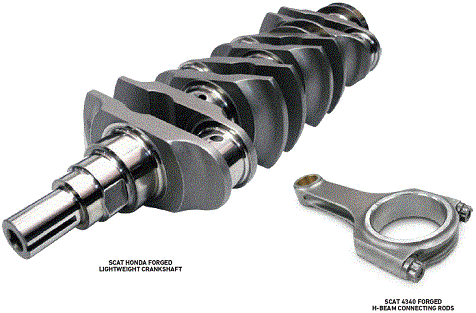

HONDA CRANKSHAFTS & CONNECTING RODS

PART N0. SHORT NUMBER ENGINE STROKE
INCH/ MM WEIGHT
(**) TECH NOTES

HONDA 4340 FORGED STANDARD WEIGHT CRANKSHAFTS

4HONDA89MM1771 $899.73 4H891 4-Cylinder 3.504/ 89mm 33 lbs 1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width

4HONDA92MM1771 $899.73 4H921 4-Cylinder 3.622/ 92mm 33 lbs 1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width

HONDA 4340 FORGED LIGHTWEIGHT PRO COMP CRANKSHAFTS

4HONDA89MM1771-2 $1,381.98 4H891-2 $1,381.98 1381.978 4-Cylinder 3.504/ 89mm 29 lbs 1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width

4HONDA92MM1771-2 $0.00 4H921-2 4-Cylinder 3.622/ 92mm 29 lbs 1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width

HONDA 4340 BILLET LIGHTWEIGHT PRO COMP CRANKSHAFTS

88HONDA95MM1771-2 $1,381.98 88H951-2 $1,381.98 1381.978 4-Cylinder 3.740/ 95mm 29 lbs 1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width

(**) Weights (lbs) are approximate, actuals may vary.

HONDA 4340 FORGED H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5290-1771-935-827 $509.83 65290198 $509.83 509.834 B16A DOHC VTEC 4-Cylinder 5.290/ 134mm 1.771/ 45mm .935/ 24mm .827/ 21mm

2-5394-1771-898-748 $509.83 65394187 $509.83 509.834 D16 SOHC VTEC 4-Cylinder 5.394/ 137mm 1.771/ 45mm .898/ 23mm .748/ 19mm

2-5394-1771-935-827 $509.83 65394198 $509.83 509.834 B18A DOHC VTEC 4-Cylinder 5.394/ 137mm 1.771/ 45mm .935/ 24mm .827/ 21mm

2-5430-1771-858-827 $509.83 65430187 $509.83 509.834 GSR, B18C1 4-Cylinder 5.430/ 138mm 1.771/ 45mm .858/ 22mm .827/ 21mm

2-5458-1771-898-748 65458187 $509.83 509.834 DI6, VITARA PISTON 4-Cylinder 5.458/ 139mm 1.771/ 45mm .898/ 23mm .748/ 19mm

2-5472-1888-780-866 $509.83 65472178 $509.83 509.834 K20A2 VTEC 4-Cylinder 5.472/ 139mm 1.888/ 48mm .780/ 20mm .866/ 22mm

2-5984-1889-833-866 65984187 $509.83 509.834 K24 4-Cylinder 5.984/ 152mm 1.889/ 48mm .833/ 21mm .866/ 22mm

2-5485-1771-858-827 $509.83 65485188 $509.83 509.834 GSR 1.055 4-Cylinder 5.485/ 139mm 1.771/ 48mm .858/ 22mm .827/ 21mm

2-5630-1890-935-866 $509.83 65630198 $509.83 509.834 H22 VTEC A1 LONG 4-Cylinder 5.630/ 143mm 1.890/ 48mm .935/ 24mm .866/ 22mm

2-5893-1888-940-905 65893199 $509.83 509.834 F22C, DOHC 4-Cylinder 5.893/ 149mm 1.888/ 48mm .940/ 24mm .905/ 23mm

MAZDA FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5233-1770-787-860 $509.83 65233178 $509.83 509.834 1.6L & 1.8L B6/BP 4-Cylinder 5.233/ 133mm 1.770/ 45mm .860/ 22mm . 787/ 20mm

ARP 2000 3/8” CAP SCREWS

NISSAN FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5365-1888-898-866 $509.83 65365188 $509.83 509.834 SR20DE 4-Cylinder 5.365/ 136mm 1.888/ 48mm .898/ 23mm .866/ 22mm

2-5677-2047-817-866 $692.03 65677288 $692.03 692.029 VQ35DE-350ZX- MAXIMA 6-Cylinder 5.677/ 144mm 2.047/ 52mm .817/ 21mm .866/ 22mm

2-6071-1967-817-866 $692.03 66071188 $692.03 692.029 VG30-300ZX-V7 6-Cylinder 6.071/ 154mm 1.967/ 50mm .817/ 21mm .866/ 22mm

2-4783-1889-826-857 $698.56 64783188 $698.56 698.555 RB26 6-Cylinder 4.783/ 121mm 1.889/ 48mm .857/ 22mm .827/ 21mm

2-6002-2086-857-826 $509.83 66002826 $509.83 509.834 Z20 4-Cylinder 6.002/ 152mm 2.086/ 53mm .860/ 22mm .827/ 21mm

2-6002-2086-857-826S $691.69 66002826S $691.69 691.691 RB30 6-Cylinder 6.002/ 152mm 2.086/ 53mm .860/ 22mm .827/ 21mm

2-6494-2086-974-827 $509.83 66496189 $509.83 509.834 KA24 4-Cylinder 6.496/ 165mm 1.967/ 48mm .973/ 25mm .827/ 21mm

ARP 2000 3/8” CAP SCREWS

PEUGEOT FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5252-1915-940-767 $509.83 65252197 $509.83 509.834 106 4-Cylinder 5.252/ 133mm 1.915/ 49mm .940/ 24mm .767/ 19mm

ARP 2000 CAP SCREWS

PONTIAC LE MANS/DAEWOO FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5110-1691-862-708 $533.23 65110187 $533.23 533.234 1.6L GM 4-Cylinder 5.110/ 130mm 1.691/ 43mm .862/ 22mm .708/ 22mm

ARP 2000 CAP SCREWS

SATURN FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5707-1850-966-767 $533.23 65707197 $533.23 533.234 SATURN 1.9-116CID 4-Cylinder 5.707/ 144mm 1.691/ 18mm .966/ 25mm .767/ 19mm

ARP 2000 CAP SCREWS

SUBARU FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5180-2047-842-905 $533.23 65180905 $533.23 533.234 EJ20-EJ25 4-Cylinder 5.180/ 144mm 2.047/ 18mm .842/ 25mm .905/ 19mm

ARP 2000 CAP SCREWS

TOYOTA FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-4645-1693-818-709 $533.23 64645187 $533.23 533.234 1.3 TURBO JDM 3/8" 4-Cylinder 4.645/ 118mm 1.693/ 43mm .818/ 20mm .709/ 18mm

2-5138-1693-818-709 $533.23 65138709 $533.23 533.234 5EFTE 4-Cylinder 5.138/ 130mm 1.693/ 43mm .818/ 20mm .709/ 18mm

2-5590-2047-1020-866 $692.03 65590218 $692.03 692.029 2JZGTE - V7 5/ 16" 6-Cylinder 5.590/ 142mm 2.047/ 52mm 1.020/ 26mm .866/ 22mm

2-5819-2086-866-109 $533.23 65819281 $533.23 533.234 22R 3/8" 4-Cylinder 5.819/ 147mm 2.086/ 52mm 1.090/ 28mm .866/ 22mm

ARP 2000 CAP SCREWS

VAUXHALL FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-VAUXHALL-1 6VAUX $547.72 547.716 2.0 4-Cylinder 5.636/ 143mm 1.927/ 49mm 1.039/ 26mm .827/ 21mm

ARP 2000 CAP SCREWS

VW SCIROCCO FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5670-1992-981-787 $533.23 65670187 $533.23 533.234 1.8L, 1.8T (SCIROCCO) 4-Cylinder 5.670/ 144mm 1.880/ 48mm .981/ 25mm .787/ 20mm

ARP 2000 CAP SCREWS

JETTA/GOLF FORGED 4340 H-BEAM CONNECTING RODS

PART NO. SHORT
NO. ENGINE ROD LENGTH
INCH/ MM CRANK
INCH/ MM Big End
INCH/ MM Wrist Pin
INCH/ MM

2-5670-1992-981-787S $666.45 65670187S $666.45 666.445 I5 20V, 10V (JETTA/GOLF) 5-Cylinder 5.670/ 144mm 1.880/ 48mm .981/ 25mm .787/ 20mm

2-6260-1992-981-787 $533.23 66260197 $533.23 533.234 2.0L ABA (JETTA/GOLF) 4-Cylinder 6.260/ 159mm 1.880/ 48mm .981/ 25mm .787/ 20mm

2-6260-1992-981-827 $533.23 66260198 $533.23 533.234 2.0L ABA (JETTA/GOLF) 4-Cylinder 6.260/ 159mm 1.880/ 48mm .981/ 25mm .827/ 21mm

ARP 2000 CAP SCREWS
*Small end tapered for factory pistons
ARP 2000 5/ 16 Cap screws

SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - CHEVY Journal

PART
NO. PART NO. ROD LENGTH
INCH/ MM CRANK
INCH/ MM Wrist Pin
INCH/ MM

102494-3 102494-3-8740 5.325/ 135mm 2.000/ 51mm .866/ 22mm

102514-3 102514-3-8740 5.500/ 139mm 2.000/ 51mm .866/ 22mm

102534-3 102534-3-8740 5.700/ 144mm 2.000/ 51mm .866/ 22mm

ARP 2000 3/8
CAP SCREWS ARP 8740 3/8
CAP SCREWS .

SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - VW Journal

PART
NO. PART NO. ROD LENGTH
INCH/ MM CRANK
INCH/ MM Wrist Pin
INCH/ MM

102502-3 102502-3-8740 5.394/ 137mm 2.165/ 55mm .866/ 22mm

102512-3 102512-3-8740 5.500/ 139mm 2.165/ 55mm .866/ 22mm

102532-3 102532-3-8740 5.700/ 144mm 2.165/ 55mm .866/ 22mm

ARP 2000 3/8
CAP SCREWS ARP 8740 3/8
CAP SCREWS .

SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - CHEVY Journal

PART
NO. PART NO. ROD LENGTH
INCH/ MM CRANK
INCH/ MM Wrist Pin
INCH/ MM

102494-2 102494-2-8740 5.325/ 135mm 2.000/ 51mm .866/ 22mm

102534-2 102534-2-8740 5.700/ 144mm 2.000/ 51mm .866/ 22mm

ARP 2000 5/ 16
CAP SCREWS ARP 8740 5/ 16
CAP SCREWS .

SCAT VW AIR COOLED FORGED H-BEAM CONNECTING RODS - VW Journal

PART
NO. PART NO. ROD LENGTH
INCH/ MM CRANK
INCH/ MM Wrist Pin
INCH/ MM

102512-2 102512-2-8740 5.500/ 139mm 2.165/ 55mm .866/ 22mm

ARP 2000 5/ 16
CAP SCREWS ARP 8740 5/ 16
CAP SCREWS .

SCAT VW AIR COOLED FORGED I-BEAM CONNECTING RODS - CHEVY Journal

PART
NO. PART NO. ROD LENGTH
INCH/ MM CRANK
INCH/ MM Wrist Pin
INCH/ MM

ICR5500-34 ICR5500-34-8740 5.500/ 139mm 2.000/ 51mm .866/ 22mm

ARP 2000 3/8
CAP SCREWS ARP 8740 3/8
CAP SCREWS .

SCAT VW AIR COOLED FORGED I-BEAM CONNECTING RODS - VW Journal

PART
NO. PART NO. ROD LENGTH
INCH/ MM CRANK
INCH/ MM Wrist Pin
INCH/ MM

ICR5394-3 $194.94 ICR5394-3-8740 5.394/ 137mm 2.165/ 55mm .866/ 22mm

ICR5500-3 ICR5500-3-8740 5.500/ 139mm 2.165/ 55mm .866/ 22mm

ARP 2000 3/8
CAP SCREWS ARP 8740 3/8
CAP SCREWS .

Top of Page

HOME

Engine Rebuild & Assembly	Balancing & Blueprinting	Cylinder Heads
Engine Rebuild Kits	Engine Start-up	Other Related Web Sites Page 1
Crankshafts	Degree Cam	Other Related Web Sites Page 2
Purchase warranty & Return Information	About the owner of RPM	Frequently Asked Questions
MASTER ENGINE REBUILD KITS & PARTS

Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-239-7000-2000 $791.69	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 8740	7.000	2.000	0.750	0.865
2-239-7000-2000A $868.15	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	7.000	2.000	0.750	0.865
2-239-7000-2138 $791.69	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 8740	7.000	2.138	0.750	0.865
2-250-6000-2000 $677.03	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.000	2.000	0.927	1.050
2-250-6000-2000A $753.51	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.000	2.000	0.927	1.050
2-3.8-5970-2249-940 $655.04	Buick	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.970	2.249	0.940	0.844
2-3.8-5970-2249-940A $731.52	Buick	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.970	2.249	0.940	0.844
2-302-5090-2123-912 $703.08	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.090	2.123	0.912	0.830
2-302-5090-2123-912A $779.55	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.090	2.123	0.912	0.830
2-302-5400-2000-927 $791.69	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.400	2.000	0.927	0.830
2-302-5400-2000-927A $868.17	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.400	2.000	0.927	0.830
2-302-5400-2100-927 $622.44	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.400	2.100	0.927	0.830
2-302-5400-2100-927A $757.59	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.400	2.100	0.927	0.830
2-302-5400-2123-912 $737.11	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.400	2.123	0.912	0.830
2-302-5400-2123-912A $813.58	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.400	2.123	0.912	0.830
2-302-5400-2123-927 $681.12	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.400	2.123	0.927	0.830
2-302-5400-2123-927A $757.59	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.400	2.123	0.927	0.830
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-308-5627-2124 $730.31	Holden	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.627	2.124	0.927	0.880
2-308-5627-2124A $806.78	Holden	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.627	2.124	0.927	0.880
2-308-5700-2124 $730.31	Holden	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.700	2.124	0.927	0.880
2-308-5700-2124A $806.78	Holden	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.700	2.124	0.927	0.880
2-343-5885-2208 $796.60	AMC	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.885	2.095	0.930	0.924
2-343-5885-2208A $873.07	AMC	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.885	2.095	0.930	0.924
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width

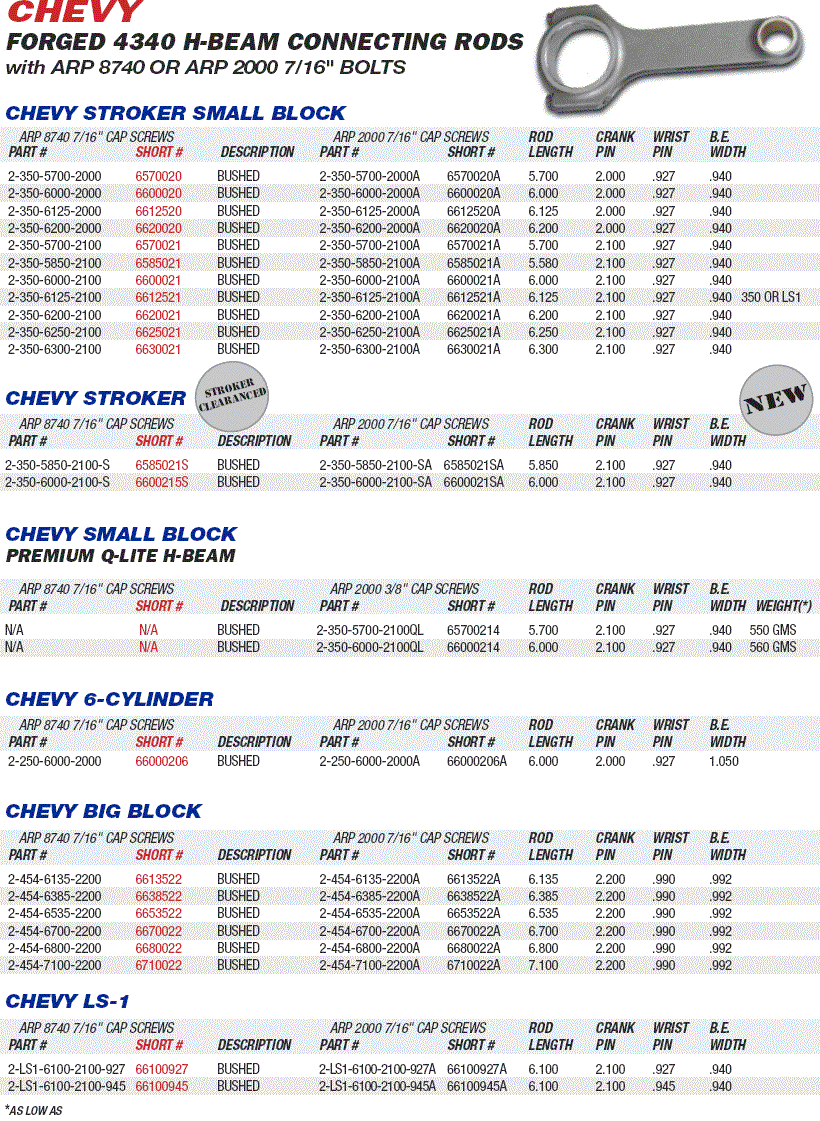

2-350-5700-2000 $678.60	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.700	2.000	0.927	0.940
2-350-5700-2000A $813.58	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.700	2.000	0.927	0.940
2-350-5700-2000-QLS call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.700	2.000	0.927	0.940
2-350-5700-2000-QSLA call call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.700	2.000	0.927	0.940
2-350-5700-2100 $665.04	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.700	2.100	0.927	0.940
2-350-5700-2100A $745.62	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.700	2.100	0.927	0.940
2-350-5700-2100QL $793.17	Chevy	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.700	2.100	0.927	0.940
2-350-5700-2100-QLS call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.700	2.100	0.927	0.940
2-350-5700-2100-QSLA call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.700	2.100	0.927	0.940
2-350-5850-2000 $737.11	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.850	2.000	0.927	0.940
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-350-5850-2000-866 $791.49	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.850	2.000	0.866	0.940
2-350-5850-2000-866A $867.97	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.850	2.000	0.866	0.940
2-350-5850-2000A $813.58	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.850	2.000	0.927	0.940
2-350-5850-2000-QLS call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.850	2.000	0.927	0.940
2-350-5850-2000-QSLA call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.850	2.000	0.927	0.940
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-350-5850-2100 $737.09	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.850	2.100	0.927	0.940
2-350-5850-2100A $813.57	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.850	2.100	0.927	0.940
2-350-5850-2100-QLS call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.850	2.100	0.927	0.940
2-350-5850-2100-QSLA call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.850	2.100	0.927	0.940
2-350-6000-1888-QLS call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.000	1.888	0.927	0.940
2-350-6000-1888-QSLA call call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.000	1.888	0.927	0.940
2-350-6000-2000 $737.11	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.000	2.000	0.927	0.940
2-350-6000-2000A $813.58	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.000	2.000	0.927	0.940
2-350-6000-2000-QLS call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.000	2.000	0.927	0.940
2-350-6000-2000-QSLA call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.000	2.000	0.927	0.940
2-350-6000-2100 $665.04	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.000	2.100	0.927	0.940
2-350-6000-2100A $745.62	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.000	2.100	0.927	0.940
2-350-6000-2100QL $793.17	Chevy	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.000	2.100	0.927	0.940
2-350-6000-2100-QLS call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.000	2.100	0.927	0.940
2-350-6000-2100-QSLA call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.000	2.100	0.927	0.940
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-350-6000-2100-S	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.000	2.100	0.927	0.940
2-350-6000-2100-SA	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.000	2.100	0.927	0.940
2-350-6125-1888-QLS call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.125	1.888	0.927	0.940
2-350-6125-1888-QSLA call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.125	1.888	0.927	0.940
2-350-6125-2000 $737.11	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.125	2.000	0.927	0.940
2-350-6125-2000A $813.58	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.125	2.000	0.927	0.940
2-350-6125-2000-QLS $711.25	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.125	2.000	0.927	0.940
2-350-6125-2000-QSLA call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.125	2.000	0.927	0.940
2-350-6125-2100 $737.09	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.125	2.100	0.927	0.940
2-350-6125-2100A $813.57	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.125	2.100	0.927	0.940
2-350-6125-2100-QLS $711.25	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.125	2.100	0.927	0.940
2-350-6125-2100-QSLA call call	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.125	2.100	0.927	0.940
2-350-6125-2100-S	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.125	2.100	0.927	0.940
2-350-6125-2100-SA	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.125	2.100	0.927	0.940
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-350-6200-2000 $737.11	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.200	2.000	0.927	0.940
2-350-6200-2000A $813.58	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.200	2.000	0.927	0.940
2-350-6200-2100 $737.09	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.200	2.100	0.927	0.940
2-350-6200-2100A $813.57	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.200	2.100	0.927	0.940
2-350-6250-2100 $737.09	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.250	2.100	0.927	0.940
2-350-6250-2100A $813.57	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.250	2.100	0.927	0.940
2-350-6250-2100-S	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.250	2.100	0.927	0.940
2-350-6250-2100-SA	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.250	2.100	0.927	0.940
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-351-5955-2311-912 $737.11	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	5.955	2.311	0.912	0.830
2-351-5955-2311-912A $813.58	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.955	2.311	0.912	0.830
2-351-6125-2311-912 $737.11	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.125	2.311	0.912	0.830
2-351-6125-2311-912A $813.58	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.125	2.311	0.912	0.830
2-351-6200-2311-927 $737.11	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.200	2.311	0.927	0.830
2-351-6200-2311-927A $813.58	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.200	2.311	0.927	0.830

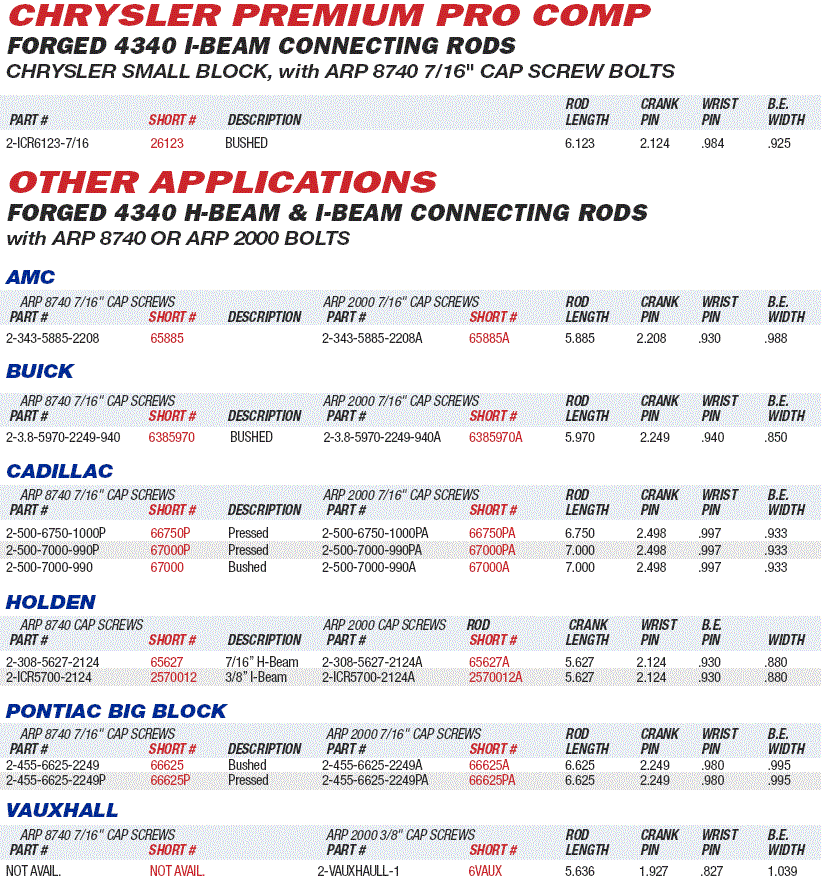

2-360-6123-2124 $737.11	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.123	2.124	0.984	0.925
2-360-6123-2124A $813.58	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.123	2.124	0.984	0.925
2-426-6800-2200-990 $737.11	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.800	2.200	0.990	1.012
2-426-6800-2200-990A $815.95	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.800	2.200	0.990	1.012
2-426-6860-2374-1030 $737.11	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.860	2.374	1.030	1.012
2-426-6860-2374-1030A	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.860	2.374	1.030	1.012
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-428-6490-2438-975 $791.49	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.490	2.438	0.975	0.875
2-428-6490-2438-975A $867.97	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.490	2.438	0.975	0.875
2-440-6760-2374-1094 $737.11	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.760	2.374	1.094	1.012
2-440-6760-2374-1094A	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.760	2.374	1.094	1.012
2-440-6760-2374-990 $737.11	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.760	2.374	0.990	1.012
2-440-6760-2374-990A $815.95	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.760	2.374	0.990	1.012
2-440-7100-2374-990 $737.11	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	7.100	2.374	0.990	1.012
2-440-7100-2374-990A $815.95	Chrysler	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	7.100	2.374	0.990	1.012
2-454-6135-2200 $739.48	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.135	2.200	0.990	0.992
2-454-6135-2200A $815.95	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.135	2.200	0.990	0.992
2-454-6385-2200 $739.15	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.385	2.200	0.990	0.992
2-454-6385-2200A $812.01	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.385	2.200	0.990	0.992
2-454-6535-2200 $739.48	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.535	2.200	0.990	0.992
2-454-6535-2200A $815.95	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.535	2.200	0.990	0.992
2-454-6700-2200 $739.48	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.700	2.200	0.990	0.992
2-454-6700-2200A $754.65	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.700	2.200	0.990	0.992
2-454-6800-2200 $739.48	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.800	2.200	0.990	0.992
2-454-6800-2200A $815.95	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.800	2.200	0.990	0.992
2-454-7100-2200 $739.48 7	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	7.100	2.200	0.990	0.992
2-454-7100-2200A $815.95	Chevy	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	7.100	2.200	0.990	0.992
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-455-6625-2249 $814.19	Pontiac	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.625	2.249	0.980	0.995
2-455-6625-2249A $893.02	Pontiac	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.625	2.249	0.980	0.995
2-455-6625-2249P $791.00	Pontiac	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.625	2.249	0.980	0.995
2-455-6625-2249PA $869.83	Pontiac	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.625	2.249	0.980	0.995
2-455O-6735-2500-980 $799.51	Olds.	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.735	2.500	0.980	0.930
2-455O-6735-2500-980A	Olds.	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.735	2.500	0.980	0.930
2-460-6605-2500 $791.49	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.605	2.500	1.040	0.995
2-460-6605-2500A $867.97	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.605	2.500	1.040	0.995
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-4645-1693-818-709 $533.23	Toyota	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	4.645	1.693	0.709	0.818
2-46L-5933	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 8740	5.933	2.086	0.866	0.940
2-46L-5933A	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.933	2.086	0.866	0.940
2-4783-1889-826-857 $698.56	Nissan	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	4.783	1.889	0.857	0.826
2-4925-2082-812-635 $524.23	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	4.925	2.082	1.056	0.812
2-5050-1915-1000-866 $533.23	Fiat	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.050	1.915	0.866	1.000
2-5110-1691-862-708 $533.23	Le Mans	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.110	1.691	0.708	0.862
2-5138-1693-818-709 $533.23	Toyota	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.138	1.693	0.709	0.818
2-5138-2047-842-905 $533.23	Subaru	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	5.138	2.047	0.905	0.842
2-5180-2047-842-905 $533.23	Subaru	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.180	2.047	0.905	0.842
2-5233-1770-787-860 $509.83	Mazda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.233	1.770	0.860	0.787
2-5252-1915-940-767 $509.83	Peugeot	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.252	1.915	0.767	0.940
2-5290-1771-935-827 $509.83	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.290	1.771	0.827	0.935
2-5365-1888-898-866 $509.83	Nissan	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.365	1.888	0.866	0.898
2-5394-1771-898-748 $509.83	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.394	1.771	0.748	0.898
2-5394-1771-935-827 $509.83	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.394	1.771	0.827	0.935
2-5430-1771-858-827 $509.83	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.430	1.771	0.827	0.858
2-5458-1771-898-748	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.458	1.771	0.898	0.748
2-5472-1888-780-866 $509.83	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.472	1.888	0.866	0.780
2-5485-1771-858-827 $509.83	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.485	1.771	0.827	0.858
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-54L-6657	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 8740	6.657	2.086	0.866	0.940
2-54L-6657A	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.657	2.086	0.866	0.940
2-5590-2047-1020-866 $692.03	Toyota	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.590	2.047	0.866	1.020
2-5630-1890-935-866 $509.83	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.630	1.890	0.866	0.935
2-5670-1992-980-747 $533.23	Audi/ VW	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.670	1.992	0.747	0.980
2-5670-1992-981-787 $533.23	VW	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.670	1.880	0.787	0.981
2-5670-1992-981-787S $666.45	VW	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.670	1.880	0.787	0.981
2-5677-2047-817-866 $692.03	Nissan	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.677	2.047	0.866	0.817
2-5707-1850-966-767 $533.23	Saturn	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.707	1.691	0.767	0.966
2-5819-2086-866-109 $533.23	Toyota	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.819	2.086	0.866	1.090
2-5893-1888-940-905	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.893	1.888	0.940	0.905
2-5906-1771-1038-866 $509.83	Mits.	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.906	1.771	0.866	1.035
2-5906-1771-1115-827 $509.83	Mits.	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.906	1.771	0.827	1.115
2-5984-1889-833-780 $509.83	Honda	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.984	1.889	0.780	0.833
2-6002-2086-857-826 $509.83	Nissan	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.002	2.086	0.826	0.857
2-6002-2086-857-826S $691.69	Nissan	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.002	2.086	0.826	0.857
2-6059-2242-993-867 $711.11	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.059	2.242	0.867	0.993
2-6071-1967-817-866 $692.03	Nissan	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.071	1.967	0.866	0.817
2-6260-1992-981-787 $533.23	VW	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.260	1.880	0.787	0.981
2-6260-1992-981-827 $533.23	VW	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.260	1.880	0.827	0.981
2-6457-2125-787-786 $691.69	Audi/ VW	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.457	2.125	0.786	0.787
2-6494-2086-974-827 $509.83	Nissan	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	6.496	1.967	0.827	0.974
Part # Your Cost	Make	Appl.	Style	Bolt Brand	Bolt Size	Bolt Material	Rod Length	Rod Journal	Wrist Pin	Big End Width
2-A7500-1500	Ford	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	7.500	1.500	1.000	1.625
2-LS1-6100-2100-927	LS1	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.100	2.100	0.927	0.940
2-LS1-6100-2100-927A	LS1	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.100	2.100	0.927	0.940
2-LS1-6100-2100-945 $661.25	LS1	Pro Sport	H-Beam	ARP	7/ 16"	ARP 8740	6.100	2.100	0.945	0.940
2-LS1-6100-2100-945A $802.50	LS1	Pro Sport	H-Beam	ARP	7/ 16"	ARP 2000	6.100	2.100	0.945	0.940
2-T6875-1500 $616.25	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 8740	6.875	1.500	0.750	1.625
2-T7000-1250	Ford	Pro Sport	H-Beam	ARP	3/8"	ARP 8740	7.000	1.250	0.740	1.500
2-VAUXHALL-1 $502.50	Vauxhall	Pro Sport	H-Beam	ARP	3/8"	ARP 2000	5.636	1.927	0.827	1.039

PART NO.	SHORT NO.	ENGINE	ROD LENGTH INCH/ MM	CRANK INCH/ MM	Big End INCH/ MM	Wrist Pin INCH/ MM
2-6457-2125-787-786 $691.69	66457277 $691.69 691.691	VR6-3.8L 6-Cylinder	6.457/ 164mm	2.125/ 54mm	.786/ 20mm	.787/ 20mm
2-5670-1992-980-747 $533.23	65670747 $533.23 533.234	1.8T / 2.0T 06A & 06B* 4-Cylinder	5.670/ 164mm	1.992/ 54mm	.980/ 20mm	.747/ 19mm

PART N0.	SHORT NUMBER	ENGINE	STROKE INCH/ MM	WEIGHT (**)	TECH NOTES
HONDA 4340 FORGED STANDARD WEIGHT CRANKSHAFTS
4HONDA89MM1771 $899.73	4H891	4-Cylinder	3.504/ 89mm	33 lbs	1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width
4HONDA92MM1771 $899.73	4H921	4-Cylinder	3.622/ 92mm	33 lbs	1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width
HONDA 4340 FORGED LIGHTWEIGHT PRO COMP CRANKSHAFTS
4HONDA89MM1771-2 $1,381.98	4H891-2 $1,381.98 1381.978	4-Cylinder	3.504/ 89mm	29 lbs	1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width
4HONDA92MM1771-2 $0.00	4H921-2	4-Cylinder	3.622/ 92mm	29 lbs	1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width
HONDA 4340 BILLET LIGHTWEIGHT PRO COMP CRANKSHAFTS
88HONDA95MM1771-2 $1,381.98	88H951-2 $1,381.98 1381.978	4-Cylinder	3.740/ 95mm	29 lbs	1.771/ 45mm Pin Diameter, .935/ 24mm Rod Width

PART NO.	PART NO.	ROD LENGTH INCH/ MM	CRANK INCH/ MM	Wrist Pin INCH/ MM
102494-3	102494-3-8740	5.325/ 135mm	2.000/ 51mm	.866/ 22mm
102514-3	102514-3-8740	5.500/ 139mm	2.000/ 51mm	.866/ 22mm
102534-3	102534-3-8740	5.700/ 144mm	2.000/ 51mm	.866/ 22mm

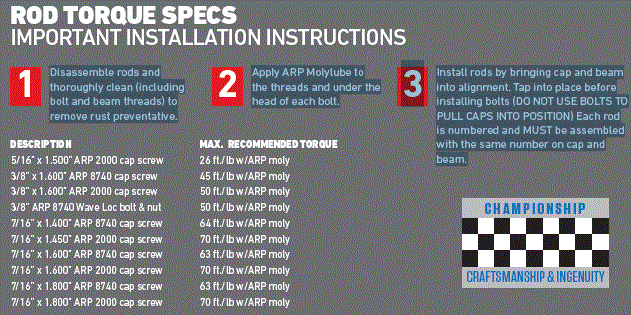

ARP 2000 3/8 CAP SCREWS	ARP 8740 3/8 CAP SCREWS	.
