Icon Sport Compact Forged Pistons & Rings from RPM

Icon Premium, Elite, Extreme Sport Compact
Forged Pistons, Wrist pins, Rings & Lock Rings
For: Chrysler, Ford, Honda, Mitsubishi, Nissan Subaru, Toyota
Table Of Contents

SPORT COMPACT
TABLE OF CONTENTS
ALPHABETICAL LISTING BY MANUFACTURER:

Sport Compact Levels 77

UEM Ring Listings 78

Chrysler Sport Compact 79

Ford Sport Compact 79

Honda Sport Compact 79-80

Mitsubishi Sport Compact 80

Nissan Sport Compact 81-82

Subaru Sport Compact 82-84

Toyota Sport Compact 84

Page 77

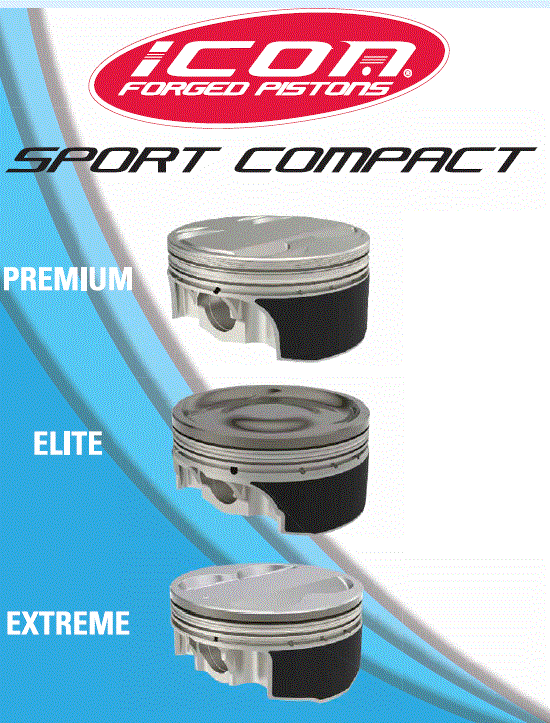

SPORT COMPACT
LEVELS

PREMIUM
Part number ends in"C" or no letter. FEATURES: Polished crown Anti-Friction skirt coating Dual forced pin oiling 2618 or 4032 Alloy

ELITE
Part number ends in"CA". FEATURES: All of Premium Plus -Hard Anodized crown and top ring groove Lateral Gas Porting. *check note section

EXTREME
Part number ends in"LCAT". FEATURES: All of Elite
Plus -Hard Anodized crown and top ring groove
Abradable skirt coating
Thermal heat barrier

Page 78
UEM RING LISTING

PART NUMBER CODES

CODE RING WIDTH CODE TOP RING MATERIAL

B 1/16 1/16 3/16 D Ductile Iron w/Moly

D 1.5 1.5 4.0mm S Steel

L 1.0 1.2 2.8mm .

M 1.2 1.2 2.5mm

T 1.2 1.2 2.8mm

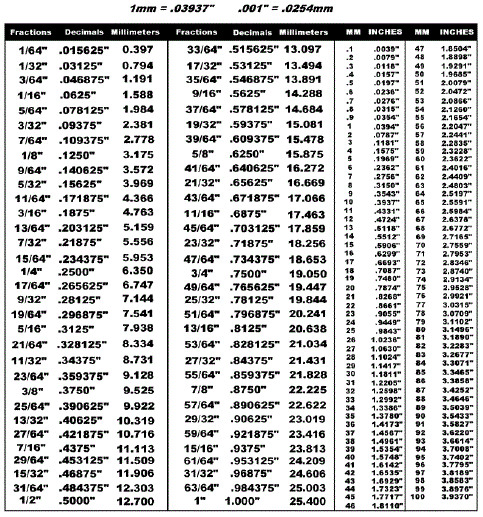

SPORT COMPACT RING KIT BORE SIZES . SPORT COMPACT RING KIT BORE SIZES

U08100LS $26.43 81.00mm 3622DD4 $85.29 92.00mm

U08150LS $148.32 81.50mm U09200LS $26.43 92.00mm

U08200LS $128.60 82.00mm 3622MS4 $61.53 92.00mm

U08500LS $26.43 85.00mm 3622MS4 $61.53 92.038mm

U08550LS $26.43 85.50mm 3622DD4.010 $85.29 92.25mm

U08600LS $26.43 86.00mm 3622MS4.25MM $61.53 92.25mm

3386TS6 $86.72 86.00mm 3622DD4.020 $85.29 92.50mm

U08625LS $26.43 86.25mm U09250LS $26.43 92.50mm

3386TS6.25MM $86.72 86.25mm 3622MS4.50MM 92.50mm

U08650LS $26.43 86.50mm 3622DD4.030 $85.29 92.76mm

3386TS6.50MM 86.50mm U09300LS $26.43 93.00mm

3386TS6.75MM $86.72 86.75mm U09550LS $26.43 95.50mm

U08700LS $26.43 87.00mm U09600LS $26.43 96.00mm

3386TS6.75MM $86.72 87.00mm 3780BD4.020 $169.23 96.52mm

U08750LS $26.43 87.50mm 3780BD4.030 $169.23 96.77mm

3445LS4.75MM $61.53 87.75mm 3780BD4.040 $169.23 97.00mm

U08800LS $26.43 88.00mm 3917LS4 99.50mm

3445LS4.1.0MM $61.53 88.50mm 3917LS4 99.538mm

U08900LS $26.43 89.00mm 3917LS4.25MM 99.75mm

U08950LS $26.43 89.50mm 3917LS4.5MM 100.00mm

U09000LS $26.43 90.00mm

Page 79
CHRYSLER Forged Pistons
CHRYSLER NEON / 2.4L DOHC

IC637CKTS. Turbo
ALLOY: 4032
PIN: .866" x 2.500"
LOCKS: Spiral RRN-86
RING PACK:
1.2mm, 1.5mm, 2.5mm
Valve Pockets Notes: -Sold as Piston Kit with rings.
-For Turbo and Nitrous.
-.030" Offset Pin

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
50cc Head
Gram Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC637CKTS.75MM $373.66 87.75/ 3.455" 101mm 151mm 29.16/ 1.148" .256”
Dome -19 8.1 340/99 .200” 3445LS4.75MM $61.53

IC637CKTS.1.0MM $373.66 88.5/ 3.484" 101mm 151mm 29.16/ 1.148" .256”
Dome -19 8.1 340/99 .200” 3445LS4.1.0MM $61.53

FORD Forged Pistons
FORD 2300

ALLOY: 2618
PIN: ¹ .912" x 2.250" ² .927" x 2.250"
LOCKS: Spiral PRL99-3
RING PACK: 1/16, 1/16, 3/16
Valve Pockets
In- 2.010" x 123" Deep
Ex- 1.710" x .105" Deep Notes: Centered Pin ¹-5.200" Rod Stock ²-5.700" Rod SB Chevy

Piston Set Piston w/ Rings
Kit Bore (mm/in) Stroke
(mm) Rod
(in) C/D (mm/in) Head
Type Head
CC’s C/R cc w/
60- 64 $1.15 Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC939.020 $117.50 ¹ IC939KTD.020 $624.34 96.52/ 3.800” 79.4 5.200” 40.38/ 1.590” Flat Top +2.5 9.3 8.9 388/85 .210” 3780BD4.020 $169.23

IC939.030 $117.50 ¹ IC939KTD.030 $624.34 96.77/ 3.810” 79.4 5.200” 40.38/ 1.590” Flat Top +2.5 9.3 8.9 388/85 .210” 3780BD4.030 $169.23

IC939.040 $117.50 ¹ IC939KTD.040 $624.34 97.00/ 3.820” 79.4 5.200” 40.38/ 1.590” Flat Top +2.5 9.3 8.9 388/85 .210” 3780BD4.040 $169.23

IC946.020 $117.50 ² IC946KTD.020 $624.34 96.52/ 3.800” 79.4 5.700” 27.68/ 1.090” Flat Top +2.5 9.3 8.9 316/85 .206” 3780BD4.020 $169.23

IC946.030 $117.50 ² IC946KTD.030 $624.34 96.77/ 3.810” 79.4 5.700” 27.68/ 1.090” Flat Top +2.5 9.3 8.9 316/85 .206” 3780BD4.030 $169.23

IC946.040 $117.50 ² IC946KTD.040 $624.34 97.00/ 3.820” 79.4 5.700” 27.68/ 1.090” Flat Top +2.5 9.3 8.9 316/85 .206” 3780BD4.040 $169.23

HONDA Forged Pistons
HONDA ELITE
HONDA B-SERIES

IC557CAK.

IC559CAK. ALLOY: 2618
PIN: *.8270x2.000x.160C-
SCR415H
.8270x2.000x.225C-
SCR415H
LOCKS: Round SRW-018
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: NOTES:
-Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
¹-For Turbo and Nitrous.
²-For Naturally Aspirated.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
45cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

* IC557CAK $656.56 ¹ 81.0/ 3.189” 89mm 137.0 0.0/ 1.181” DISH +10 8.3 . 280" U08100LS $26.43

* IC557CAK.5MM $550.06 ¹ 81.5/ 3.209” 89mm 137.0 0.0/ 1.181” DISH +10 8.3 . 280" U08150LS $148.32

* IC557CAK.1.0MM $474.43 ¹ 82.0/ 3.228” 89mm 137.0 0.0/ 1.181” DISH +10 8.3 . 280" U08200LS $128.60

IC558CAK $663.50 ¹ 81.0/ 3.189” 89mm 137.0 0.0/ 1.181” Flat Top +3 9.2 . 280" U08100LS $26.43

IC558CAK.5MM $550.06 ¹ 81.5/ 3.209” 89mm 137.0 0.0/ 1.181” Flat Top +3 9.2 . 280" U08150LS $148.32

IC558CAK.1.0MM $474.43 ¹ 82.0/ 3.228” 89mm 137.0 0.0/ 1.181” Flat Top +3 9.2 . 280" U08200LS $128.60

IC559CAK $645.20 ² 81.0/ 3.189” 89mm 137.0 0.0/ 1.181” Dome -7 11.0 . 280" U08100LS $26.43

IC559CAK.5MM $550.06 ² 81.5/ 3.209” 89mm 137.0 0.0/ 1.181” Dome -7 11.0 . 280" U08150LS $148.32

IC559CAK.1.0MM $474.43 ² 82.0/ 3.228” 89mm 137.0 0.0/ 1.181” Dome -7 11.0 . 280" U08200LS $128.60

Page 80
HONDA Forged Pistons, continued
HONDA K-20 / K-24

ALLOY: 2618
PIN:
.8660x2.000x.160C-
SCR415H
LOCKS: Round SRW-004
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
45cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC560CAK $666.32 86.0/
3.386” 99mm 152.0 30.0/ 1.181” Flat Top +3 11.1 . .240 U08600LS $26.43

IC560CAK.5MM $666.32 86.5/ 3.405” 99mm 152.0 30.0/ 1.181” Flat Top +3 11.1 . .240 U08650LS $26.43

IC560CAK.1.0MM $666.32 87.0/ 3.425” 99mm 152.0 30.0/ 1.181” Flat Top +3 11.1 . .240 U08700LS $26.43

IC560CAK.1.5MM $666.32 87.5/ 3.445” 99mm 152.0 30.0/ 1.181” Flat Top +3 11.1 . .240 U08750LS $26.43

IC561CAK $667.65 86.0/ 3.386” 99mm 152.0 30.0/ 1.181” Dome -5 12.8 . .240 U08600LS $26.43

IC561CAK.5MM $666.32 86.5/ 3.405” 99mm 152.0 30.0/ 1.181” Dome -5 12.8 . .240 U08650LS $26.43

IC561CAK.1.0MM $667.65 87.0/ 3.425” 99mm 152.0 30.0/ 1.181” Dome -5 12.8 . .240 U08700LS $26.43

IC561CAK.1.5MM $667.65 87.5/ 3.445” 99mm 152.0 30.0/ 1.181” Dome -5 12.8 . .240 U08750LS $26.43

MITSUBISHI ELITE
MITSUBISHI 4G63T / EVO 4-9 2.0L

ALLOY: 2618
PIN: .8660x2.250x.225C-
SCR415H
LOCKS: Round SRW-004
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: -Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
47cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC542CAK $655.06 85.0/ 3.346” 88mm 150.0 35.0/ 1.375” Flat Top +5 9.5 - .280 U08500LS $26.43

IC542CAK.5MM $655.06 85.5/ 3.366” 88mm 150.0 35.0/ 1.375” Flat Top +5 9.5 - .280 U08550LS $26.43

IC542CAK.1.0MM $655.06 86.0/ 3.386” 88mm 150.0 35.0/ 1.375” Flat Top +5 9.5 - .280 U08600LS $26.43

IC542CAK.1.5MM $655.06 86.5/ 3.405” 88mm 150.0 35.0/ 1.375” Flat Top +5 9.5 - .280 U08650LS $26.43

IC542CAK.2.0MM $655.05 87.0/ 3.425” 88mm 150.0 35.0/ 1.375” Flat Top +5 9.5 - .280 U08700LS $26.43

IC543CAK $653.73 85.0/ 3.346” 88mm 150.0 35.0/ 1.375” DISH +12 8.6 - .280 U08500LS $26.43

IC543CAK.5MM $653.73 85.5/ 3.366” 88mm 150.0 35.0/ 1.375” DISH +12 8.6 - .280 U08550LS $26.43

IC543CAK.1.0MM $653.73 86.0/ 3.386” 88mm 150.0 35.0/ 1.375” DISH +12 8.6 - .280 U08600LS $26.43

IC543CAK.1.5MM $653.73 86.5/ 3.405” 88mm 150.0 35.0/ 1.375” DISH +12 8.6 - .280 U08650LS $26.43

IC543CAK.2.0MM $653.73 87.0/ 3.425” 88mm 150.0 35.0/ 1.375” DISH +12 8.6 - .280 U08700LS $26.43

IC544CAK $664.87 85.0/ 3.346” 100mm 150.0 28.7/ 1.135” DISH +19 8.8 - .280 U08500LS $26.43

IC544CAK.5MM $664.87 85.5/ 3.366” 100mm 150.0 28.7/ 1.135” DISH +19 8.8 - .280 U08550LS $26.43

IC544CAK.1.0MM $664.87 86.0/ 3.386” 100mm 150.0 28.7/ 1.135” DISH +19 8.8 - .280 U08600LS $26.43

IC544CAK.1.5MM $664.87 86.5/ 3.405” 100mm 150.0 28.7/ 1.135” DISH +19 8.8 - .280 U08650LS $26.43

IC544CAK.2.0MM $664.87 87.0/ 3.425” 100mm 150.0 28.7/ 1.135” DISH +19 8.8 - .280 U08700LS $26.43

MITSUBISHI 4B11T / EVO X 2.0L

ALLOY: 2618
PIN: .9050x2.250x.225C-
SCR415H
LOCKS: Round SRW-029
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: -Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
49cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC555CAK $653.70 86.0/ 3.386" 86mm 143.75 33.25/ 1.309” Flat Top +5 9.2 - .280 U08600LS $26.43

IC555CAK.5MM $653.70 86.5/ 3.405" 86mm 143.75 33.25/ 1.309” Flat Top +5 9.2 - .280 U08650LS $26.43

IC555CAK.1.0MM $653.70 87.0/ 3.425" 86mm 143.75 33.25/ 1.309” Flat Top +5 9.2 - .280 U08700LS $26.43

IC556CAK $667.69 86.0/ 3.386" 86mm 143.75 33.25/ 1.309” Dome -3 10.4 - .280 U08600LS $26.43

IC556CAK.5MM $667.69 86.5/ 3.405" 86mm 143.75 33.25/ 1.309” Dome -3 10.4 - .280 U08650LS $26.43

IC556CAK.1.0MM $667.69 87.0/ 3.425" 86mm 143.75 33.25/ 1.309” Dome -3 10.4 - .280 U08700LS $26.43

Page 81
NISSAN ELITE
NISSAN SR20 DE / 4 Cyl. 16V

IC562CAK. ALLOY: 2618
PIN: .8660x2.250x.160C-
SCR415H
LOCKS: Round SRW-004
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: -Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
45cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC562CAK $671.86 86.0/ 3.386” 86mm 136.25 32.0/ 1.260” DISH DISH +10 9.3 - .280 U08600LS $26.43

IC562CAK.5MM $671.86 86.5/ 3.405” 86mm 136.25 32.0/ 1.260” DISH DISH +10 9.3 - .280 U08650LS $26.43

IC562CAK.1.0MM $671.86 87.0/ 3.425” 86mm 136.25 32.0/ 1.260” DISH DISH +10 9.3 - .280 U08700LS $26.43

NISSAN KA24 / 4 Cyl. 16V

IC563CAK. ALLOY: 2618
PIN: .8270x2.500x.160C-
SCR415H
LOCKS: Round SRW-018
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: NOTES:
-Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
46cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC563CAK $646.65 89.0/ 3.504” 96mm 165.0 33.94/ 1.336” DISH +20 9.3 .280 U08900LS $26.43

IC563CAK.5MM $646.65 89.5/ 3.524” 96mm 165.0 33.94/ 1.336” DISH +20 9.3 .280 U08950LS $26.43

IC563CAK.1.0MM $646.65 90.0/ 3.543” 96mm 165.0 33.94/ 1.336” DISH +20 9.3 .280 U09000LS $26.43

NISSAN QR25DE / 4 Cyl. 16V

IC570CAK. ALLOY: 2618
PIN: .8270x2.500x.160C-
SCR415H
LOCKS: Round SRW-019
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: NOTES:
-Sold as piston and ring kits.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
55cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC570CAK $663.40 89.0/ 3.504" 100.0 143.0 32.0/ 1.260" Dome +0 10.6 - .260 U08900LS $26.43

IC570CAK.5MM $663.40 89.5/ 3.524" 100.0 143.0 32.0/ 1.260" Dome +0 10.6 - .260 U08950LS $26.43

IC570CAK.1.0MM $663.40 90.0/ 3.543" 100.0 143.0 32.0/ 1.260" Dome +0 10.6 - .260 U09000LS $26.43

NISSAN RB25 / 6 Cyl. 24V

IC569CAK. ALLOY: 2618
PIN: .8270x2.500x.160C-
SCR415H
LOCKS: Round SRW-019
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: -Sold as piston and ring kits.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
66.5cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC569CAK.25MM $897.26 86.25/ 3.396" 71.7 121.5 31.5/ 1.240" Dome 8.5 - -15 .260 U08625LS $26.43

IC569CAK.5MM $897.26 86.5/ 3.405" 71.7 121.5 31.5/ 1.240" Dome 8.5 - -15 .260 U08650LS $26.43

IC569CAK.1.0MM $897.26 87.0/ 3.425" 71.7 121.5 31.5/ 1.240" Dome 8.5 - -15 .260 U08700LS $26.43

NISSAN RB26 / 6Cyl. 24V

IC564CAK. ALLOY: 2618
PIN: .8270x2.500x160C-
SCR415H
LOCKS: Round SRW-018
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: -Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
67cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC564CAK $958.80 86.0/ 3.386” 73mm 121.5 30.0/ 1.180” Dome -12 7.8 .240 U08600LS $26.43

IC564CAK.5MM $958.80 86.5 /3.405” 73mm 121.5 30.0/ 1.180” Dome -12 7.8 .240 U08650LS $26.43

IC564CAK.1.0MM $958.80 87.0/ 3.425” 73mm 121.5 30.0/ 1.180” Dome -12 7.8 .240 U08700LS $26.43

Page 82
NISSAN, continued
NISSAN VG30 / 6 Cyl. 24V

IC565CA. ALLOY: 2618
PIN: .8660x2.500x.160C-SCR415H
LOCKS: Round SRW-004
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
49cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC565CA 87.0/ 3.425” 83mm 154.0 32.0/ 1.260” DISH +8 8.6 - .280 U08700LS $26.43

IC565CA.5MM 87.0/ 3.425” 83mm 154.0 32.0/ 1.260” DISH +8 8.6 - .280 U08750LS $26.43

IC565CA.1.0MM 87.0/ 3.425” 83mm 154.0 32.0/ 1.260” DISH +8 8.6 - .280 U08800LS $26.43

NISSAN VQ35 / 6 Cyl. 24V

IC566CA. ALLOY: 2618
PIN: .8660x2.500x.160
C-SCR415H
LOCKS: Round SRW-004
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: -Sold as piston and ring kits.
-Lateral Gas Ports.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
57cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC566CA 95.5/ 3.760” 81mm 144.2 29.67/ 1.168” DISH +8 9.0 - .280 U09550LS $26.43

IC566CA.5MM 96.0/ 3.780” 81mm 144.2 29.67/ 1.168” DISH +8 9.0 - .280 U09600LS|

SUBARU ELITE
SUBARU 4 Cyl. FA20 (TOYOTA 4U - GSE)

IC571CAK. ALLOY: 2618
PIN: .866" x 2.250" x .155"
LOCKS: Round 2 tang
RING PACK:
1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: -Sold as piston and ring kits.
-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
39cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC571CAK $666.29 86.00/ 3.386" 86mm 129.3 32.66/ 1.286" DISH +9 10.6 - .260" U08600LS $26.43

IC571CAK.25MM $666.29 86.25/ 3.396" 86mm 129.3 32.66/ 1.286" DISH +9 10.6 - .260" U08625LS $26.43

IC571CAK.5MM $666.29 86.50/ 3.405" 86mm 129.3 32.66/ 1.286" DISH +9 10.6 - .260" U08650LS $26.43

IC571CAK.1.0MM $666.29 87.00/ 3.425" 86mm 129.3 32.66/ 1.286" DISH +9 10.6 - .260" U08700LS $26.43

SUBARU 4 Cyl. EJ20

IC638CK.

IC568CAK. ALLOY: ¹2618 ²4032
PIN: .905" x 2.250" x .155"
LOCKS: Round 2 tang
RING PACK:
¹ 1.2mm, 1.2mm, 2.5mm
² 1.0mm, 1.2mm, 2.8mm
Valve Pockets Notes: -Sold as piston and ring kits.
*-Lateral Gas Ports.
*-Anodized crown and top ring groove.
-Dual forced pin oiling, .030" offset.
-For Turbo and Nitrous.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R cc
-48-50 Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC638CK $660.70 ² 92.00/ 3.622 75 130.5 32.59/ 1.283" Inverted Dish +13.4 8.3 8.1 53/ 136 .236” 3622MS4 $61.53

IC638CK.038MM $660.70 ² 92.038/ 3.6235 75 130.5 32.59/ 1.283" Inverted Dish +13.4 8.3 8.1 53/ 136 .236” 3622MS4 $61.53

IC638CK.25MM ² 92.25/ 3.632 75 130.5 32.59/ 1.283" Inverted Dish +13.4 8.3 8.1 53/ 136 .236” 3622MS4.25MM $61.53

IC638CK.5MM ² 92.50/ 3.642 75 130.5 32.59/ 1.283" Inverted Dish +13.4 8.3 8.1 53/ 136 .236” 3622MS4.50MM

* IC568CAK $646.65 ¹ 92.00/ 3.622 75 130.5 32.66/ 1.286" Inverted Dish +8 9.0 8.7 - .280” U09200LS $26.43

* IC568CAK.5MM $646.65 ¹ 92.50/ 3.642 75 130.5 32.66/ 1.286" Inverted Dish +8 9.0 8.7 - .280” U09250LS $26.43

* IC568CAK.1.0MM $646.65 ¹ 93.00/ 3.662 75 130.5 32.66/ 1.286" Inverted Dish +8 9.0 8.7 - .280” U09300LS $26.43

Page 83
SUBARU, continued

NEW 2.5L applications are availble in three levels.
Premium- 4032 and 2618 Alloy, Standard thick wall wrist pin, M42 $27.83 skirt coating.
Elite- 2618 Alloy, H13 Tool steel pin, Line2Line abradable skirt coating.
Extreme- 2618 Alloy, H13 Tool steel pin, Line2Line abradable skirt coating, hard anodized crown and top ring groove.
Ultra Therm CM thermal barrier.

PREMIUM SERIES 4032 and 2618 Alloy,
Standard thick wall wrist pin, M42 $27.83 skirt coating.
SUBARU 2.5L

IC537C.
IC506CAK. ALLOY: ¹2618 ²4032
PIN: .905" x 2.250" x .217"
LOCKS: Round 2 tang
RING PACK:
1.2mm, 1.2mm, 2.5mm
Valve Pockets
³In- 38.96mm x .140"
Ex- 34.74mm x .061"
4In- 34.00mm x .227"
Ex- 34.00mm x .227" Notes:
-Sold as Piston Kit with rings.
-For Turbo and Nitrous.
-Dual forced pin oiling, .020" Offset.
-*Anodized top ring groove and crown.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R cc
-50--- 54 Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC537CK $684.52 2-3 99.5/ 3.917" 79mm 130.5 30.530.70/ 1.209" .047” Dome -.7 11.7 11.0 402/ 136 .180 3917LS4

IC537CK.038MM $684.52 2-3 99.538/ 3.9185" 79mm 130.5 30.530.70/ 1.209" .047” Dome -.7 11.7 11.0 402/ 136 .180 3917LS4

IC537CK.25MM $608.89 2-3 99.75/ 3.927" 79mm 130.5 30.530.70/ 1.209" .047” Dome -.7 11.7 11.0 402/ 136 .180 3917LS4.25MM

IC537CK.5MM $684.52 2-3 100/ 3.937" 79mm 130.5 30.530.70/ 1.209" .047” Dome -.7 11.7 11.0 402/ 136 .180 3917LS4.5MM

IC629CK $667.74 2-3 99.5/ 3.917" 79mm 131.6 29.49/ 1.161" .047” Dome -.7 11.7 11.0 392/ 136 .180 3917LS4

IC629CK.038MM $667.74 2-3 99.538/ 3.9185" 79mm 131.6 29.49/ 1.161" .047” Dome -.7 11.7 11.0 392/ 136 .180 3917LS4

IC629CK.25MM $667.74 2-3 99.75/ 3.927" 79mm 131.6 29.49/ 1.161" .047” Dome -.7 11.7 11.0 392/ 136 .180 3917LS4.25MM

IC629CK.5MM $667.74 2-3 100/ 3.937" 79mm 131.6 29.49/ 1.161" .047” Dome -.7 11.7 11.0 392/ 136 .180 3917LS4.5MM

IC992CK $667.74 2-4 99.5/ 3.917" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.7 8.3 369/ 1362-4 .175 3917LS4

IC992CK.038MM $667.74 2-4 99.538/ 3.9185" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.7 8.3 369/ 1362-4 .175 3917LS4

IC992CK.25MM $667.74 2-4 99.75/ 3.927" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.7 8.3 369/ 1362-4 .175 3917LS4.25MM

IC992CK.5MM $667.74 2-4 100/ 3.937" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.7 8.3 369/ 1362-4 .175 3917LS4.5MM

IC506CAK $845.42 *1ÿ4 99.5/ 3.917" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.7 8.3 388/ 1362-4 .175 3917LS4

IC506CAK.038MM $845.42 *1-4 99.538/ 3.9185" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.7 8.3 388/ 1362-4 .175 3917LS4

IC506CAK.25MM $845.42 *1-4 99.75/ 3.927" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.7 8.3 388/ 1362-4 .175 3917LS4.25MM

IC506CAK.5MM $845.42 *1-4 100/ 3.937" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.7 8.3 388/ 1362-4 .175 3917LS4.5MM

ELITE SERIES 2618 Alloy, H13 Tool steel pin,
Line2Line abradable skirt coating.
SUBARU 2.5L

IC506CAK;

C519CAK. ALLOY: 2618
PIN: .905" x 2.250" x .217"
LOCKS: Round 2 tang
RING PACK:
1.2mm, 1.2mm, 2.5mm
Valve Pockets
In- 34.00mm x .227" Deep
Ex- 34.00mm x .227" Deep Notes: 2Sold as Piston Kit with rings.
-For Turbo and Nitrous.
-Dual forced pin oiling, .020" Offset.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
54cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC506LCAK $806.25 99.5/ 3.917" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4

IC506LCAK.038MM $806.25 538/ 3.9185" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4

IC506LCAK.25MM $806.25 99.75/ 3.927" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4.25MM

IC506LCAK.5MM $806.25 100/ 3.937" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4.5MM

IC519LCAK $806.25 99.5/ 3.917" 79mm 130.5 30.33/ 1.194" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4

IC519LCAK.038MM $806.25 99.538/ 3.9185" 79mm 130.5 30.33/ 1.194" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4

IC519LCAK.25MM $806.25 99.75/ 3.927" 79mm 130.5 30.33/ 1.194" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4.25MM

IC519LCAK.5MM $806.25 100/ 3.937" 79mm 130.5 30.33/ 1.194" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4.5MM

Page 84
SUBARU, continued
EXTREME SERIES 2618 Alloy, H13 Tool steel pin,
Line2Line abradable skirt coatng, hard anodized
crown and top ring groove. Ultra Therm CM thermal barrier.
SUBARU 2.5L

IC506LCATK.

IC554LCATK. ALLOY: 2618
PIN: .905" x 2.250" x .217"
LOCKS: Round 2 tang
RING PACK:
1.2mm, 1.2mm, 2.5mm
Valve Pockets
In- 34.00mm x .227" Deep
Ex- 34.00mm x .227" Deep Notes: Sold as Piston Kit with rings.
-For Turbo and Nitrous.
-Dual forced pin oiling, .020" Offset.

PART # Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
54cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC506LCATK $873.53 99.5/ 3.917" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4

IC506LCATK.038MM $873.53 99.538/ 3.9185" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4

IC506LCATK.25MM $873.53 99.75/ 3.927" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4.25MM

IC506LCATK.5MM $873.53 100/ 3.937" 79mm 130.5 30.70/ 1.209" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4.5MM

IC519LCATK $873.53 99.5/ 3.917" 79mm 130.5 30.33/ 1.194" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4

IC519LCATK.038MM $873.53 99.538/ 3.9185" 79mm 130.5 30.33/ 1.194" Cir. Dish +22.3 8.5 388/ 136 .175 3917LS4

IC519LCATK.25MM $873.53 99.75/ 3.927" 79mm 130.5 30.33/ 1.194" Cir. Dish +22.3 8.5 388/ 136 175 3917LS4.25MM

IC519LCATK.5MM $873.53 100/ 3.937" 79mm 130.5 30.33/ 1.194" Cir. Dish +22.3 8.5 388/ 136 175 3917LS4.5MM

IC554LCATK.25MM $873.53 99.75/ 3.927" 83mm 130.5 28.45/ 1.120" Flat Top +7.5 10.3 385/ 136 .180 3917LS4.25MM

IC554LCATK.5MM $873.53 100/ 3.937" 83mm 130.5 28.45/ 1.120" Flat Top +7.5 10.3 385/ 136 .180 3917LS4.5MM

TOYOTA
TOYOTA 2.4L 22RE/22R NATURALLY ASPIRATED

IC985. ALLOY: 4032
PIN: .866" x 2.500" x
LOCKS: Spiral RRN-86
RING PACK: 2-1.5mm / 1-4mm
Valve Pockets
In- .213" x 2.000"
Ex- .124" x 1.676" Notes: -Dual forced pin oiling, Centered Pin.
-Profiled dish design, .056” deep.

Piston Set Piston w/ Rings Kit Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
60cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC985 $124.43 IC985KTD $566.94 92/ 3.622" 89mm 147.95 34.16/ 1.345" Profiled Dish +6.6 9.0 366/ 99 .300” 3622DD4 $85.29

IC985.010 $124.43 IC985KTD.010 $566.94 92.25/ 3.632" 89mm 147.95 34.16/ 1.345" Profiled Dish +6.6 9.0 366/ 99 .300” 3622DD4.010 $85.29

IC985.020 $124.43 IC985KTD.020 $566.94 92.50/ 3.642" 89mm 147.95 34.16/ 1.345" Profiled Dish +6.6 9.0 366/ 99 .300” 3622DD4.020 $85.29

IC985.030 $124.43 IC985KTD.030 $566.94 92.76/ 3.652" 89mm 147.95 34.16/ 1.345" Profiled Dish +6.6 9.0 366/ 99 .300” 3622DD4.030 $85.29

TOYOTA 2.4L 22RE/22R Turbo

IC986. ALLOY: 4032
PIN: .866" x 2.500" x
LOCKS: Spiral RRN-86
RING PACK: 2-1.5mm / 1-4mm
Valve Pockets
In- .102" x 2.000"
Ex- .008" x 1.676" Notes: -Dual forced pin oiling, Centered Pin.
-Piston is .142" below deck with .270" top land.
-Designed for Turbo applications.

Piston Set Piston w/ Rings Kit Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
60cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC986 $124.43 IC986KTD $566.94 92/ 3.622" 89mm 147.95 30.81/ 1.213" Flat Top +.3 7.5 355/ 99 .270” 3622DD4 $85.29

IC986.010 $124.43 IC986KTD.010 $566.94 92.25/ 3.632" 89mm 147.95 30.81/ 1.213" Flat Top +.3 7.5 55/ 99 .270” 3622DD4.010 $85.29

IC986.020 $124.43 IC986KTD.020 $566.94 92.50/ 3.642" 89mm 147.95 30.81/ 1.213" Flat Top +.3 7.5 55/ 99 .270” 3622DD4.020 $85.29

IC986.030 $124.43 IC986KTD.030 $566.94 92.76/ 3.652" 89mm 147.95 30.81/ 1.213" Flat Top +.3 7.5 55/ 99 .270” 3622DD4.030 $85.29

Page 85
TOYOTA, continued
TOYOTA 2.4L 22RE/22R Turbo

ALLOY: 4032
PIN: .866" x 2.500"
LOCKS: Spiral RRN-86
RING PACK: 2-1.5mm / 1-4mm
Valve Pockets
In- .017" x 2.000" Deep
Ex- N/A Notes: -Centered pin.
-Piston is .188” below deck with .270” top land.
-Designed for Turbo applications.

Piston Set Piston w/ Rings Kit Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R w/
60cc Head Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC987 $124.43 IC987KTD $566.94 92/ 3.622" 89mm 147.95 29.64/ 1.167" Flat Top 0 7.0 351/ 99 .270” 3622DD4 $85.29

IC987.010 $124.43 IC987KTD.010 $566.94 92.25/ 3.632" 89mm 147.95 29.64/ 1.167" Flat Top 0 7.0 351/ 99 .270” 3622DD4.010 $85.29

IC987.020 $124.43 IC987KTD.020 $566.94 92.50/ 3.642" 89mm 147.95 29.64/ 1.167" Flat Top 0 7.0 351/ 99 .270” 3622DD4.020 $85.29

IC987.030 $124.43 IC987KTD.030 $566.94 92.76/ 3.652" 89mm 147.95 29.64/ 1.167" Flat Top 0 7.0 351/ 99 .270” 3622DD4.030 $85.29

EXTREME SERIES
TOYOTA SUPRA 2.5L 1JZ GTE / 3.0L 2JZ GTE Turbo

IC679LCATK.

IC684LCATK. ALLOY: 2618
PIN: .866" x 2.250" x .201"
LOCKS: Round SRW-026
RING PACK: 1.2mm, 1.2mm, 2.8mm
Valve Pockets
In- 1.460" x .186" Deep
Ex- 1.280" x .181" Deep Notes: -HI-BOOST application comes standard with Line2Line Skirt Coating and Anodized Crown to Top Ring Groove.
-Centered Pin.
-Kit includes Total Seal rings and upgraded 9310 thick wall pins.
-Valve pockets will accept 1MM oversize intake/ exhaust valves.
-Stroke sizes 1JZ - 71.5mm, 2JZ - 86mm
-Rod sizes 1JZ - 125.25mm, 2JZ - 142mm

Piston w/ Rings Kit Bore (mm/in) Stroke
(mm) Rod
(mm) C/D (mm/in) Head
Type Head
CC’s C/R cc
--41--44.5 Gram Wgt.
Piston/ Pin Top
Land Replacement
Ring Set

IC679LCATK $1,174.50 86/ 3.386" See Notes See Notes 33.98/ 1.338” Dish +15 - 2JZ 8.5 30/ 122 .278” 3386TS6 $86.72

IC679LCATK.25MM $1,174.50 86.25/ 3.396" See Notes See Notes 33.98/ 1.338” Dish +15 - 2JZ 8.5 30/ 122 .278” 3386TS6.25MM $86.72

IC679LCATK.50MM 86.50/ 3.405" See Notes See Notes 33.98/ 1.338” Dish +15 - 2JZ 8.5 30/ 122 .278” 3386TS6.50MM

IC679LCATK.75MM $1,174.50 86.75/ 3.415" See Notes See Notes 33.98/ 1.338” Dish +15 - 2JZ 8.5 30/ 122 .278” 3386TS6.75MM $86.72

IC679LCATK.1.00MM 87.00/ 3.425" See Notes See Notes 33.98/ 1.338” Dish +15 - 2JZ 8.5 30/ 122 .278” 3386TS6.1.00MM

IC683LCATK $1,174.50 86/ 3.386" See Notes See Notes 33.98/ 1.338” Dish +7.5 1JZ 8.5 2JZ 9.5 334/ 12 .280” 3386TS6 $86.72

IC683LCATK.25MM $1,174.50 86.25/ 3.396" See Notes See Notes 33.98/ 1.338” Dish +7.5 1JZ 8.5 2JZ 9.5 334/ 122 .280” 3386TS6.25MM $86.72

IC683LCATK.50MM 86.50/ 3.405" See Notes See Notes 33.98/ 1.338” Dish +7.5 1JZ 8.5 2JZ 9.5 334/ 122 .280” 3386TS6.50MM

IC683LCATK.75MM $1,174.50 86.75/ 3.415" See Notes See Notes 33.98/ 1.338” Dish +7.5 1JZ 8.5 2JZ 9.5 334/ 122 .280” 3386TS6.75MM $86.72

IC683LCATK.1.00MM 87.00/ 3.425" See Notes See Notes 33.98/ 1.338” Dish +7.5 1JZ 8.5 2JZ 9.5 334/ 122 .280” 3386TS6.1.00MM

IC684LCATK $1,174.50 86/ 3.386" See Notes See Notes 33.98/ 1.338” Dome -1.1 1JZ 9.5 2JZ 10.5 345/ 122 .278” 3386TS6 $86.72

IC684LCATK.25MM $1,174.50 86.25/ 3.396" See Notes See Notes 33.98/ 1.338” Dome -1.1 1JZ 9.5 2JZ 10.5 345/ 122 .278” 3386TS6.25MM $86.72

IC684LCATK.50MM 86.50/ 3.405" See Notes See Notes 33.98/ 1.338” Dome -1.1 1JZ 9.5 2JZ 10.5 345/ 122 .278” 3386TS6.50MM

IC684LCATK.75MM $1,174.50 86.75/ 3.415" See Notes See Notes 33.98/ 1.338” Dome -1.1 1JZ 9.5 2JZ 10.5 345/ 122 .278” 3386TS6.75MM $86.72

IC684LCATK.1.00MM 87.00/ 3.425" See Notes See Notes 33.98/ 1.338” Dome -1.1 1JZ 9.5 2JZ 10.5 345/ 122 .278” 3386TS6.1.00MM

Top of Page

HOME

Sport Compact Levels	77
UEM Ring Listings	78
Chrysler Sport Compact	79
Ford Sport Compact	79
Honda Sport Compact	79-80
Mitsubishi Sport Compact	80
Nissan Sport Compact	81-82
Subaru Sport Compact	82-84
Toyota Sport Compact	84

	PREMIUM Part number ends in"C" or no letter.	FEATURES: Polished crown Anti-Friction skirt coating Dual forced pin oiling 2618 or 4032 Alloy
	ELITE Part number ends in"CA".	FEATURES: All of Premium Plus -Hard Anodized crown and top ring groove Lateral Gas Porting. *check note section
	EXTREME Part number ends in"LCAT".	FEATURES: All of Elite Plus -Hard Anodized crown and top ring groove Abradable skirt coating Thermal heat barrier

CODE	RING WIDTH	CODE	TOP RING MATERIAL
B	1/16 1/16 3/16	D	Ductile Iron w/Moly
D	1.5 1.5 4.0mm	S	Steel
L	1.0 1.2 2.8mm	.
M	1.2 1.2 2.5mm
T	1.2 1.2 2.8mm

SPORT COMPACT RING KIT	BORE SIZES	.	SPORT COMPACT RING KIT	BORE SIZES
U08100LS $26.43	81.00mm		3622DD4 $85.29	92.00mm
U08150LS $148.32	81.50mm		U09200LS $26.43	92.00mm
U08200LS $128.60	82.00mm		3622MS4 $61.53	92.00mm
U08500LS $26.43	85.00mm		3622MS4 $61.53	92.038mm
U08550LS $26.43	85.50mm		3622DD4.010 $85.29	92.25mm
U08600LS $26.43	86.00mm		3622MS4.25MM $61.53	92.25mm
3386TS6 $86.72	86.00mm		3622DD4.020 $85.29	92.50mm
U08625LS $26.43	86.25mm		U09250LS $26.43	92.50mm
3386TS6.25MM $86.72	86.25mm		3622MS4.50MM	92.50mm
U08650LS $26.43	86.50mm		3622DD4.030 $85.29	92.76mm
3386TS6.50MM	86.50mm		U09300LS $26.43	93.00mm
3386TS6.75MM $86.72	86.75mm		U09550LS $26.43	95.50mm
U08700LS $26.43	87.00mm		U09600LS $26.43	96.00mm
3386TS6.75MM $86.72	87.00mm		3780BD4.020 $169.23	96.52mm
U08750LS $26.43	87.50mm		3780BD4.030 $169.23	96.77mm
3445LS4.75MM $61.53	87.75mm		3780BD4.040 $169.23	97.00mm
U08800LS $26.43	88.00mm		3917LS4	99.50mm
3445LS4.1.0MM $61.53	88.50mm		3917LS4	99.538mm
U08900LS $26.43	89.00mm		3917LS4.25MM	99.75mm
U08950LS $26.43	89.50mm		3917LS4.5MM	100.00mm
U09000LS $26.43	90.00mm

PART #	Bore (mm/in)	Stroke (mm)	Rod (mm)	C/D (mm/in)	Head Type	Head CC’s	C/R w/ 50cc Head Gram	Gram Wgt. Piston/ Pin	Top Land	Replacement Ring Set
IC637CKTS.75MM $373.66	87.75/ 3.455"	101mm	151mm	29.16/ 1.148"	.256” Dome	-19	8.1	340/99	.200”	3445LS4.75MM $61.53
IC637CKTS.1.0MM $373.66	88.5/ 3.484"	101mm	151mm	29.16/ 1.148"	.256” Dome	-19	8.1	340/99	.200”	3445LS4.1.0MM $61.53

Piston Set	Piston w/ Rings Kit	Bore (mm/in)	Stroke (mm)	Rod (mm)	C/D (mm/in)	Head Type	Head CC’s	C/R w/ 60cc Head	Gram Wgt. Piston/ Pin	Top Land	Replacement Ring Set
IC985 $124.43	IC985KTD $566.94	92/ 3.622"	89mm	147.95	34.16/ 1.345"	Profiled Dish	+6.6	9.0	366/ 99	.300”	3622DD4 $85.29
IC985.010 $124.43	IC985KTD.010 $566.94	92.25/ 3.632"	89mm	147.95	34.16/ 1.345"	Profiled Dish	+6.6	9.0	366/ 99	.300”	3622DD4.010 $85.29
IC985.020 $124.43	IC985KTD.020 $566.94	92.50/ 3.642"	89mm	147.95	34.16/ 1.345"	Profiled Dish	+6.6	9.0	366/ 99	.300”	3622DD4.020 $85.29
IC985.030 $124.43	IC985KTD.030 $566.94	92.76/ 3.652"	89mm	147.95	34.16/ 1.345"	Profiled Dish	+6.6	9.0	366/ 99	.300”	3622DD4.030 $85.29

Piston w/ Rings Kit	Bore (mm/in)	Stroke (mm)	Rod (mm)	C/D (mm/in)	Head Type	Head CC’s	C/R cc --41--44.5		Gram Wgt. Piston/ Pin	Top Land	Replacement Ring Set
IC679LCATK $1,174.50	86/ 3.386"	See Notes	See Notes	33.98/ 1.338”	Dish	+15	-	2JZ 8.5	30/ 122	.278”	3386TS6 $86.72
IC679LCATK.25MM $1,174.50	86.25/ 3.396"	See Notes	See Notes	33.98/ 1.338”	Dish	+15	-	2JZ 8.5	30/ 122	.278”	3386TS6.25MM $86.72
IC679LCATK.50MM	86.50/ 3.405"	See Notes	See Notes	33.98/ 1.338”	Dish	+15	-	2JZ 8.5	30/ 122	.278”	3386TS6.50MM
IC679LCATK.75MM $1,174.50	86.75/ 3.415"	See Notes	See Notes	33.98/ 1.338”	Dish	+15	-	2JZ 8.5	30/ 122	.278”	3386TS6.75MM $86.72
IC679LCATK.1.00MM	87.00/ 3.425"	See Notes	See Notes	33.98/ 1.338”	Dish	+15	-	2JZ 8.5	30/ 122	.278”	3386TS6.1.00MM
IC683LCATK $1,174.50	86/ 3.386"	See Notes	See Notes	33.98/ 1.338”	Dish	+7.5	1JZ 8.5	2JZ 9.5	334/ 12	.280”	3386TS6 $86.72
IC683LCATK.25MM $1,174.50	86.25/ 3.396"	See Notes	See Notes	33.98/ 1.338”	Dish	+7.5	1JZ 8.5	2JZ 9.5	334/ 122	.280”	3386TS6.25MM $86.72
IC683LCATK.50MM	86.50/ 3.405"	See Notes	See Notes	33.98/ 1.338”	Dish	+7.5	1JZ 8.5	2JZ 9.5	334/ 122	.280”	3386TS6.50MM
IC683LCATK.75MM $1,174.50	86.75/ 3.415"	See Notes	See Notes	33.98/ 1.338”	Dish	+7.5	1JZ 8.5	2JZ 9.5	334/ 122	.280”	3386TS6.75MM $86.72
IC683LCATK.1.00MM	87.00/ 3.425"	See Notes	See Notes	33.98/ 1.338”	Dish	+7.5	1JZ 8.5	2JZ 9.5	334/ 122	.280”	3386TS6.1.00MM
IC684LCATK $1,174.50	86/ 3.386"	See Notes	See Notes	33.98/ 1.338”	Dome	-1.1	1JZ 9.5	2JZ 10.5	345/ 122	.278”	3386TS6 $86.72
IC684LCATK.25MM $1,174.50	86.25/ 3.396"	See Notes	See Notes	33.98/ 1.338”	Dome	-1.1	1JZ 9.5	2JZ 10.5	345/ 122	.278”	3386TS6.25MM $86.72
IC684LCATK.50MM	86.50/ 3.405"	See Notes	See Notes	33.98/ 1.338”	Dome	-1.1	1JZ 9.5	2JZ 10.5	345/ 122	.278”	3386TS6.50MM
IC684LCATK.75MM $1,174.50	86.75/ 3.415"	See Notes	See Notes	33.98/ 1.338”	Dome	-1.1	1JZ 9.5	2JZ 10.5	345/ 122	.278”	3386TS6.75MM $86.72
IC684LCATK.1.00MM	87.00/ 3.425"	See Notes	See Notes	33.98/ 1.338”	Dome	-1.1	1JZ 9.5	2JZ 10.5	345/ 122	.278”	3386TS6.1.00MM
