FHR FORGED PISTONS
FORMED HEAD RELIEF - 4032 Alloy
Page 61
Icon FHR Forged piston kits (Pistons, wrist
pins, rings & locks)
For Chevrolet LS, SBC, BBC, Chrysler SB & BB, Ford SB &
Pontiac
Table Of Contents
Page 62
FHR FORGED PISTONS
FORMED HEAD RELIEF - 4032 Alloy
|

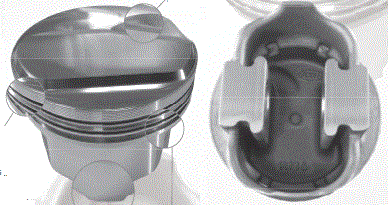

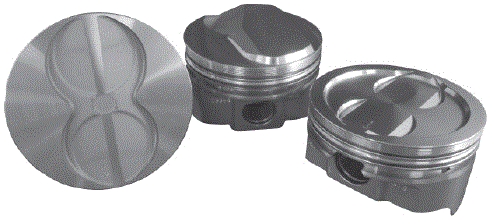

FHR series “Off the Shelf” pistons loaded with premium
features found in custom made pistons. FHR – Formed Head Relief pistons have valve reliefs that are formed in as the piston blank is pressed into the die. Many of the domed models are solid which allows tailoring the dome height for a specific compression ratio. Check the dome type box for specific dome description. 4032 Alloy material has 11% silicon content which controls the thermal expansion so a tighter piston to wall clearance may be used over the 2618 alloy. The additional silicon will also increase wearability on the skirts and pin bores making this an ideal material for street and light boosted applications. |
| APPLICATION |
Top Ring End Gap Factor |
Piston/ Wall 4.000-4.100 |
Piston/ Wall 4.100 & UP |
| Street Naturally Aspirated | 0.0040 | .0025-.0035 | .0035-.0045 |
| Street Towing | 0.0045 | .0030-.0040 | .0040-.0050 |
| Street Nitrous Or Supercharged | 0.0050 | .0035-.0045 | .0045-.0055 |
| Circle Track 2 Bbl Or Restrictor | 0.0040 | .0030-.0040 | .0045-.0055 |
| Circle Track Unrestricted | 0.0040 | .0035-.0055 | .0045-.0065 |
| Circle Track Alcohol Injection | 0.0040 | .0035-.0055 | .0045-.0065 |
| Circle Track Alcohol Carb | 0.0045 | .0040-.0060 | .0050-.0070 |
| Drag Gasoline | 0.0040 | .0040-.0060 | .0050-.0070 |
| Drag Alcohol | 0.0040 | .0030-.0060 | .0040-.0070 |
| Drag Supercharged Or Nitrous | 0.0050 | .0050-.0080 | .0060-.0090 |
| Drag Supercharged Alcohol | 0.0050 | .0040-.0060 | .0050-.0070 |
| Marine Naturally Aspirated | 0.0040 | .0035-.0050 | .0045-.0060 |
| Marine Supercharged | 0.0045 | .0045-.0060 | .0055-.0070 |
| Propane | 0.0040 | .0030-.0060 | .0040-.0070 |
| Code | TOP RING MATERIAL | . | Code | RING WIDTH |
| M | Cast Iron w/Moly | A | 5/64 5/64 3/16 | |
| D | Ductile Iron w/Moly | B | 1/16 1/16 3/16 | |
| S | Steel w/Moly or Chrome | C | 1.5 1.5 3.0mm | |
| S-N | Steel w/Moly, Ductile Napier 2nd | D | 1.5 1.5 4.0mm | |
| . | . | E | 1.2 1.2 3.0mm | |
| . | . | F | 5/64 1/16 3/16 | |
| . | . | G | 5/64 3/32 3/16 | |
| . | . | H | 1.5 1.5 2.5 | |
| . | . | K | 1.2 1.5 3.0mm |
| FHR Information | 62 |
| General Motors LS FHR | 63 |
| Chevrolet SBC FHR | 65 |
| Chevrolet BBC FHR | 69 |
| Chrysler SB FHR | 73 |
| Chrysler BB FHR | 74 |
| Ford SB Windsor FHR | 74 |
| Pontiac FHR | 76 |

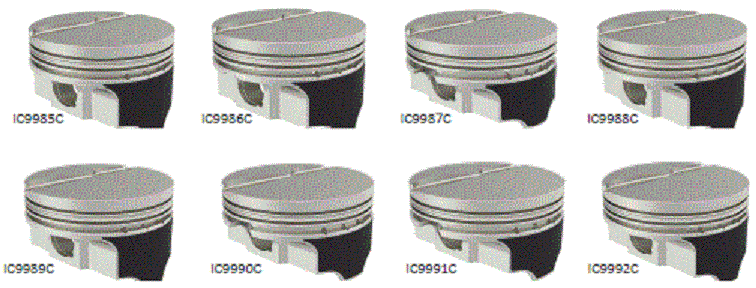

GM LS 4.8L / 5.3L / 5.700L / 6.0L-6.2L|
Off set Wrist pins 2nd Land Accumulator Grooves Round Wire Locks M42 $27.83 Skirt Coating Standard |
ALLOY: LOCK RINGS: RING PACK: |
4032 BR8894-1 $1.15 1.5mm, 1.5mm, 3.0mm |
GM
4.7L / 5.3L BLOCK FLAT TOP 2V 15° VALVE ANGLE| Piston Set | Piston and Ring Set | CI | Bore | Stroke | Rod | C.H. | Pin Dia. | CC |
Gram Wgt. Piston Pin |
Top Land |
Comp. ratiio cc 64.5-68.4 |
UEM Ring # | |
| IC9985C.STD | IC9985CKTS.STD | 325 | 3.78 | 3.622 | 6.098 | 1.331 | .945 | 2.9cc | 432 / 124 | .275 | 9.8 | 9.1 | 3780CS8.STD |
| IC9985C.005 $68.40 | IC9985CKTS.005 $610.26 | 326 | 3.785 | 3.622 | 6.098 | 1.331 | 945 | 2.9cc | 432 / 124 | .275 | 9.8 | 9.1 | 3780CS8.005 $76.92 |
| IC9985C.010 $68.40 | IC9985CKTS.010 $610.26 | 327 | 3.79 | 3.622 | 6.098 | 1.331 | 945 | 2.9cc | 432 / 124 | .275 | 9.8 | 9.1 | 3780CS8.010 $76.92 |
| IC9985C.020 $68.40 | IC9985CKTS.020 $610.26 | 329 | 3.8 | 3.622 | 6.098 | 1.331 | 945 | 2.9cc | 432 / 124 | .275 | 9.8 | 9.1 | 3780CS8.020 $76.92 |
| IC9985C.030 $68.40 | IC9985CKTS.030 $610.26 | 330 | 3.81 | 3.622 | 6.098 | 1.331 | 945 | 2.9cc | 432 / 124 | .275 | 9.8 | 9.1 | 3780CS8.030 $76.92 |
| IC9985C.040 $68.40 | IC9985CKTS.040 $610.26 | 332 | 3.82 | 3.622 | 6.098 | 1.331 | .945 | 2.9cc | 432 / 124 | .275 | 9.8 | 9.1 | 3780CS8.040 $76.92 |
| IC9986C.STD | IC9986CKTS.STD | 325 | 3.78 | 3.622 | 6.125 | 1.304 | .927 | 2.9cc | 427 / 121 | .275 | 9.8 | 9.1 | 3780CS8.STD |
| IC9986C.005 $68.40 | IC9986CKTS.005 $610.26 | 326 | 3.785 | 3.622 | 6.125 | 1.304 | .927 | 2.9cc | 427 / 121 | .275 | 9.8 | 9.1 | 3780CS8.005 $76.92 |
| IC9986C.010 $68.40 | IC9986CKTS.010 $610.26 | 327 | 3.79 | 3.622 | 6.125 | 1.304 | .927 | 2.9cc | 427 / 121 | .275 | 9.8 | 9.1 | 3780CS8.010 $76.92 |
| IC9986C.020 $68.40 | IC9986CKTS.020 $610.26 | 329 | 3.8 | 3.622 | 6.125 | 1.304 | .927 | 2.9cc | 427 / 121 | .275 | 9.8 | 9.1 | 3780CS8.020 $76.92 |
| IC9986C.030 $68.40 | IC9986CKTS.030 $610.26 | 330 | 3.81 | 3.622 | 6.125 | 1.304 | .927 | 2.9cc | 427 / 121 | .275 | 9.8 | 9.1 | 3780CS8.030 $76.92 |
| IC9986C.040 $68.40 | IC9986CKTS.040 $610.26 | 332 | 3.82 | 3.622 | 6.125 | 1.304 | .927 | 2.9cc | 427 / 121 | .275 | 9.8 | 9.1 | 3780CS8.040 $76.92 |
| IC9987C.STD | IC9987CKTS.STD | 359 | 3.78 | 4.000 | 6.125 | 1.115 | 927 | 2.9cc | 389 / 121 | .265 | 10.7 | 10.1 | 3780CS8.STD |
| IC9987C.005 $68.40 | IC9987CKTS.005 $610.26 | 360 | 3.785 | 4.000 | 6.125 | 1.115 | 927 | 2.9cc | 389 / 121 | .265 | 10.7 | 10.1 | 3780CS8.005 $76.92 |
| IC9987C.010 $68.40 | IC9987CKTS.010 $610.26 | 361 | 3.79 | 4.000 | 6.125 | 1.115 | 927 | 2.9cc | 389 / 121 | .265 | 10.7 | 10.1 | 3780CS8.010 $76.92 |
| IC9987C.020 $68.40 | IC9987CKTS.020 $610.26 | 363 | 3.8 | 4.000 | 6.125 | 1.115 | 927 | 2.9cc | 389 / 121 | .265 | 10.7 | 10.1 | 3780CS8.020 $76.92 |
| IC9987C.030 $68.40 | IC9987CKTS.030 $610.26 | 365 | 3.81 | 4.000 | 6.125 | 1.115 | 927 | 2.9cc | 389 / 121 | .265 | 10.7 | 10.1 | 3780CS8.030 $76.92 |
| IC9987C.040 $68.40 | IC9987CKTS.040 $610.26 | 367 | 3.82 | 4.000 | 6.125 | 1.115 | 927 | 2.9cc | 389 / 121 | .265 | 10.7 | 10.1 | 3780CS8.040 $76.92 |
GM
5.7L LS1 / LS6 BLOCK FLAT TOP 2V 15° VALVE ANGLE
FEATURES:
|
Off set Wrist pins 2nd Land Accumulator Grooves Round Wire Locks M42 $27.83 Skirt Coating Standard |
ALLOY: LOCK RINGS: RING PACK: |
4032 BR8894-1 $1.15 1.5mm, 1.5mm, 3.0mm |
| Piston Set | Piston and Ring Set | CI | Bore | Stroke | Rod | C.H. | Pin Dia. | CC |
Gram Wgt. Piston Pin |
Top Land |
Comp. ratiio cc 64.5-68.4 |
UEM Ring # | |
| IC9988C.STD | IC9988CKTS.STD | 346 | 3.898 | 3.622 | 6.098 | 1.33 | .945 | 3.2cc | 499 / 124 | .275 | 10.3 | 9.8 | 3898CM8.STD |
| IC9988C.005 $68.40 | IC9988CKTS.005 $648.07 | 347 | 3.903 | 3.622 | 6.098 | 1.33 | .945 | 3.2cc | 499 / 124 | .275 | 10.3 | 9.8 | 3898CM8.005 $113.22 |
| IC9988C.010 $68.40 | IC9988CKTS.010 $648.07 | 348 | 3.908 | 3.622 | 6.098 | 1.33 | .945 | 3.2cc | 499 / 124 | .275 | 10.3 | 9.8 | 3898CM8.010 $113.22 |
| IC9989C.STD | IC9989CKTS.STD | 346 | 3.898 | 3.622 | 6.125 | 1.304 | .927 | 3.2cc | 441 / 121 | .275 | 10.3 | 9.8 | 3898CM8.STD |
| IC9989C.005 $68.40 | IC9989CKTS.005 $648.07 | 347 | 3.903 | 3.622 | 6.125 | 1.304 | .927 | 3.2cc | 441 / 121 | .275 | 10.3 | 9.8 | 3898CM8.005 $113.22 |
| IC9989C.010 $68.40 | IC9989CKTS.010 $648.07 | 348 | 3.908 | 3.622 | 6.125 | 1.304 | .927 | 3.2cc | 441 / 121 | .275 | 10.3 | 9.8 | 3898CM8.010 $113.22 |
| IC9990C.STD | IC9990CKTS.STD | 382 | 3.898 | 4.000 | 6.125 | 1.12 | .927 | 3.2cc | 403 / 121 | .265 | 11.2 | 10.7 | 3898CM8.STD |
| IC9990C.005 $68.40 | IC9990CKTS.005 $648.07 | 383 | 3.903 | 4.000 | 6.125 | 1.12 | .927 | 3.2cc | 403 / 121 | .265 | 11.2 | 10.7 | 3898CM8.005 $113.22 |
| IC9990C.010 $68.40 | IC9990CKTS.010 $648.07 | 384 | 3.908 | 4.000 | 6.125 | 1.12 | .927 | 3.2cc | 403 / 121 | .265 | 11.2 | 10.7 | 3898CM8.010 $113.22 |
Page 64 $1.15
GM LS 4.8L / 5.3L / 5.700L / 6.0L-6.2L, continued
New applications in the FHR line for LS based engines.
Excellent choice for Street, Marine and Mild Boost / Nitrous.
FEATURES:
|
Off set Wrist pins 2nd Land Accumulator Grooves Round Wire Locks M42 $27.83 Skirt Coating Standard |
ALLOY: LOCK RINGS: RING PACK: |
4032 BR8894-1 $1.15 1.5mm, 1.5mm, 3.0mm |
| Piston Set | Piston and Ring Set | CI | Bore | Stroke | Rod | C.H. | Pin Dia. | CC |
Gram Wgt. Piston Pin |
Top Land |
Comp. ratiio cc 64.5-68.4 |
UEM Ring # | |
| IC9991C.STD | IC9991CKTS.STD | 402 | 4.000 | 4.000 | 6.125 | 1.115 | .927 | 3.3cc | 426 / 121 | .265 | 11.7 | 11.2 | 4000CM8.STD |
| IC9991C.005 $68.40 | IC9991CKTS.005 $628.46 | 403 | 4.005 | 4.000 | 6.125 | 1.115 | .927 | 3.3cc | 426 / 121 | .265 | 11.7 | 11.2 | 4000CM8.005 $97.85 |
| IC9991C.010 $68.40 | IC9991CKTS.010 $628.46 | 404 | 4.010 | 4.000 | 6.125 | 1.115 | .927 | 3.3cc | 426 / 121 | .265 | 11.7 | 11.2 | 4000CM8.010 $97.85 |
| IC9991C.020 $68.40 | IC9991CKTS.020 $628.46 | 406 | 4.020 | 4.000 | 6.125 | 1.115 | .927 | 3.3cc | 426 / 121 | .265 | 11.7 | 11.2 | 4000CM8.020 $97.85 |
| IC9991C.030 $68.40 | IC9991CKTS.030 $628.46 | 408 | 4.030 | 4.000 | 6.125 | 1.115 | .927 | 3.3cc | 426 / 121 | .265 | 11.7 | 11.2 | 4000CM8.030 $97.85 |
| IC9991C.065 $68.40 | IC9991CKTS.065 $628.46 | 415 | 4.065 | 4.000 | 6.125 | 1.115 | .927 | 3.3cc | 426 / 121 | .265 | 11.7 | 11.2 | 4000CM8.065 $97.85 |
| IC9991C.070 $68.40 | IC9991CKTS.070 $628.46 | 416 | 4.070 | 4.000 | 6.125 | 1.115 | .927 | 3.3cc | 426 / 121 | .265 | 11.7 | 11.2 | 4000CM8.070 $97.85 |
| IC9991C.080 $68.40 | IC9991CKTS.080 $628.46 | 418 | 4.080 | 4.000 | 6.125 | 1.115 | .927 | 3.3cc | 426 / 121 | .265 | 11.7 | 11.2 | 4000CM8.080 $97.85 |
| IC9992C.STD | IC9992CKTS.STD | 364 | 4.000 | 3.622 | 6.125 | 1.304 | .927 | 3.3cc | 461 / 121 | .275 | 10.7 | 10.1 | 4000CM8.STD |
| IC9992C.005 $68.40 | IC9992CKTS.005 $628.46 | 365 | 4.005 | 3.622 | 6.125 | 1.304 | .927 | 3.3cc | 461 / 121 | .275 | 10.7 | 10.1 | 4000CM8.005 $97.85 |
| IC9992C.010 $68.40 | IC9992CKTS.010 $628.46 | 366 | 4.010 | 3.622 | 6.125 | 1.304 | .927 | 3.3cc | 461 / 121 | .275 | 10.7 | 10.1 | 4000CM8.010 $97.85 |
| IC9992C.020 $68.40 | IC9992CKTS.020 $628.46 | 368 | 4.020 | 3.622 | 6.125 | 1.304 | .927 | 3.3cc | 461 / 121 | 0.275 | 10.7 | 10.1 | 4000CM8.020 $97.85 |
| IC9992C.030 $68.40 | IC9992CKTS.030 $628.46 | 370 | 4.030 | 3.622 | 6.125 | 1.304 | .927 | 3.3cc | 461 / 121 | 0.275 | 10.7 | 10.1 | 4000CM8.030 $97.85 |
| IC9992C.065 $68.40 | IC9992CKTS.065 $628.46 | 376 | 4.065 | 3.622 | 6.125 | 1.304 | .927 | 3.3cc | 461 / 121 | 0.275 | 10.7 | 10.1 | 4000CM8.065 $97.85 |
| IC9992C.070 $68.40 | IC9992CKTS.070 $628.46 | 377 | 4.070 | 3.622 | 6.125 | 1.304 | .927 | 3.3cc | 461 / 121 | 0.275 | 10.7 | 10.1 | 4000CM8.070 $97.85 |
| IC9992C.080 $68.40 | IC9992CKTS.080 $628.46 | 379 | 4.080 | 3.622 | 6.125 | 1.304 | .927 | 3.3cc | 461 / 121 | 0.275 | 10.7 | 10.1 | 4000CM8.080 $97.85 |
CHEVROLET SBC FHR piston kits
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.48 | 9.025" | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
OVERSIZES: STD / .030 / .040 / .060 / .080
RING PACK: 2-1/16" / 1-3/16" RINGSET PART NO: 4000BD8 $128.59 |
NOTES: Offset Pin. No Mini Grooves on Top Land. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 58- 64- 76 |
GRAM Weightt |
Top Land |
||
| IC9979KTD $718.13 | 5.700 | 1.55 | .927 x 2.750" | DISH / 4V 18.5cc | 9.6 | 9.0 | 8.0 | 487/132 | .250" |
| IC9980KTD $718.13 | 6.000 | 1.250 | .927 x 2.750" | DISH / 4V 18.5cc | 9.6 | 9.0 | 8.0 | 431/132 | .220" |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.480 | 9.025” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 / .080 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. *4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Offset Pin. IC9964 $76.87 replaces IC9928. Update includes 1/16th ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 64-- 76 |
GRAM Weightt |
Top Land |
||
| * IC9913KTM $642.40 | 5.700 | 1.550 | .927 x 2.750” | FT/4V 6.4cc | 10.5 | 9.8 | 8.7 | 533/132 | .250” |
| † IC9964KTD $719.52 | 6.000 | 1.250 | .927 x 2.750” | FT/4V 10cc | 10.5 | 9.8 | 8.7 | 450/132 | .220” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.480 | 9.025” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. *4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Centered Pin. IC9962 $76.90 replaces IC9930. Update includes 1/16th ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 64-- 76 |
GRAM Weightt |
Top Land |
||
| * IC9929KTM $671.94 | 5.700 | 1.550 | .927 x 2.750” | FT/2V 5cc | 11.2 | 10.4 | 9.1 | 545/132 | .250” |
| † IC9962KTD $716.60 | 6.000 | 1.250 | .927 x 2.750” | FT/2V 5cc | 11.2 | 10.4 | 9.1 | 465/132 | .220” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.480 | 9.025” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. *4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Centered Pin. Will Fit Vortec and Brodix-10 Cylinder Heads. IC9967 $85.19 replaces IC9934. Update includes 1/16th ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 64-- 76 |
GRAM Weightt |
Top Land |
||
| * IC9933KTM $725.02 | 5.700 | 1.550 | .927 x 2.750” | 190 S/Dome -6cc | 12.8 | 11.8 | 10.1 | 575/132 | .250” |
| † IC9967KTD $776.90 | 6.000 | 1.250 | .927 x 2.750” | 190 S/Dome -6cc | 12.8 | 11.8 | 10.1 | 490/132 | .220” |
CHEVROLET SBC FHR Forged Piston Kits,
continued
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 3.480 | 9.025” | 4032 |
93 True-Arc See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4125AM8, 4125AD8 $184.62 |
Notes: Centered Pin. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58- 64- 76 |
GRAM Weightt |
Top Land |
||
| IC9943KTM $669.10 | 5.700 | 1.561 | .927 x 2.750” | DISH/2V 20cc | 9.9 | 9.3 | 8.4 | 543/132 | .290” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 3.480 | 9.025” | 4032 |
93 True-Arc See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4125AM8, 4125AD8 $184.62 |
Notes: Centered Pin. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 64-- 76 |
GRAM Weightt |
Top Land |
||
| IC9937KTM $684.52 | 5.700 | 1.561 | .927 x 2.750” | FT/2V 3.7cc | 12.0 | 11.1 | 9.7 | 589/132 | .250” |
| IC9938KTM | 6.000 | 1.261 | .927 x 2.750” | FT/2V 3.7cc | 12.0 | 11.1 | 9.7 | 518/132 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 3.480 | 9.025” | 4032 |
93 True-Arc See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4125AM8, 4125AD8 $184.62 |
Notes: Centered Pin. Will Fit Vortec Cylinder Heads. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58-- 64-- 76 |
GRAM Weightt |
Top Land |
||
| IC9939KTM $673.20 | 5.700 | 1.561 | .927 x 2.750” | .075 S/Dome -2.6cc | 13.0 | 12.0 | 10.4 | 606/132 | .250” |
| IC9940KTM | 6.000 | 1.261 | .927 x 2.750” | .075 S/Dome -2.6cc | 13.0 | 12.0 | 10.4 | 541/132 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.750 | 9.025” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 / .080 Ring Pack: *2-5/64” / 1-3/16”, †2-1/16” / 1-3/16” Ring Set Part No. *4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Offset Pin. IC9965 $83.94 replaces IC9945. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58-- 64-- 76 |
GRAM Weightt |
Top Land |
||
| * IC9926KTM $670.47 | 5.700 | 1.425 | .927 x 2.750” | DISH/4V 18cc | 10.2 | 9.6 | 8.6 | 489/132 | .250” |
| † IC9965KTD $774.10 | 6.000 | 1.125 | .927 x 2.750” | DISH/4V 18cc | 10.2 | 9.6 | 8.6 | 410/132 | .220” |
CHEVROLET SBC FHR Forged Piston Kits,
continued
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.750 | 9.025” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 / .080 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. *4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Offset Pin. IC9961 $78.34 replaced IC9927. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58-- 64-- 76 |
GRAM Weightt |
Top Land |
||
| * IC9914KTM $670.47 | 5.700 | 1.425 | .927 x 2.750” | FT/4V 6.4cc | 11.3 | 10.5 | 9.3 | 533/132 | .250” |
| † IC9961KTD $730.66 | 6.000 | 1.125 | .927 x 2.750” | FT/4V 10cc | 11.3 | 10.5 | 9.3 | 432/132 | .220” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.750 | 9.025” | 4032 | SRW-012 $1.15 Round Wire See Notes | |
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. *4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Centered Pin. IC9966 $78.22 replaced IC9932. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58-- 64-- 76 |
GRAM Weightt |
Top Land |
||
| * IC9931KTM $671.94 | 5.700 | 1.425 | .927 x 2.750” | FT/2V 5cc | 12.0 | 11.1 | 9.8 | 536/132 | .250” |
| † IC9966KTD $722.30 | 6.000 | 1.125 | .927 x 2.750” | FT/2V 5cc | 12.0 | 11.1 | 9.8 | 450/132 | .220” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.750 | 9.025” | 4032 | SRW-012 $1.15 Round Wire See Notes | |
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. *4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Centered Pin. Will Fit Vortec and Brodix-10 Cylinder
Heads. IC9963 $85.29 replaced IC9936. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 64-- 76 |
GRAM Weightt |
Top Land |
||
| * IC9935KTM $739.19 | 5.700 | 1.425 | .927 x 2.750” | .062 S/Dome -1cc | 12.8 | 11.8 | 10.3 | 550/132 | .250” |
| † IC9963KTD $782.46 | 6.000 | 1.125 | .927 x 2.750” | .088 S/Dome -1cc | 12.8 | 11.8 | 10.3 | 460/132 | .220” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.750 | 9.025” | 4032 |
*93 True Arc See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. *4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Centered Pin. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 64-- 76 |
GRAM Weightt |
Top Land |
||
| IC9916KTM $676.03 | 5.700 | 1.433 | .927 x 2.750” | .400 H/Dome -15.2cc | 16.3 | 14.7 | 12.3 | 559/132 | .250” |
CHEVROLET SBC FHR Forged Piston Kits,
continued
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.005 | 3.800 | 9.025” | 4032 | *93 True Arc | |
|
Oversizes: STD /.030 / .040 / .060 /.080 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4000AM8, 4000AD8 $153.85 |
Notes: Offset Pin. GM Crate 383 using block #88962516 Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58-- 64- 76 |
GRAM Weightt |
Top Land |
||
| IC9954KTM $566.86 | 5.700 | 1.408 | .927 x 2.750” | DISH/4V 18cc | 10.4 | 9.8 | 8.8 | 485/132 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.005 | 3.800 | 9.025” | 4032 | *93 True Arc | |
|
Oversizes: STD / .030 / .040 / .060 / .080 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4000AM8, 4000AD8 $153.85 |
Notes: Offset Pin. GM Crate 383 using block #88962516 Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 64-- 76 |
GRAM Weightt |
Top Land |
||
| IC9955KTM $566.86 | 5.700 | 1.408 | .927 x 2.750” | FT/4V 6.4cc | 11.9 | 11.1 | 9.8 | 533/132 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 3.750 | 9.025” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: .030 / .040 / .060 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4125AM8, 4125AD8 $184.62 |
Notes: Centered Pin. IC9969 $89.54 replaces IC9944. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58-- 64 $1.15- 76 |
GRAM Weightt |
Top Land |
||
| IC9969KTM.030 | 5.700 | 1.425 | .927 x 2.750” | CIR. DISH/4V 23cc | 10.2 | 9.6 | 8.6 | 530/132 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 3.750 | 9.025” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: .030 / .040 / .060 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. *4125AM8, 4125AD8, †4125BD8 |
Notes: Centered Pin. IC9968 $79.70 replaces IC9942. Update includes 1/16th ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 64-- 76 |
GRAM Weightt |
Top Land |
||
| * IC9941KTM.030 $727.92 | 5.700 | 1.425 | .927 x 2.750” | FT/2V 5cc | 12.6 | 11.7 | 10.3 | 571/132 | .250” |
| † IC9968KTD $753.09 | 6.000 | 1.125 | .927 x 2.750” | FT/2V 5cc | 12.6 | 11.7 | 10.3 | 488/132 | .230” |
CHEVROLET BBC FHR piston kits
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 3.760 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .010 / .020 / .030 / .040 / .060 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4125AM8, 4125AD8 $184.62 |
Notes: Centered Pin. Closed Chamber Design. Part Number 9948 @ Std Will Fit A .030” Over 396ci. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105 119 |
GRAM Weightt |
Top Land |
||
| IC9948KTM $886.14 | 6.135 | 1.765 | .990 x 2.750” | .204” S/Dome -17cc | 10.5 | 9.6 | 8.5 | 674/141 | .340” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 3.760 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4125AM8, 4125AD8 $184.62 |
Notes: Centered Pin. Open Chamber Design. Part Number 9949 @ Std Will Fit A .030” Over 396ci. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 119 |
GRAM Weightt |
Top Land |
| IC9949KTM $886.02 | 6.135 | 1.765 | .990 x 2.750” | .580” S/Dome -41cc | 10.6 | 743/141 | .340” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 4.000 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .010 / .020 / .030 / .040 / .060 Ring Pack: 2-1/16” / 1-3/16” Ring Set Part No. 4125BD8 |
Notes: Use 396 Block with 454 Crank. Centered Pin. No
Mini Grooves on Top Land. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105. 119 |
GRAM Weightt |
Top Land |
||
| IC9981KTD $933.72 | 6.135 | 1.645 | .990 x 2.750” | .204" S/Dome -17cc | 10.9 | 10.0 | 8.9 | 605/141 | .310” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.125 | 4.250 | 9.800” | 4032 |
PRH107-3 See Notes |
|
|
Oversizes: STD / .020 / .030 / .040 / .060 Ring Pack: 2-1/16” / 1-3/16” Ring Set Part No. 25BD8 |
Notes: Centered Pin. 427/454 block with 4.250" stroke.
No mini grooves on top land. Fits both Open & Closed chamber heads. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105 119 |
GRAM Weightt |
Top Land |
||
| IC9982KTD $933.72 | 6.385 | 1.270 | .990 x 2.750” | .140” S/Dome -12cc | 11.0 | 10.2 | 9.1 | 552/141 | .340” |
CHEVROLET BBC FHR Forged Piston Kits,
continued
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.250 | 3.760 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 / .070 / .100 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4250AM8, 4250AD8 |
Notes: Centered Pin. Closed Chamber Design. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105 119 |
GRAM Weightt |
Top Land |
||
| IC9950KTM $862.32 | 6.135 | 1.765 | .990 x 2.750” | .124” S/Dome -10.2cc | 10.3 | 9.5 | 8.5 | 655/141 | .340” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.250 | 3.760 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 / .070 / .100 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4250AM8, 4250AD8 |
Notes: Centered Pin. Closed Chamber Design. Production runs after 12/16 supplied with spiral locks. Fits Edelbrock 110cc head. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5- 105 119 |
GRAM Weightt |
Top Land |
||
| IC9958KTM $862.32 | 6.135 | 1.765 | .990 x 2.750” | .450” S/Dome -28.2cc | 12.4 | 11.3 | 9.8 | 706/141 | .340” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.250 | 3.760 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 / .070 / .100 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4250AM8, 4250AD8 |
Notes: NOTES: Centered Pin. Open Chamber Design. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 119 |
GRAM Weightt |
Top Land |
| IC9917KTM $818.92 | 6.135 | 1.765 | .990 x 2.750” | .500” S/Dome -41cc | 11.1 | 751/141 | .325” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.250 | 4.000 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 /.070 / .100 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4250AM8, 4250AD8 |
Notes: Centered Pin. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105 119 |
GRAM Weightt |
Top Land |
||
| IC9920KTM $808.99 | 6.135 | 1.645 | .990 x 2.750” | FT/1V 3cc | 9.7 | 9.0 | 8.2 | 596/141 | .325” |
CHEVROLET BBC FHR Forged Piston Kits,
continued
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.250 | 4.000 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 /.070 / .100 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4250AM8, 4250AD8 |
Notes: Centered Pin. Closed Chamber Design. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105 119 |
GRAM Weightt |
Top Land |
||
| IC9919KTM $837.03 | 6.135 | 1.645 | .990 x 2.750” | .200” S/Dome -18.3cc | 11.8 | 10.8 | 9.6 | 657/141 | .325” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.250 | 4.000 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 / .070 / .100 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4250AM8, 4250AD8 |
Notes: Centered Pin. Open Chamber Design. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 119 |
GRAM Weightt |
Top Land |
| IC9918KTM $837.03 | 6.135 | 1.645 | .990 x 2.750” | .500” S/Dome -44.7cc | 12.3 | 723/141 | .325” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.250 | 4.250 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 /.070 / .100 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4250AM8, 4250AD8 |
Notes: Centered Pin. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105 119 |
GRAM Weightt |
Top Land |
||
| IC9951KTM $835.73 | 6.385 | 1.270 | .990 x 2.750” | FT/1V 3cc | 10.2 | 9.5 | 8.6 | 527/141 | .320” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.250 | 4.250 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 / .070 / .100 Ring Pack: 2-1/16” / 1-3/16”*, 2-5/64" / 1-3/16" Ring Set Part No. 4250BD8*, 4250AM8, 4250AD8 |
Notes: *Use 427/454 Block with 4.250" stroke. No
Mini Grooves on Top Land. *Fits both Open and Closed chamber heads. Open Chamber Design. Production runs after 12/16 supplied with spiral locks. Centered Pin. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105 119 |
GRAM Weightt |
Top Land |
||
| * IC9983KTD $873.54 | 6.385 | 1.270 | .990 x 2.750” | .175” Dome -15cc | 12.0 | 11.1 | 9.8 | 568/141 | .325” |
| IC9952KTM $835.73 | 6.385 | 1.270 | .990 x 2.750” | .218” S/Dome -23cc | . | 10.5 | . | 597/141 | .320” |
CHEVROLET BBC FHR Forged Piston Kits,
continued
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.466 | 4.000 | 9.800” | 4032 |
PRG110-3 $1.15 See Notes |
|
|
Oversizes: .004 / .034 / .064 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4466BD8 |
Notes: Centered Pin. No Mini Grooves on Top Land. Fits both OPEN and CLOSED chamber heads. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 96.5 105 119 |
GRAM Weightt |
Top Land |
||
| IC9984KTD.004 $907.00 | 6.135 | 1.645 | .990 x 2.750” | .122” S/Dome -10cc | 11.6 | 10.7 | 9.5 | 736/141 | .325” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.500 | 4.250 | 9.800” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: .004 / .030 / .040 / .060 / .100 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4500BD8 |
Notes: Centered Pin. Closed Chamber Design. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc 119 |
GRAM Weightt |
Top Land |
| IC9957KTD.004 $907.00 | 6.385 | 1.270 | .990 x 2.750” | .121” S/Dome -10cc | 10.0 | 639/141 | .325” |
CHRYSLER SB FHR Forged Piston Kits
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.040 | 3.310 | 9.599” | 4032 |
SRW-010 Round Wire See Notes |
|
|
Oversizes: STD .020 / .030 / .040 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: Centered Pin. No Mini Grooves on Top Land Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58-- 65-- 68 |
GRAM Weightt |
Top Land |
||
| IC9975KTD $709.72 | 6.123 | 1.81 | .984” X 2.750" | FT/2V 7cc | 10.6 | 9.8 | 9.4 | 606/118 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.580 | 9.599” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD .020 / .030 / .040 / .060 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: Centered Pin. No Mini Grooves on Top Land Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 65-- 68 |
GRAM Weightt |
Top Land |
||
| IC9976KTD $709.72 | 6.123 | 1.675 | .984” X 2.750” | FT/2V 7cc | 11.2 | 10.3 | 10.0 | 565/118 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 4.000 | 9.599” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD .020 / .030 / .040 / .060 / .070 /.080 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: Centered Pin. No Mini Grooves on Top Land Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58-- 65- 68 |
GRAM Weightt |
Top Land |
||
| IC9977KTD $736.22 | 6.123 | 1.450 | .984” X 2.750” | DISH/ 2V 23cc | 10.3 | 9.7 | 9.4 | 506/118 | .300” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 4.000 | 9.599” | 4032 |
LR984A $1.15 Round Wire See Notes |
|
|
Oversizes: STD .020 / .030 / .040 / .060 / .070 /.080 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: Pin. No Mini Grooves on Top Land Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -58--- 65-- 68 |
GRAM Weightt |
Top Land |
||
| C9978KTD | 6.123 | 1.450 | .984” X 2.750” | DISH/ 2V 13cc | 11.5 | 10.7 | 10.4 | 527/118 | .300” |
CHRYSLER BB FHR Forged Piston Kits
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.320 | 3.750 | 10.725” | 4032 |
SRW-010 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4320AM8 $138.46 |
Notes: Centered Pin. Piston IC9947 $96.50 Will Be .090”
Below Deck. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -72--- 80-- 90 |
GRAM Weightt |
Top Land |
||
| IC9947KTM $895.92 | 6.768 | 1.991 | 1.094 x 3.000” | FT/2V 5.6cc | 9.4 | 8.8 | 8.2 | 686/190 | .270” |
| IC9953KTM $858.05 | 6.768 | 2.067 | 1.094 x 3.000” | FT/2V 5.6cc | 11.5 | 10.6 | 9.7 | 692/190 | .270” |
FORD SB WINDSOR FHR Forged Piston Kits
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | *2.780 / †3.000 | 8.206” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: Offset Pin. Update includes 1/16th ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. *289 †302 | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9973KTD $782.50 |
*5.155 †5.090 |
1.608 | .912 x 2.750” | DISH/4V 19cc |
*8.0 †8.6 |
7.7 8.2 |
7.3 7.8 |
501/131 | .285” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | *2.780 / †3.000 | 8.206” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: ffset Pin. IC9972 $74.03 replaces IC9924.Update includes 1/16th ring pack and round wire lockrings. Production |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9972KTD $690.10 |
*5.155 †5.090 |
1.608 | .912 x 2.750” | FT/4V 11cc |
*8.8 †9.4 |
8.4 9.0 |
7.9 8.4 |
528/131 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.250 | 8.206” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: Offset Pin. Uses .9272” Diameter (SBC) Wrist Pin. 302W Block. IC9970 $85.29 replaces IC9921. Update includes 1/16th ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54-- 58- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9970KTD $782.50 | 5.400 | 1.170 | .927 x 2.750” | FT/4V 11cc | 10.1 | 9.6 | 9.0 | 443/132 | .250” |
FORD SB WINDSOR FHR Forged Piston Kits, continued
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.400 | 9.500” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: Offset Pin. Uses .9272” Diameter (SBC) Wrist Pin. 302W Block. IC9971 $85.29 replaces IC9922. Update includes 1/16th ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58-- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9971KTD $782.50 | 5.400 | 1.090 | .927 x 2.750” | FT/4V 11cc | 10.5 | 10.0 | 9.4 | 434/132 | .250” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.500 | 8.206” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-5/64” / 1-3/16” Ring Set Part No. 4000AM8, 4000AD8 $153.85 |
Notes: Offset Pin. 351W Block. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58-- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9925KTM $708.27 | 5.956 | 1.774 | .912 x 2.750” | FT/4V 11cc | 11.0 | 10.5 | 9.8 | 544/131 | .247” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.850 | 9.500” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: Offset Pin. 351W Block. Update includes 1/16th
ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58-- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9973KTD $782.50 | 5.956 | 1.608 | .912 x 2.750” | DISH/4V 19cc | 10.7 | 10.3 | 9.7 | 501/131 | .285” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 3.850 | 9.500” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 2-1/16" / 1-3/16" Ring Set Part No. 4000BD8 $128.59 |
Notes: NOTES: Offset Pin. 351W Block. IC9972 $74.03 replaces IC9924. Update includes 1/16th ring pack and round wire lockrings. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58-- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9972KTD $690.10 | 5.956 | 1.608 | .912 x 2.750” | FT/4V 11cc | 11.8 | 11.2 | 10.5 | 528/131 | .250” |
FORD SB WINDSOR FHR Forged Piston Kits, continued
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.000 | 4.000 | 9.500” | 4032 |
SRW-012 $1.15 Round Wire See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: *2-5/64” / 1-3/16” †2-1/16" / 1-3/16" Ring Set Part No. 4000AM8, 4000AD8, †4000BD8 $128.59 |
Notes: Offset Pin. Uses .9272” Diameter (SBC) Wrist
Pin. 351W Block. Production runs after 12/16 supplied with spiral locks. |
||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58-- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| †IC9974KTD $782.50 | 6.200 | 1.280 | .927 x 2.750” | DISH/4V 24cc | 10.6 | 10.1 | 9.6 | 452/132 | .285” |
| * IC9923KTM $706.82 | 6.200 | 1.280 | .927 x 2.750” | FT/4V 11cc | 12.2 | 11.6 | 10.9 | 446/132 | .235” |
PONTIAC
FHR Forged Piston Kits
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.120 | 3.750 | 10.250” | 4032 |
98 $1.15 True-Arc See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 1-5/64” / 1-1/16” / 1-3/16” Ring Set Part No. 4120AM8 $128.60 |
Notes: Offset Pin. Will work with 14° & 20° heads. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9946KTM $842.60 | 6.630 | 1.714 | .980 x 2.750” | FT/4V 10.8cc | 10.1 | 8.8 | 8.2 | 563/149 | .270” |
|
Bore | Stroke | O.E. Deck Ht. | Alloy | Lock Ring |
| 4.120 | 3.750 | 10.250” | 4032 |
98 $1.15 True-Arc See Notes |
|
|
Oversizes: STD / .030 / .040 / .060 Ring Pack: 1-5/64” / 1-1/16” / 1-3/16” Ring Set Part No. 4151FM8 $148.32 |
Notes: Offset Pin. Will work with 14° & 20° heads. Production runs after 12/16 supplied with spiral locks. | ||||
| PART # | ROD | C/H | PIN | DISH/ DOME |
C/R cc -54--- 58- 64 $1.15 |
GRAM Weightt |
Top Land |
||
| IC9960KTM $884.60 | 6.630 | 1.490 | .980 x 2.750” | FT/4V 10.8cc | 11.3 | 9.9 | 9.2 | 506/149 | .270” |
