IGNITION COMPONENTS

IGNITION • DISTRIBUTORS •
COILS • POINTS CONVERSION


As you can see with the new FAST® Ignition Catalog, we are working hard to put a lot more SPARK into Fuel Air Spark Technology! We’ve always had the ability to control the spark and resulting RPM of your engine, but we’re excited to announce that we’re expanding the Spark component of FAST® with a full line of high performance ignition components.
For starters, FAST® now offers a full line of capacitive discharge, multi-striking ignition controls. These ignitions will deliver full power, high output sparks to ignite the fuel mixture delivered by carburetors or FAST® EFI systems. No matter how you use your car, street, strip or track, we have an E-series CD Ignition Control that will fire up your engine! To complement the E-series of Ignition Controls, FAST® also offers a full line of performance coils, Race Billet Distributors, FireWire® Spark Plug Wires and a number of accessories. All of the FAST® ignition components are designed for use with our EFI systems (where a distributor is used) from the EZ-EFI® line to the XFI® Sportsman series.When you’re looking to finish off your engine’s ignition system, you can now have the SPARK come from the company that does it all – Fuel Air SparkTechnology – FAST®!



Page 1
TABLE OF CONTENTS
Ignition Controls
E6..................................................................................2
E6 w/ Rev Limiter........................................................3
E6 w/ Dual Stage Rev Limiter....................................3
E6 Circle Track w/ Rev Limiter, Coil &
Mounting Panel...........................................................4
E6 Circle Track w/ Rev Limiter Kits.........................5
E7 w/ Coil & Mounting Panel.....................................6
XIM™.........................................................................7
XR-1A Smart Coil.......................................................7
EZ-LS™.......................................................................8
ACCESSORIES
TRC-2 Timing Retard Control...................................9
MAP Sensors..............................................................9
E6 CD Ignition Tach Adapter.....................................9
Tel Tac Tach Adapter.................................................9
Surge Protection Kit....................................................9
Harnesses..................................................................10
Shock Mounts............................................................10
Relays.........................................................................10
Air/Fuel Meters..........................................................10
Weatherpak Connector Kits.....................................11
Pin Removal Tool......................................................11
Weatherpak Tools.....................................................11
Ground Cable.............................................................11
Crank Triggers
Crank Triggers..........................................................12
Crank Trigger Pickup...............................................12
Flying Magnet...........................................................12
Crank Trigger Sensor Guard...................................12
COILS
Technical Information...............................................13
CANISTER
PS20...........................................................................14
PS40...........................................................................14
PS50...........................................................................14
PS60...........................................................................14
Ballast Resistor........................................................14
E-CORE
I91..............................................................................15
E92.............................................................................15
E93.............................................................................15
Locking Coil Wire Kit..............................................15
Coil Adapter Plug.....................................................15

TABLE OF CONTENTS
Points Conversion
XR-i........................................................................16
XR-700...................................................................17
XR-3000.................................................................18
Inductive Ignition
I6.............................................................................19
Distributors
Street HEI..............................................................20
Performance HEI Coils..........................................20
Race HEI................................................................20
HEI Low Resistance Bushing...............................20
Billet Race..............................................................21
Dual-Sync...............................................................22
Circle Track Pro Race...........................................23
Crank Trigger........................................................24
Distributor Gears..................................................24
ACCESSORIES
HEI Distributor Accessories Replacement Components...........................................................25
HEI/CD Ignition Conversion Kit..........................25
Race Billet Distributor & Parts...........................25
Dual-Sync Distributor & Parts............................25
Circle Track Pro Race Distributor Replacement Components...........................................................25
Spark Plug Wires
Technical Information............................................27
8.5mm FireWire Custom Fit..................................28
8.5mm FireWire Universal Fit...............................28
Bulk FireWire® Terminals & Boots.....................29
ACCESSORIES
Cylinder Number Shrink Sleeve............................29
Locking Coil Wire Kit............................................29
Replacement Coil Wire.........................................29
Locking Coil Wire Retainer Boot.........................29
Miscellaneous TOOLS
Digital Tester.........................................................30
Pro Digital Timing Light........................................30
Pro Internal Engine Inspection Camera...............30
TECH TIPS - Frequently asked questions...........32
WARRANTY.........................................................33

IMPORTANT NOTICE
This Catalog. has been completed using our best efforts. All product photos are for illustrative purposes only. Featured photos may contain optional items that are not included in the purchase of the product. We assume no liability for errors contained herein. The Catalog. on our website is updated on a regular basis and should be used to supplement the information contained herein.

It is the responsibility of the installer to ensure that all of the components are correct before installation. Proper assembly always requires that the installer measure all tolerances for proper clearance. We assume no liability for any errors made in component selection or installation. Prices on all products are subject to change without notice. We reserve the right to make changes in products at any time. Except as noted, products in this Catalog. may not be legal for sale or use in pollution-controlled motor vehicles (pre-1966 domestic vehicles certified to California standards, pre-1968 domestic vehicles certified to federal standards.)



Page 2
Ignition
E6 CD IGNITION


E6 CD Ignition
The FAST® E6 Capacitive Discharge Ignition will fire up your engine with high voltage, full power sparks from cranking to redline RPM. FAST® understands the goals and needs of a reliable, high energy spark and now offers an ignition designed for nearly any 4, 6, and 8-cylinder distributor triggered engine – carbureted or fuel injected.
The E6 is our base CD ignition, making it ideal for street rods, muscle cars and daily drivers. The ignition produces a series of sparks at lower RPM resulting in quick starts,
smooths out the idle and helps with throttle transitions. This series of multi strikes burns in the cylinder for 20° of crankshaft rotation through 3,000 RPM. Higher RPM receives a full voltage spark that will improve the mid-range and higher RPM pull.
The E6 will easily connect to breaker points, amplifiers and the line of FAST® Billet Race and Pro Race Distributors (pages 21 and 23). It will also connect to the output of any
FAST® EFI System. Each unit is built with modern surface-mount technology and then is secured and sealed in a sturdy, easy-to-mount housing.
E6 CD Ignition 306425 $349.79
E6 CD Ignition & E92 Coil Kit
(See Page 15 for Coil Specs)
306401 $426.86


• Full power, multi-strike CD ignition control designed
for carbs and EFI
• Modern digital controller, transformer and capacitor
for improved efficiency
• High energy sparks from idle to redline ensure
complete combustion for increased power
• Completely encased in soft urethane for protection
against moisture and vibration


308250 $124.50
CARB EO# D-225-60
SPECS
Operating Voltage: 6V-18V, Reverse Polarity Protected, Negative Ground Only
Current Draw: 7.0 Amps Max. at 10,000 RPM
Operating Range: 12,000+ RPM
Multi-Strike Duration: 20° Crankshaft Rotation Through 3,000 RPM
Primary Voltage Output: 450V
Primary Energy Output: 1200 mJ/Sequence
Peak Spark Gap Current: 510mA w/ E92 Coil
Dimensions: 8"L x 4.5"W x 2"H, 4.5 lbs.
*Specifcations were measured with a FAST®  E92 Coil #308250. - see page 15.

Page 3
IGNITION
E6 CD IGNITION W/ REV LIMITER




6000-6400 $358.19 ............................................................................6000-6424 $417.07
CARB EO# D-225-52 .........................................................CARB EO# D-225-63

If you’re concerned about redline RPM and the possibility of overreving the engine, the FAST® E6 Ignition is also available with an adjustable rev limiter. Not only is our rev limiting technology extremely accurate, it is the smoothest limit available thanks to our advanced sequential limiting technology.
The RPM limit is easily set with two rotary dials on the side of the ignition and can be adjusted within 100 $3.12 RPM increments all the way through 9,900 RPM.
This E6 is supplied with a Weatherpak connector and harness to help route the wiring, as well as sturdy vibration mounts. It can be used on distributor triggered, 4, 6 and 8-cylinder engines and is compatible with FAST® EFI systems
or carbureted applications.
E6 CD Ignition Control w/ Rev Limiter 6000-6400 $358.19
E6 CD Ignition Control w/ Rev Limiter & E92 Coil Kit 6000-6405 $449.34

CARB EO# D-225-52
• Two adjustable rev limiters; one for overrev protection, the second for a launch RPM
• Adjustable in 100 $3.12 RPM increments with positive detent rotary dials
• Timing is held to within a half degree and the rev limiter is accurate within 30 RPM
E6 CD Ignition w/ Dual Stage Rev Limiter

If you plan to split your time between the street and strip, the E6 with a Dual Stage Rev Limiter is the right choice. The high voltage, multi-strike CD ignition improves overall performance and shares the same high output, capacitive discharge technology as the other E6 ignitions, plus it features two rev limiters. The idea behind two rev limits is to have one set for overrev protection, while the second limit can be activated on the starting line. This will provide a consistent launch RPM while allowing you to concentrate on the starting light.
E6 CD Ignition w/ Dual Stage Rev Limiter 6000-6424 $417.07
E6 CD Ignition w/ Dual Stage Rev Limiter & E92 Coil Kit 6000-6424-KIT



The two RPM limits are adjustable in 100 $3.12 RPM increments through positive stop rotary dials built into the side panel of the E6.

• Built-in engine protecting rev
limiter is adjustable in 100 $3.12 RPM
increments up to 9,900 RPM
• Sequential rev limiting technology produces smooth, accurate rev limiting action
• Multi-strike CD ignition produces high output through
redline RPM

• Two adjustable rev limiters;
one for overrev protection, the
second for a launch RPM
• Adjustable in 100 $3.12 RPM increments with positive detent
rotary dials
• Timing is held to within a half
degree and the rev limiter is
accurate within 30 RPM

SPECS
Operating Voltage: 6V-18V, Reverse Polarity Protected, Negative Ground Only Primary Voltage Output: 450V
Current Draw: 7.0 Amps Max. at 10,000 RPM Primary Energy Output: 1200 mJ/Sequence
Operating Range: 12,000+ RPM Peak Spark Gap Current: 380mA w/ I91 Coil; 510mA w/ E92 Coil
Limiter Range: 900-9,900 RPM, 100 $3.12 RPM Increments Dimensions: 8"L x 4.5"W x 2"H, 4.5 lbs.
Multi-Strike Duration: 20° Crankshaft Rotation under 3,000 RPM
*Specifications were measured with a FAST® E92 Coil (Part #308250) - see page 15.
REV LIMITERS
At FAST® we’re not fans of rev limiters that bang and pop! Our rev limiter is controlled digitally and will
sequentially drop the spark to one cylinder at a time, making sure to never cancel the same cylinder in a row. This keeps the engine balanced and prevents fuel from loading up during the limiting action. This also produces a much more accurate and stable rev limit.

Page 4
IGNITION
E6 CD CIRCLE TRACK IGNITION


E6 CD Circle Track Ignition w/ Rev Limiter
Circle track racing, on the dirt or pavement, puts a lot of pressure on the ignition. Not only does the ignition need to continuously fire off sparks at high RPM, it needs to be able to handle the abuse that race cars endure, which is why FAST® offers an E6 Ignition designed specifically for circle track racing.

All of the wiring of the E6 ignition is terminated into Weatherpak connectors for a secure, locked connection. To combat harsh racing conditions, the surface mount electronics are fully encased in a soft urethane material complemented with sturdy vibration mounts.
Since most racers run locked-out ignition timing, the E6 Circle Track Racing Ignition features a built-in start retard circuit. During cranking, the timing retards 20° to ease the pressure on the starter and flywheel. Once the engine reaches 600 RPM, the timing returns to the mechanical value. There is also a rev limiter that is adjustable through sealed rotary dials in 100 $3.12 RPM increments through 9,900 RPM.
E6 CD Circle Track Ignition w/ Rev Limiter 6000-6700 $384.92

• CD (Capacitive Discharge) technology produces full voltage sparks through high RPM
• Built-in 20° start retard eases cranking and start-up
• All wiring is routed into approved Weatherpak connectors
• Accurate and smooth sequential rev limiter is adjustable in 100 $3.12 RPM steps
• Completely encased in soft urethane for protection against moisture and vibration

SPECS
Operating Voltage: 6V-18V, Reverse Polarity Protected, Negative Ground Only Primary Voltage Output: 450V
Current Draw: 7.0 Amps Max. at 10,000 RPM Primary Energy Output: 1200 mJ/Sequence
Operating Range: 12,000+ RPM Peak Spark Gap Current: 510mA w/ E93 Coil
Limiter Range: 900-9,900 RPM, 100 $3.12 RPM Increments Dimensions: 8"L x 4.5"W x 2"H, 4.5 lbs.
Multi-Strike Duration: 20° Crankshaft Rot. Through 3,000 RPM. Max . .
*Specifcations were measured with a FAST®  E92 Coil (Part #308250) - see page 15.

APPROVED
SANCTIONING
BODIES
American Modified Series, ARCA/CRA Super Series, ARCA Midwest Tour, Blizzard Series, JEGS/CRA All Star Tour, IMCA, PASS, Snowball Derby, Southern Super Series, USMTS, USRA, WISSOTA Racing Series

Page 5
IGNITION
E6 CD CIRCLE TRACK IGNITION KITS



E6 CD Circle Track Ignition, E93 Coil & Mount Kit FAST® makes installation of the E6 Circle Track Ignition system easy with this ignition/coil kit that is also supplied with a sturdy mounting panel. This kit is supplied with the E6 CD Circle Track Ignition Control and the matched E93 Coil Kit mounted to an aluminum panel that simply mounts in your race car. All of the wiring is routed into Weatherpak connectors for an easy and reliable installation. This setup also makes it simple to remove the ignition during cleaning and maintenance on the car.
E6 CD Circle Track Ignition, E93 Coil & Mount kit 6000-6701 $482.97
 Replacement Mounting Tray  6000-6363P $57.34


E6 CD Circle Track Ignition Kits
Racers demand performance and reliability, and we’re making it simple to get a complete ignition kit that will deliver! Each ignition kit is designed to deliver the power, timing accuracy and performance that you expect from FAST®. Each kit starts with the E6 CD circle track ignition control that is designed for all out circle track racing performance. For the most spark possible, an E93 coil is supplied, which produces high energy sparks at racing RPM. These kits also include CNC-machined, billet aluminum distributors that hold the ignition timing to the exact degree (see page 21-25 for more information). Plus, you can rely on the low resistance of FAST® FireWire® Spark Plug Wires to get the spark to the plugs throughout the race. Each kit is supplied with the installation hardware and a harness terminated with Weatherpak connectors for easy installation.

• One part number for a complete circle track racing ignition system
• The E6 ignition is paired with the E93 coil for the best spark output
• Accurate optically triggered billet distributor has zero mag pickup retard
• Double silicon protected 25-ohm FireWire® Spark Plug Wire Kit ensures the most spark reaches the plugs


E6 CD Circle Track Ignition Kit for Chevrolet 6000-6700C $873.39
COMPONENTS E6 CD Circle Track Ignition w/ Adjustable Rev Limiter, Start Retard 6000-6700 $384.92

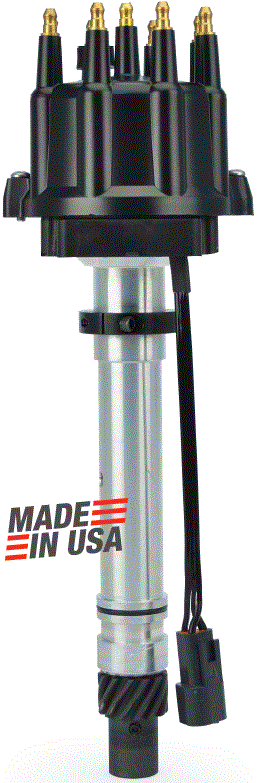

Race Billet Optical Trigger Distributor 1000-1511 $498.19
E93 E-Core Coil 730-0192 $96.47
FireWire® Universal Plug Wire Kit 255-0082 $88.13
E6 CD Circle Track Ignition Kit for Small Block Ford 6000-6700SBF $873.39
COMPONENTS E6 CD Circle Track Ignition w/ Adjustable Rev Limiter, Start Retard 6000-6700 $384.92
Race Billet Optical Trigger Distributor 1000-1611 $485.66
E93 E-Core Coil  FireWire 730-0192 $96.47
Universal Plug Wire Kit 255-0083 $95.02
E6 CD Circle Track Ignition Kit for Ford 351W 6000-6700FW $893.13
COMPONENTS E6 CD Circle Track Ignition w/ Adjustable Rev Limiter, Start Retard 6000-6700 $384.92
Race Billet Optical Trigger Distributor 1000-1613 $484.33
E93 E-Core Coil  730-0192 $96.47
FireWire®  Universal Plug Wire Kit 255-0083 $95.02

Page 6
IGNITION
E7 CD IGN
ITION



• High energy sparks to handle extreme compression, boost or nitrous
• Built-in 20° start retard eases cranking and start up
• Accurate and smooth sequential rev limiters for overrev and starting line RPM
• Multi-strike spark series below 3,000 RPM for clean low RPM operation
• Completely encased in soft urethane for protection against moisture and vibration
• Advanced digital technology produces timing accuracy within ±.5°
E7 CD Ignition*
When it comes to high compression, screaming RPM and power adders, the E7 Ignition is up to the task. The CD technology of the E7 delivers high output fire power, up to 160mJ of energy, to ignite racing fuel under the toughest combustion chambers!

The high voltage sparks of the E7 are managed by an efficient digital controller coupled with an efficient transformer and capacitor. When the ignition is at idle speeds, there is a series of multi-strikes that help keep your race engine running clear and crisp.

For overrev protection, the E7 features an adjustable rev limiter along with a second limiter that can be set while staged and waiting for the green light. Both limits are accurately set with positive feeling detent rotary switches. You’ll also notice that the advanced sequential limiter produces a smooth, bang-and-pop free rev limiting action – easy on your engine and ears.

Another useful feature of the E7 is a built-in start retard of 20°. This extra retard rate is active only when the engine cranks over which eases pressure on the starter and flywheel. Once the engine reaches 600 RPM, the timing returns to the mechanical, set amount or programmed timing in an EFI application.

E7 CD Ignition 307222 $961.74
E7 CD Ignition, E93 Coil & Mounting Kit 307222-KIT
Replacement Mounting Tray 307223 $76.87

*Not for use on pollution controlled vehicles


SPECS
Operating Voltage: 10V-20V, Reverse Polarity Protected, Negative Ground Only Multi-Strike Duration: 20° Crankshaft Rot. Through 3,000 RPM
Current Draw: 1.0 Amp Per 1,000 RPM Primary Voltage Output: 450V
Operating Range: 12,000+ RPM Primary Energy Output: 160 mJ
Limiter Range: To 12,000 RPM, 100 $3.12 RPM Increments Peak Spark Gap Current: 510mA w/ E93 Coil
Limiter Accuracy: ±30 RPM Dimensions: 8.3"L x 6.3"W x 2.2"H, 3.75 lbs.
Timing Accuracy: ± .5° From 500-9,900 RPM . .
*Must use FAST®  E93 Coil (Part #730-0192) for maximum ignition output see page 15.

E7 ACCESSORIES
Crank Trigger Kits: Precise ignition triggering see page 12.
TRC Module: Easily install a step or boost retard see page 9.
Billet Racing Distributors: The most accurate distributors available see pages 21-23.

Page 7
IGNITION CONTROL
XIM™



XIM™
Ignition Control
XIM™ Ignition Controller

The XIM™ Ignition Controller allows you to easily control all aspects of the ignition system when used with a FAST® EZ-EFI 2.0®, XFI 2.0™ or XFI Sportsman™. A number of different wiring kits are available for late model GM LS platforms, 5.7 and 6.1 Chrysler Hemis and Ford’s mod motor or the Coyote series.

This versatile ignition controller is also capable of giving you coil-per-cylinder operation on any engine using a standard crank trigger and a simple pulse per revolution cam sensor.

• Control the ignition timing of distributor-less ignition
systems when used with FAST® EFI systems
• Plug-and-play installation w/ factory style connectors
• Can be used as a stand-alone ignition control in
carbureted applications

. Kits* Standalone**
XIM  Ignition Module (No Harness) 305008 $641.02 -
GM LS1/LS6 XIM  Kit w/ Harness 301311 $996.65 3013112 $1,044.32
GM LS2/LS3/LS7 XIM  Kit w/Harness 301312 $891.70 3013122 $1,072.23
GM LS1/LS2/LS3/LS6/LS7 XIM  Connector Kit 301311K $137.09 -
Ford 5.0 Coyote Coil-On-Plug XIM  Kit w/ Harness 301317 $1,098.86 3013172 $1,209.46
Ford Modular Coil-On-Plug XIM  Kit w/ Harness 301313 $1,098.86 3013132 $1,271.10
Ford Modular Coil-On-Plug (Includes XIM  Alternate Coil) Option 301313A $1,098.86 -
Chrysler 5.7L EFI Hemi XIM  Kit w/ Harness 301316 $1,098.86 3013162 $1,209.46
Chrysler 5.7L EFI Hemi XIM  Connector Kit 301316K $190.19 -
Chrysler 6.1L EFI Hemi XIM  Kit w/ Harness 301314 $1,098.86 3013142 $1,209.46
Chrysler 6.1L EFI Hemi XIM  Connector Kit 301314K $153.79 -
Universal XIM  Connector Kit 301315K $106.19 -
LS2, LS7 Cam Pickup Adapter Harness 301415 $32.13 -
LS2, LS7 Crank Pickup Adapter Harness 301416 $32.03 -
GM Gen III/IV L92 Truck-Style Coil 30256-8 $485.74 -

** For use w/ EZ-EFI 2.0®, XFI 2.0™, XFI Sportsman™ | 1 Includes #301145 & #301416.
** For use w/ original EZ-EFI® or carb applications | 2 Must use part #30256-8.



XR-1A Smart Coil
The FAST® High Output Smart Coils are designed for extreme compression, high RPM race engines making in excess of 1,000 horsepower. The compact coil can deliver up to 44,000 volts with 103mJ of spark energy – similar to many capacitive discharge ignition systems.
The smart coil design doesn’t require a coil driver making it ideal for coil-on-plug systems.
Set of (8) Coils w/ Connectors 30260T8 $929.54
Set of (8) Coils ONLY (No Connectors) 30260-8 $844.14
Single Coil w/ Connector 30260T1
Single Coil ONLY (No Connector) 30260-1 $102.12

Page 8
IGNITION CONTROL
EZ-LS™

EZ-LS™
There is no denying the endurance and power capabilities of the LS series of engines and their use in everything from street rods to off-road race trucks. When it comes to fuel and ignition control, FAST® has the technology and components to provide the fire to ignite the fuel of your LS engine.
The EZ-LS™ Ignition Controller is for use with an EZ-EFI 2.0®, XFI 2.0™ or the XFI Sportsman™ system and simply connects to the factory sensors of the LS engine. The system was designed as a plug-in and go system with easy configuration and control of functions such as rev limits, step retards or even a boost/timing based map. Ideal for LS swaps.


• Complete control over the ignition timing on Gen 3
and 4 LS series engines using a FAST® EFI system
• Easy installation with plug-and-play wiring harness
• Recognizes 24x or 58x crankshaft sensors
• Tune through the EZ-EFI 2.0® hand-held or with the XFI® C-Com software of an XFI 2.0™ or XFI Sportsman™ EFI system
• Built-in LEDs indicate operation and input/output signals
• Clean, simplified installation with a compact, waterproof ignition controller
EZ-LS Ignition Controller Kit w/ Wiring Harness 301312E $575.26

* Works with all 1997-Current GM coil-near-plug ignition systems and both 24x/58x tooth reluctor wheels.
Not compatible with LS truck-finned coils. Wiring harness included. Requires use of EZ 2.0™, XFI 2.0™, or
XFI Sportsman™. (Does NOT work with original EZ-EFI™ or carburetors)

Page 9

IGNITION ACCESSORIES
TIMING & TACHS


6000-6425 $246.19
CARB EO# D-225-57

TRC-2 Timing Retard Control
The compact TRC-2 Retard Control allows you to easily adjust or select a timing retard – from the driver’s seat! The TRC-2 easily wires to all of the FAST® I6, E6 and E7 Ignitions* and simply mounts under the dash. There are three different ways to adjust the timing. The first is by simply turning the rotary dial to retard the timing to match your driving specifications – no more crawling under the hood with a timing light and distributor wrench. You can also set it to act as a nitrous
retard that will only activate when the nitrous is live.

If you’re a boost fan, the TRC-2 can be connected to a MAP sensor (available separately) allowing you to adjust a boost/retard setting. It can be set to retard 0-4° per pound of boost with a maximum of 20°. The unit is sealed and features an LED to show when the retard is active.
• Retard the timing up to 20° for racing, on the street or towing
• Easily connects to any of the FAST® E6 , E7 or I6 Ignitions*
• Use as a step retard to activate
when using nitrous
• Will retard the timing in a ratio asboost pressure increases
• Simply dial-back the timing in timesof detonation or load

TRC-2 Timing Retard Control 6000-6425 $246.19

*Not compatible with E6 Circle Track Ignition, Part #6000-6700 $384.92



MAP Sensors
These sensors monitor the vacuum inside the manifold and relay the information back to the ECU or the TRC-2 Controller of the ignition. This information in turn is used to determine the proper amount of fueling and ignition adjustments.
MAP 1 Bar Sensor 307007 $58.70 MAP 3 Bar Sensor 307009 $131.40 *
MAP 1 Bar Sensor, LS1 Style 307029 $76.83 MAP 5 Bar Sensor 307047 $300.89
*,**
MAP 2 Bar Sensor 307008 $100.70
*
. .

*Includes replacement matching connector body (to retro-fit existing FAST® Part #301100 $520.60 or #301101 $491.34 main harness)
**Includes 5 bar adapter.



E6 CD Ignition Tach Adapter
If you find that your older factory fuel injected vehicle, primarily from ’81-’95, doesn’t start or runs rough after the installation of an E6 Ignition, this Tach Adapter will get you fired up quickly. This unit connects to the trigger input on the E6 and strengthens the signal required for the tach and the EFI, allowing both systems to function together. It may also correct issues with a factory tachometer.
E6 CD Ignition Control Tach Adapter 6000-8910 $77.96
.
Tel Tac Tach Adapter
If you’re using a digital Tel Tac tachometer, this compact and lightweight module will correct any irregular readings caused by the addition of a FAST® E6 Ignition. The billet unit is sealed in soft urethane for protection in racing environments and has color coded
wiring for quick installation.
Tel Tac Tach Adapter 1000-1010 $114.67
.
Surge Protection Kit
A 16V filter capacitor/surge protector for use with most all CD ignitions.
Surge Protector Kit 9000-0014 $41.79

Page 10
IGNITION ACCESSORIES
HARNESSES & AIR/FUEL

Harnesses
Things happen on performance and race cars which is why we offer a number of different wiring harnesses as replacements or when you’re connecting different components together.
All of the FAST® harnesses are hand-built with the correct, factory required crimping tools combined with the proper seals and connectors. All wiring is matched to the ignition
or distributor’s factory gauge and color combination for an easy connection or swap.
6-Pin Weatherpak Connector E6 Race Ignition, Car Side Harness 6000-6715 $34.87
3-Pin Weatherpak Connector, Car Side Harness 6000-6716 $26.47
Race Billet Distributor, Car Side Harness 6000-6717 $36.26
Race Billet Distributor to MSD Ignition Harness 6000-6719 $30.63
E6 Ignition to MSD Distributor 6000-6727 $30.63



Shock/Vibration Mounts
These sturdy rubber mounts will help isolate the vibrations and frequencies experienced on a race track from the ignition or coil. Supplied in a set of four, one side has stud with a lock washer and nut, the other accepts the included #10-32 Allen bolt.
Vibration Mounts, Set of 4 1000-1032 $29.30



Relays
For switching any high current or high load device.
20-AMP Relay (EZ-EFI®) 307010 $18.14 75-AMP Relay 307019 $76.79
30-AMP Relay 307011 $23.59 Digital 20-AMP Relay 307043 $128.59


• Ideal for carbureted & EFI engines
• Available in single or dual sensor units
• Built-in data logging; no laptop required
• Meters for gasoline, diesel & E85 fuels
• PC-based software analysis tool
• RPM-based option
FREE
DOWNLOAD
Optional Software
Available @
fuelairspark.com







Air/Fuel Meters
With no laptop required, FAST™ has developed three simple, easy-to-use air/fuel meters for gasoline, diesel and
Ethanol/Methanol (E85) fuels. Available in single or dual sensor units, these meters give tuners the power to read two wide-band O2 sensors individually or to average them together for maximum accuracy of the engine’s air/fuel ratio reading. FAST™ Air/ Fuel Meters include several enhanced capabilities, including the built-in data logging function thatplays back recorded information on a lighted, full graphical display screen rather than using a laptop computer. Additional features include outputs for external data loggers, digital gauges, and a narrow-band simulator function that allows you to feed your engine’s computer a factory signal while using the wide-band sensor for air/fuel measurement.

Gasoline Air/Fuel Meter (Single Sensor) 170401 $496.86
Gasoline Air/Fuel Meter (Dual Sensor) 170402 $659.25
Motorcycle Gasoline Air/Fuel Meter (Single Sensor) 170501 $488.47
Motorcycle Gasoline Air/Fuel Meter (Dual Sensor) 170502 $613.03
Dyno Gasoline Air/Fuel Meter (Single Sensor) 170601 $488.47
Dyno Gasoline Air/Fuel Meter (Dual Sensor) 170602 $683.09

Diesel Air/Fuel Meter (Single Sensor) 170701 $484.19
Diesel Air/Fuel Meter (Dual Sensor) 170702 $635.47
Ethanol/Methanol Air/Fuel Meter (Single Sensor) 170590 $557.05
Ethanol/Methanol Air/Fuel Meter (Dual Sensor) 170608 $733.52
Master Tuner Dual Sensor Air/Fuel Meter Kit 170614 $1,374.79

Page 11

IGNITION ACCESSORIES
CONNECTORS & WIRING TOOLS

Weatherpak Connector Kits
It may take a little longer, but you’ll have the confidence of a locked and sealed connection when you use FAST® Weatherpak Connectors on your wiring. These connectors are mandated in many racing sanctioning bodies as they’re impervious to water, oils and fuel, thanks to their heavy-duty sealed design. Plus, the connectors lock together for a secure connection every time.
Weatherpak 1-Pin Connector Kit 6000-6721 $7.15 Weatherpak 3-Pin Connector Kit 6000-6723 $16.73
Weatherpak 2-Pin Connector Kit 6000-6722 $8.05 Weatherpak 6-Pin Connector Kit 6000-6726 $19.47


Pin Removal Tools
These special little tools are required when disassembling connectors.
Weatherpak Pin Removal Tool - Yellow 307065 $29.33
Metripak Pin Removal Tool - Green 307066 $29.33




Weatherpak Crimp Tools
A unique Crimp Tool is required when assembling the Weatherpak connectors and FAST® offers two; an economical, value crimper as well as a professional grade model for serious wiring projects.

Weatherpak Crimp Tool  307067 $96.54
Professional Weatherpak Crimp Tool 1000-1100 $285.43



Wire Stripping Tool
If you work with a lot of wiring, do yourself a favor and step up to a professional grade stripping tool. Our heavy duty strip tool will consistently and easily strip 22-10 AWG wire to save you time during wiring projects.

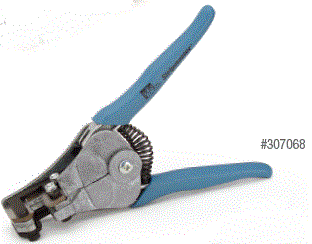

Professional Wire Stripping Tool 307068 $128.65



Spark Plug Wire Crimper
If you plan on building several sets of FireWire® spark plug wires, a FAST® Spark Plug Wire Crimp Tool is a must! The heavy-duty steel construction features a ratcheting action so each crimp is consistent and strong every time. There is plenty of leverage and supportive grips to
keep you crimping all afternoon.
Pro Spark Plug Crimp Tool 1000-1120 $250.42



Ground Cable
One of the most important things you need to do on your vehicle is provide an effective ground path back to the battery. This ground cable is 24” long with 3/8” eyelets on each side. The flexible tin plated copper braid provides maximum grounding capabilities.
Ground Cable 170720 $22.34

Page 12
Crank Triggers
KITS & PICKUPS



Crank Triggers
The FAST™ Crank Trigger is a magnet free device with a durable wheel constructed from high strength steel. With a .125" wheel, it requries less space than compmetitors’ aluminum versions. With the wheel being this thin, it not only weighs less but requires less space than competitors’ aluminum versions. The FAST™ inductive sensor is also much smaller than others on the market and is hermetically sealed with the connector molded into the body. This long lasting sensor is used by OEMs both on and inside the motor and provides accurate timing. Compatible with XFI 2.0™, XFI Sportsman™, EZ-EFI 2.0® or for use with other aftermarket EFI/ignitions.
Small Block Chevy Crank Trigger For 7.00" Balancer 301270 $327.49
Small Block Chevy Crank Trigger For 8.00" Balancer 301280 $327.49
Big Block Chevy Crank Trigger For 8.00" Balancer 301180 $337.22
Small Block Ford Crank Trigger For 6.562" Balancer 303565 $361.09

*Mount brackets included with some part numbers

• Ultra durable CNC-machined aluminum bracket w/ clearly labeled precision timing marks
• Magnet-free, ultra-thin .125" steel wheel
• Small OEM-quality inductive sensor provides
unrivaled accuracy while saving space
• Includes all required mounting hardware;
plug & play with any aftermarket EFI system



Non-Magnetic Crank Trigger Pickup Replacement (Flying Magnet)
If you’re running a crank trigger system with the magnets installed in the trigger wheel, the FAST® Non-Magnetic Crank Trigger Pickup is a more accurate, highly reliable replacement sensor. It is designed to replace a common non-magnetic pickup with a ¾”-16 UNF threaded housing.

The FAST® sensor produces the most precise signal from cranking through redline RPM and is accurate to within ± 0.1°! There is also a useful LED built-in that is extremely helpful when setting up the static timing before firing up the engine.

The wiring is sealed inside the housing and routed into a shielded, 3-pin Deutsch connector.
Non-Magnetic Crank Trigger Pickup Replacement (Flying Magnet) 1000-2100 $158.14



Crank Trigger Sensor Guard
This billet housing serves two purposes; it replaces the locknut of the crank trigger sensor while surrounding the sensor and wiring for protection. Installs over all ¾”-16 UNF threaded crank trigger sensors.
Crank Trigger Sensor Guard 1000-2110 $55.93

Page 13

IGNITION COILS
INTRO



Ignition Coils
Choosing the correct coil for your ignition system is an important consideration. A coil is responsible for taking in low voltage with higher current and converting it to a high voltage with lower current to fire the spark plug.
Coils may look similar on the outside, but internally they can have a number of variations that affect their overall output and application. Engineers can manipulate aspects such as the turns ratio of the primary and secondary windings, the resistance of the materials used, and even the layout of the coil, all of which change the function and output of the coil. FAST® offers several coils, all of which are designed to produce the best output when coupled with our ignition controls. There are coils designed to improve the output of factory systems, higher output models to run with our ignition controls, models designed for high RPM racing for the track and even coils to handle high compression and boost.

Coil Selection
IGNITION SYSTEM

COIL
PS20 PS40 PS50 PS60 I91 E92 E93
Factory Points or Electronic Amplifiers X X . . X . .
I6 Ignition Control . . X X X . .
XR-i X X . . . . .
XR-700 X X . . . . .
XR-3000 . . X X X . .
E6 for Street . . . . . X .
E6 for Strip or Track . . . . . X X
E7 Ignition Control . . . . . . X

Page 14
IGNITION COILS
CANISTER

The FAST® canister style coils may look traditional on the outside but their internals are designed to pack a high voltage punch. We have you covered with two different style coils.

PS20/PS40 Coils
The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST® XR-i Points Replacement system.
These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system.
PS20 Premium Street Coil, Black 730-0020 $60.09
PS40 Premium Street Coil, Nickel Plated 730-0040 $69.85


PS50/PS60 Coils
The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST® I6 Ignition or XR-3000 Breakerless Conversion System. These coils feature lower resistance windings to ensure the most voltage possible is brought into the coil with an optimized turns ratio for the best output. This combination is ideal for engines that endure higher RPM and performance such as circle track, road racing and off-road racing. The coils are filled with oil for optimum cooling and are housed in a sturdy steel canister that can handle the abuse of racing. They’re topped off with an alkyd molded top and brass, screw-type terminals.

PS50 Performance Coil, Black 730-0050 $72.65
PS60 Peformance Coil, Nickel Plated 730-0060 $74.10



Ballast Resistor
Ballast Resistor, 1.4 ohm 9000-0015 $19.43

COIL SPECS
. PS20/40 PS50/60
Primary Resistance: 1.4 ohms .40 ohms
Secondary Resistance: 5.2 Kohms 3.8 Kohms
Primary Inductance: 7.5 mH 5.3 mH
Secondary Inductance: 26 H 15 H
Leakage Inductance: 1.3 mH .5 mH
Turns Ratio: 60:1 54:1
Typical Dimensions: 2 1/8" D x 5 3/4" L, 1 3/4 lbs.

Page 15

IGNITION COILS
E-CORE
When your performance ignition plan includes a FAST® Ignition Control, it’s time to consider one of our E-core series coils.
E-Core coils are a more efficient design than the old canister style coils thanks to a closed magnetic path. This means less inductance loss with improved energy transfer to create an improved spark.



#730-0891 $103.50
CARB EO# D-255-60

I91 Inductive Coil
The I91 Coil is designed for use with FAST® high output inductive ignition systems such as the I6 Ignition Control or the XR-3000 Electronic Conversion Systems. The internal design is optimized to produce a long duration spark coupled with higher voltage output making
it ideal for street and performance applications.

I91 Inductive Coil 730-0891 $103.50



E92 Coil Performance/Street
The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded aluminum housing provides a durable mount and acts as an effective heat sync as well.

E92 E-Core Ignition Coil 308250 $124.50

E92 Coil Performance/Street
The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded aluminum housing provides a durable mount and acts as an effective heat sync as well.

E92 E-Core Ignition Coil 308250 $124.50



E93 E-Coil Racing Coil
When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines.
Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection.
E93 E-Core Ignition Coil 730-0192 $96.47



Locking Coil Wire Kit
This coil wire kit is supplied with a locking clip that secures the FireWire®  to the coil. Boots, terminals and a 40" FireWire®  Spark Plug Wire are supplied.

Locking Coil Wire Kit for I91 & E92 Coils 235-0001 $23.69

Coil Adapter Plug For I91 & E92/E93
Coil Adapter Plug For I91 & E92/E93 6000-6718 $19.54

COIL SPECS
. I91 E92 E93
Primary Resistance: .40 ohms .23 ohms .20 ohms
Secondary Resistance: 4.6 Kohms 920 ohms .82 Kohms
Primary Inductance: 4.7 mH 1.7mH 1.9 mH
Secondary Inductance: 14.4 H  4.5-6.5 H 6.8 H
Leakage Inductance: .23 mH  .14 mH .14 mH
Turns Ratio:  Typical 57:1  60:1 60:1
Dimensions: 3 3/4" L x 2 1/2" W x 3" H, 1 1/4 lbs. 3 3/4" L x 2 1/2" W x3" H, 1 1/4 lbs. 4 1/4" L x 3 1/2" W x 3 1/4" H, 2 1/8 lbs.

Page 16
POINTS CONVERSION
XR-i

XR-i
Tired of setting your points, or hitting that magical point at higher RPM where they seem to float, costing you power and performance? It’s time to pull out those ancient contacts and benefit from modern day, digital technology with the FAST® XR-i Replacement Module.
The XR-i is a compact module that bolts directly in place of the breaker point assembly. It simply triggers from the factory cam lobe, making installation a breeze with only two wires to connect. The microcontroller of the module manages the signal and dwell time in the coil to produce a much higher output spark that will improve the performance and driveability of your classic as well. Another great feature is a built-in rev limiter to protect your engine in the event of driveline failure or a missed shift.
A number of applications are available and more are coming soon.
For more information on the PS20 Coil, see page 14.

. XR-i Only XR-i w/ PS20 Coil Kit
Chevrolet V8, 1957-1974 750-1710 $95.03 750-1715 $131.42
Ford V8, 1959-74 750-1700 $114.60 750-1705 $159.45
Oldsmobile V8, 1967-1974 750-1720 $93.73 750-1725 $142.63
Pontiac V8, 1957-74 750-1720 $93.73 750-1725 $142.63

• The easiest points upgrade available
• Triggers from the factory cam lobe with precision timing
• Increases spark output for improved driveability
• Simple two wire connection to retain factory appearances
• Set an engine saving rev limit

SPECS
Operating Voltage: 6V-18V, Reverse Polarity Protected, Negative Ground Only Primary Voltage Output: 400V (Inductive Discharge)
Current Draw: 3.0 Amps Max. at 5,500 RPM Primary Energy Output: 45mJ w/ PS20 Coil & 1.65L Ballast Resistor
Operating Range: 8,000 RPM Peak Spark Gap Current: 50 Milliamps w/ PS20 Coil & 1.65L Ballast Resistor
Limiter Range: 4,000-8,000 RPM Spark Duration: 2100 $90.85 Microseconds @ 2,000 RPM



• Convert breaker points to a reliable optical pickup
• Provides a trigger signal for a FAST® I6 or E6 series ignition control
• Maintenance-free with no adjustment or replacement
• Stable timing from idle to high RPM

Optical Trigger Points Replacement
Replace your breaker points with the accuracy and reliability of an optical trigger. These kits are supplied with everything you need to bolt the optical trigger into your factory
distributor to send a reliable trigger signal to an E6 or I6 ignition control.
The Optical Trigger and an Installation Kit are required. Installation kits include the shutter wheel, brackets and installation hardware.
Optical Trigger Conversion Unit (Installation Kit Required) 715-0020 $68.47
Trigger Installation Kits
Domestic 4, 6, & 8 Cyl. Engines, CARB E.O D-47-2
VW/Bosch 009 Distributors, CARB E.O D-47-2 700-2226 $40.52
Universal Imports, 4, 6 & 8 Cyl. Engines, CARB E.O D-47-2 700-2231 $48.85
1974-1983 Imports, 4 & 6 Cyl. Engines w/ Bosch, Hitachi or Nippondenso  OE Ignition Modules, CARB E.O D-47-3 700-2292 $50.19
1979-1983 British 4, 6, & 8 Cyl. Engines w/ Lucas OPUS Distributor 700-2300 $44.74

SPECS
Operating Voltage: 6-18V, Reverse Polarity Protected, Negative Ground Only. Not Compatible w/ 6V Electrical Systems.
Points/Module Type (12V Square Wave). Triggers Spark on Rising Edge. 1/4 Amp Max.
Trigger Output: Note: Output Cannot Directly Drive Any Coil or Part #6000-8910 $77.96 Tach Adapter.

Page 17

POINTS CONVERSION
XR-700
XR-700
The XR-700 Points Replacement System is designed as an affordable and better performing alternative to many factory points/electronic module systems such as those from Hitachi, Nippondenso, Bosch, Lucas and others.
The system starts with the reliable FAST® optical trigger that bolts in place of the breaker points in the distributor. From there, it triggers the XR-700 Ignition Module. This compact inductive ignition module is compatible with 12-volt systems and even accepts positive ground systems.
It improves the spark output and delivers up to 400 primary volts with about 60mJ of spark energy so your engine will rev quicker and pull through the straights like never before.
The XR-700 Ignition Module, Optical Pickup and Installation Kit may be purchased separately.
Recommended Coil: The best coil for use with the XR-700 is the FAST® PS20 or PS40 Coil, see page 14.
XR-700 Ignition Module ONLY 700-0001 $113.27
XR-700 Optical Trigger ONLY 700-0020 $43.23
Complete Kits
Domestic 4, 6, & 8 Cyl. Engines, CARB E.O D-47-2 700-0226 $135.72
VW/Bosch 009 Distributors, CARB E.O D-47-2 700-0226 $135.72
Universal Imports, 4, 6 & 8 Cyl. Engines, CARB E.O D-47-2 700-0231 $135.72
1974-1983 Imports, 4 & 6 Cyl. Engines w/ Bosch, Hitachi or Nippondenso  OE Ignition Modules,
CARB E.O D-47-3
700-0292 $135.72
1979-1983 British 4, 6, & 8 Cyl. Engines w/ Lucas OPUS Distributor,  CARB E.O D-47-2 700-0300 $135.72

Note: The OE OPUS pickup must have three wires. If it has two, the optical trigger cannot be used.


• Replaces the points and ignition module of many Bosch,
Lucas, Hitachi and Nippondenso systems
• Compatible with positive ground electrical systems
• Improved timing accuracy and ignition output
• Optical trigger provides precise and reliable trigger signals
• Higher energy and voltage in a more reliable package

SPECS
Operating Voltage: 6-18 volts, Reverse Polarity Protected, Negative or Primary Voltage Output: 60mJ w/ PS20/PS40 Coils
Positive Ground. Not Compatible w/ 6 volt systems Peak Spark Gap Current: 60 Milliamps w/ PS20/PS40 Coils
Coil Current Limit: 4.5 Amps Spark Duration: 300 $219.67 Microseconds @ 6,000 RPM
Operating Range: 6,000 RPM on V8 (Higher on 4 & 6 Cyl. Engines) Dimensions: 3 1/2 L x 3 W x 1 1/2 H, 1 lb.
Primary Voltage Output: 400V (Inductive Discharge)



Ballast Resistor
Ballast Resistor, 1.4 ohm 9000-0015 $19.43


TECH TIPS: BALLAST RESISTANCE
HOW CAN I TELL IF MY VEHICLE HAS A BALLAST RESISTOR ?

Here’s a quick test for ballast resistance. Run the engine at fast idle and measure battery votage using a volt meter.
It should be about 14 volts. Then measure the voltage at the Coil+ terminal. If there is a difference of more than 3 volts,
a ballast resistor is present.

WHEN IS A BALLAST RESISTOR REQUIRED?
A ballast resistor is required with XR-700 systems. Without proper ballast resistance, the XR-700 and coil will overheat.
All vehicles with original equipment points ignition are factory equipped with ballast resistance. This can be in the form of
a ceramic ballast resistor or a resistance wire between the ignition key and COIL- terminal. It can also be in the form of
internal resistance within the coil, such as Bosch blue coils (typical on VW) and Lucas coils found on older British vehicles.

Page 18
POINTS CONVERSION
XR-3000


XR-3000
The FAST® XR-3000 is the most powerful system to replace breaker points or OEM points/module combinations.
It all starts with our proven optical trigger kit that replaces the breaker points in the distributor. From there, it triggers
a high output ignition module, the XR-3000.
This ignition module is a high output inductive ignition that produces higher voltage and current that will fire up your engine.
You’ll notice faster revving, improved pulling and whip-like throttle response from the increased spark energy reaching the
gap – up to 150% more spark energy!
The XR-3000 is CARB approved for use in all states. An installation kit may be purchased separately.



Recommended Coil: The best coil for use with the XR-3000 is the FAST® I91 Coil, see more on page 15.

SPECS
Operating Voltage: 6-18 volts, Reverse Polarity Protected, Negative or Primary Energy Output: 90mJ w/ I91 Coil
Positive Ground. Not Compatible w/ 6 volt systems Peak Spark Gap Current: 100 $3.12 Milliamps
w/ I91 Coil
Coil Current Limit: 4.5 Amps Spark Duration: 2800 Microseconds @ 2,000 RPM
Operating Range: 6,500 RPM Dimensions: 5" L x 3" W x 1 1/2" H, 1 1/2 lbs.
Primary Voltage Output: 400V (Inductive Discharge)

Page 19

IGNITION CONTROL
I6 INDUCTIVE IGNITION

XR-3000 Ignition Module ONLY 3000-0001 $132.85
XR-3000 Optical Trigger ONLY 700-0020 $43.23
Complete Kits
Domestic 4, 6, & 8 Cyl. Engines, CARB E.O D-47-2 3000-0226 $172.10
VW/Bosch 009 Distributors, CARB E.O D-47-2 3000-0226 $172.10
Universal Imports, 4, 6 & 8 Cyl. Engines, CARB E.O D-47-2 3000-0231 $197.30
1974-1983 Imports, 4 & 6 Cyl. Engines w/ Bosch, Hitachi or Nippondenso  OE Ignition Modules, CARB E.O D-47-3 3000-0292 $188.94

• Upgrade from points to a maintenance-free optical
trigger combined with a high energy ignition
• Ideal for vintage racing classes
• Up to 150% more spark energy over the OE points ignition
• Fully sealed for protection from vibration and moisture
• Improved timing accuracy and ignition output



#730-0891 $103.50
• Compact inductive ignition produces up to 70% more spark energy than stock
• Multi-strike spark series below 2,000 RPM for crisp low RPM operation
• Long duration spark with max output through 8,000 RPM
• Built-in rev limiter is adjustable in 100 $3.12 RPM increments
• Circuitry is encased in soft urethane for protection against moisture and vibration


I6 Inductive Ignition Control
Looking for an economical way to enhance the spark output of your street rod or muscle car? The compact I6 Ignition Control
is easy to install with breaker points or electronic triggers and delivers multi-strike, high-output sparks to improve your engine’s idle, throttle response and driveability.
The I6 is an inductive ignition control that improves the spark output and enhances the current and dwell control of the coil resulting in higher spark energy – up to 70% over OEM systems. From cranking speed through 2,000 RPM, there is a series of multi-strike sparks to enhance starting, idle and low speed cruising.
The I6 also has a smooth rev limiter that is adjustable within 100 $3.12 RPM increments. For the most output, it is recommended to run
the FAST® I91 Coil.

I6 Inductive Ignition Control Universal 6000-6300 $233.73
I6 Inductive Ignition Control & I91 Coil Kit Universal 6000-6305 $302.34

Compatible with 4, 6 & 8 cyl. engines with a distributor

Operating Voltage: 6V-18V, Reverse Polarity Protected, Negative Ground Primary Voltage Output: 450V (Inductive Discharge)
Current Draw: 5.0 Amps Max. at 7,000 RPM Spark Duration: 2,800 Microseconds at 2,000 RPM
Operating Range: 8,000 RPM w/ V8; 10,000 RPM w/ 4 Cyl. Trigger Input: Module Trigger (12V Square Wave)
Limiter Range: 3,100-9,900 RPM Dimensions: 5.5"L x 3"W x 1.5"H, 2 3/8 lbs.
Multi-Strike Duration: 20° Crankshaft Rotation Below 2,000 RPM

Page 20
DISTRIBUTORS
HEI

Street HEI Distributors
The FAST® Street HEI is designed for Small and Big Block Chevy engines running a carburetor or aftermarket EFI. The cast distributor is all new, including the high output ignition module and coil. This module was designed with an isolated RPM output signal making it ideal to trigger EFI systems or for aftermarket tachs that require a clean 12 volt square wave signal. This digitally controlled ignition module utilizes a rugged coil driver and is paired with a high output coil that will produce full power sparks through higher RPM.

The FAST® Street HEI Distributor is equipped with a new steel gear that is compatible with many cam grinds and features a mechanical advance and adjustable vacuum canister.
HEI Street Distributor – Chevrolet V8 Engines 303051 $207.00
HEI Street Module ONLY Fits Most 4-Pin HEI Distributors 303050 $197.59
HEI Street Ignition Kit Includes Module, Coil, Rotor and Black Cap 1000-2514 $188.86


HEI Upgrade Kit
If you already have an HEI distributor that is mechanically sound but needs a serious spark upgrade, this kit is supplied with our street HEI module and coil, plus a new cap and rotor.
HEI Upgrade Kit - Includes Street HEI Module, Coil, Cap & Rotor 1000-2513 $193.10




Performance HEI Coils
Designed to produce optimum spark energy and voltage when using a FAST Street Performance HEI Module.
Internal HEI Coil, Clockwise Rotation Distributor, Red/Yellow Wiring 730-0291 $99.19
Internal HEI Coil, Counter Clockwise Rotation Distributor, Red/White Wiring 730-0191 $102.13

Race HEI Distributors
Racers asked for a high output, precision HEI for circle track racing and FAST® delivered. New from the steel gear up to the top of the plug wire retainer, this HEI distributor means business. The heart of the unit is a digital ignition module that drives the paired coil with up to 8.5 amps to create a powerful spark that remains at full power from warm-up laps to high RPM.
The module also manages the trigger signals to keep the locked-out timing solid at all RPM. Since there is no centrifugal advance, there is a built-in 20° start retard to ease cranking. There is also a seperate tach signal that provides a clean 12V square wave signal to trigger a tachometer or EFI system.
HEI Race Distributor 1000-2500 $396.79
HEI Race Module ONLY - Fits Most 4-Pin HEI Distributors 1000-2511 $176.27
*Fits most 4-Pin HEI Distributors. For more HEI distributor accessories, see page 25.


HEI Low Resistance Bushing
When running a higher output HEI Module, such as the FAST® unit, this Lower Resistance Rotor Button is required.
HEI Low Resistance Bushing 730-8412 $15.22


#1000-2513 $193.10
#730-8412 $15.22
#730-0291 $99.19


Page 21

DISTRIBUTORS
BILLET RACE

Billet Race Distributors
The FAST® Race Billet Distributors were designed to deliver the most accurate trigger signal possible throughout the entire RPM range of your race engine. This is accomplished through the use of an advanced Hall-effect style pickup which is then converted to a signal that most CD ignition controls accept. The benefit of a Hall-effect pickup is there is no retard, commonly called magnetic pickup compensation, so you can ensure your timing remains stable from idle to race RPM.

Inside the CNC-machined billet housing is a polished stainless steel shaft that is supported with sealed ball bearing on the top and a long bushing on the bottom. FAST® also has gone through great strides to reduce end play in the distributor to take out any timing variations and damage to the gear.

Each distributor is supplied with a high-quality rotor and distributor cap. A FAST® Ignition Control (E6 or E7 series) must be used. Note that there is no mechanical advance, the timing is locked out.

Race Billet Distributors are available with a large diameter Ford style cap or smaller diameter GM points size cap with HEI terminals. Also, each application is available with either a steel, bronze or composite gear or even without a gear.


LARGE CAP
MAKE Steel Gear Bronze Gear Composite Gear No Gear
Small Block & Big Block  Chevrolet 1000-1510 $443.66 1000-1510B $464.70 1000-1510C 1000-1510NG
Chevrolet Hex Drive 1000-1512 $485.73 1000-1512B 1000-1512C 1000-1512NG
Chrysler LA 273-360 1000-1810 $443.66 1000-1810B 1000-1810C 1000-1810NG
Small Block Ford 1000-1610 $485.66 1000-1610B $522.09 1000-1610C 1000-1610NG
Ford Windsor 1000-1612 $485.66 1000-1612B $503.87 1000-1612C 1000-1612NG
Ford 351C, 429-460 1000-1614 $443.66 1000-1614B $464.70 1000-1614C 1000-1614NG
Ford FE 1000-1616 $478.74 1000-1616B $551.42 1000-1616C 1000-1616NG
Holden 1000-1710 $443.66 1000-1710B 1000-1710C 1000-1710NG


SMALL CAP
MAKE Steel Gear Bronze Gear Composite Gear No Gear
Small Block & Big Block  Chevrolet 1000-1511 $498.19 1000-1511B $505.30 1000-1511C 1000-1511NG
Chrysler LA 273-360 1000-1811 $439.53 1000-1811B 1000-1811C 1000-1811NG
Chrysler B Engine  383-400 1000-1812 $484.22 1000-1812B 1000-1812C 1000-1812NG
Chrysler RB Engine  426-440 1000-1813 $484.33 1000-1813B 1000-1813C 1000-1813NG
Small Block Ford 1000-1611 $485.66 1000-1611B $503.87 1000-1611C 1000-1611NG
Ford Windsor 1000-1613 $484.33 1000-1613B $418.40 1000-1613C 1000-1613NG
Ford 351C, 429-460 1000-1615 $471.66 1000-1615B $460.52 1000-1615C 1000-1615NG
Ford FE 1000-1617 $474.47 1000-1617B $466.14 1000-1617C 1000-1617NG
Holden 1000-1711 $439.53 1000-1711B 1000-1711C 1000-1711NG

For replacement distributor caps, rotors, gears and accessories see page 25.

Race Billet Distributor Replacement Parts
Race Billet Distributor Deutsch 3-Pin Connector/Terminal Kit 6000-6724 $13.93
Slip Collar for Chevrolet Race Billet Distributors 1000-1209 $20.80

Page 22
DISTRIBUTORS
DUAL-SYNC


Dual-Sync Distributors
FAST® Dual-Sync Distributors are designed for a simple drop-in, plug-and-play solution for V8 engines running a fully sequential EFI system. Each distributor feature reluctors and pickups that are properly aligned saving you a lot of time during setup with no need to worry about rotor phasing.

Each Dual-Sync Distributor is based on an accurate CNC-machined 6061-T6 aluminum housing that fits with a ball bearing guide to ensure long life and stability at higher RPM. Hall-effect pickups are used to trigger both the ignition circuit as well as the cam sync signal and all of the wiring is routed into a single connector for a sealed and locked connection to a FAST® XFI™ or EZ-EFI 2.0® fuel injection system.
Small/Big Block Chevrolet 305005 $481.46
Tall Deck Big Block Chevrolet 305017 $590.69
Small Block Ford 305007 $509.39
Ford Windsor 305009 $498.29
FE Ford 305010 $586.47
Ford 351C-460 305015 $547.34
Chrysler LA 273-360 305011 $596.29
Chrysler B Engine 383-400 305012 $543.06
Chrysler RB Engine 426-440 305013 $590.60
Pontiac 305016 $544.45
Oldsmobile 305018 $586.49

For replacement distributor caps, rotors, gears and accessories see page 25.
• Dual pickups deliver the required signals for the ignition and fuel injection
• Reluctors and pickups are properly aligned out of the box for easy installation
• Strong signal magnetic pickups are impervious to electronic noise and are maintenance-free
• CNC-Machined billet aluminum housings for absolute strength and accuracy
• Direct plug-in installation to FAST® XFI™ and EZ-EFI 2.0®



Page 23

DISTRIBUTORS
CIRCLE TRACK PRO RACE

Circle Track Pro Race Distributors
When it comes to high end circle track racing where engines demand the most accurate timing and reliable trigger signals, FAST® Pro Race Distributors are the only choice. These distributors are engineered from the inside-out to deliver the precise control and superspeedway endurance race teams require.

For the most reliable and accurate trigger signal, we incorporated dual optical trigger pickups. The signal from these optical pickups is then synthesized into a common magnetic trigger signal that can be used with most racing ignitions such as the E6 series. A stainless steel trigger wheel is incorporated which also allows for modifications so a custom cylinder-to-cylinder timing order could be created.

The wiring is routed into Weatherpak connectors that will plug into common wiring harnesses for sealed and locked connections. For high RPM endurance, the stainless steel distributor shaft rides in a ball bearing guide with two seals for optimum oil and vacuum control.

Each distributor is supplied with a bolt-down distributor cap, wire retainer and rotor. A FAST® E6 or E7 race series ignition is required (see page 5). Distributor gear is NOT supplied.

• The most accurate and advanced distributor for racing
• Approved for use in NASCAR competition
• Dual optical triggers are synchronized to within ±0.2°
• Electronically synthesized magnetic pickup signals trigger most CD ignitions
• Double lip seals for oil and vacuum control
• LED displays operation status of each optical pickup
• Stainless steel reluctor can be modified for individual timing capability
Small Block & Big Block Chevrolet 1000-1400 $1,033.14 *
Small Block & Big Block Chevrolet Single Trigger 1000-1430 $1,033.14
Small Block Ford 1000-1441 $1,033.14
Ford Windsor 1000-1401 $1,033.14 *
Ford Windsor 90° Trigger 1000-1421 $1,033.14
Ford FR9 Forward/RY45 1000-1451 $1,033.14 *
Toyota (Deutsch) 1000-1412 $1,033.14 *

*Approved for use in NASCAR competition
For replacement distributor caps, rotors, gears and accessories see page 25.

Page 24
DISTRIBUTORS
CRANK TRIGGER & GEARS

Crank Trigger Distributors
You can’t beat the accuracy of a crank trigger when it comes to timing signals, however you still need a distributor to transfer the high voltage from the coil to the spark plugs. FAST® Crank Trigger Distributors are designed for strength and reliability.
Small & Big Block Chevy 1000-1520 $394.62
Small Block Ford 1000-1620 $366.74
Ford Windsor 1000-1622 $403.12
Ford 351C, 429-460 1000-1624 $366.74
Holden 1000-1720 $366.74

For replacement distributor caps, rotors, gears and accessories see page 25.

• Strong and precise housing is CNC-machined from 6061-T6 aluminum
• High-quality injection molded cap and rotor resist spark scatter
• Large diameter cap allows for rotor phasing changes during timing retard
• Supplied with copper alloy gear




DISTRIBUTOR GEARS
STEEL GEARS

These gears are made to work with induction hardened and carburized steel billet roller cams and flat tappet camshafts.

BRONZE GEARS
On race engines running an 8620 steel billet cam or high volume oil pumps, these high silicon copper alloy (aluminum bronze) are required.

RACE BILLET DISTRIBUTOR GEARS
Application Steel Gear I.D. Bronze Gear I.D. Shaft O.D.
Chevrolet 11951-1 $107.60 0.492 11990-1 $79.60 0.491 0.491
Small Block Ford 36971-1 $104.89 0.500 36989-1 $78.26 0.499 0.499
Ford 351W 44970-1 $107.59 0.531 44990-1 $92.29 0.530 0.530
Ford 351C 52971-1 $102.07 0.531 44990-1 $92.29 0.530 0.530
CIRCLE TRACK PRO RACE DISTRIBUTOR GEARS
Application Steel Gear I.D. Bronze Gear I.D. Shaft O.D.
Chevrolet 11950-1 $107.60 0.500 11979-1 $60.67 0.499 0.499
Ford Small Block 44970-1 $107.59 0.531 44990-1 $92.29 0.530 0.530
Ford 351W 44970-1 $107.59 0.531 44990-1 $92.29 0.530 0.530
Miscellaneous Accessories
Distributor Gear Pin 3/16" x 7/8" for GM 1000-1560 $9.17
Distributor Gear Pin 3/16" x 3/4" for Ford  1000-1561 $9.17

Page 25

DISTRIBUTORS
ACCESSORIES

HEI Distributor Accessories
and Replacement/Maintenance Components

Advance Lock-Out Kit 1000-2503 $20.89
Adjustable Vacuum Canister 1000-2512 $18.13
Distributor Cap, Coil Cover & Rotor Kit Black 1000-2506 $36.20


External Coil Kit For An HEI
This kit allows you to install an external coil with on an HEI distributor and includes an adapter and FireWire® coil wire (coil not included).

External Coil Kit For HEI 730-0590 $61.43


HEI/CD Ignition Conversion Kit
This kit allows you to run a remote-mount coil and E6 Ignition Control.

HEI/CD Ignition Conversion Kit - Includes E6 Circle Track Ignition & E92 Coil 6000-2500 $534.73


Race Billet Distributor
Replacement/Maintenance Components

Distributor Cap Large 1000-1550 $23.69
Distributor Cap Adapter 1000-1551 $16.70
Distributor Cap Small 1000-1552 $20.79
Rotor Small 1000-1556 $40.46
Rotor Large 1000-1557 $40.46
Car Side Harness Race Billet Distributor 6000-6717 $36.26
Car Side Harness Race Billet Distributor to MSD Ignition 6000-6719 $30.63


Dual-Sync Distributor
Replacement/Maintenance Components

Distributor Cap & Rotor 305014 $78.30
Distributor Cap 305014C $67.13
Module 305014M $155.26
Rotor 305014R $23.70


Circle Track Pro Race Distributor
Replacement/Maintenance Components

Distributor Cap 1000-1403 $78.25
Distributor Cap Adapter Kit 1000-1411 $44.67
Wire Retainer Distributor Cap 1000-1408 $25.13
Rotor 1000-1558 $41.87
Fiber Optic Trigger 1000-5500 $596.33
Dashboard Mount Fiber Optic Trigger Interface Converter 1000-5600 $354.12
Optical Trigger Sensor Unit Weatherpak 1000-1424 $275.70
Replacement Hardware Kit 1000-1406 $85.22

Page 27

FIRE WIRE® SPARK PLUG WIRES
INTRO



FireWire® Spark Plug Wires
Having a high powered ignition control is only half the equation when it comes to your engine’s performance – you also need to ensure that the voltage makes it to the spark plug! The FAST® FireWire® Spark Plug Wire was designed for performance and racing from the inside-out!

For FAST®, one of the most important aspects of engineering the low resistance FireWire® was to ensure it could effectively filter the electro-magnetic interference and “noise” that occurs within all spark plug wires. The answer lies within a unique reactive core design that effectively suppresses EMI ensuring trouble-free operation of the ignition control, EFI
system and other on-board electronics.

From a performance standpoint, the conductor of the FireWire® features the lowest resistance, less than 25 ohms per foot. Less resistance means the most spark energy reaches the plug gap for every firing. To combat the extreme conditions that wires face under the hood, the core and conductor are protected with a sleeve of double-layered silicone. This design is effective against header heat, oils and abrasion, and to complete the package,
our silicone boots can withstand 550°F!

• The lowest resistance wire available with only 25 ohms per foot
• Extreme suppression capabilities prevent electronic interference
• Low resistance means more spark energy reaches the spark plugs
• Silicone plug boots handle 550°F for long life
• Silicone-on-silicone sleeve construction resists
high temperatures and abrasion
• Available in custom, universal and sets with heat sleeve installed

Page 28
FIRE WIRE® SPARK PLUG WIRES
KITS

FireWire® with Heat Sleeve
We understand the needs and desires of racers, which is why we also offer our low resistance FireWire® Plug Wires in kits with a special heat sleeve. The FAST® Heat Sleeve is a braided fiberglass sleeve that provides an extra level of protection against heat. In fact, the heavy-duty sleeving will withstand up to 1,200°F!

These FireWire® sets are also supplied with cylinder number heat shrink ends to secure the sleeve and help you identify each wire. Sets are available in custom and cut-to-fit applications.

Universal FireWire® Kits
The FAST® FireWire® Universal Kits are designed to allow you to route and cut your wires to fit exactly how you prefer. Each wire is supplied with the spark plug terminal and boot installed and the distributor side loose. HEI style and socket terminals and boots, along
with a coil wire side, are included with each kit.

Custom FireWire® Kits
These kits are cut to specific lengths and terminated on both ends for a direct plug-in
and fire it up installation!



8.5mm FireWire® Custom Fit
. Spark Plug  Boot Distributor  Terminal FireWire®  Set   w/ Heat Sleeve
CHRYSLER
2001-Present 2.4L DOHC, SRT-4, PT Turbo . . 255-4040 $52.85 .
SMALL BLOCK CHEVY
All Over Valve Covers 90° HEI 255-2402 $95.02 .
All Under Headers 90° Socket 255-2405 $90.92 .
All Under Headers 90° HEI 255-2407 $90.92 .
BIG BLOCK CHEVY
All Under Headers 90° HEI 255-2416 $90.92 295-2416 $223.82
LS1/LS6
2002-Present Truck LS1 Vortec . . 255-2420 $76.87 * .
2002-Present Camaro, Corvette, Firebird . . 255-2419 $76.87 * .
GM
GM Sprint Car 90° . 255-2404 $99.40 .
USAR Pro Cup Motor 90° . . 255-2401
FORD
351W 45° HEI-Style 255-2426 $90.92 295-2426 $226.66

*Firewire for LS applications are based on an 8mm sleeve for the best fit to factory style coils

8.5mm FireWire®
Universal Cut-To-Fit Sets
. Spark Plug  Boot Distributor  Terminal FireWire®  Set   w/ Heat Sleeve
4 CYLINDER
Universal Straight HEI/Socket 255-0041 $51.60 .
6 CYLINDER
Universal Straight HEI/Socket 255-0061 $61.50 .
8 CYLINDER
Universal Straight HEI/Socket 255-0081 $90.92 295-0081 $193.05
Universal 90° HEI/Socket 255-0082 $88.13 295-0082 $193.05
Universal 45° HEI/Socket 255-0083 $95.02 295-0083 $212.66

Page 29

FIRE WIRE® SPARK PLUG WIRES
ACCESSORIES

Bulk FireWire® Terminals & Boots
Whether you’re looking for bulk supplies to build a number of FireWire® Plug Wire sets or just like to have a few boots and terminals on-hand for maintenance, FAST® offers a number of terminals, boots and wire separately.
100 $3.12 " Roll Firewire 255-0001 $222.52
. 2-Pack 25-Pack
Straight Spark Plug Boots & Terminals 255-0011-2 $8.27 255-0011-25 $62.93
90° Spark Plug Boots & Terminals 255-0010-2 $8.27 255-0010-25 $43.27
45° Spark Plug Boots & Terminals 255-0013-2 $8.11 255-0013-25 $62.89
90° Cannister Coil Boots & Terminals 255-0025-2 $8.27 255-0025-25 $37.76
90° HEI Spark Plug Boots & Terminals 255-0032-2 $8.97 255-0032-25 $44.60


Cylinder Number Shrink Sleeve
Save time in the shop and the pits with these Heat Shrink Cylinder Numbers. They simply slide over the boot and wire or will help secure the Heat Sleeve once heat is applied to shrink them in place.
Cylinder Number Heat Shrink Kit 8.5mm Universal 230-0007 $23.72


Locking Coil Wire For I91/E92
This 40-inch long cut-to-fit wire is supplied with a boot and terminal installed that locks in place on the FAST® coils. A socket and spark plug-style terminal are supplied to install on the distributor cap.

Locking Coil Wire For I91/E92 Coils (Custom Retainer Fitted to Coil Boot) 235-0001 $23.69


Replacement Coil Wire
This 10-inch long FireWire® features 90° spark plug style terminals and boots on each side.
Replacement Coil Wire 10.5" Long w/ 90° HEI Boots 235-0004 $15.23


Locking Coil Wire Retainer Boot
This unique retainer locks the coil wire to a FAST® I91 or E92 Coil.

Locking Coil Wire Retainer Boot 235-0003 $15.22

Page 30
MISCELLANEOUS
TESTERS & TOOLS

Digital Tester
This useful tool will not only check and confirm the operation of your FAST® E6 CD Ignition Control and Coil, it will also verify the accuracy of your tachometer, rev limiter and any other RPM controlled device.

The tester simply plugs inline on the 6-pin Weatherpak connector of most E6 ignitions and is supplied with a load/test plug that you install on the coil wire at the distributor cap. With the ignition on, you can simulate a trigger signal that fires the ignition and coil. From there you can compare the tester’s accurate digital readout with the tachometer and also test the function of any RPM activated switch such as for a nitrous solenoid or shifter. A very useful tool to have on hand.
CD Ignition & Rev Limit Digital Tester 1000-1050 $407.32


Pro Digital Timing Light
When it comes to checking and setting your ignition timing, the accuracy is going to be in the light and the FAST® Pro Digital Timing Light is built for heavy-duty use in the garage or pits. The light has a removable harness that is great for storage (as well as the rare case of pulling off when it contacts a spinning engine component), along with a melt-free metal
inductive pickup. There is a backlit LCD screen that displays the RPM and timing of the engine and allows you to digitally dial back the timing to confirm the total timing without revving the engine to the moon in the garage. Supplied with a heavy-duty storage case.

Pro Digital Timing Light 1000-1130 $271.22


Pro Internal Engine Inspection Camera
This handy tool allows you to take a peek inside the cylinder or intake ports to inspect for damage or other issues. The fiber optic camera is easy to move around inside the engine and the scene is viewed on the 2.4-inch color monitor of the module.

Pro Internal Engine Inspection Camera 1000-1140 $243.52

Page 32
MISCELLANEOUS
Frequently Asked Questions
Which FAST® Ignition Control is right for me?

There are several E6 Ignition Controls available which may get a little confusing, but it’s easy to figure out by knowing what
you plan to do with your car. Is it a street cruiser, weekend bracket racer, racing on a paved oval or down the 1320?
The line of E6 Ignition Controls share the same power output but are available with several different features.
Check out the chart below to determine what features will work best for your application.

Features #306425 $349.79 E6 w/ Rev Limiter E6 w/ Dual Stage E6 Circle Track #307222 $961.74 #6000-6300 $233.73
Carb and EFI Compatible X X X X X X
Single Rev Limiter . X . X . X
Dual Stage Rev Limiter . . X . X .
20° Start Retard . . . X X .
Accepts TRC Module X X X . X X
Weathertight Connector . X X X X .
Vibration Mounts . X X X X .
Legal to Install in All States,  CARB E.O. Approved X X X X . X


What can a FAST® CD Ignition Control be installed on?
A FAST® CD Ignition Control is extremely versatile in its operation. E6 line of ignitions can be installed to nearly any with a 12-volt, negative ground electrical system and a distributor. A distributor is required which can use breaker points, a magnetic pickup or amplifier. The ignition will also accept a trigger signal from a FAST® EFI system such as the EZ-EFI 2.0®, XFI 2.0® or XFI Sportsman™. Note that the E6 ignitions cannot be used with coil-per-cylinder
systems.

What wires should be connected to the coil?
There should only be two wires going to the coil; orange on coil positive, black on coil negative. Remember, the ignition control is putting over 450 volts into the coil so no tachometers or other components should be connected to the primary side of the coil. Also, never connect a test light or equipment to the coil terminals – damage or harm can occur.

Does FAST® offer a points replacement kit?
You bet! For muscle cars and early rods, we offer a compact kit called the XR-i. This device mounts in place of the points assembly and triggers the ignition from the original lobes for simple installation and solution. For other applications such as vintage racing, we offer two higher output systems, the XR-700 and XR-3000. We even have an optical trigger kit to use with an E6 ignition. See pages 16-18 for more information.

What about electronic interference from CD ignitions and EFI systems?
FAST® understands all too well the requirements of combating electrical interference and has worked hard to produce EFI controllers and ignition controls that work harmoniously, thanks to proper component selection and engineering. Another area to consider is to use a wire with high suppression capabilities such as the FAST® FireWIre®. See pages 27-29 for details on our low resistance plug wires.

Can I trigger the E6 or E7 ignition from my FAST EFI system?
When it comes to controlling an ignition, the FAST EZ EFI 2.0, XFI Sportsman, and XFI 2.0 have a square wave signal output that “looks” like the signal from a points style ignition. Because of this, the output is referred to as a “Points Output”. This allows convenient control of an E6 or E7 ignition through the unit’s “Points Input” wire. On most CD ignitions, this is traditionally a White wire.

Can I run a 16 volt battery with my FAST Ignition?
Yes, a 16 volt battery can be used with all of the E6 and E7 ignitions. Power can be run directly from the battery terminals to the ignition’s heavy gauge power supply wires. Note that the FAST HEI Distributors, street and race, cannot be connected directly to a 16 volt battery.

Do all of the FAST Race Billet Distributors feature locked-out timing?
Other than the street HEI distributor, all FAST distributors feature locked-out timing. In performance and racing applications, we have found that most racers do not need a centrifugal timing curve, or plot a timing map through their FAST EFI system. Therefore our distributors are locked-out and will not accept a centrifugal advance assembly.


Page 33
Limited Warranty
Any warranty claims must go directly to Fast. Not RPM.

Limited Warranty and Limited Lifetime Warranty
FAST™ warrants that its EZ-EFI® products are free from defects in material and workmanship for the lifetime of the product. This Limited Lifetime Warranty shall cover only the original purchaser. All other FAST™ products are covered by a Limited Warranty which covers defects in material and workmanship for a period of one year from the date of purchase.

FAST’s obligation under this warranty is limited to the repair or replacement of its product. To make a warranty claim, the part must be returned directly to FAST™ at the address listed below with a valid Return Merchant Authorization Number (RMA), freight prepaid. Items covered under warranty will be returned to you freight collect. To obtain an RMA, call 877-334-8355 to report the issue you are experiencing. At that time, FAST™ will attempt to troubleshoot your issue.

Fuel Air Spark Technology™
3400 Democrat Road
Memphis, TN, 38118 USA

It is the responsibility of the installer to ensure that all of the components are correct before installation. We assume no liability for any errors made in tolerances, component selection or installation.

There is absolutely no warranty on the following:

A. Any parts used in racing applications or subject to excessive wear;
B. Any product used in marine applications, unless that product is listed by FAST™ as a specific marine product;
C. Any product that has been physically altered improperly installed or maintained;
D. Any product used in improper applications, abused, or not used in conjunction with the proper parts.

There are no implied warranties of merchantability or fitness for a particular purpose. There are no warranties which extend beyond the description of the face hereof. FAST™ will not be responsible for incidental and consequential damages, property damage or personal injury damages. Where required by law, implied warranties or merchantability and fitness are limited to terms outline above.

This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
Making a Warranty Claim

A. Contact FAST™ within the warranty period at 3400 Democrat Rd, Memphis, TN 38118 or by phone at (901) 260-3278 Monday – Friday 8:00 a.m. to 5:00 p.m. CST. Before any merchandise is returned for warranty, please contact FAST™ to obtain a Return Material Authorization (RMA). FAST™ will need a specific and detailed description of your problem, along with the type of product and information about you for contact purposes.
B. Send the merchandise, freight prepaid and insured to FAST™ at the address below, along with dated proof of purchase. All merchandise returned for warranty must be accompanied by an RMA. The purchaser must prepay transportation charges for return of defective parts. FAST™ is not liable
for any taxes or duties associated with international shipments.





Page 34

The Leading Name In
Fuel Air Spark Technology.

FAST® has long been recognized as the leading developer of advanced electronic fuel injection technology. Year after year, our engineers have created innovative new products never before seen in the EFI performance aftermarket. And with technical assistance that is beyond comparison, FAST® has been able to build close relationships with customers, many of which have helped our Research & Development team stay on top.

FAST® continues to drive the aftermarket industry by introducing a full line of ignition products that includes ignition boxes, coils, distributors, points conversion kits and all of the high performance ignition components and accessories you need. With a complete line of superior, easy-to-use EFI systems, intake manifolds, ignition systems and other components, FAST® is committed to bringing you FUEL. AIR. SPARK. TECHNOLOGY.

HOME
